SIEMENS
High-performance Universal Current Circuit Breaker designed for both AC and DC applications. Featuring a 10A rated current and a 2-pole configuration, this C-characteristic MCB provides reliable protection with a 10kA breaking capacity, making it ideal for demanding industrial environments.

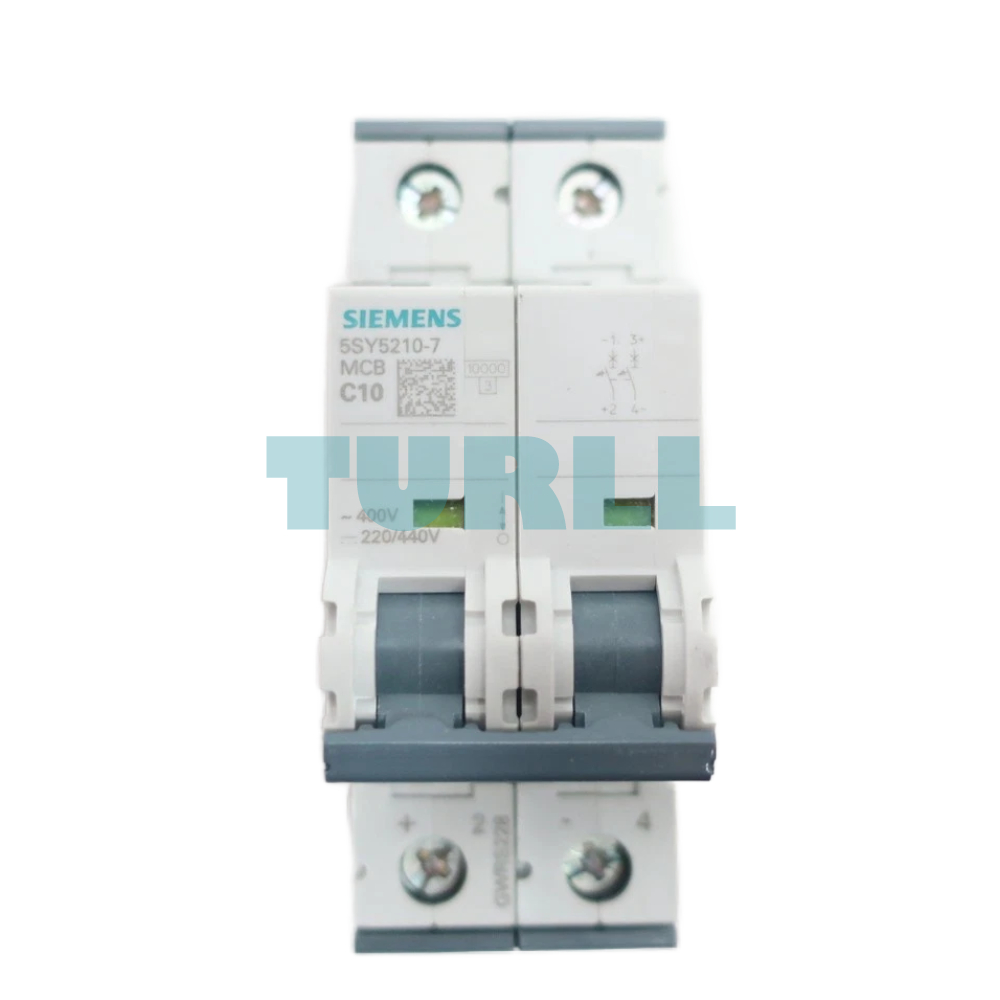

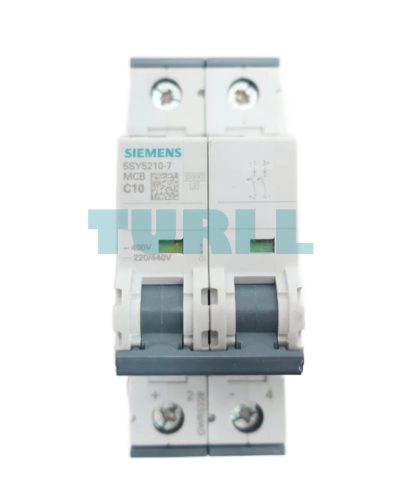

The Siemens 5SY5210-7 belongs to the premium 5SY5 series, engineered for versatility and safety. This Miniature Circuit Breaker (MCB) is uniquely designed to handle universal current, allowing it to function seamlessly in 440 V DC systems and 400 V AC networks.
Whether you are protecting sensitive industrial controls or renewable energy infrastructure, the 5SY5210-7 offers the precision of a C-type tripping characteristic, which is perfect for circuits with moderate peak starting currents.
Dual Current Compatibility: Optimized for both Alternating Current (AC) and Direct Current (DC) applications.
Enhanced Safety: The 10kA breaking capacity ensures robust protection against short circuits and overloads.
Space-Saving Design: The 2-pole construction provides comprehensive circuit interruption in a compact form factor.
Industrial Durability: Built to Siemens’ rigorous quality standards for long-term operational reliability.
Overload Protection: Thermal tripping element for sustained overcurrent conditions.
Short-Circuit Protection: Electromagnetic tripping for instantaneous response to faults.
Universal Application: Specifically designed for DC voltages up to 440 V, common in battery systems and solar PV applications.
Brand: Siemens
Product Number: 5SY5210-7
Rated Current: 10 A
Number of Poles: 2-Pole
Tripping Characteristic: Type C
Rated Voltage: 400 V AC / 440 V DC
Breaking Capacity: 10 kA
Current Type: Universal Current (AC/DC)
Visit 5SY5210-7 for more detail info
For more our products visit turll
| SKU / Model | 5SY5210-7 |
|---|---|
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 2 |
| design of pole | 2P |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC/DC |
| insulation voltage (Ui) | - |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage | - |
| ● at DC / rated value | 440 V |
| operating voltage / at DC / rated value / maximum | 500 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | - |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 10 kA |
| energy limitation class | 3 |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.1 W |
| operational current | - |
| ● at 35 °C / rated value | 10 A |
| ● at 40 °C / rated value | 9.39 A |
| ● at 45 °C / rated value | 9.07 A |
| ● at 50 °C / rated value | 8.74 A |
| ● at 55 °C / rated value | 8.4 A |
| ● at 60 °C / rated value | 8.04 A |
| ● at AC / rated value | 10 A |
| suitability for operation | universal current |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | - |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | - |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | - |
| ● at DC / acc. to EN 60898-2 | 10 kA |
| connectable conductor cross-section / solid | - |
| connectable conductor cross-section / stranded | - |
| connectable conductor cross-section / finely stranded / with core end processing | - |
| AWG number / as coded connectable conductor cross section | - |
| tightening torque [lbf·in] / with screw-type terminals | - |
| tightening torque / with screw-type terminals | - |
| position / of power supply cord | AC as required, observe DC polarity |
| installation depth | 70 mm |
| number of modular width units | 2 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | - |
| ambient temperature / during storage | - |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | - |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
| Weight | 0.305 kg |
| Dimensions | 40.00 × 92.00 × 84.00 mm |
