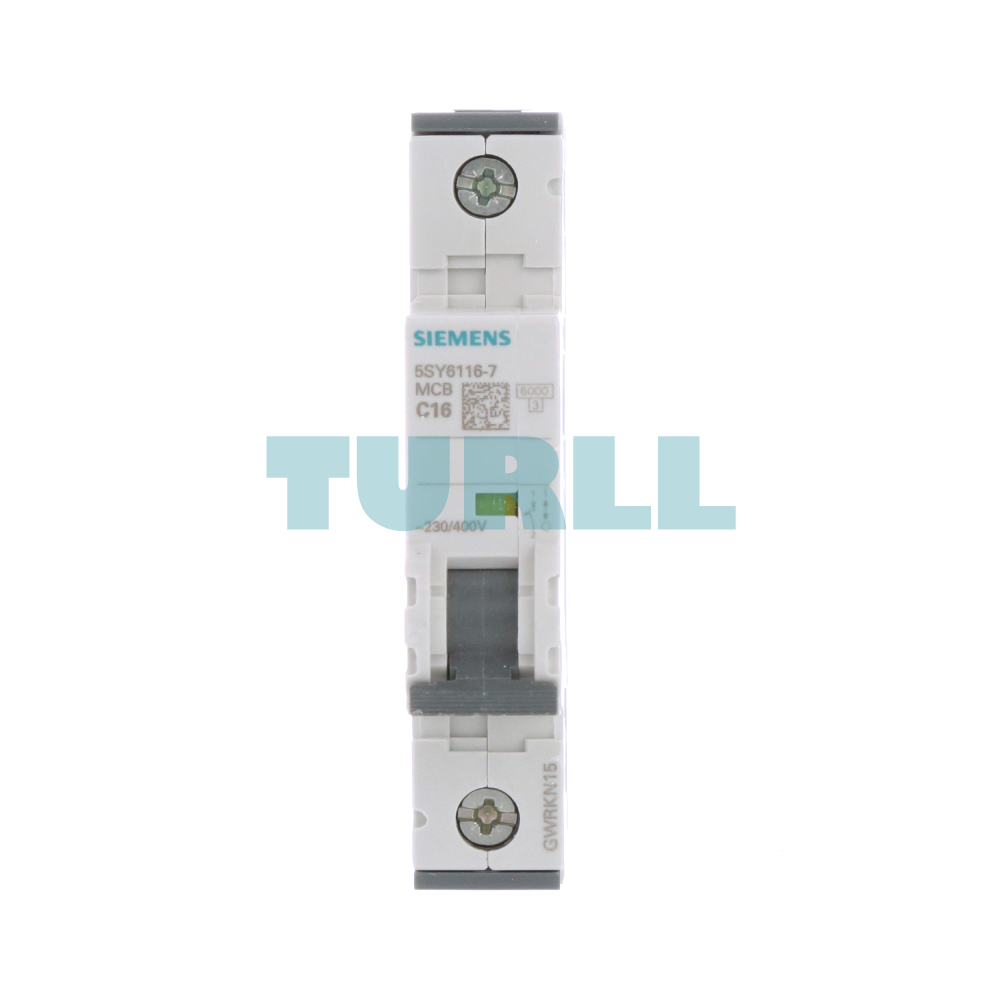

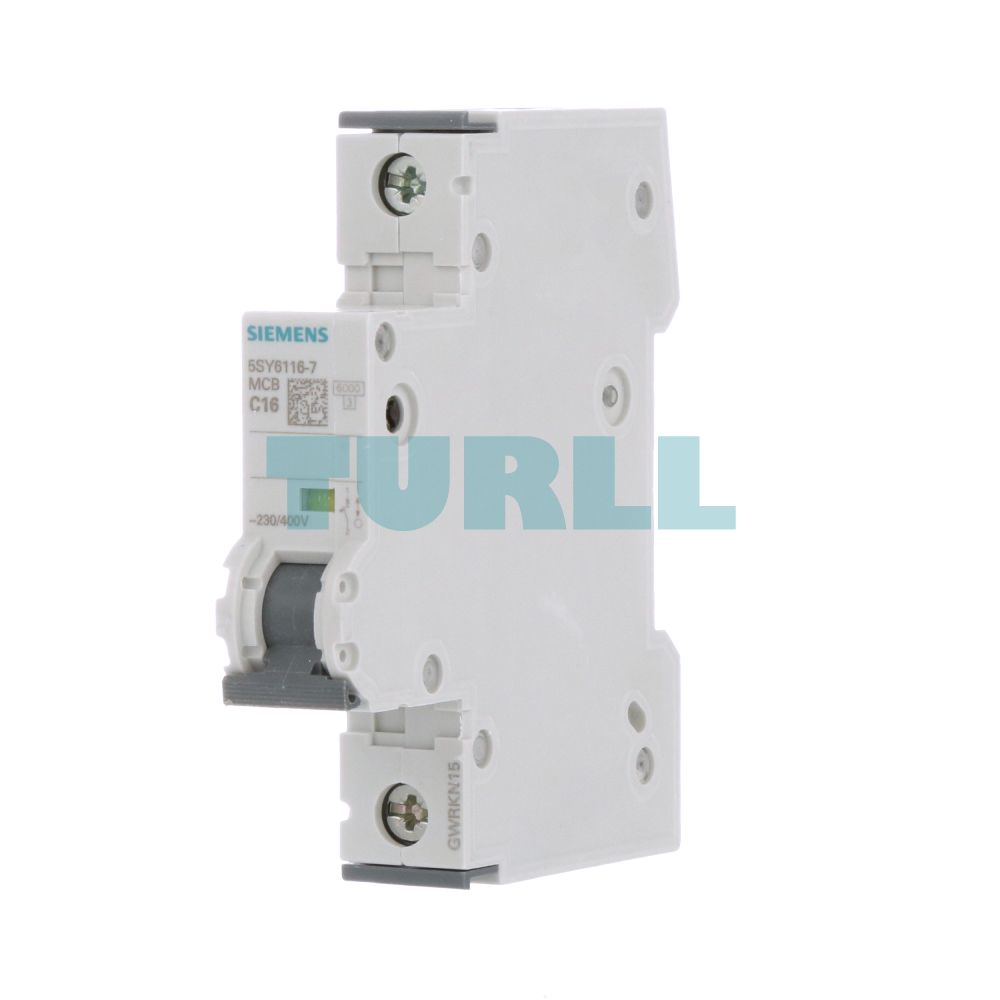

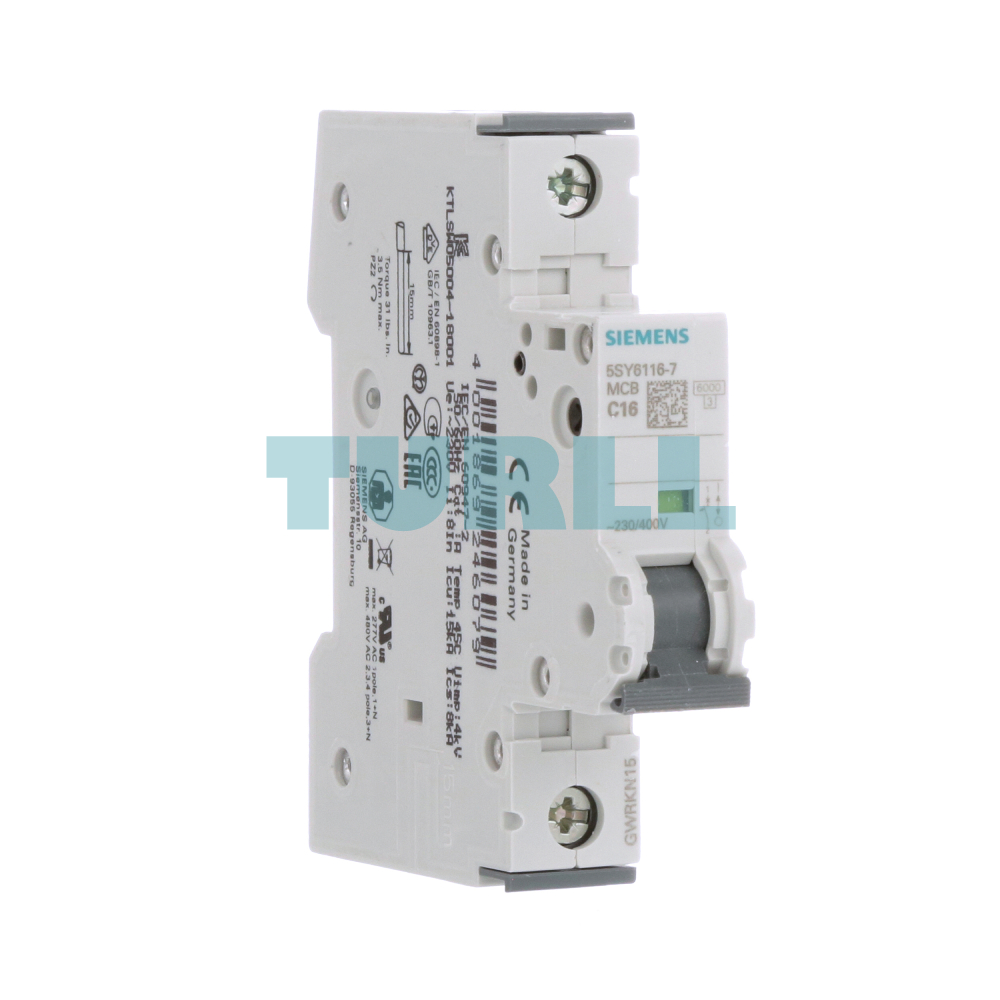

Siemens 5SY6116-7 Miniature Circuit Breaker 1-Pole, C-Curve, 16A, 6kA, 230/400V Original Brand New

Model / SKU5SY6116-7

High-performance 1-pole miniature circuit breaker from the SENTRON series. Featuring a 16A current rating and a Type C tripping characteristic, it provides reliable protection against overloads and short circuits in 230/400V electrical systems with a 6kA breaking capacity.

Original price was: $21.55.Current price is: $9.86.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 5SY6116-7 Miniature Circuit Breaker (MCB) is a high-quality electrical protection device designed to safeguard electrical circuits against overloads and short circuits. Built to Siemens’ stringent standards, this 1-pole MCB delivers reliable performance in residential, commercial, and light industrial applications. With a C-curve tripping characteristic, it is ideal for circuits with moderate inrush currents, ensuring both safety and operational stability.

Key Benefit

  • Enhanced Safety: Provides superior protection for cables and lines against thermal overload and short circuits.

  • Reliable Performance: Engineered by Siemens to meet stringent international standards (IEC/EN 60898-1).

  • Easy Installation: Features a user-friendly design for quick DIN rail mounting and secure wiring.

  • Longevity: Built with high-quality materials to ensure a long operational lifespan even in demanding environments.

Function

  • Automatically disconnects the circuit during overload or short-circuit conditions

  • Ensures safe operation of electrical systems and connected equipment

  • Reduces risk of electrical fires and component damage

  • Provides fast and reliable tripping with C-curve response

Technical Specification

  • Rated Voltage: 230/400 V AC

  • Rated Current: 16A

  • Breaking Capacity: 6kA

  • Number of Poles: 1-Pole

  • Tripping Characteristic: C Curve

  • Depth (D): 70 mm

  • Mounting Type: DIN Rail

Visit 5SY6116-7 for more detail info

For more our products visit turll

Download

Datasheet in PDF

Specifications

SKU / Model5SY6116-7
BrandSIEMENS
product brand nameSENTRON
product designationMiniature circuit breaker
number of poles1
design of pole1P
tripping characteristic classC
mechanical service life (switching cycles) / typical10 000
overvoltage categoryIII
degree of pollution3
type of voltage / of the operating voltageAC
insulation voltage (Ui)-
● with single-phase operation / at AC / rated value440 V
● with multi-phase operation / at AC / rated value440 V
supply voltage / with single-phase operation / at AC / rated value230 V
supply voltage-
operating voltage / at DC / rated value / maximum72 V
protection class IPIP20, with connected conductors
switching capacity current-
● at DC / acc. to IEC 60947-2 / rated value15 kA
● acc. to EN 60898 / rated value6 kA
● acc. to IEC 60947-2 / rated value15 kA
energy limitation class3
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole1.6 W
operational current-
● at 35 °C / rated value16 A
● at 40 °C / rated value15.02 A
● at 45 °C / rated value14.51 A
● at 50 °C / rated value13.98 A
● at 55 °C / rated value13.44 A
● at AC / rated value16 A
suitability for operationMechanical engineering / industry
product component / neutral conductor switchingNo
product feature / touch protectionYes
product component-
● combined terminal topYes
● combined terminal bottomYes
product feature-
● properties for main switches in accordance with EN 60204-1Yes
● halogen-freeYes
● sealableYes
● silicon-freeYes
product extension / installable / supplementary devicesYes
breaking capacity short-circuit current (Icn)-
● at AC / acc. to UL 1077 and CSA C22.2 No.2355 kA
connectable conductor cross-section / solid-
connectable conductor cross-section / stranded-
connectable conductor cross-section / finely stranded / with core end processing-
AWG number / as coded connectable conductor cross section-
tightening torque [lbf·in] / with screw-type terminals-
tightening torque / with screw-type terminals-
position / of power supply cordAny
installation depth70 mm
number of modular width units1
fastening methodQuick assembly system
mounting positionany
influence of the surrounding temperaturemax. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C
vibration resistance / acc. to IEC 60068-2-6±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz
ambient temperature / during operation-
ambient temperature / during storage-
● minimum-40 °C
● maximum75 °C
number of test cycles / for environmental testing / acc. to IEC 60068-2-306
reference code-
● acc. to DIN EN 61346-2F
● acc. to IEC 81346-2F
Weight0.150 kg
Dimensions21.00 × 93.00 × 83.00 mm
