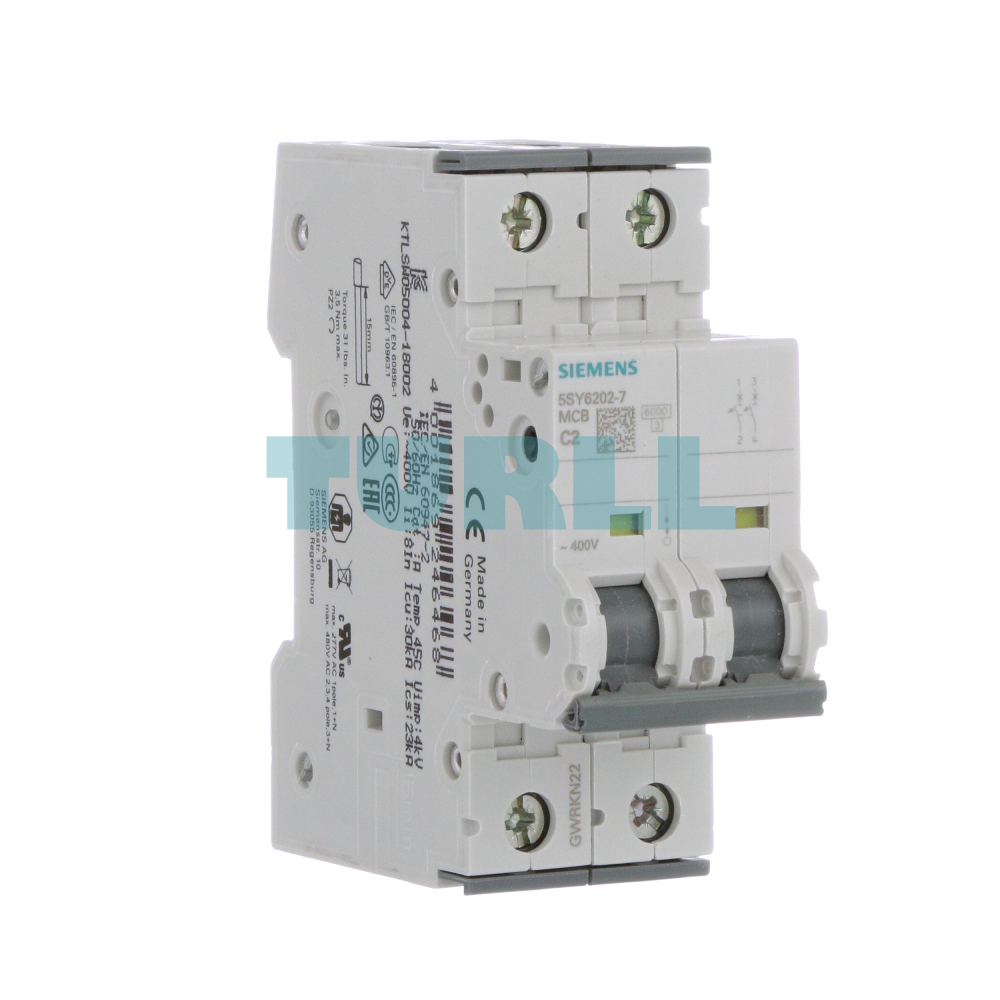

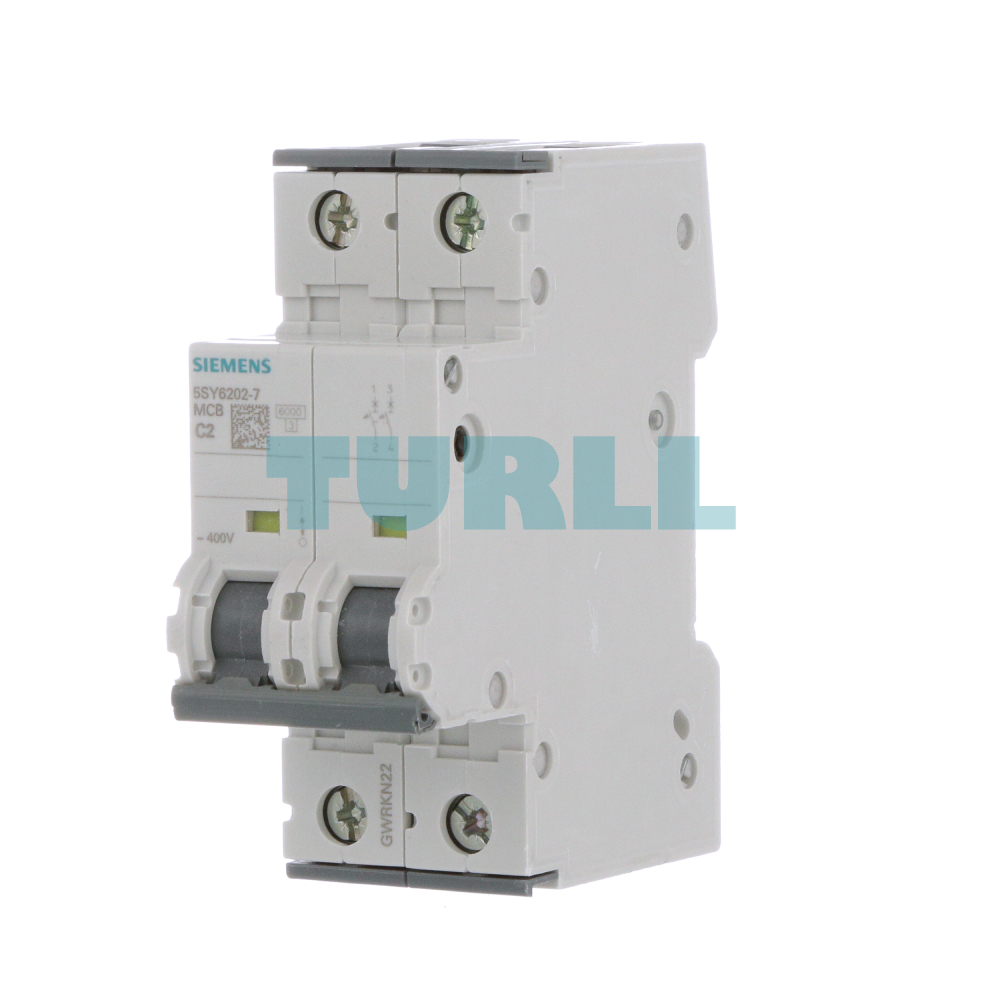

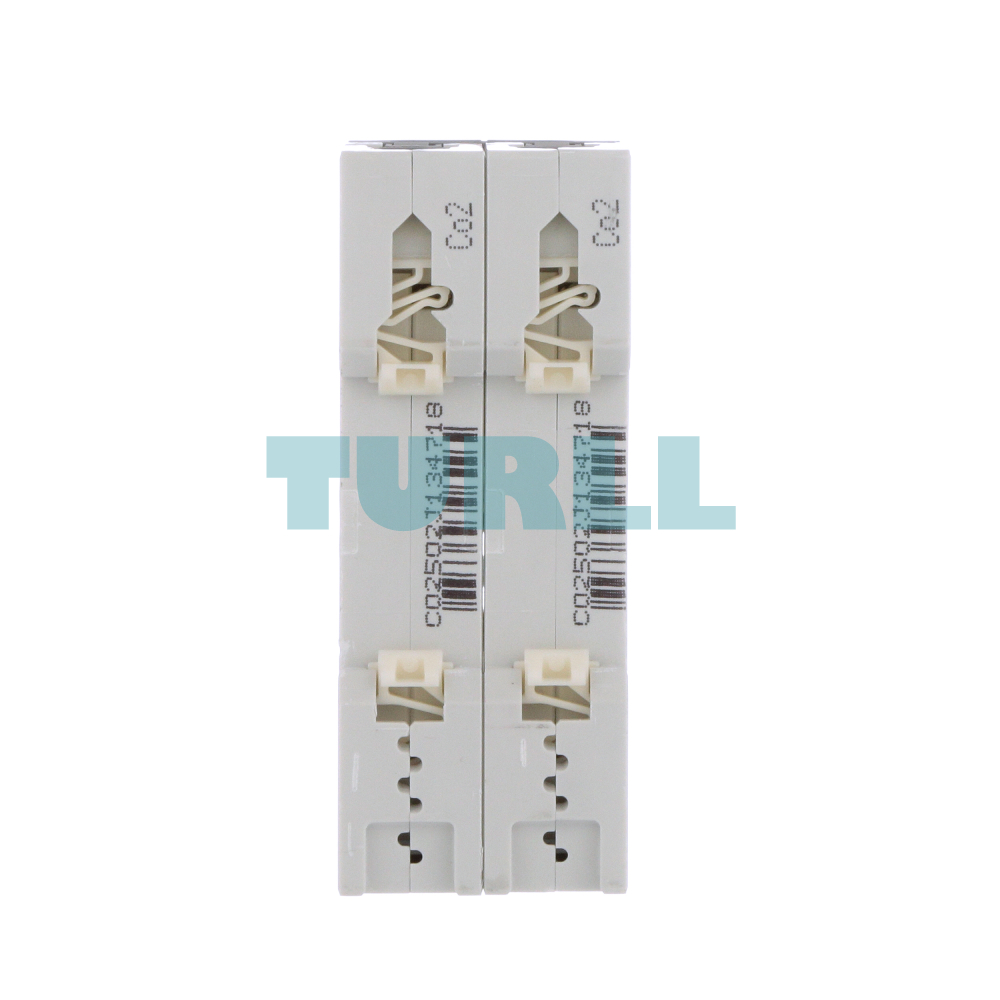

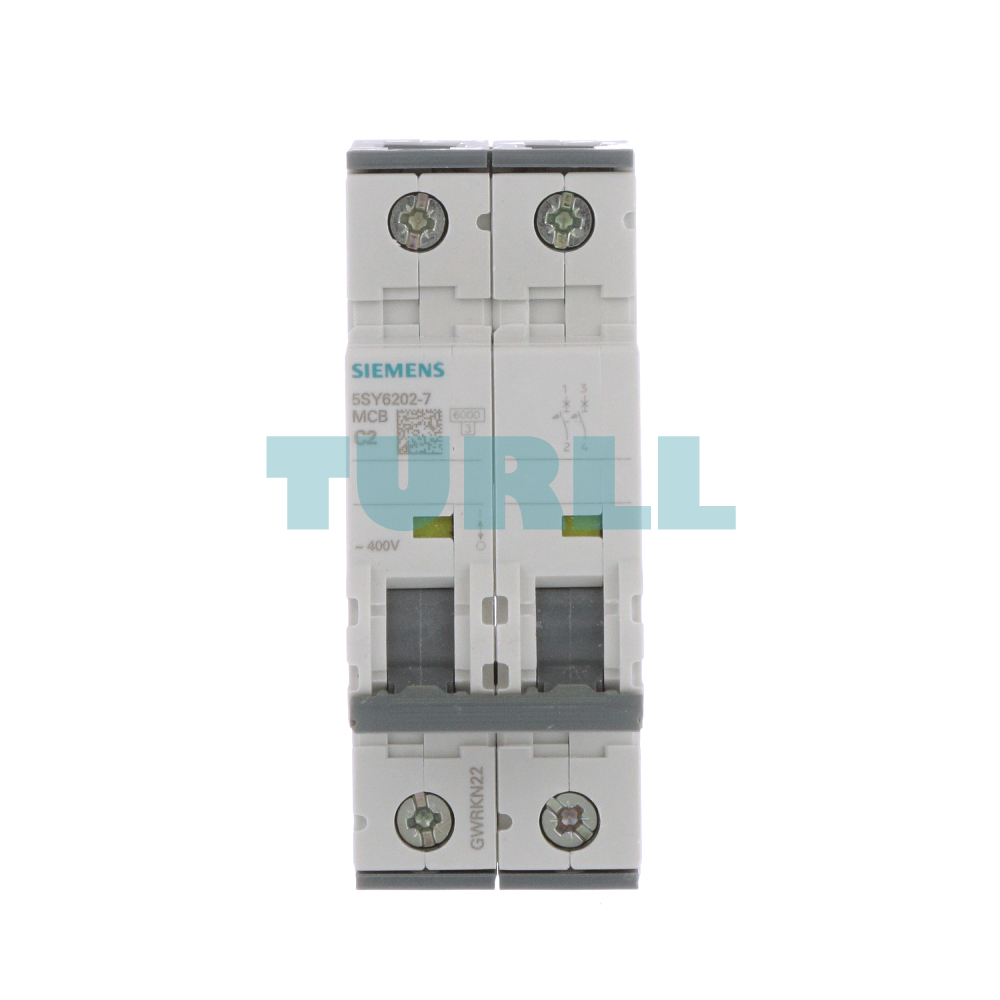

Siemens 5SY6202-7 Miniature Circuit Breaker 2-Pole, 2A, C-Type, 400V, 6kA Original Brand New
$68.34
High-performance 2-pole miniature circuit breaker designed for 400V AC applications. Featuring a Type C tripping characteristic and a 2A rated current, this 70mm deep MCB provides robust protection against short circuits and overloads in industrial and residential electrical systems.
Availability: In stock
Overview
The Siemens 5SY6202-7 is a high-quality miniature circuit breaker (MCB) designed for optimal protection of electrical circuits. With a compact design and reliable C-type tripping characteristic, it safeguards your electrical installations from overloads and short circuits. Rated at 2A, 2-pole, and 400V with a breaking capacity of 6kA, this breaker is perfect for residential, commercial, and industrial applications. Its D=70mm compact size makes it easy to install in distribution boards.
Key Benefit
-
Reliable Protection: Safeguards electrical circuits from overloads and short circuits.
-
Durable & Long-lasting: Built with Siemens’ high-quality engineering standards for long-term performance.
-
Compact Design: D=70mm width fits easily into standard distribution panels.
-
Easy Installation: Simple and efficient mounting for quick setup.
-
Versatile Applications: Suitable for residential, commercial, and industrial environments.
Features / Function
-
Type: Miniature Circuit Breaker (MCB)
-
Poles: 2
-
Rated Current: 2A
-
Tripping Characteristic: C-type
-
Voltage Rating: 400V AC
-
Breaking Capacity: 6kA
-
Width: D=70 mm
-
Compact design for easy installation in distribution boards
-
High reliability with Siemens quality standards
Visit 5SY6202-7 for more detail info
For more our products visit turll
Download
| Weight | 0.315 kg |
|---|---|
| Dimensions | 40.00 × 92.00 × 84.00 mm |
| Brand | SIEMENS |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 2 |
| design of pole | 2P |
| tripping characteristic class | C |
| mechanical service life (switching cycles) / typical | 10 000 |
| overvoltage category | III |
| degree of pollution | 3 |
| type of voltage / of the operating voltage | AC |
| insulation voltage (Ui) | – |
| ● with single-phase operation / at AC / rated value | 440 V |
| ● with multi-phase operation / at AC / rated value | 440 V |
| supply voltage / with single-phase operation / at AC / rated value | 230 V |
| supply voltage | – |
| operating voltage / at DC / rated value / maximum | 72 V |
| protection class IP | IP20, with connected conductors |
| switching capacity current | – |
| ● at DC / acc. to IEC 60947-2 / rated value | 15 kA |
| ● acc. to EN 60898 / rated value | 6 kA |
| ● acc. to IEC 60947-2 / rated value | 30 kA |
| energy limitation class | 3 |
| power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | 1.2 W |
| operational current | – |
| ● at 35 °C / rated value | 2 A |
| ● at 40 °C / rated value | 1.9 A |
| ● at 45 °C / rated value | 1.85 A |
| ● at 50 °C / rated value | 1.8 A |
| ● at 55 °C / rated value | 1.75 A |
| ● at AC / rated value | 2 A |
| suitability for operation | Mechanical engineering / industry |
| product component / neutral conductor switching | No |
| product feature / touch protection | Yes |
| product component | – |
| ● combined terminal top | Yes |
| ● combined terminal bottom | Yes |
| product feature | – |
| ● properties for main switches in accordance with EN 60204-1 | Yes |
| ● halogen-free | Yes |
| ● sealable | Yes |
| ● silicon-free | Yes |
| product extension / installable / supplementary devices | Yes |
| breaking capacity short-circuit current (Icn) | – |
| ● at AC / acc. to UL 1077 and CSA C22.2 No.235 | 5 kA |
| connectable conductor cross-section / solid | – |
| connectable conductor cross-section / stranded | – |
| connectable conductor cross-section / finely stranded / with core end processing | – |
| AWG number / as coded connectable conductor cross section | – |
| tightening torque [lbf·in] / with screw-type terminals | – |
| tightening torque / with screw-type terminals | – |
| position / of power supply cord | Any |
| installation depth | 70 mm |
| number of modular width units | 2 |
| fastening method | Quick assembly system |
| mounting position | any |
| influence of the surrounding temperature | max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C |
| vibration resistance / acc. to IEC 60068-2-6 | ±1mm at 5 to 25Hz; 50m/s² at 25 to 150Hz |
| ambient temperature / during operation | – |
| ambient temperature / during storage | – |
| ● minimum | -40 °C |
| ● maximum | 75 °C |
| number of test cycles / for environmental testing / acc. to IEC 60068-2-30 | 6 |
| reference code | – |
| ● acc. to DIN EN 61346-2 | F |
| ● acc. to IEC 81346-2 | F |
