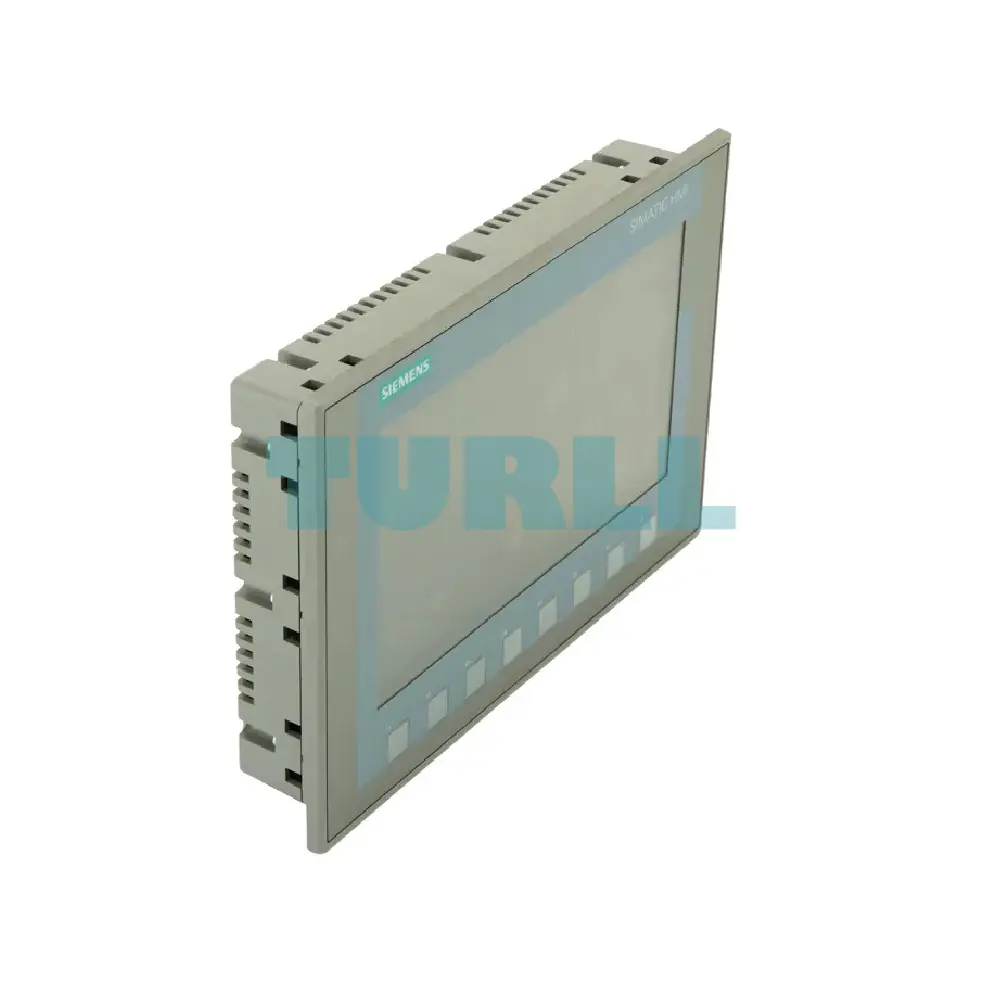

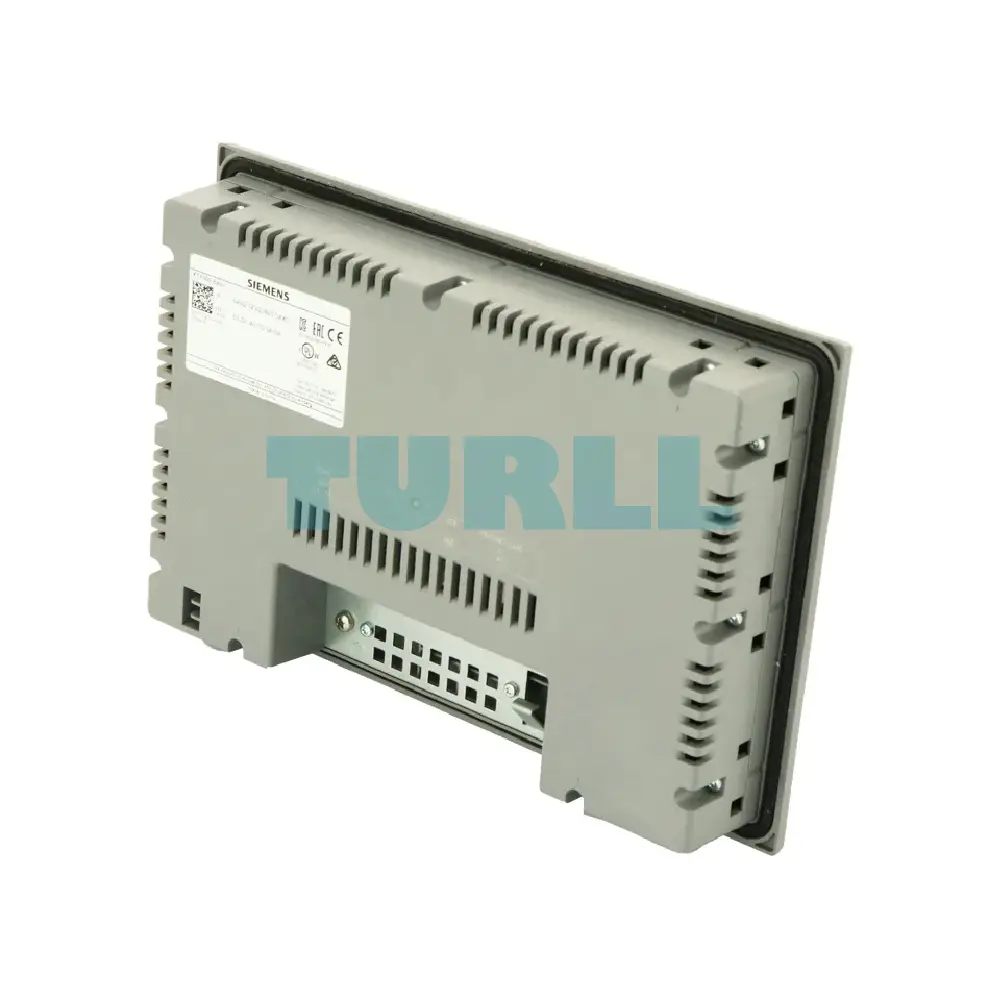

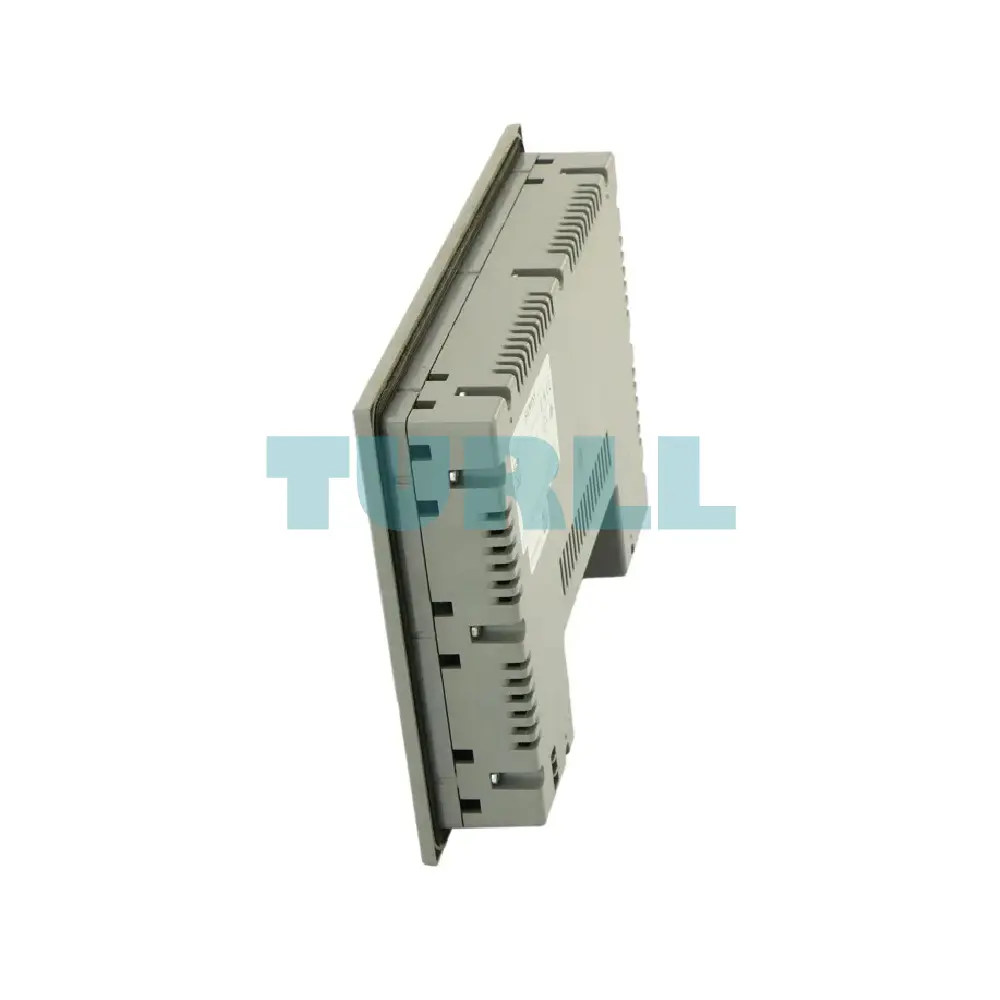

Siemens 6AV2123-2JB03-0AX0 SIMATIC HMI KTP900, Basic Panel, 9" TFT, Key/Touch Operation
Siemens 6AV2123-2JB03-0AX0 SIMATIC HMI KTP900, Basic Panel, 9" TFT, Key/Touch Operation
Siemens 6AV2123-2JB03-0AX0 SIMATIC HMI KTP900, Basic Panel, 9" TFT, Key/Touch Operation
Siemens 6AV2123-2JB03-0AX0 SIMATIC HMI KTP900, Basic Panel, 9" TFT, Key/Touch Operation
Siemens 6AV2123-2JB03-0AX0 SIMATIC HMI KTP900, Basic Panel, 9" TFT, Key/Touch Operation

SIEMENS

Siemens 6AV2123-2JB03-0AX0 SIMATIC HMI KTP900, Basic Panel, 9″ TFT, Key/Touch Operation Original Brand New

Model / SKU6AV2123-2JB03-0AX0

Siemens SIMATIC HMI KTP900 Basic Panel is an intuitive, cost-effective operator interface featuring a vibrant 9-inch TFT display. It supports both key and touch operation and offers seamless integration via the PROFINET interface. Easily configure your visualization tasks using WinCC Basic V13 or STEP 7 Basic V13, making it the ideal choice for simple machine-level HMI applications.

Original price was: $1,893.67.Current price is: $656.48.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens SIMATIC HMI KTP900 Basic Panel is a versatile and user-friendly Human Machine Interface (HMI) designed for efficient industrial automation control. Featuring a 9-inch TFT display with 65,536 colors, it supports both key and touch operations for seamless interaction. Its PROFINET interface ensures high-speed communication and reliable connectivity in automated systems.

Easily configurable using WinCC Basic V13 or STEP 7 Basic V13, the KTP900 Basic Panel empowers engineers to design and implement automation processes efficiently. The panel includes open-source software provided free of charge, enabling flexible customization and enhanced functionality. Ideal for manufacturing, process control, and industrial applications, this HMI delivers high performance and reliability in a compact design.

Key Benefit

  • User-Friendly Operation: Key/touch interface ensures intuitive control and ease of use.

  • High-Quality Display: 9" TFT with 65,536 colors for clear visualization of process data.

  • Fast Communication: Integrated PROFINET interface for seamless system integration.

  • Flexible Configuration: Compatible with WinCC Basic V13 and STEP 7 Basic V13.

  • Open-Source Software Included: Free software CD enhances customization options.

  • Reliable Industrial Solution: Durable and compact design for industrial environments.

Functions / Features

  • 9-inch TFT color display (65,536 colors)

  • Key and touch operation support

  • PROFINET communication interface

  • Configurable via WinCC Basic V13 / STEP 7 Basic V13

  • Free open-source software included

  • Robust design suitable for industrial automation

Download

Datasheet in PDF

Visit 6AV2123-2JB03-0AX0 for more detail info

For more our products visit turll



Specifications

SKU / Model6AV2123-2JB03-0AX0
BrandSIEMENS
Product type designationKTP900 Basic color PN
Design of displayTFT widescreen display, LED backlighting
Screen diagonal9 in
Display width198 mm
Display height111.7 mm
Number of colors65 536
● Horizontal image resolution800 pixel
● Vertical image resolution480 pixel
● MTBF backlighting (at 25 °C)20 000 h
● Backlight dimmableYes
● Function keys-
— Number of function keys8
— Number of function keys with LEDs0
● Keys with LEDNo
● System keysNo
● Numeric keyboardYes; Onscreen keyboard
● alphanumeric keyboardYes; Onscreen keyboard
● Design as touch screenYes; Analog-resistive
Mounting positionvertical
Mounting in portrait format possibleYes
Mounting in landscape format possibleYes
maximum permissible angle of inclination without external ventilation35°
Type of supply voltageDC
Rated value (DC)24 V
permissible range, lower limit (DC)19.2 V
permissible range, upper limit (DC)28.8 V
Current consumption (rated value)230 mA
Starting current inrush I²t0.2 A²·s
Active power input, typ.5.5 W
Processor typeARM
FlashYes
RAMYes
Memory available for user data10 Mbyte
Acoustics-
● BuzzerYes
● SpeakerNo
● Hardware clock (real-time)Yes
● Software clockYes
● retentiveYes; Back-up duration typically 6 weeks
● synchronizableYes
Number of industrial Ethernet interfaces1
Number of RS 485 interfaces0
Number of RS 422 interfaces0
Number of RS 232 interfaces0
Number of USB interfaces1; Up to 16 GB
Number of 20 mA interfaces (TTY)0
Number of parallel interfaces0
Number of other interfaces0
Number of SD card slots0
With software interfacesNo
● Industrial Ethernet status LED2
PROFINETYes
Supports protocol for PROFINET IONo
IRTNo
PROFIBUSNo
EtherNet/IPYes
MPINo
● TCP/IPYes
● DHCPYes
● SNMPYes
● DCPYes
● LLDPYes
● HTTPNo
● HTMLNo
— MRPNo
● CANNo
● MODBUSYes; Modicon (MODBUS TCP/IP)
● Diagnostic information readableNo
● Limit class A, for use in industrial areasYes
● Limit class B, for use in residential areasNo
IP (at the front)IP65
IP (rear)IP20
NEMA (front)-
● Enclosure Type 4 at the frontYes
● Enclosure Type 4x at the frontYes
CE markYes
cULusYes
RCM (formerly C-TICK)Yes
KC approvalYes
● ATEX Zone 2No
● ATEX Zone 22No
● IECEx Zone 2No
● IECEx Zone 22No
● cULus Class I Zone 1No
● cULus Class I Zone 2, Division 2No
● FM Class I Division 2No
● Germanischer Lloyd (GL)Yes
● American Bureau of Shipping (ABS)Yes
● Bureau Veritas (BV)Yes
● Det Norske Veritas (DNV)Yes
● Lloyds Register of Shipping (LRS)Yes
● Nippon Kaiji Kyokai (Class NK)Yes
● Polski Rejestr Statkow (PRS)No
● Chinese Classification Society (CCS)No
— For vertical installation, min.0 °C
— For vertical installation, max.40 °C
— At maximum tilt angle, min.35 °C
● min.-20 °C
● max.60 °C
● Operation, max.90 %; no condensation
proprietaryYes
● Windows CENo
Message indicatorYes
Alarm system (incl. buffer and acknowledgment)Yes
Process value display (output)Yes
Process value default (input) possibleYes
Recipe managementYes
● STEP 7 Basic (TIA Portal)Yes; via integrated WinCC Basic (TIA Portal)
● STEP 7 Professional (TIA Portal)Yes; via integrated WinCC Basic (TIA Portal)
● WinCC flexible CompactNo
● WinCC flexible StandardNo
● WinCC flexible AdvancedNo
● WinCC Basic (TIA Portal)Yes
● WinCC Comfort (TIA Portal)Yes
● WinCC Advanced (TIA Portal)Yes
● WinCC Professional (TIA Portal)Yes
● Number of online/runtime languages10
● Languages per project32
LibrariesYes
Applications/options-
● Web browserYes
● SIMATIC WinCC Sm@rtServerYes; Available with WinCC (TIA Portal) V14 or higher
Number of Visual Basic ScriptsNo
Task plannerYes
● time-controlledNo
● task-controlledYes
Help systemYes
● Number of characters per info text500
● Number of alarm classes32
● Bit messages-
— Number of bit messages1 000
● Analog messages-
— Number of analog messages25
● S7 alarm number procedureNo
● System messages HMIYes
● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Yes; System message buffer of the SIMATIC S7-1200 and S7-1500
● Number of characters per message80
● Number of process values per message8
● Acknowledgment groupsYes
● Message indicatorYes
● Message buffer-
— Number of entries256
— Circulating bufferYes
— retentiveYes
— maintenance-freeYes
● Number of recipes50
● Data records per recipe100
● Entries per data record100
● Size of internal recipe memory256 kbyte
● Recipe memory expandableNo
● Number of variables per device800
● Number of variables per screen100
● Limit valuesYes
● MultiplexingYes
● StructuresNo
● ArraysYes
● Number of configurable images250
● Permanent window/defaultYes
● Global imageYes
● Pop-up imagesNo
● Slide-in imagesNo
● Image selection by PLCYes
● Image number in the PLCYes
● Number of objects per image100
● Text fieldsYes
● I/O fieldsYes
● Graphic I/O fields (graphics list)Yes
● Symbolic I/O fields (text list)Yes
● SwitchesYes
● ButtonsYes
● Graphic displayYes
● IconsYes
● Geometric objectsYes
● Number of complex objects per screen10
● Alarm viewYes
● Trend viewYes
● User viewYes
● Status/controlNo
● Sm@rtClient viewNo
● Recipe viewYes
● f(x) trend viewNo
● System diagnostics viewYes; System message buffer of the SIMATIC S7-1200 and S7-1500
● Media PlayerNo
● HTML browserYes
● PDF displayNo
● IP camera displayNo
● Bar graphsYes
● SlidersNo
● Pointer instrumentsNo
● Analog/digital clockNo
● Number of text lists per project300
● Number of entries per text list100
● Number of graphics lists per project100
● Number of entries per graphics list100
● Number of archives per device2; One message and one process value archive
● Number of entries per archive10 000
● Message archiveYes
● Process value archiveYes
● Archiving methods-
— Sequential archiveYes
— Short-term archiveYes
● Memory location-
— Memory cardNo
— USB memoryYes
— EthernetNo
● Data storage format-
— CSVNo
— TXTYes
— RDBNo
Product ConditionBrand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good
Weight1.130 kg
Dimensions23.50 × 33.00 × 6.60 mm
