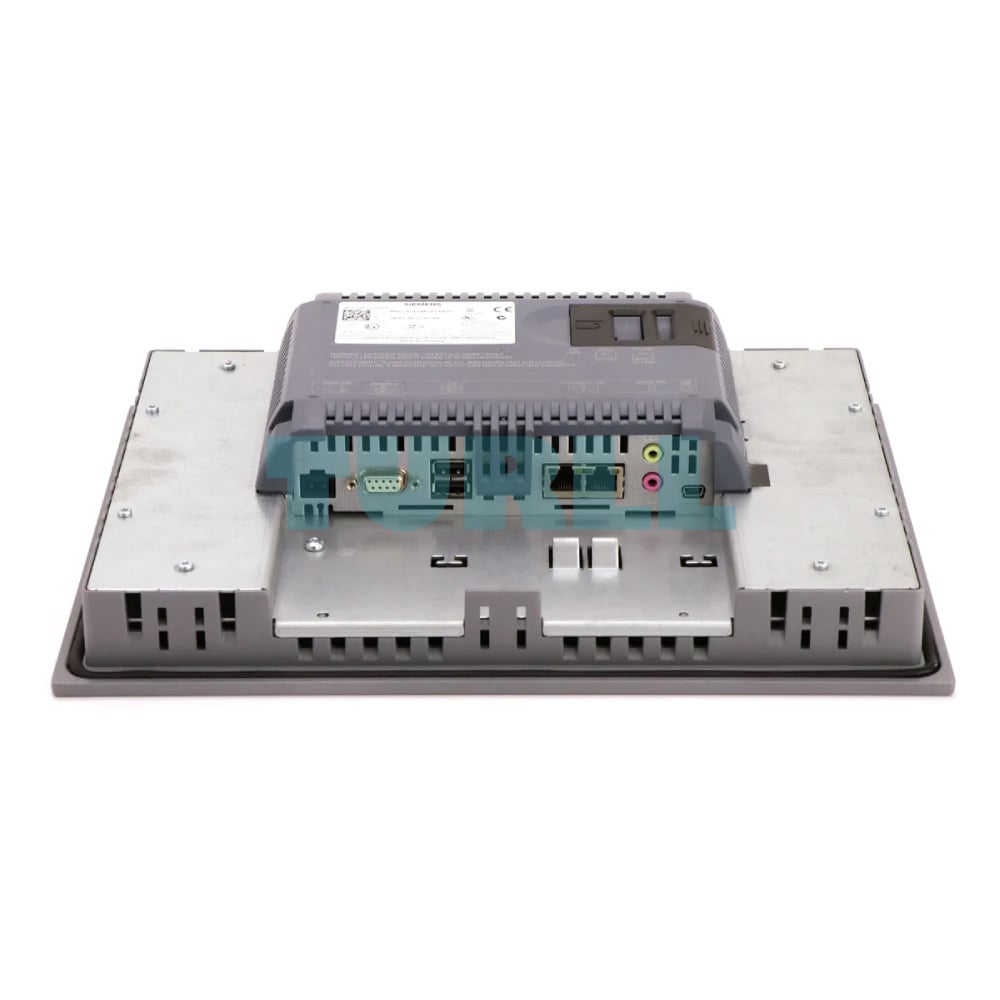

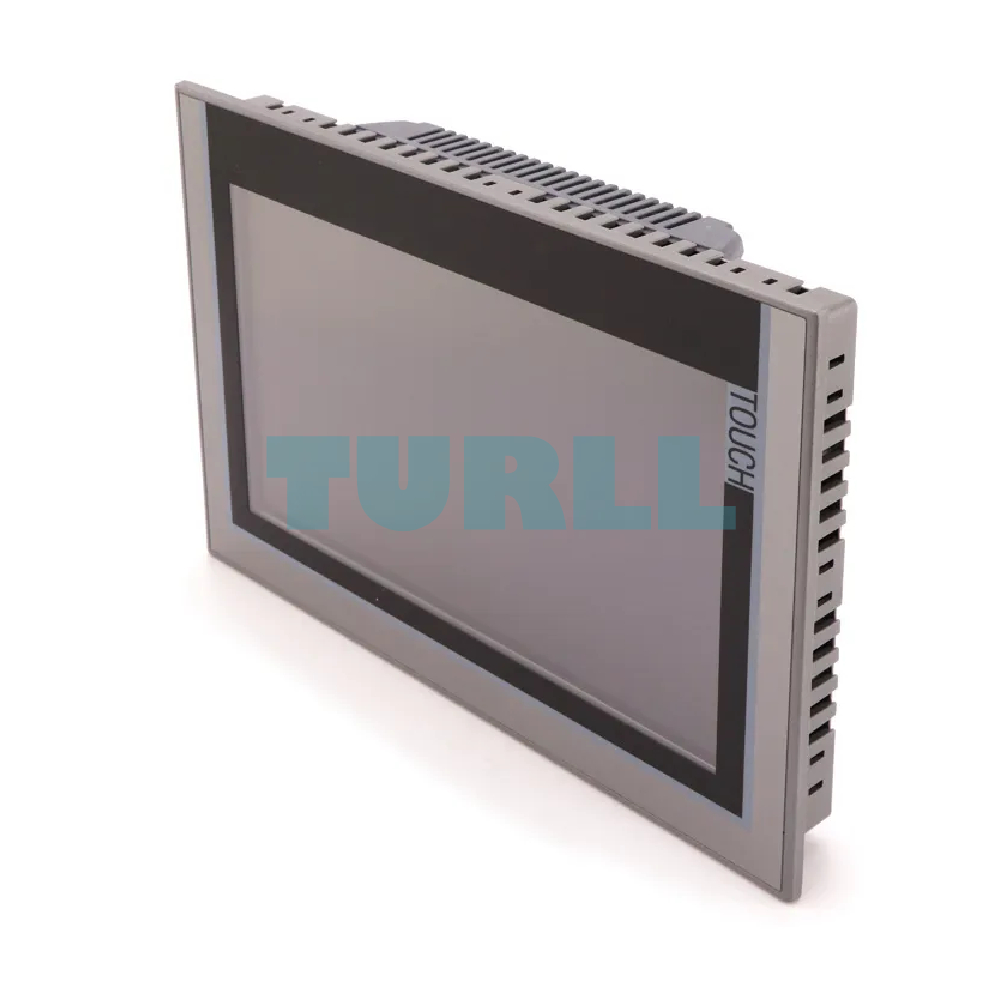

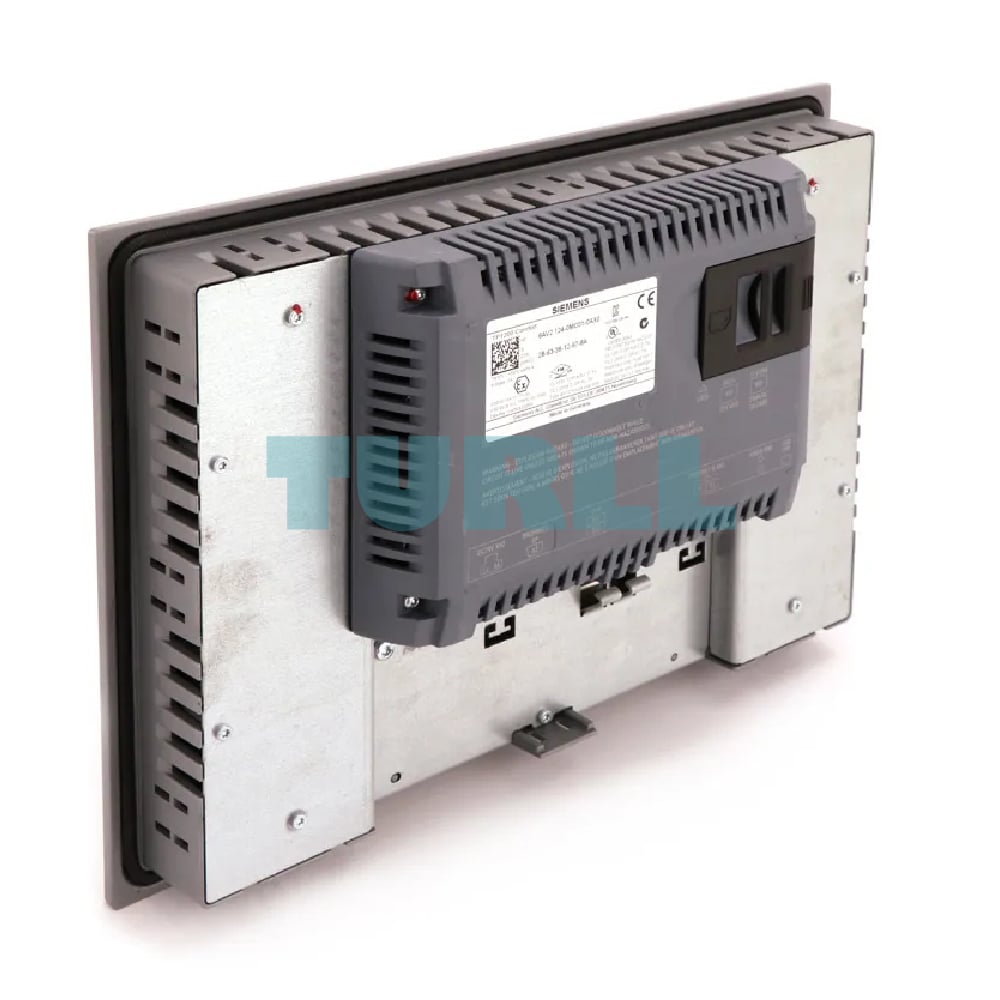

Siemens 6AV2124-0MC01-0AX0 SIMATIC HMI TP1200, Comfort Touch Panel, 12” TFT Display Original Brand New
$1,680.00
Siemens SIMATIC HMI TP1200 Comfort is a high-performance 12” widescreen touch panel designed for advanced industrial automation applications, featuring PROFINET, PROFIBUS, and Windows CE 6.0 support.
Availability: In stock
Overview
The SIMATIC HMI TP1200 Comfort Panel from Siemens is a powerful and user-friendly human-machine interface engineered for demanding industrial environments. Featuring a 12-inch widescreen TFT display with 16 million colors, it provides excellent visualization and intuitive touch operation. Designed for seamless system integration, it supports PROFINET and MPI/PROFIBUS DP communication and is fully configurable using WinCC Comfort V11.
Benefit
-
High-Resolution Visualization: 12” widescreen TFT display ensures clear and detailed process visualization
-
Intuitive Touch Operation: Smooth and responsive touchscreen for efficient operator interaction
-
Industrial Connectivity: Integrated PROFINET and MPI/PROFIBUS DP interfaces
-
Reliable Performance: Built for continuous industrial operation
-
Flexible Configuration: Easily configurable with WinCC Comfort V11
-
Compact & Modern Design: Suitable for control cabinets and machine panels
Function & Features
-
Touch-based HMI operation
-
12-inch widescreen TFT display
-
16 million color depth for enhanced graphics
-
PROFINET interface for Ethernet-based automation
-
MPI/PROFIBUS DP interface for legacy and hybrid systems
-
12 MB configuration memory
-
Operating system: Windows CE 6.0
-
Supports advanced visualization, alarms, diagnostics, and process control
Technical Specification
-
Manufacturer: Siemens
-
Product Number: 6AV2124-0MC01-0AX0
-
Series: SIMATIC HMI Comfort Panel
-
Display Size: 12″ Widescreen TFT
-
Color Depth: 16 million colors
-
Operation: Touchscreen
-

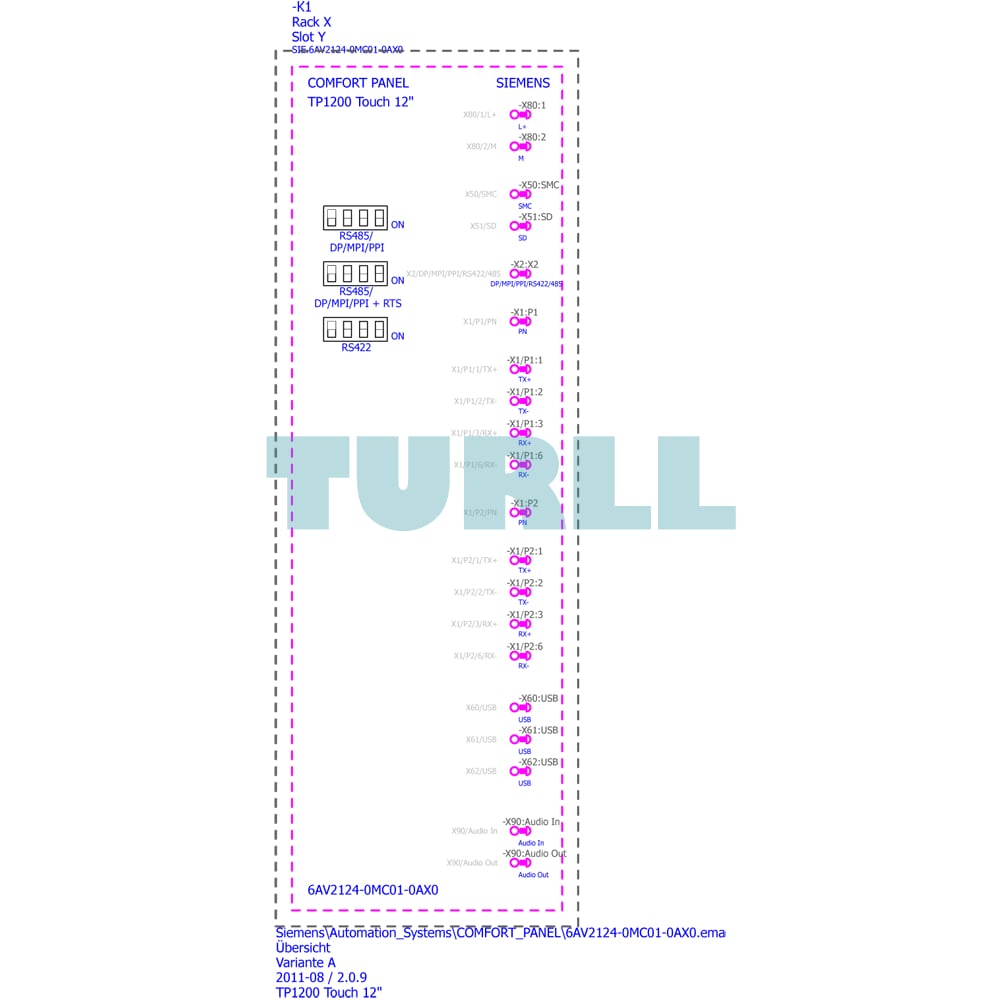

Interfaces: PROFINET, MPI/PROFIBUS DP
-
Memory: 12 MB configuration memory
-
Operating System: Windows CE 6.0
-
Software Compatibility: WinCC Comfort V11
Visit 6AV2124-0MC01-0AX0 for more detail info
For more our products visit turll
Download
| Weight | 3.463 kg |
|---|---|
| Dimensions | 36.00 × 49.80 × 12.40 mm |
| Brand | SIEMENS |
| Product type designation | TP1200 Comfort |
| Design of display | TFT |
| Screen diagonal | 12.1 in |
| Display width | 261.1 mm |
| Display height | 163.2 mm |
| Number of colors | 16 777 216 |
| ● Horizontal image resolution | 1 280 pixel |
| ● Vertical image resolution | 800 pixel |
| ● MTBF backlighting (at 25 °C) | 80 000 h |
| ● Backlight dimmable | Yes; 0-100 % |
| ● Function keys | – |
| — Number of function keys | 0 |
| — Number of function keys with LEDs | 0 |
| ● Keys with LED | No |
| ● System keys | No |
| ● Numeric keyboard | Yes; Onscreen keyboard |
| ● alphanumeric keyboard | Yes; Onscreen keyboard |
| ● Design as touch screen | Yes; Analog-resistive |
| ● DP direct LEDs (LEDs as S7 output I/O) | – |
| ● Direct keys (keys as S7 input I/O) | – |
| — F1...Fx | 0 |
| ● Direct keys (touch buttons as S7 input I/O) | 40 |
| Mounting position | vertical |
| Wall mounting/direct mounting | No |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 0.85 A |
| Starting current inrush I²t | 0.5 A²·s |
| Active power input, typ. | 20 W |
| Processor type | X86 |
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 12 Mbyte |
| Info LED | No |
| Power LED | No |
| Error LED | No |
| Acoustics | – |
| ● Buzzer | No |
| ● Speaker | Yes |
| ● Hardware clock (real-time) | Yes |
| ● Software clock | Yes |
| ● retentive | Yes; Back-up duration typically 6 weeks |
| ● synchronizable | Yes |
| Number of industrial Ethernet interfaces | 1; 2 ports (switch) |
| Number of RS 485 interfaces | 1; RS 422 / 485 combined |
| Number of RS 422 interfaces | 0; together with RS 485 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 2; USB 2.0 |
| ● USB Mini B | 1; 5-pole |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of other interfaces | 0 |
| Number of SD card slots | 2 |
| With software interfaces | No |
| ● Industrial Ethernet status LED | 2 |
| ● Number of ports of the integrated switch | 2 |
| PROFINET | Yes |
| Supports protocol for PROFINET IO | Yes |
| IRT | Yes; As of WinCC V12 |
| PROFIBUS | Yes |
| EtherNet/IP | Yes |
| MPI | Yes |
| ● TCP/IP | Yes |
| ● DHCP | Yes |
| ● SNMP | Yes |
| ● DCP | Yes |
| ● LLDP | Yes |
| ● HTTP | Yes |
| ● HTTPS | Yes |
| ● HTML | Yes |
| ● XML | Yes |
| ● CSS | Yes |
| ● Active X | Yes |
| ● JavaScript | Yes |
| ● Java VM | No |
| — MRP | Yes; As of WinCC V12 |
| ● CAN | No |
| ● MODBUS | Yes |
| ● Diagnostic information readable | Yes; S7 controller |
| ● Limit class A, for use in industrial areas | Yes |
| ● Limit class B, for use in residential areas | No |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| NEMA (front) | – |
| ● Enclosure Type 4 at the front | Yes |
| ● Enclosure Type 4x at the front | Yes |
| CE mark | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| ● ATEX Zone 2 | Yes |
| ● ATEX Zone 22 | Yes |
| ● IECEx Zone 2 | Yes |
| ● IECEx Zone 22 | Yes |
| ● cULus Class I Zone 1 | No |
| ● cULus Class I Zone 2, Division 2 | Yes |
| ● FM Class I Division 2 | Yes |
| ● Germanischer Lloyd (GL) | Yes; As of product version: 10 |
| ● American Bureau of Shipping (ABS) | Yes; As of product version: 10 |
| ● Bureau Veritas (BV) | Yes; As of product version: 10 |
| ● Det Norske Veritas (DNV) | Yes; As of product version: 10 |
| ● Lloyds Register of Shipping (LRS) | Yes; As of product version: 10 |
| ● Nippon Kaiji Kyokai (Class NK) | Yes; As of product version: 10 |
| ● Polski Rejestr Statkow (PRS) | No |
| — For vertical installation, min. | 0 °C |
| — For vertical installation, max. | 40 °C |
| — At maximum tilt angle, min. | 35 °C |
| ● min. | -20 °C |
| ● max. | 60 °C |
| ● Operation, max. | 90 %; no condensation |
| proprietary | No |
| ● Windows CE | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| ● STEP 7 Basic (TIA Portal) | No |
| ● STEP 7 Professional (TIA Portal) | No |
| ● WinCC flexible Compact | No |
| ● WinCC flexible Standard | No |
| ● WinCC flexible Advanced | No |
| ● WinCC Basic (TIA Portal) | No |
| ● WinCC Comfort (TIA Portal) | Yes; from V11 |
| ● WinCC Advanced (TIA Portal) | Yes; from V11 |
| ● WinCC Professional (TIA Portal) | Yes; from V11 |
| ● Number of online/runtime languages | 32 |
| ● Languages per project | 32 |
| Libraries | Yes |
| Applications/options | – |
| ● Web browser | Yes |
| ● Pocket Word | Yes |
| ● Pocket Excel | Yes |
| ● PDF Viewer | Yes |
| ● SIMATIC WinCC Sm@rtServer | Yes |
| ● SIMATIC WinCC Audit | Yes |
| Number of Visual Basic Scripts | Yes |
| Task planner | – |
| ● time-controlled | Yes |
| ● task-controlled | Yes |
| Help system | – |
| ● Number of characters per info text | 70 |
| ● Number of alarm classes | 32 |
| ● S7 alarm number procedure | Yes |
| ● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes |
| ● Acknowledgment groups | Yes |
| — Number of entries | 1 024 |
| — Circulating buffer | Yes |
| — retentive | Yes |
| — maintenance-free | Yes |
| ● Number of recipes | 300 |
| ● Data records per recipe | 500 |
| ● Entries per data record | 1 000 |
| ● Size of internal recipe memory | 2 Mbyte |
| ● Recipe memory expandable | Yes |
| ● Number of variables per device | 2 048 |
| ● Number of variables per screen | 400 |
| ● Limit values | Yes |
| ● Multiplexing | Yes |
| ● Structures | Yes |
| ● Arrays | Yes |
| ● Number of configurable images | 500 |
| ● Permanent window/default | Yes |
| ● Global image | Yes |
| ● Pop-up images | Yes |
| ● Slide-in images | Yes |
| ● Image selection by PLC | Yes |
| ● Image number in the PLC | Yes |
| ● Number of objects per image | 400 |
| ● Text fields | Yes |
| ● I/O fields | Yes |
| ● Graphic I/O fields (graphics list) | Yes |
| ● Symbolic I/O fields (text list) | Yes |
| ● Switches | Yes |
| ● Buttons | Yes |
| ● Graphic display | Yes |
| ● Icons | Yes |
| ● Geometric objects | Yes |
| ● Number of complex objects per screen | 20 |
| ● Alarm view | Yes |
| ● Trend view | Yes |
| ● User view | Yes |
| ● Status/control | Yes |
| ● Sm@rtClient view | Yes |
| ● Recipe view | Yes |
| ● f(x) trend view | Yes |
| ● System diagnostics view | Yes |
| ● Media Player | Yes |
| ● HTML browser | Yes |
| ● PDF display | Yes |
| ● IP camera display | Yes |
| ● Bar graphs | Yes |
| ● Sliders | Yes |
| ● Pointer instruments | Yes |
| ● Analog/digital clock | Yes |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
