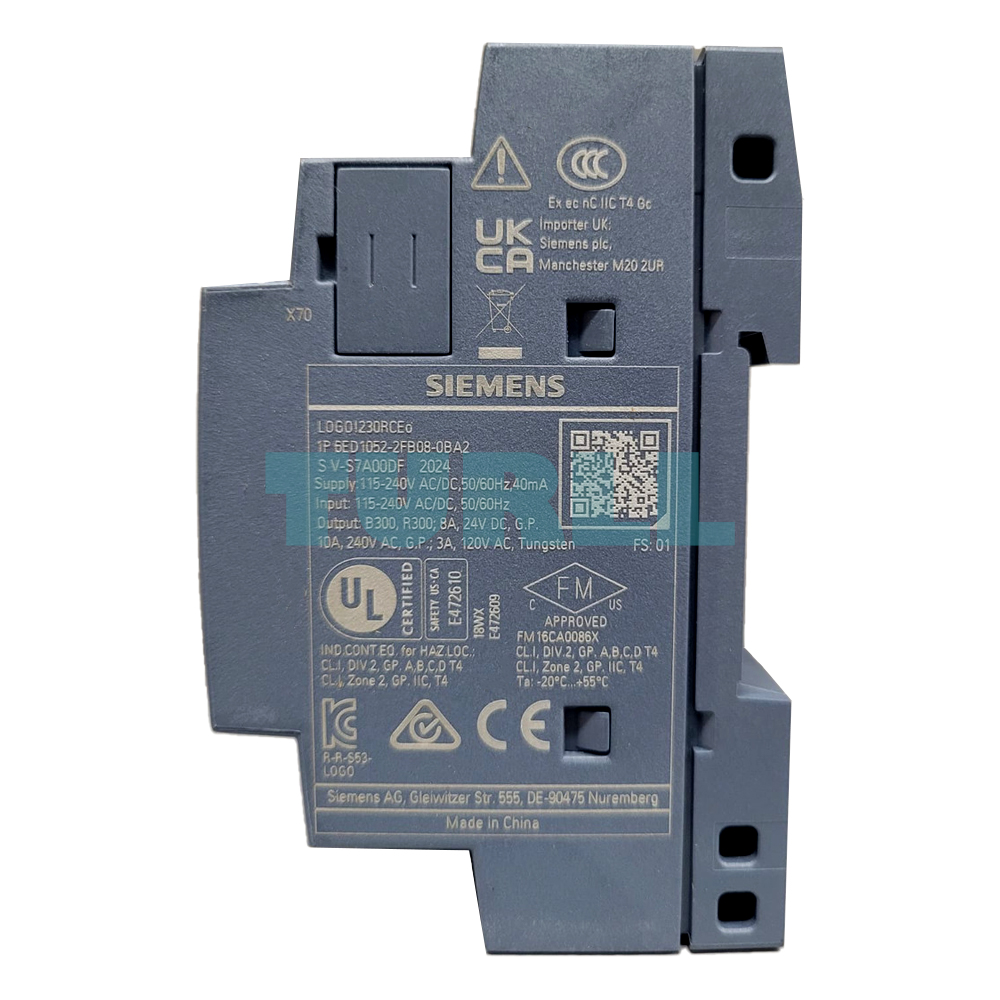

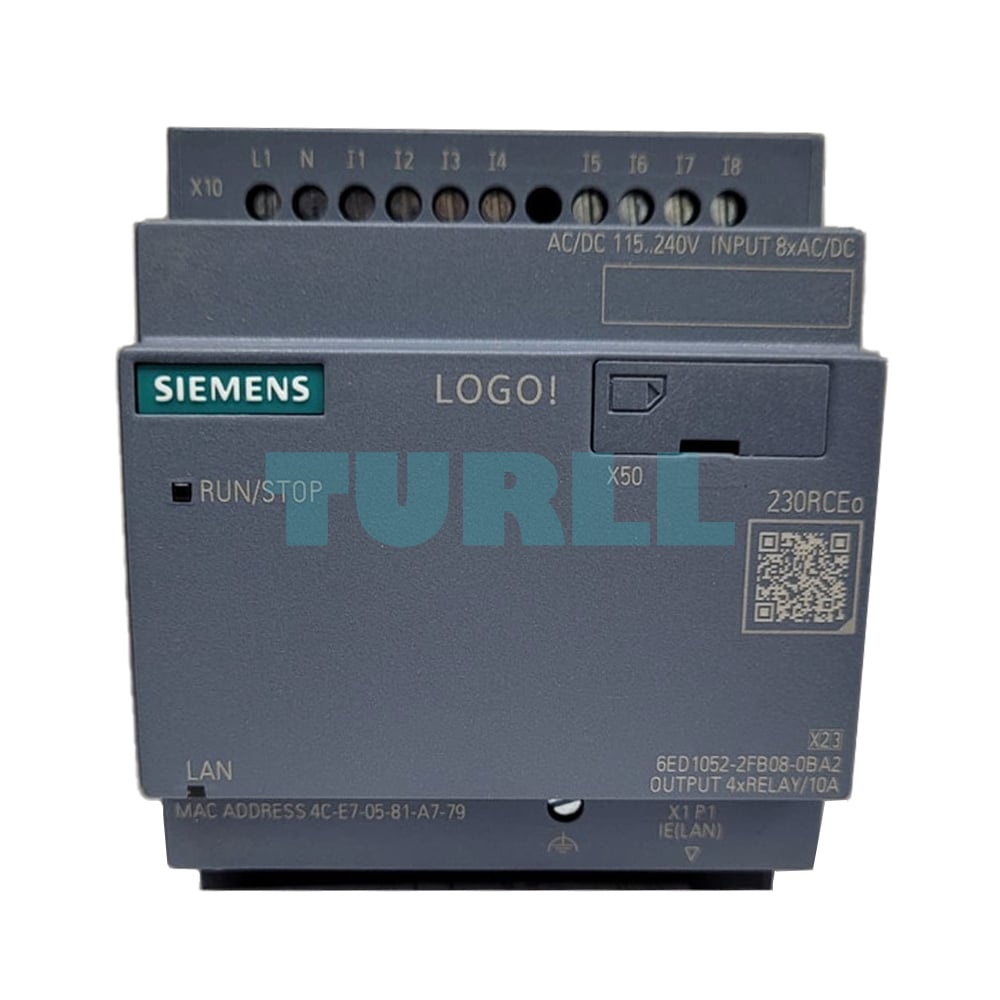

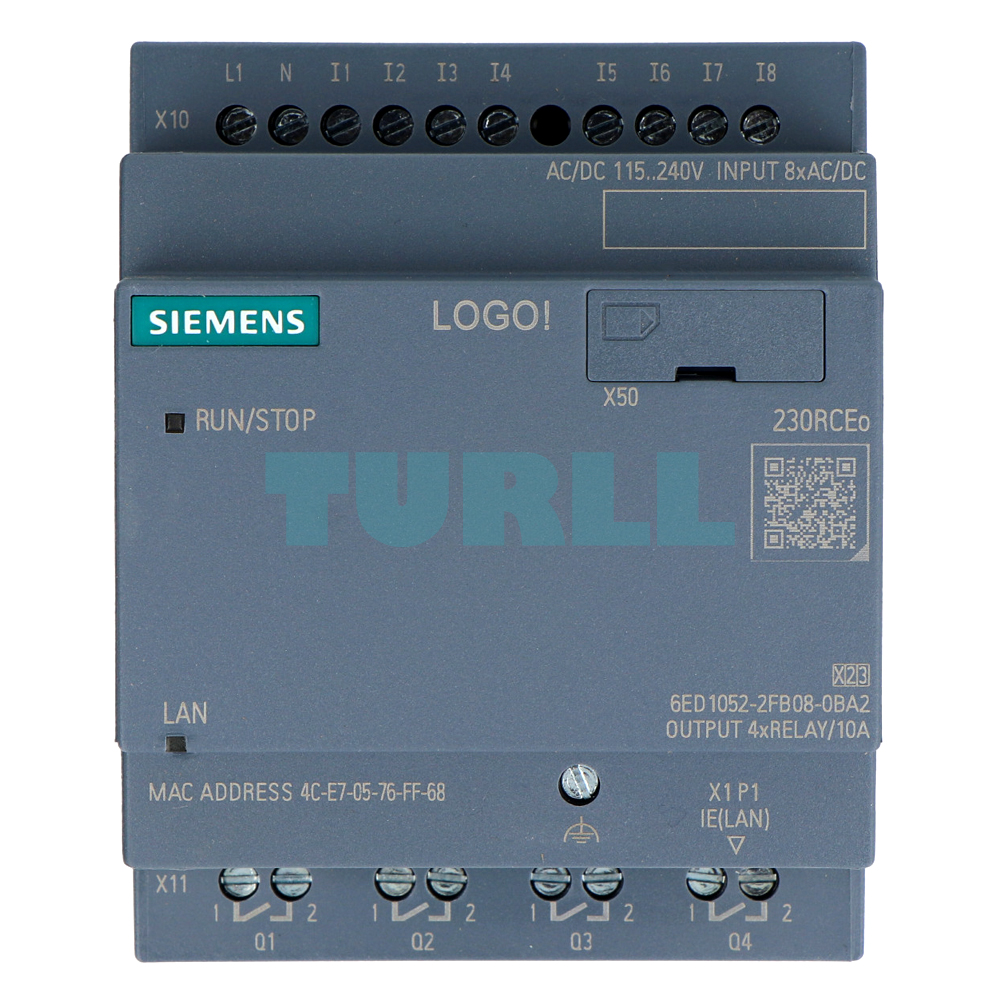

Siemens 6ED1052-2FB08-0BA2 LOGO! 230RCEo Logic Module, 115V/230V Relay, 8 DI/4 DO Original Brand New

Overview

The Siemens LOGO! 230RCEo (6ED1052-2FB08-0BA2) is a highly capable and compact logic module designed for small to medium automation tasks. As a key component in the LOGO! 8.4 series, this basic unit provides advanced connectivity and features without a local display, making it ideal for cabinet installations where remote management is preferred. It features a universal power supply for 115V/230V AC/DC and comes equipped with 8 Digital Inputs (DI) and 4 Relay Digital Outputs (DO). The built-in Ethernet interface, integrated web server, and support for MQTT communication position the LOGO! 230RCEo as a powerful and cost-effective solution for modern IIoT (Industrial Internet of Things) and Cloud Connectivity applications.

Key Features & Function

• Power and I/O: Universal 115V/230V power supply with 8 Digital Inputs and 4 Relay Digital Outputs.

• Networking: Integrated Ethernet port for communication, programming, and network integration.

• Remote Management: Features an integrated web server for simple visualization and control via a standard web browser—no coding skills required.

• IIoT Ready: Supports MQTT protocol, enabling secure and efficient communication with cloud platforms and industrial IoT systems across all LOGO! 8.4 basic units.

• Data Logging: Ability to log process data and store it on a standard microSD card for analysis and traceability.

• Customization: Supports user-defined web pages for personalized operator interfaces.

• Expandability: Modularly expandable to accommodate more I/O points as your application grows.

• Software Compatibility: Fully compatible with LOGO! Soft Comfort V8.4 or higher, and capable of executing older project files.

• Memory: Features a memory capacity of 400 blocks.

Benefit

• Cost-Effective Automation: Provides advanced PLC-like functions and connectivity at the price point of a smart relay.

• Future-Proof Connectivity: MQTT and Cloud Connection capabilities ensure seamless integration into Industry 4.0 environments.

• Reduced Engineering Time: The integrated web server allows for quick setup and remote access, minimizing commissioning time.

• High Flexibility: The universal 115V/230V power supply simplifies inventory and installation across different regions.

• Reliable Performance: Backed by Siemens quality, ensuring long-term reliability in industrial environments.

Download

Datasheet in PDF
