Siemens 6EP1332-1SH71 SIMATIC S7-1200, PM1207 Power Module, 24V DC Original Brand New

Model / SKU6EP1332-1SH71

High-performance SIMATIC S7-1200 Power Module (PM1207). It provides a stabilized 24V DC output at 2.5A, featuring automatic range switching for 120/230V AC inputs, perfectly designed for seamless integration with S7-1200 PLC systems.

Original price was: $232.99.Current price is: $79.05.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 6EP1332-1SH71 is a high-quality SIMATIC S7-1200 PM1207 Power Module designed for efficient and reliable industrial automation. This stabilized power supply provides a consistent 24 V DC output at 2.5 A, suitable for powering controllers and peripheral devices in industrial environments. Compatible with 120/230 V AC input, the PM1207 ensures stable operation and protection against voltage fluctuations.

Key Features & Function

  • Stabilized Power Supply: Provides consistent 24 V DC output at 2.5 A for reliable device operation.

  • Wide Input Range: Supports 120/230 V AC input for versatile applications.

  • Industrial Automation Compatible: Designed for SIMATIC S7-1200 PLC systems.

  • Compact & Efficient: Space-saving module with high energy efficiency.

  • Overload & Short-Circuit Protection: Ensures safety and durability of connected devices.

Benefit

  • Perfect Integration: Designed with the same look and feel as the SIMATIC S7-1200 for a uniform control cabinet appearance.

  • Global Use: Automatic input range switching between 120V and 230V AC allows for international deployment without manual adjustment.

  • Space-Saving: Compact DIN rail mounting saves valuable space within the electrical cabinet.

  • High Reliability: Built-in protection against short circuits and overloads ensures maximum uptime for your automation processes.

Download

Datasheet in PDF

Visit 6EP1332-1SH71 for more detail info

For more our products visit turll



Specifications

SKU / Model6EP1332-1SH71
BrandSIEMENS
Input1-phase AC
● NoteAutomatic range selection
supply voltage-
● 1 at AC rated value120 V
● 2 at AC rated value230 V
input voltage-
● 1 at AC85 ... 132 V
● 2 at AC176 ... 264 V
Wide-range inputNo
Overvoltage resistance2.3 × Vin rated, 1.3 ms
Mains bufferingat Vin = 93/187 V
Mains buffering at Iout rated, min.20 ms; at Vin = 93/187 V
Rated line frequency 150 Hz
Rated line frequency 260 Hz
Rated line range47 ... 63 Hz
input current-
● at rated input voltage 120 V1.2 A
● at rated input voltage 230 V0.67 A
Switch-on current limiting (+25 °C), max.13 A
duration of inrush current limiting at 25 °C-
I²t, max.0.5 A²·s
Built-in incoming fuseT 3,15 A/250 V (not accessible)
Protection in the mains power input (IEC 898)Recommended miniature circuit breaker: 16 A characteristic B or 10 A characteristic C
OutputControlled, isolated DC voltage
Rated voltage Vout DC24 V
● output voltage at output 1 at DC rated value24 V
Total tolerance, static ±3 %
Static mains compensation, approx.0.1 %
Static load balancing, approx.0.2 %
Residual ripple peak-peak, max.150 mV
Spikes peak-peak, max. (bandwidth: 20 MHz)240 mV
product function output voltage adjustableNo
Output voltage setting-
Status displayGreen LED for 24 V OK
On/off behaviorNo overshoot of Vout (soft start)
Startup delay, max.6 s; 2 s at 230 V, 6 s at 120 V
Voltage rise, typ.10 ms
Rated current value Iout rated2.5 A
Current range0 ... 2.5 A
supplied active power typical60 W
short-term overload current-
● on short-circuiting during the start-up typical6 A
● at short-circuit during operation typical6 A
duration of overloading capability for excess current-
● on short-circuiting during the start-up100 ms
● at short-circuit during operation100 ms
Parallel switching for enhanced performanceYes
Numbers of parallel switchable units for enhanced performance2
Efficiency at Vout rated, Iout rated, approx.83 %
Power loss at Vout rated, Iout rated, approx.12 W
Dynamic mains compensation (Vin rated ±15 %), max.0.3 %
Dynamic load smoothing (Iout: 50/100/50 %), Uout ± typ.3 %
Load step setting time 50 to 100%, typ.5 ms
Load step setting time 100 to 50%, typ.5 ms
setting time maximum5 ms
Output overvoltage protection< 33 V
Current limitation, typ.2.65 A
property of the output short-circuit proofYes
Short-circuit protectionConstant current characteristic
enduring short circuit current RMS value-
● typical2.7 A
Overload/short-circuit indicator-
Primary/secondary isolationYes
galvanic isolationSafety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
Protection classClass I
leakage current-
● maximum3.5 mA
Degree of protection (EN 60529)IP20
CE markYes
UL/cUL (CSA) approvalcULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-Recognized (UL 60950-1, CSA C22.2 No. 60950-1) File E151273
Explosion protectionIECEx Ex nA nC IIC T4 Gc; ATEX (EX) II 3G Ex nA nC IIC T4 Gc; cULus (ISA 12.12.01, CSA C22.2 No.213) Class I, Div. 2, Group ABCD, T4, File E330455
certificate of suitability NEC Class 2No
FM approvalClass I, Div. 2, Group ABCD, T4
CB approvalYes
certificate of suitability EAC approvalYes
Marine approvalABS, BV, DNV GL, LRS, NK
Emitted interferenceEN 55022 Class B
Supply harmonics limitationnot applicable
Noise immunityEN 61000-6-2
ambient temperature-
● during operation0 ... 60 °C
— Notewith natural convection
● during transport-40 ... +85 °C
● during storage-40 ... +85 °C
Humidity class according to EN 60721Climate class 3K3, 5 … 95% no condensation

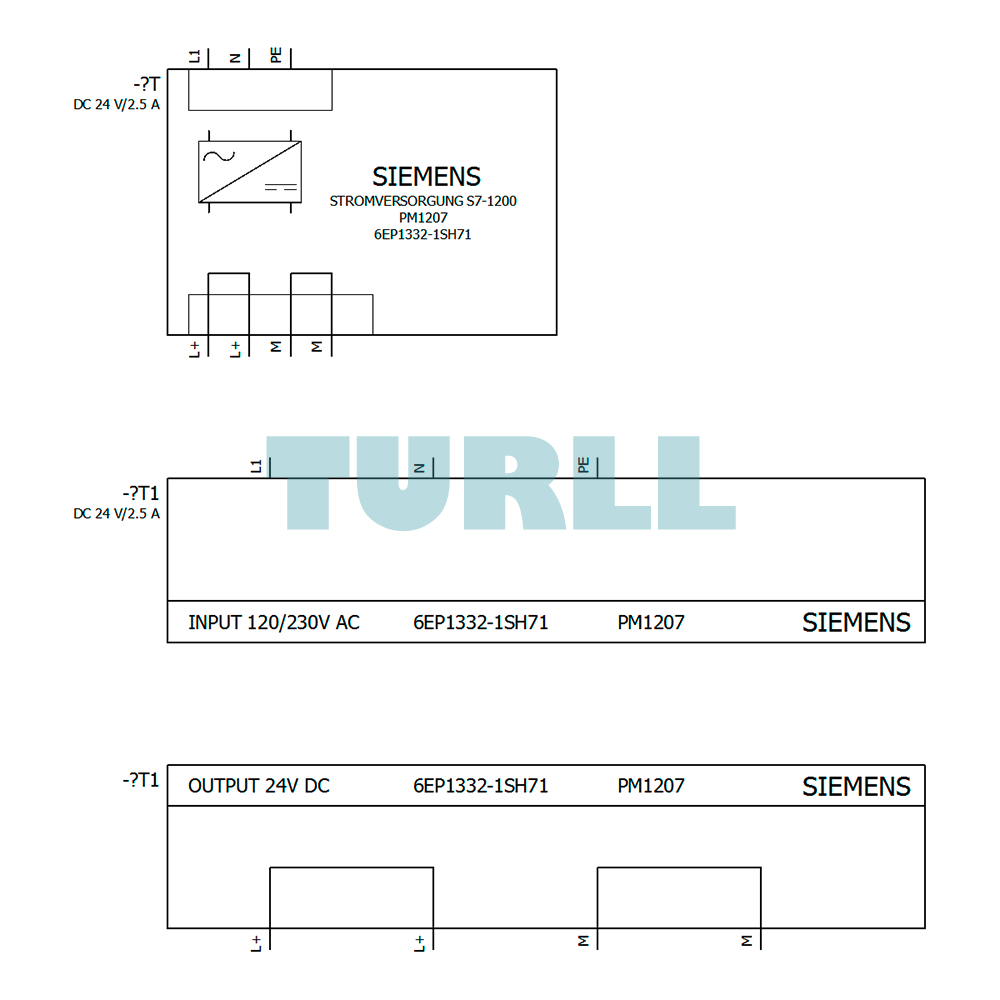

Connection technologyscrew-type terminals
Connections-
● Supply inputL, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm²
● OutputL+, M: 2 screw terminals each for 0.5 ... 2.5 mm²
● Auxiliary-

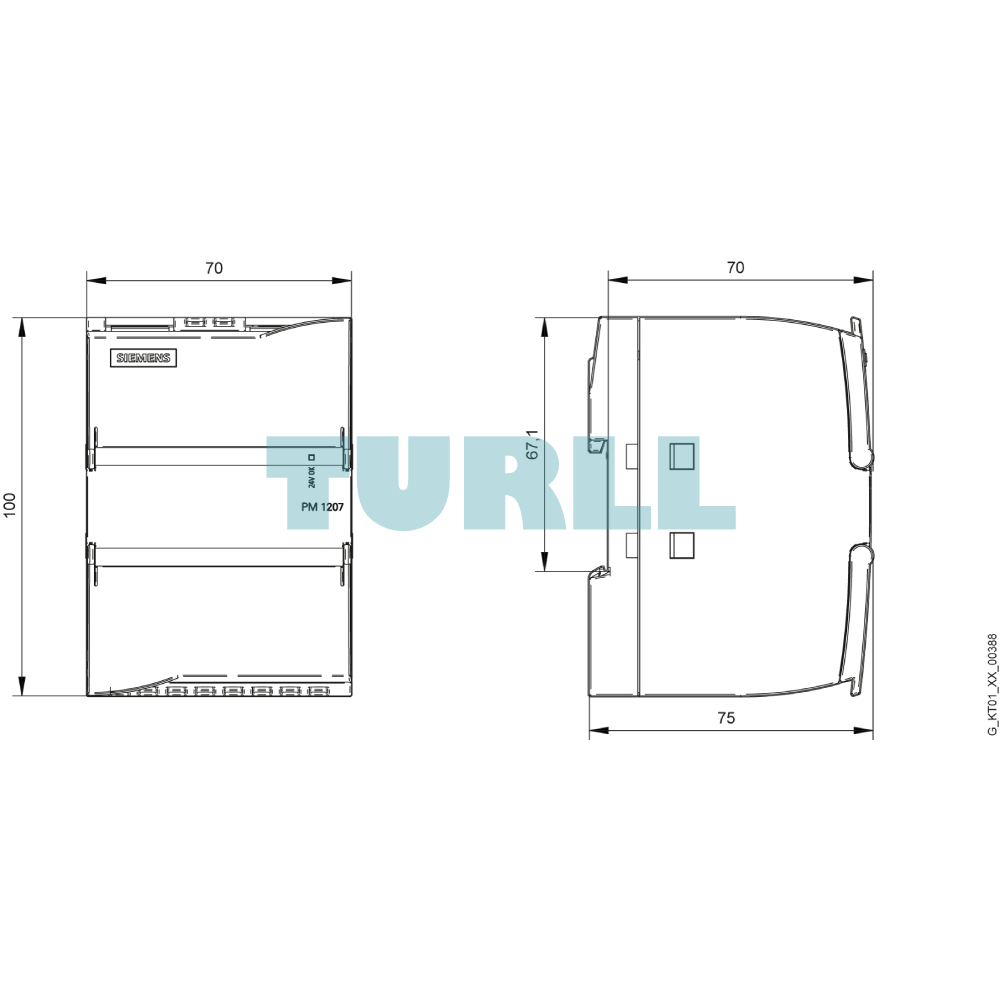

width of the enclosure70 mm
height of the enclosure100 mm
depth of the enclosure75 mm
required spacing-
● top20 mm
● bottom20 mm
● left0 mm
● right0 mm
Weight, approx.0.3 kg
product feature of the enclosure housing can be lined upYes
InstallationSnaps onto DIN rail EN 60715 35x7.5/15, wall mounting
MTBF at 40 °C1 492 537 h
other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
Product ConditionBrand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good
Weight0.300 kg
Dimensions8.00 × 10.50 × 7.50 mm
