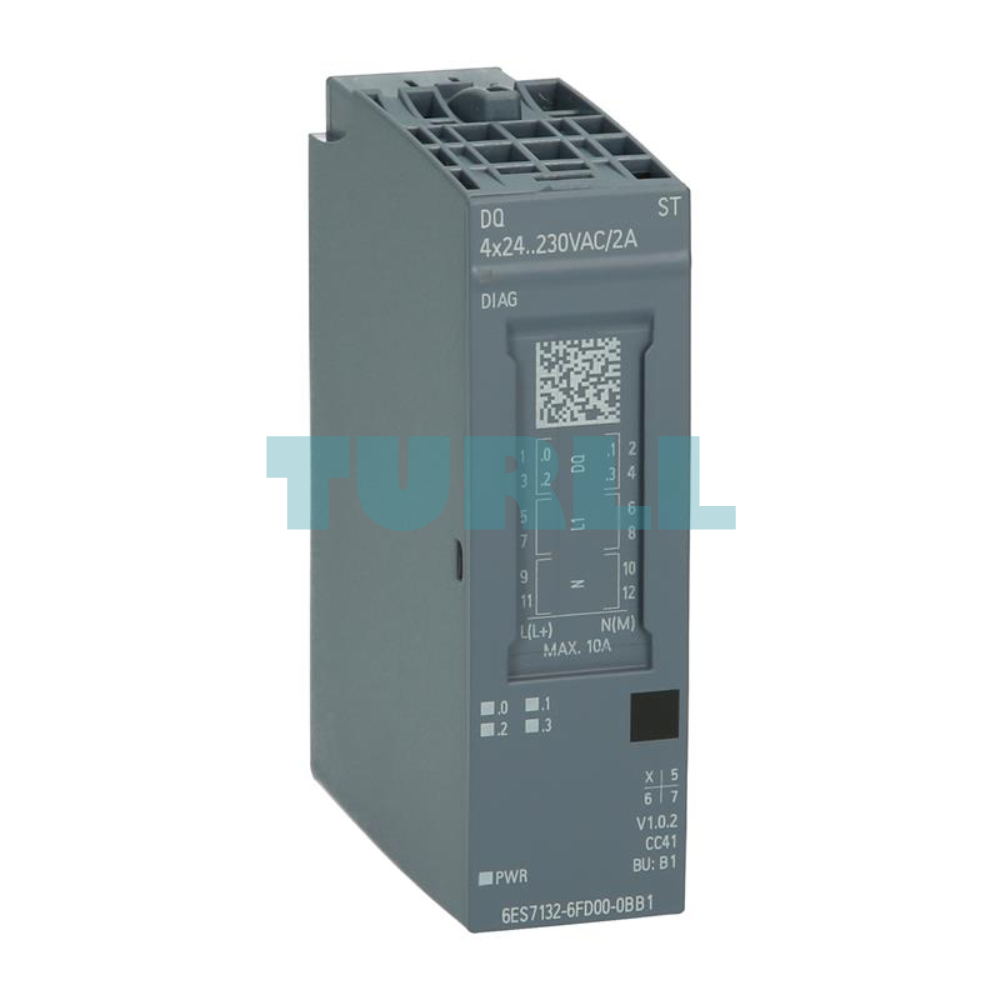

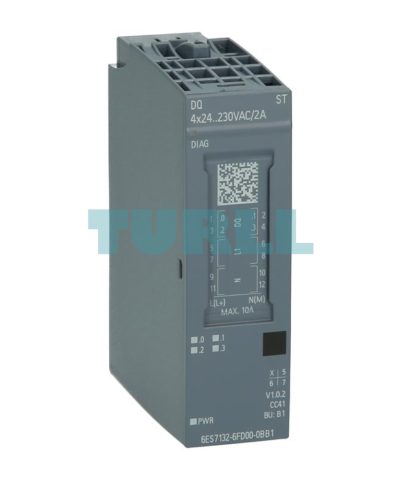

Siemens 6ES7132-6FD00-0BB1 SIMATIC ET 200SP, Digital Output Module, DQ 4x 24–230V AC/2A
Siemens 6ES7132-6FD00-0BB1 SIMATIC ET 200SP, Digital Output Module, DQ 4x 24–230V AC/2A
Siemens 6ES7132-6FD00-0BB1 SIMATIC ET 200SP, Digital Output Module, DQ 4x 24–230V AC/2A
Siemens 6ES7132-6FD00-0BB1 SIMATIC ET 200SP, Digital Output Module, DQ 4x 24–230V AC/2A
Siemens 6ES7132-6FD00-0BB1 SIMATIC ET 200SP, Digital Output Module, DQ 4x 24–230V AC/2A
Siemens 6ES7132-6FD00-0BB1 SIMATIC ET 200SP, Digital Output Module, DQ 4x 24–230V AC/2A

SIEMENS

Siemens 6ES7132-6FD00-0BB1 SIMATIC ET 200SP, Digital Output Module, DQ 4x 24–230V AC/2A Original Brand New

Model / SKU6ES7132-6FD00-0BB1

A high-performance SIMATIC ET 200SP digital output module featuring 4 channels for 24-230V AC at 2A. Designed for BU type B1, this standard module includes module diagnostics and Color Code CC41 for reliable industrial automation.

Original price was: $196.62.Current price is: $109.98.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 6ES7132-6FD00-0BB1 is a high-performance SIMATIC ET 200SP digital output module designed for reliable switching of AC loads in modern industrial automation systems. Featuring 4 digital outputs with a wide voltage range of 24–230V AC and 2A current capacity, this module ensures stable and efficient operation in demanding environments.

It is fully compatible with BaseUnit type B1, includes integrated module diagnostics, and is identified by Color Code CC41, making it easy to integrate, maintain, and troubleshoot within ET 200SP distributed I/O systems.

Benefit

  • Wide Voltage Compatibility – Supports 24–230V AC for flexible industrial applications

  • High Output Capacity – 2A per channel for reliable AC load control

  • Compact ET 200SP Design – Space-saving modular architecture

  • Integrated Module Diagnostics – Faster fault detection and reduced downtime

  • Seamless Integration – Designed for BaseUnit type B1

  • Industrial-Grade Reliability – Built to Siemens quality standards

Function & Features

  • Digital output control for AC actuators and devices

  • 4-channel digital output (DQ 4x AC)

  • Nominal output voltage: 24–230V AC

  • Output current: 2A per channel

  • Color code: CC41

  • Supports advanced diagnostics via SIMATIC systems

  • Suitable for distributed automation and control panels

Application

  • Industrial automation systems

  • PLC-based control panels

  • Manufacturing and processing plants

  • Machine and equipment control

  • Distributed I/O solutions using SIMATIC ET 200SP

Download

Datasheet in PDF

Visit 6ES7132-6FD00-0BB1 for more detail info

For more our products visit turll

Specifications

SKU / Model6ES7132-6FD00-0BB1
BrandSIEMENS
Product type designationDQ 4x24 ... 230 V AC/2 A ST
HW functional statusFrom FS05
Firmware versionV1.0
● FW update possibleYes
usable BaseUnitsBU type B1
Color code for module-specific color identification plateCC41
● I&M dataYes; I&M0 to I&M3
● Isochronous modeNo
● STEP 7 TIA Portal configurable/integrated from versionV13 / V13
● STEP 7 configurable/integrated from versionV5.5 SP3 / -
● PROFIBUS from GSD version/GSD revisionGSD Revision 5
● PROFINET from GSD version/GSD revisionGSDML V2.3
● DQYes
● DQ with energy-saving functionNo
● PWMNo
● OversamplingNo
● MSONo
permissible range, lower limit (AC)20.4 V
permissible range, upper limit (AC)264 V
Current consumption (rated value)11.5 mA
Rated value (AC)230 V; 24V AC to 230V AC
Power loss, typ.9 W; Active power, load voltage 230 V, all outputs loaded with 2 A, 50 Hz
● Address space per module, max.1 byte; + 1 byte for QI information
● Inputs1 byte; With QI
● Outputs1 byte
Type of digital outputTriac with zero point detection
Number of digital outputs4
Current-sinkingNo
Current-sourcingYes
Digital outputs, parameterizableNo
Short-circuit protectionNo; When using BU type B1, a miniature, quick-response fuse with 10 A tripping current must be provided
Controlling a digital inputYes
Size of motor starters according to NEMA, max.5
● for signal "1", min.20.4 V
● for signal "1" rated value2 A
● for signal "1" permissible range, min.10 mA
● for signal "1" permissible range, max.2 A
● for signal "0" residual current, max.460 µA
● "0" to "1", max.10 ms
● "1" to "0", max.10 ms
● for logic linksNo
● for upratingNo
● for redundant control of a loadYes
● with resistive load, max.10 Hz
● with inductive load, max.0.5 Hz; Higher frequencies are possible, see Equipment Manual / Product Information
● on lamp load, max.1 Hz
● Current per channel, max.2 A
● Current per module, max.8 A
— up to 60 °C, max.4 A
— up to 30 °C, max.8 A
— up to 40 °C, max.6 A
— up to 50 °C, max.4 A
● shielded, max.1 000 m
● unshielded, max.600 m
Diagnostics functionNo
Substitute values connectableYes
● Diagnostic alarmNo
● Monitoring the supply voltageNo
● Wire-breakNo
● Short-circuitNo
● Group errorYes
● Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED
● Channel status displayYes; green LED
● for channel diagnosticsNo
● for module diagnosticsYes; green/red DIAG LED
● between the channelsNo
● between the channels and backplane busYes
● between the channels and the power supply of the electronicsNo
Isolation tested with2 545 V DC/2 s (routine test)
Suitable for safety functionsNo
● horizontal installation, min.-30 °C
● horizontal installation, max.60 °C
● vertical installation, min.-30 °C
● vertical installation, max.60 °C
● Installation altitude above sea level, max.2 000 m; On request: Installation altitudes greater than 2 000 m

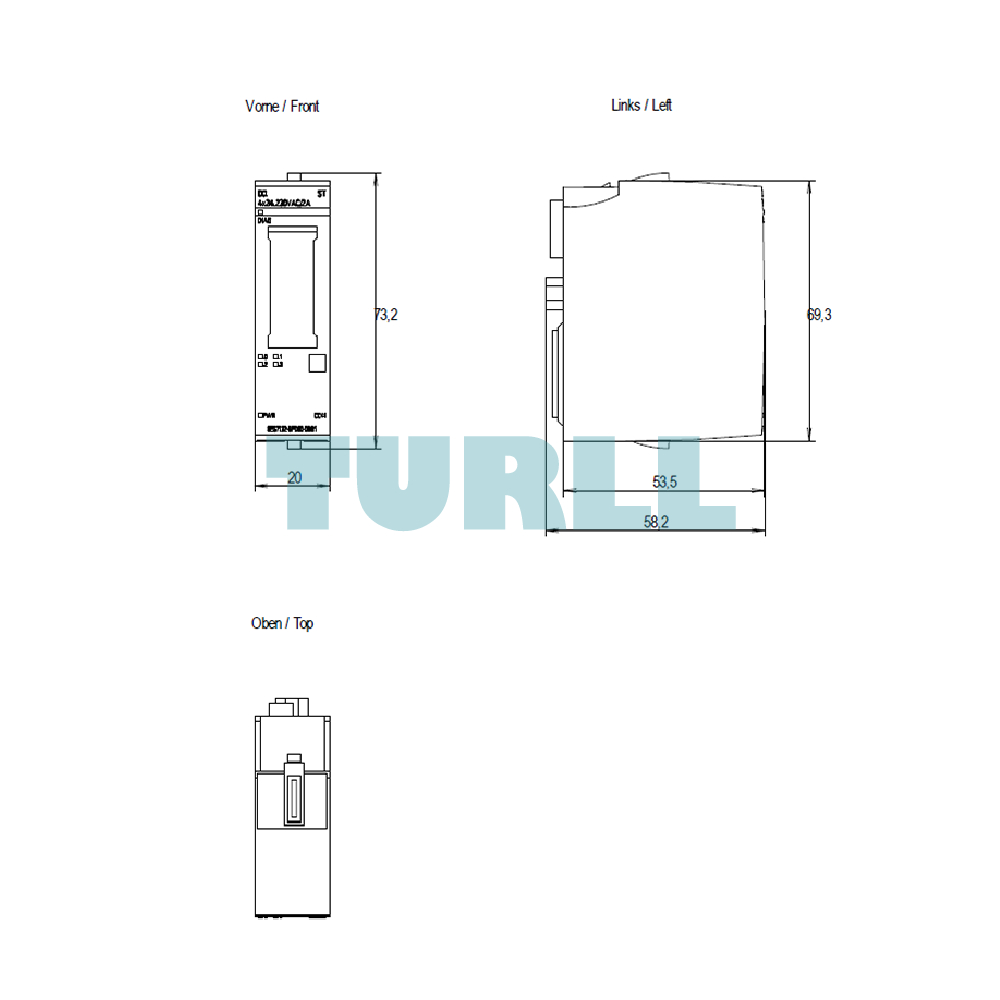

Width20 mm
Height73 mm
Depth58 mm
Weight, approx.50 g
last modified:2/1/2021
Product ConditionBrand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good
Weight0.059 kg
Dimensions20020-120411- × 20 mm
