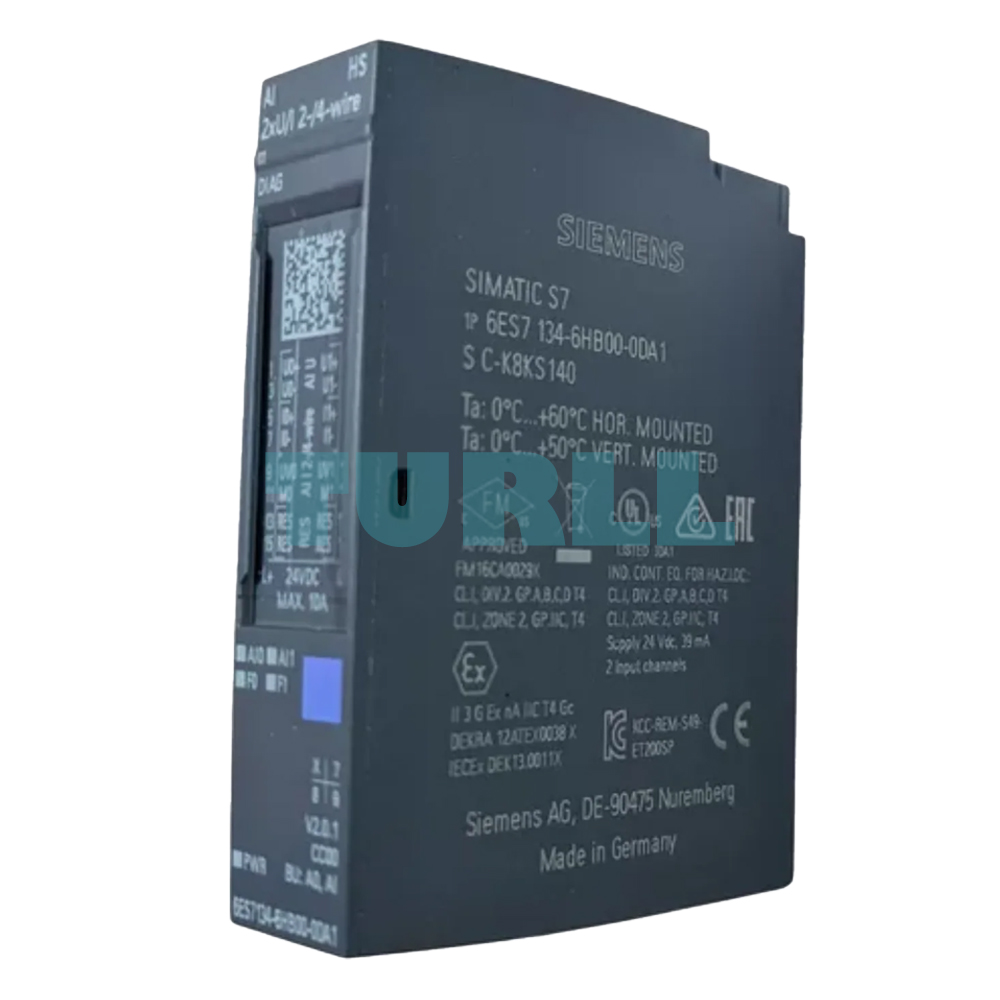

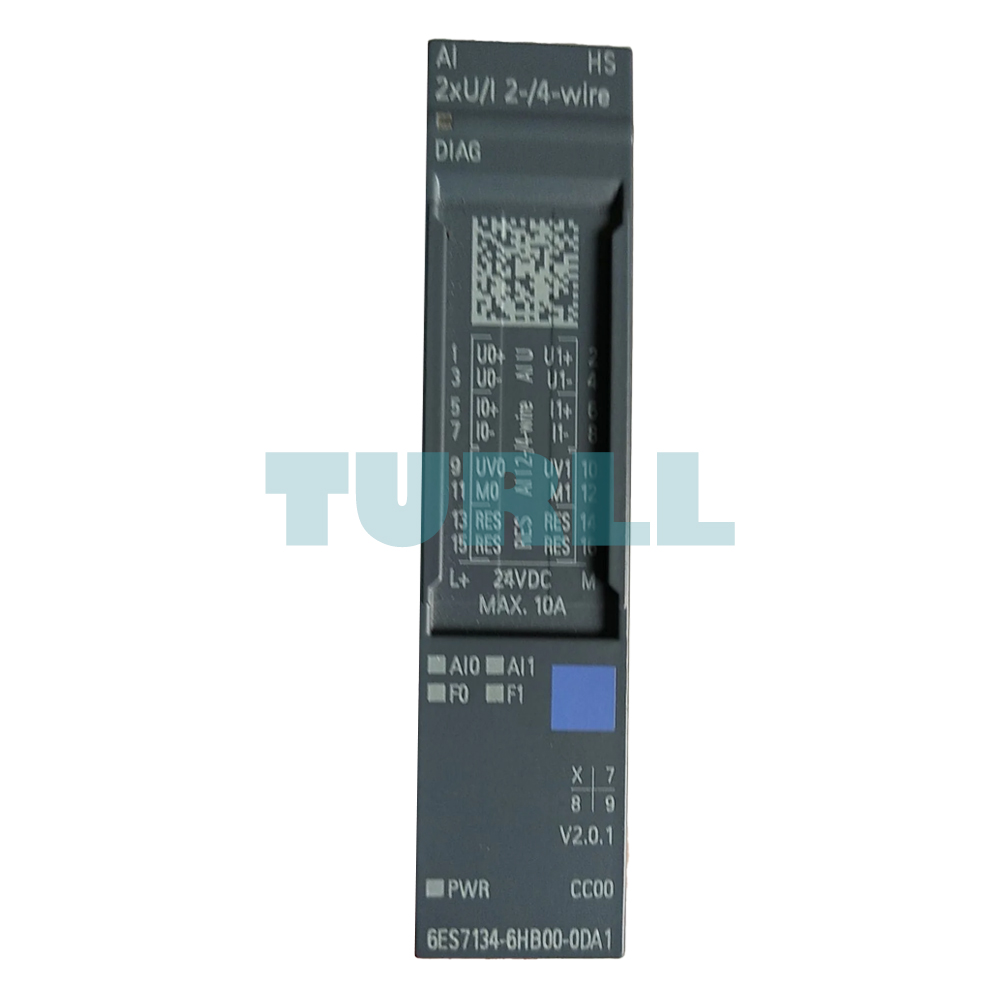

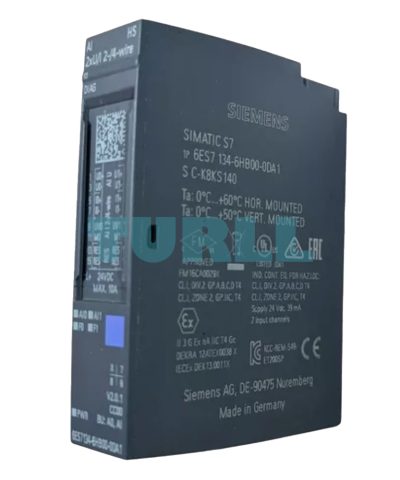

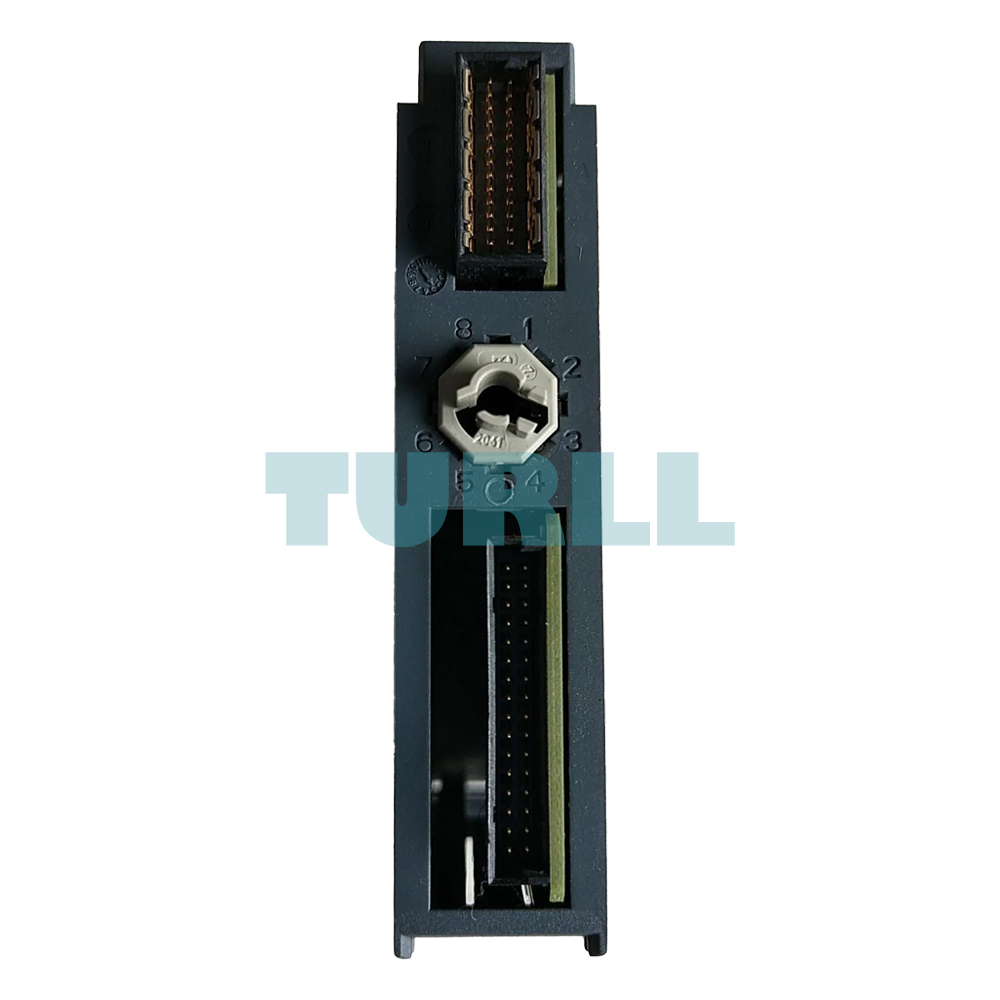

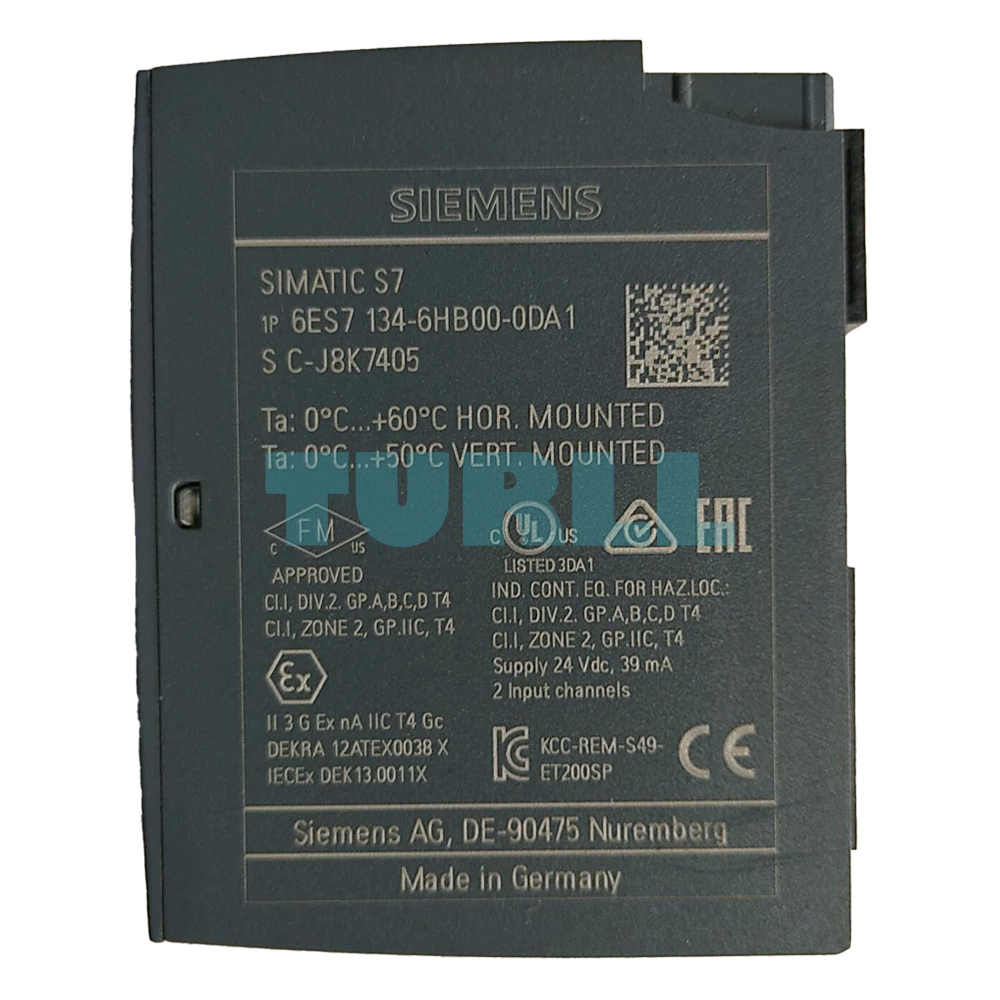

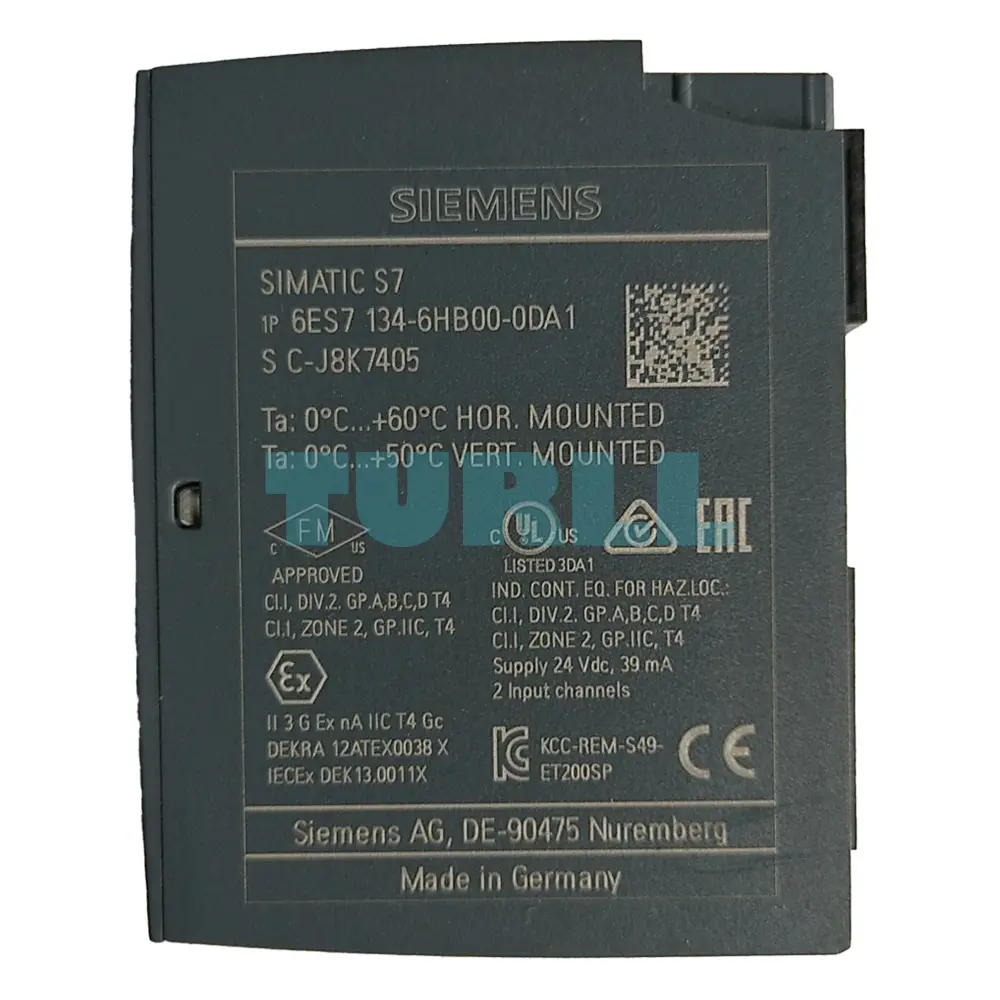

Siemens 6ES7134-6HB00-0DA1 SIMATIC ET 200SP, Analog Input Module, AI 2x U/I 2-/4-Wire Original Brand New
$247.92
Siemens 6ES7134-6HB00-0DA1 SIMATIC ET 200SP Analog Input Module AI 2x U/I 2-/4-wire High Speed, 16-bit resolution, ±0.3% accuracy, with channel diagnostics, suitable for BU type A0/A1.
Availability: In stock
Overview
The Siemens 6ES7134-6HB00-0DA1 is a high-performance SIMATIC ET 200SP analog input module designed for precise industrial automation applications. With support for AI 2x U/I 2-/4-wire high-speed measurements, this module ensures accurate signal acquisition with 16-bit resolution and ±0.3% accuracy. Ideal for BU type A0 and A1 installations, it features channel diagnostics and color code CC00 for easy identification.
Benefit
-
Space-Saving Design: As part of the ET 200SP series, the compact 15 mm module width significantly reduces panel space compared to other I/O systems.
-
High-Speed Acquisition: The High Speed (HS) designation allows for faster data sampling and lower cycle times, critical for time-sensitive control loops and isochronous mode operation.
-
Flexible Signal Connection: Supports both voltage (U) and current (I) signals, along with 2-wire and 4-wire sensor connections, providing versatility for various field devices.
-
Enhanced Reliability: Integrated channel diagnostics detect faults like wire breaks, overflows, and underflows, minimizing downtime and simplifying troubleshooting.
-
Hot Swapping: Modules can be exchanged without tools during runtime (in RUN), increasing system availability.
Function
-
Acquisition of analog signals from sensors or actuators
-
Support for voltage (U) and current (I) inputs
-
High-speed signal processing for critical automation tasks
-
Integrated channel diagnostics for error detection and preventive maintenance
-
Seamless integration with SIMATIC ET 200SP distributed I/O systems
Download
Visit 6ES7134-6HB00-0DA1 for more detail info
For more our products visit turll
| Weight | 0.041 kg |
|---|---|
| Dimensions | 6.50 × 7.70 × 2.30 mm |
| Brand | SIEMENS |
| Product type designation | AI 2xU/I 2-/4-wire HS |
| HW functional status | From FS07 |
| Firmware version | – |
| ● FW update possible | Yes |
| usable BaseUnits | BU type A0, A1 |
| Color code for module-specific color identification plate | CC00 |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | Yes |
| ● Measuring range scalable | No |
| ● Scalable measured values | No |
| ● Adjustment of measuring range | No |
| ● STEP 7 TIA Portal configurable/integrated from version | V13 SP1 |
| ● STEP 7 configurable/integrated from version | V5.5 SP3 / – |
| ● PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| ● PROFINET from GSD version/GSD revision | GSDML V2.3 |
| ● Oversampling | Yes; 2 channels per module |
| ● MSI | No |
| Reparameterization possible in RUN | Yes |
| Calibration possible in RUN | No |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Current consumption (rated value) | 39 mA; without sensor supply |
| ● 24 V | Yes; For current measurement |
| ● Short-circuit protection | Yes |
| ● Output current, max. | 20 mA; max. 50 mA per channel for a duration < 10 s |
| Power loss, typ. | 0.95 W; without sensor supply |
| ● Address space per module, max. | 4 byte; + 1 byte for QI information (32 bytes in the oversampling operating mode) |
| Automatic encoding | Yes |
| ● Mechanical coding element | Yes |
| ● Type of mechanical coding element | Type A |
| ● 2-wire connection | BU type A0, A1 |
| ● 4-wire connection | BU type A0, A1 |
| Number of analog inputs | 2; Differential inputs |
| ● For current measurement | 2 |
| permissible input voltage for voltage input (destruction limit), max. | 30 V |
| permissible input current for current input (destruction limit), max. | 50 mA |
| Cycle time (all channels), min. | 125 µs |
| Analog input with oversampling | Yes |
| ● Values per cycle, max. | 16 |
| ● Resolution, min. | 50 µs |
| ● 0 to +10 V | Yes; 15 bit |
| — Input resistance (0 to 10 V) | 75 kΩ |
| ● 1 V to 5 V | Yes; 13 bit |
| — Input resistance (1 V to 5 V) | 75 kΩ |
| ● -10 V to +10 V | Yes; 16 bit incl. sign |
| — Input resistance (-10 V to +10 V) | 75 kΩ |
| ● -5 V to +5 V | Yes; 15 bit incl. sign |
| — Input resistance (-5 V to +5 V) | 75 kΩ |
| ● 0 to 20 mA | Yes; 15 bit |
| — Input resistance (0 to 20 mA) | 130 Ω |
| ● -20 mA to +20 mA | Yes; 16 bit incl. sign |
| — Input resistance (-20 mA to +20 mA) | 130 Ω |
| ● 4 mA to 20 mA | Yes; 14 bit |
| — Input resistance (4 mA to 20 mA) | 130 Ω |
| ● shielded, max. | 1 000 m; 200 m for voltage measurement |
| Measurement principle | Actual value encryption (successive approximation) |
| ● Resolution with overrange (bit including sign), max. | 16 bit |
| ● Interference voltage suppression for interference frequency f1 in Hz | No |
| ● Conversion time (per channel) | 10 µs |
| ● Number of smoothing levels | 7; none; 2-/4-/8-/16-/32-/64-fold |
| ● parameterizable | Yes |
| ● for voltage measurement | Yes |
| ● for current measurement as 2-wire transducer | Yes |
| — Burden of 2-wire transmitter, max. | 650 Ω |
| ● for current measurement as 4-wire transducer | Yes |
| Linearity error (relative to input range), (+/-) | 0.03 % |
| Temperature error (relative to input range), (+/-) | 0.01 %/K |
| Crosstalk between the inputs, min. | -50 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.1 % |
| ● Voltage, relative to input range, (+/-) | 0.2 % |
| ● Current, relative to input range, (+/-) | 0.2 % |
| ● Common mode voltage, max. | 35 V |
| ● Common mode interference, min. | 90 dB |
| Filtering and processing time (TCI), min. | 80 µs |
| Bus cycle time (TDP), min. | 125 µs; Starting from firmware Version V2.0.1 |
| ● Diagnostic alarm | Yes |
| ● Limit value alarm | Yes; two upper and two lower limit values in each case |
| ● Wire-break | Yes; channel-by-channel, at 4 to 20 mA only |
| ● Short-circuit | Yes; channel-by-channel, at 1 to 5 V or for current measuring ranges short-circuit in encoder supply |
| ● Group error | Yes |
| ● Overflow/underflow | Yes |
| ● Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| ● Channel status display | Yes; green LED |
| ● for channel diagnostics | Yes; red LED |
| ● for module diagnostics | Yes; green/red DIAG LED |
| ● between the channels | Yes |
| ● between the channels and backplane bus | Yes |
| ● between the channels and the power supply of the electronics | Yes |
| Isolation tested with | 707 V DC (type test) |
| ● horizontal installation, min. | -30 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -30 °C |
| ● vertical installation, max. | 50 °C |
| ● Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |

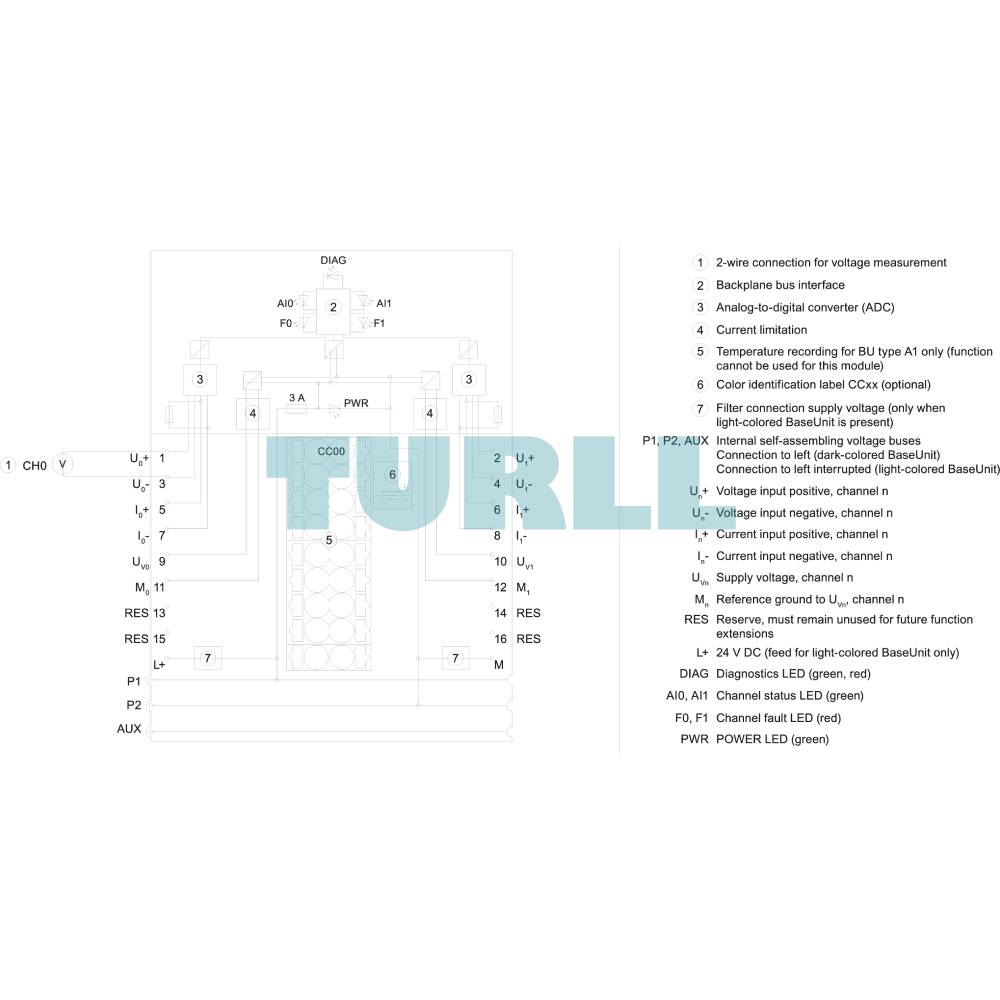

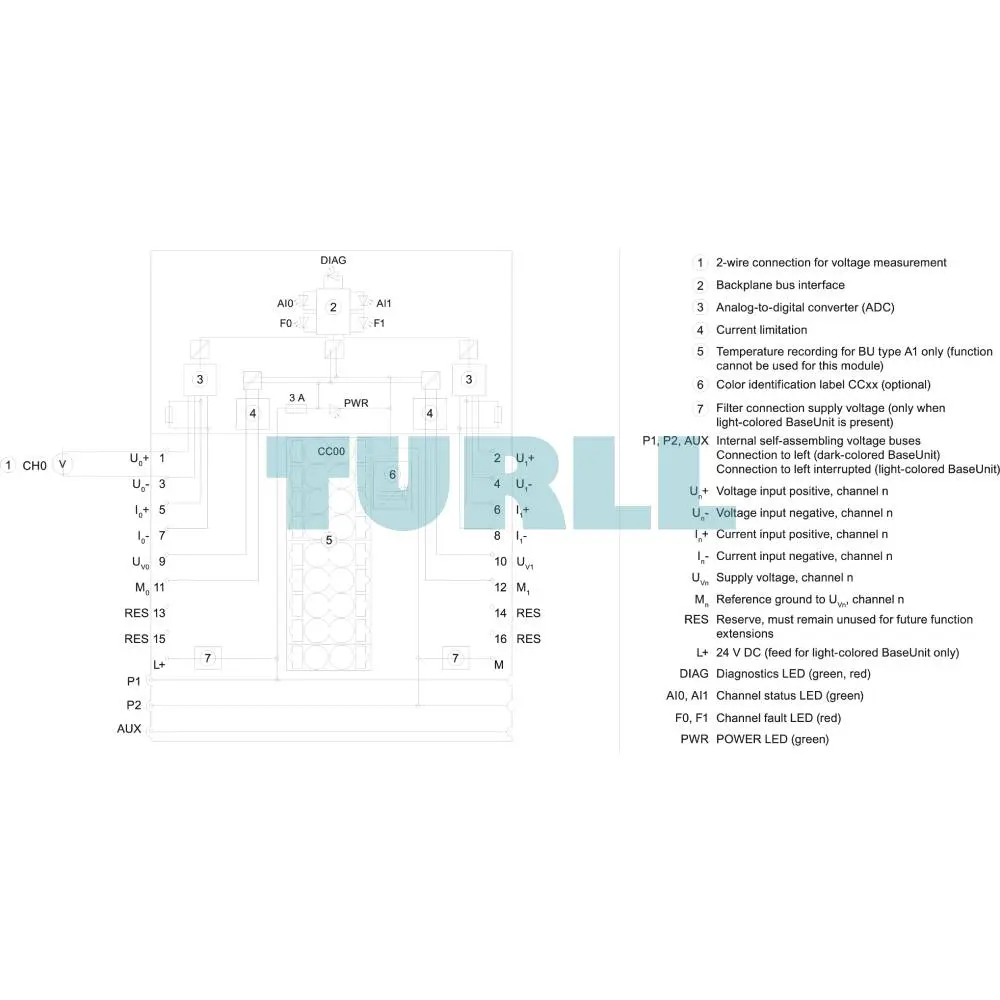

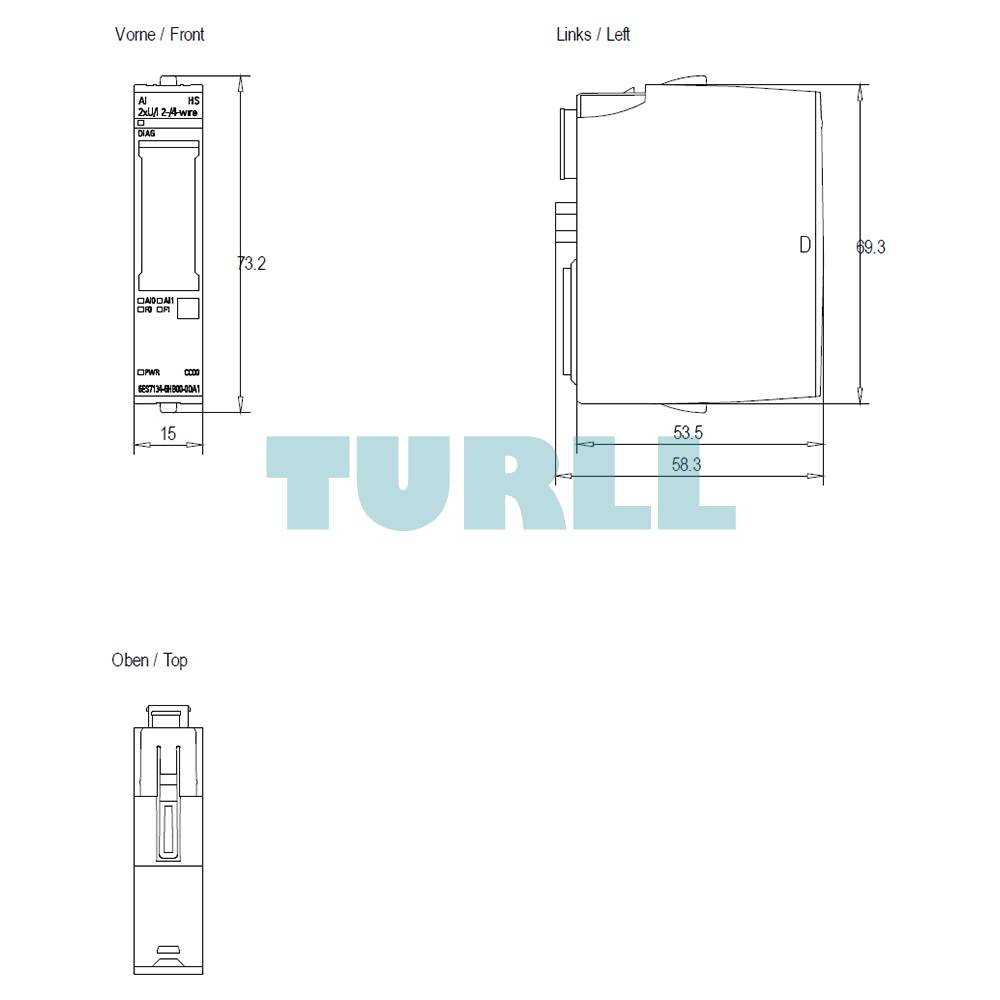

| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight, approx. | 32 g |
| last modified: | 1/24/2021 |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
