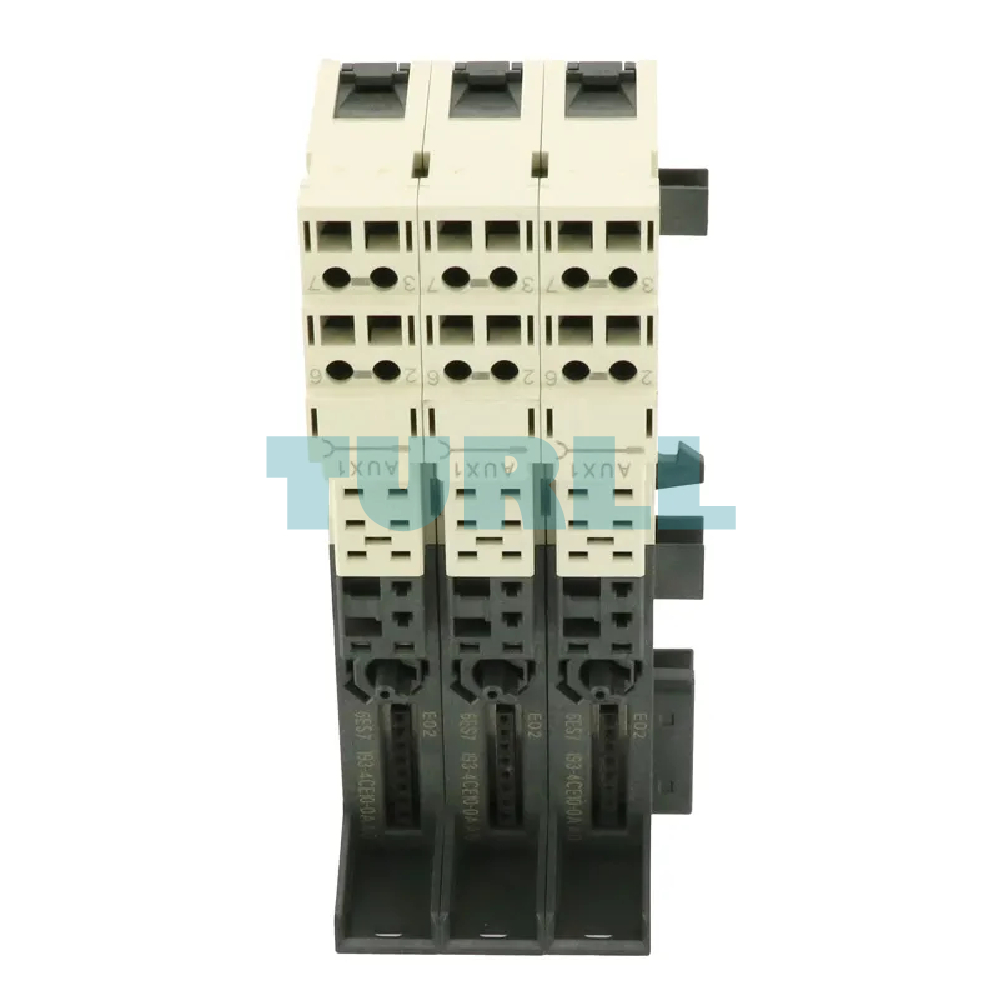

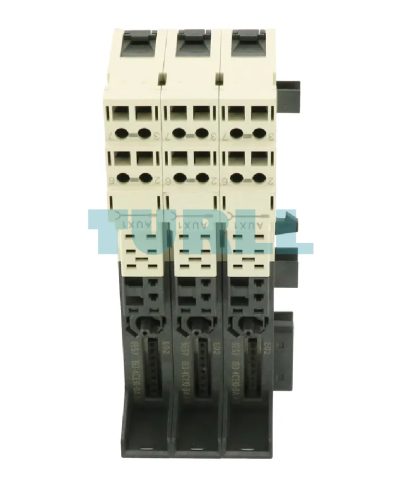

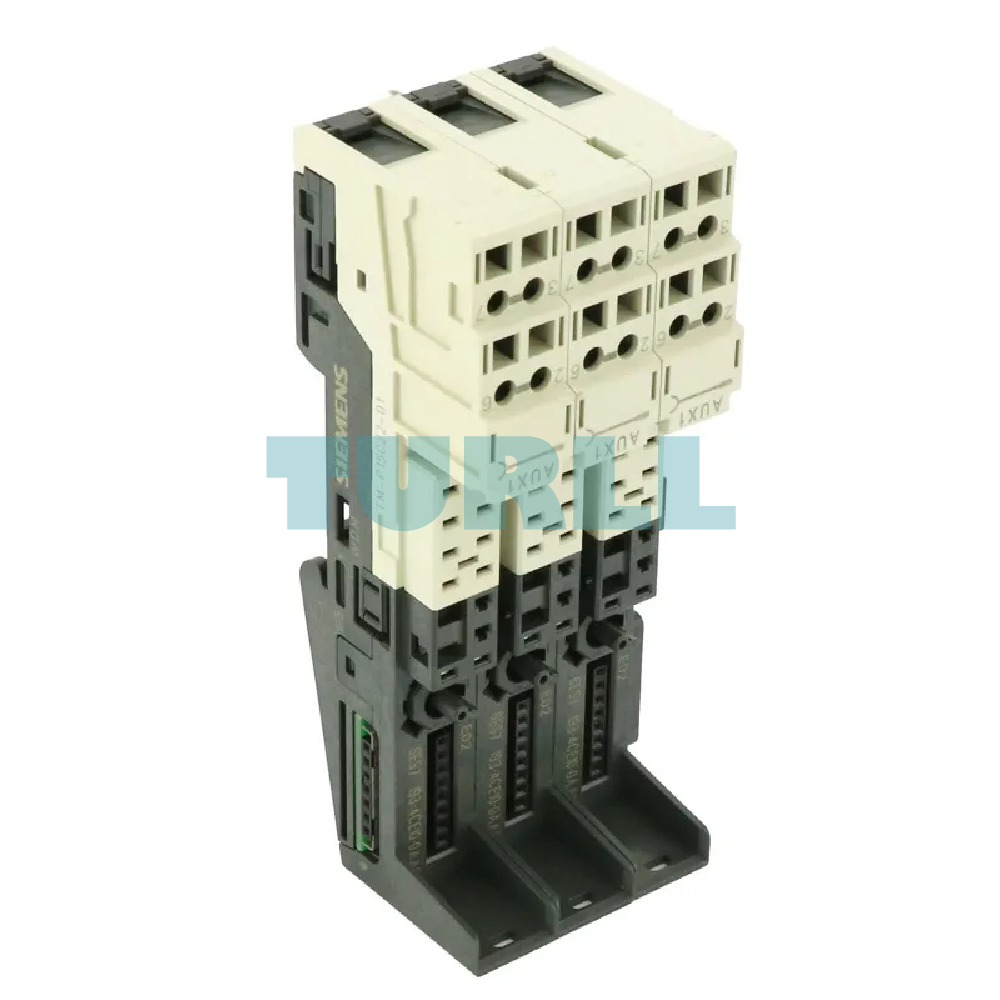

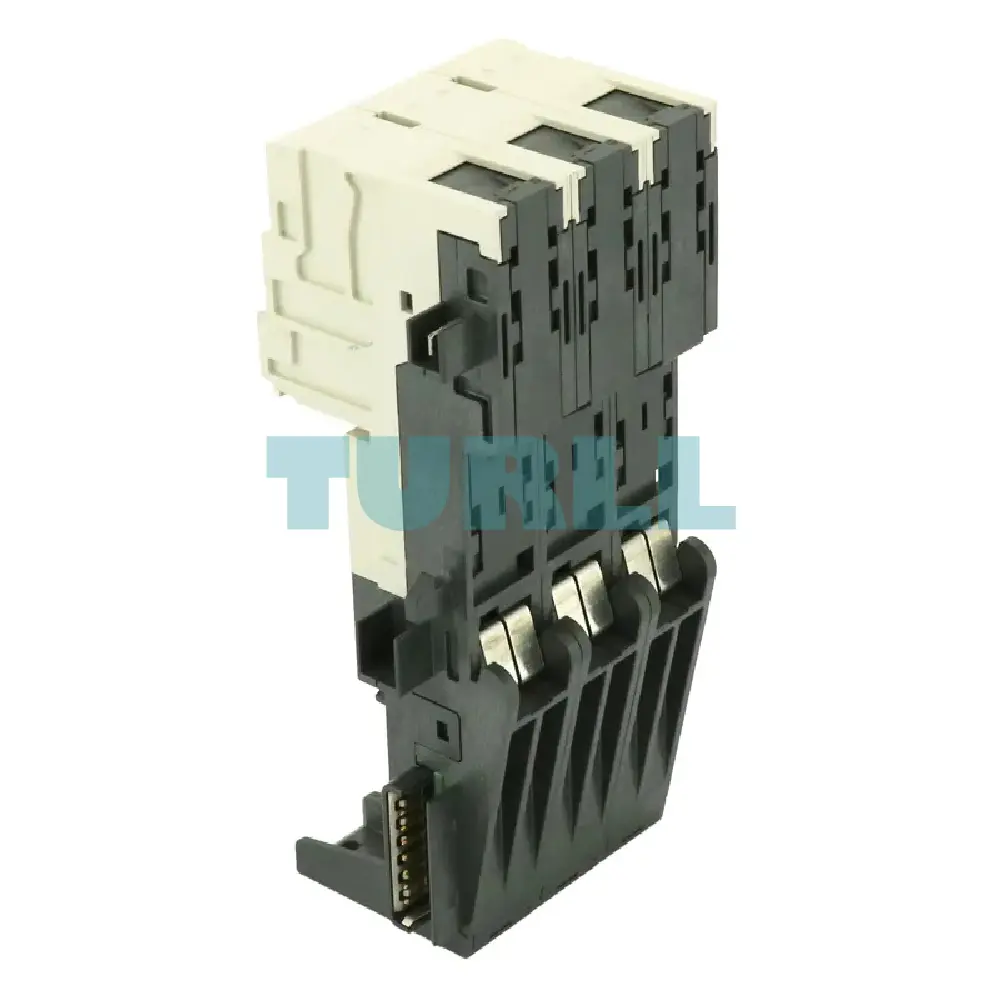

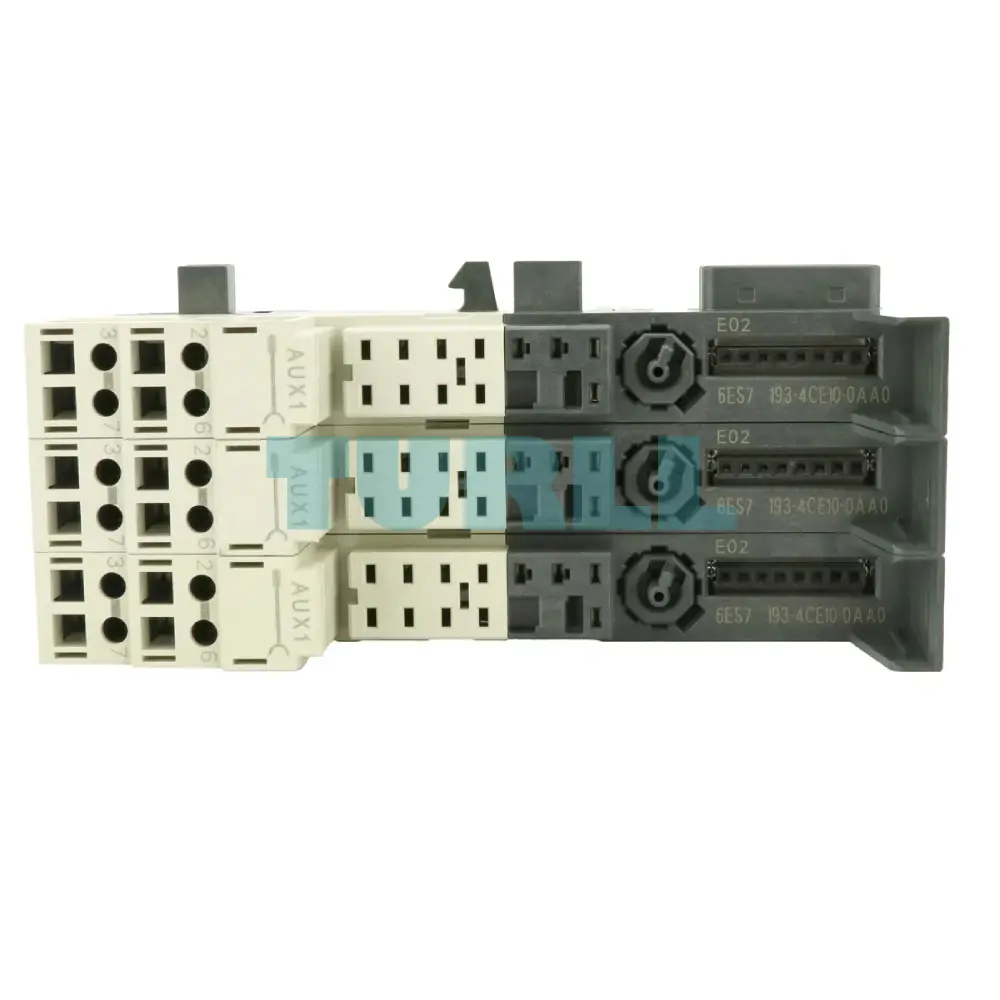

Siemens 6ES7193-4CE10-0AA0 SIMATIC DP Terminal Module (TM-P15C22-01) for ET 200S Original Brand New

Overview

The SIMATIC DP TM-P15C22-01 serves as the essential mechanical and electrical base for ET 200S power modules. This terminal module facilitates the connection of the supply voltage and ensures the continuity of the AUX1 bus without providing direct terminal access to it. Its slim design allows for high-density control cabinet configurations, making it a staple in modern Siemens-based automation environments.

Key Function

• Power Distribution: Provides the electrical interface for ET 200S power modules to distribute voltage to downstream I/O modules.

• Secure Connection: Utilizes Spring-Type (Cage Clamp) technology for vibration-proof and maintenance-free wiring.

• Bus Continuity: Features an AUX1 continuous design, allowing the auxiliary bus to pass through the module to subsequent units.

• Modular Integration: Easily snaps onto standard DIN rails, supporting the hot-swapping capabilities of the ET 200S system.

Technical Benefit

• Tool-Free Wiring: The spring-loaded terminals significantly reduce installation time compared to traditional screw terminals.

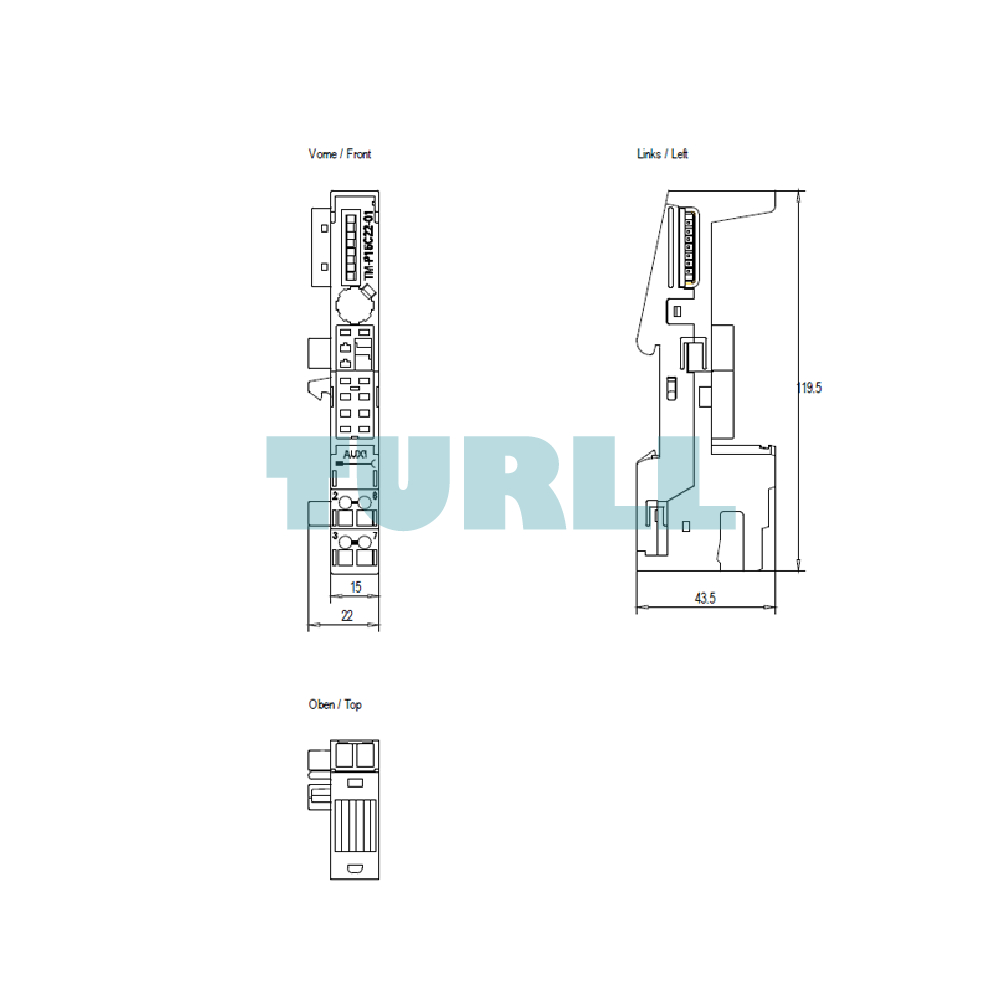

• Space Efficient: At only 15mm wide, it minimizes the footprint required within the electrical cabinet.

• High Reliability: Designed for industrial durability, ensuring long-term connectivity even in high-vibration environments.

• Cost-Effective Maintenance: Individual modules can be replaced or upgraded without disturbing the entire wiring harness.

Visit 6ES7193-4CE10-0AA0 for more detail info

For more our products visit turll

Download

Datasheet in PDF
