Siemens 6ES7193-6BP40-0BA1 SIMATIC ET 200SP, BaseUnit BU15-P16+A0+12B/T, Temperature Acquisition Original Brand New
$24.38
High-performance SIMATIC ET 200SP BaseUnit (BU type A1, BU15-P16+A0+12B/T) designed for industrial automation. Featuring Push-in terminals for fast wiring, it includes 2x 5 add-on terminals bridged to the left and is uniquely equipped for temperature acquisition. Its compact 15mm width makes it ideal for space-saving installations.
Availability: In stock
Overview
The Siemens 6ES7193-6BP40-0BA1 is a high-performance SIMATIC ET 200SP BaseUnit designed for industrial automation systems. Featuring BU type A1 with push-in terminals and 2x 5 add-on terminals bridged to the left, this unit ensures reliable connectivity and efficient system integration. With temperature acquisition capability and compact dimensions (15 mm x 141 mm), it is ideal for space-saving, precision applications in modern automation setups.
Key Features & Benefit
-
Efficient Base Unit Design: BU15-P16+A0+12B/T type A1 ensures robust performance for ET 200SP systems.
-
Push-In Terminals: Quick, tool-free wiring reduces installation time and ensures secure connections.
-
Expandable with Add-On Terminals: Includes 2x 5 add-on terminals for seamless system expansion.
-
Bridged to the Left: Simplifies wiring and reduces potential configuration errors.
-

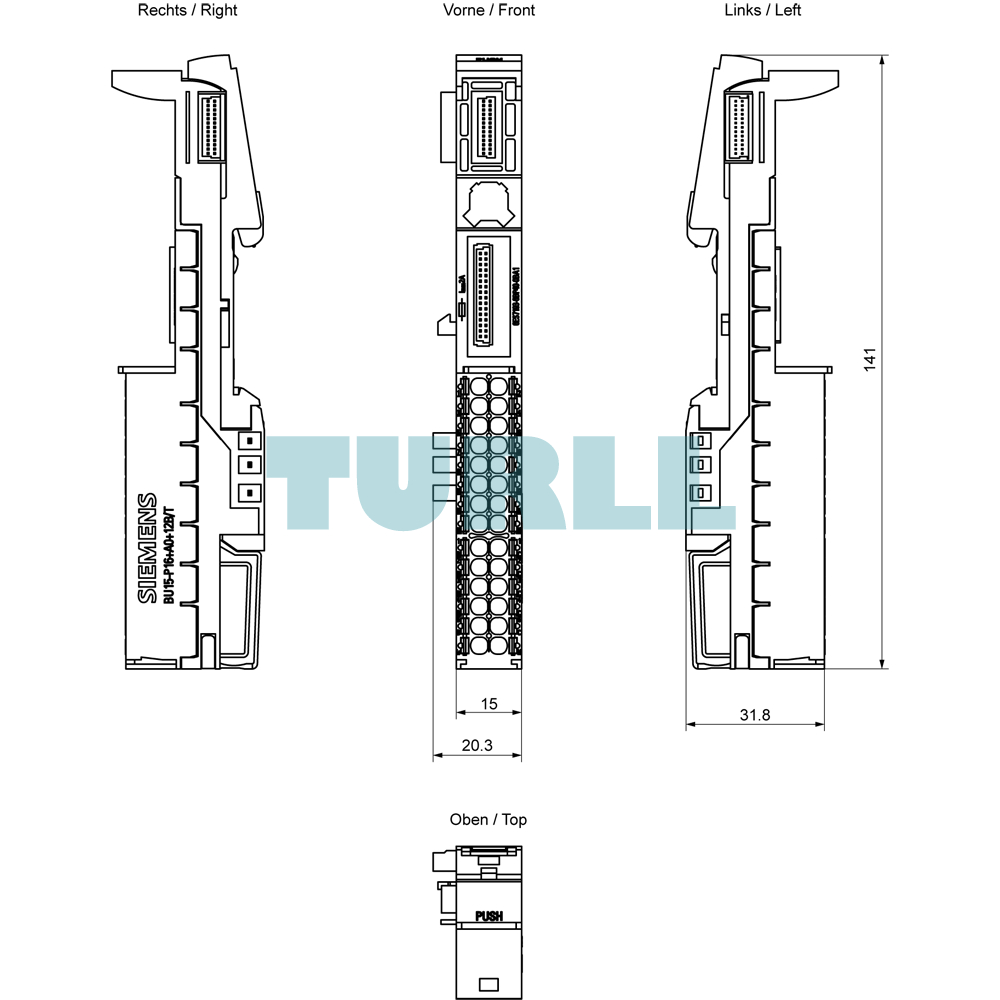

Compact Size: Only 15 mm x 141 mm, ideal for tight spaces in control cabinets.
-
Temperature Acquisition: Integrated temperature measurement enhances automation monitoring and control accuracy.
-
Reliable Industrial Performance: Built to Siemens standards, ensuring durability and long-term operational stability.
Function
The 6ES7193-6BP40-0BA1 BaseUnit performs the following core functions:
-
Mechanical Mounting: Provides a secure mounting base for an ET 200SP I/O module.
-
Electrical Connection: Facilitates the connection of field-side wiring (sensors/actuators) via its Push-in terminals.
-

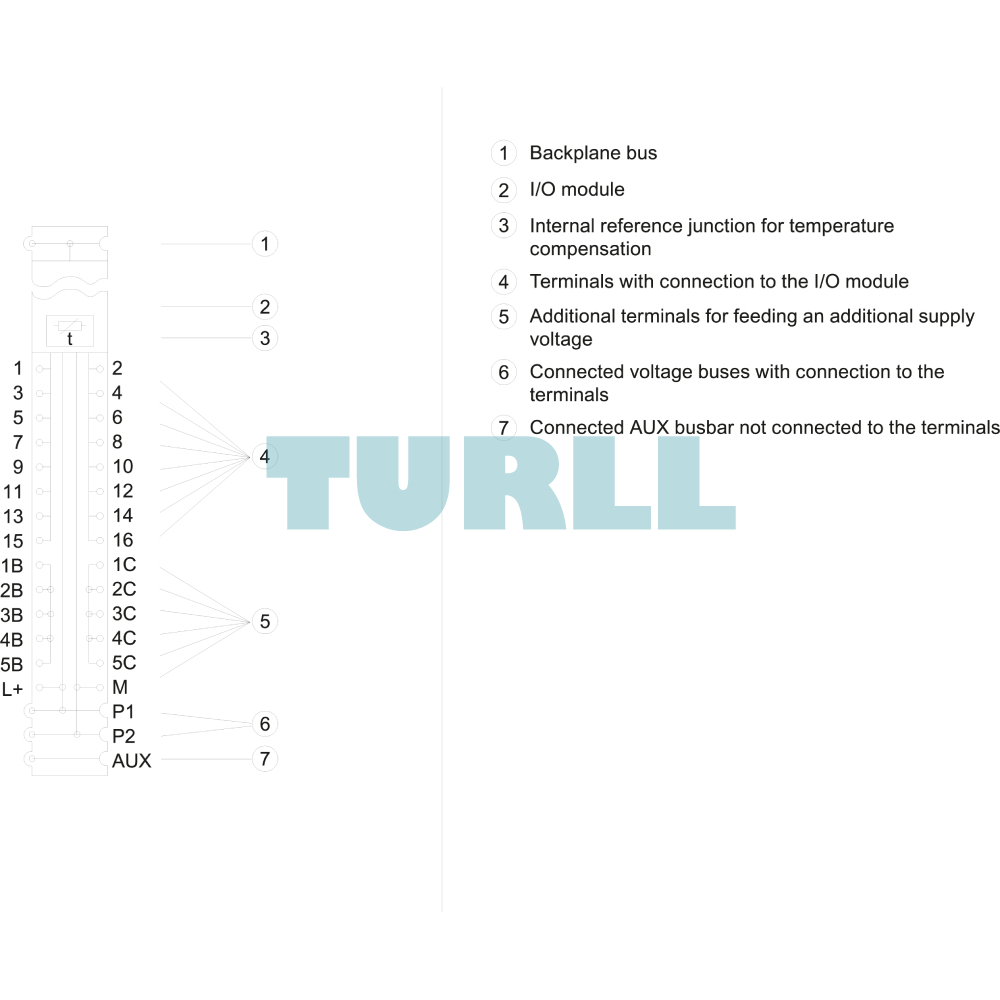

Potential Distribution: Distributes the necessary supply and load potentials, including the integrated potential bridging via the add-on terminals.
-
Data Transmission: Acts as the conduit for process data and diagnostics between the inserted I/O module and the high-speed backplane bus of the ET 200SP rack.
-
Temperature Sensing: Acquires and reports the temperature near the module, a vital diagnostic feature.
Download
Visit 6ES7193-6BP40-0BA1 for more detail info
For more our products visit turll
| Weight | 0.057 kg |
|---|---|
| Dimensions | 20015-160121-.2 × 5- × 15 mm |
| Brand | SIEMENS |
| Product type designation | BU type A1 |
| HW functional status | FS10 and higher |
| Rated value (DC) | 24 V |
| external protection for power supply lines | Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic |
| For P1 and P2 bus, max. | 10 A |
| For process terminals, max. | 2 A |
| Additional terminals | Yes |
| Temperature sensor | Yes |
| ● New potential group | No |
| ● Potential group continued from the left | Yes |
| ● Number of slots | 1; Type A1 |
| Isolation tested with | 707 V DC (type test) |
| ● horizontal installation, min. | -30 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -30 °C |
| ● vertical installation, max. | 50 °C |
| ● Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| ● for process terminals | CC00 to CC09 |
| ● for AUX terminals | does not exist |
| ● for add-on terminals | CC74 |
| ● Terminal type | Push-in terminal |
| ● Conductor cross-section, min. | 0.14 mm²; AWG 26 |
| ● Conductor cross-section, max. | 2.5 mm²; AWG 14 |
| ● Number of process terminals to I/O module | 16 |
| ● Number of terminals to AUX bus | 0 |
| ● Number of add-on terminals | 2×5 |
| ● Number of terminals with connection to P1 and P2 bus | 2 |
| Width | 15 mm |
| Height | 141 mm |
| Depth | 35 mm |
| Weight, approx. | 50 g |
| last modified: | 1/16/2021 |
