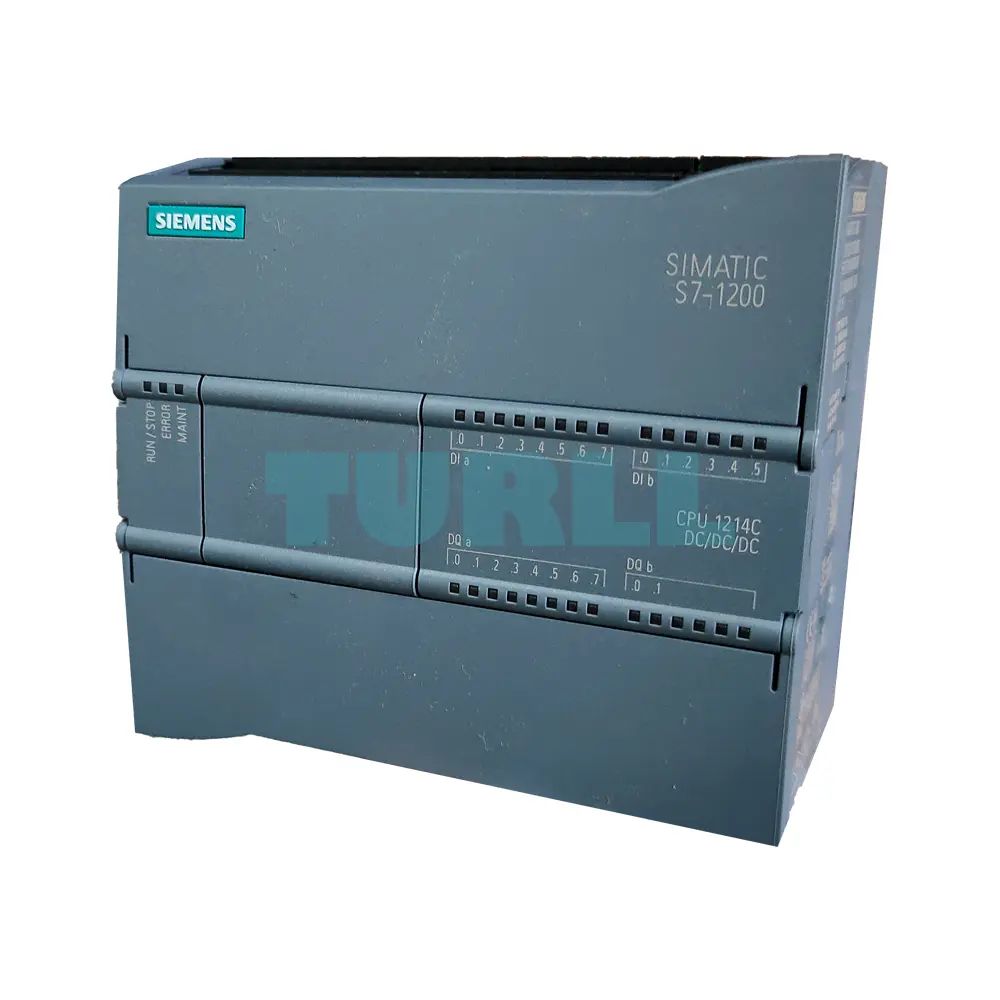

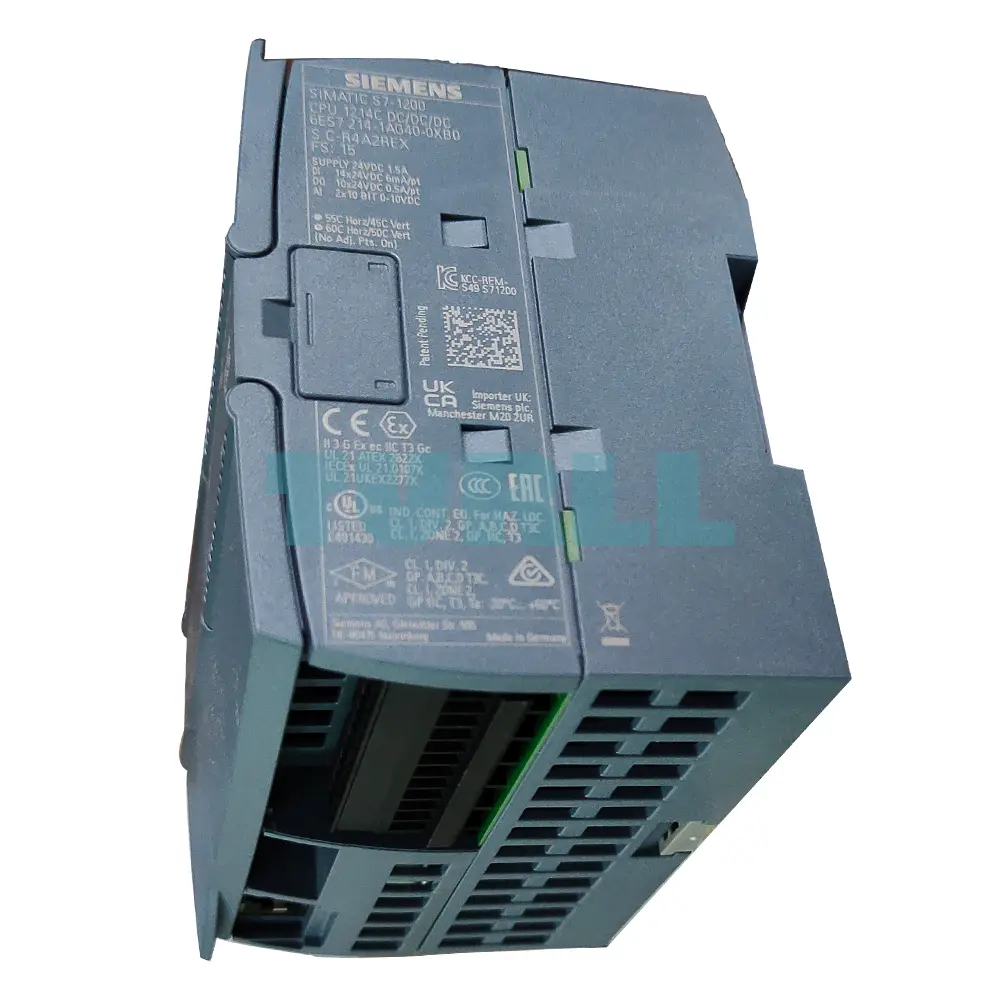

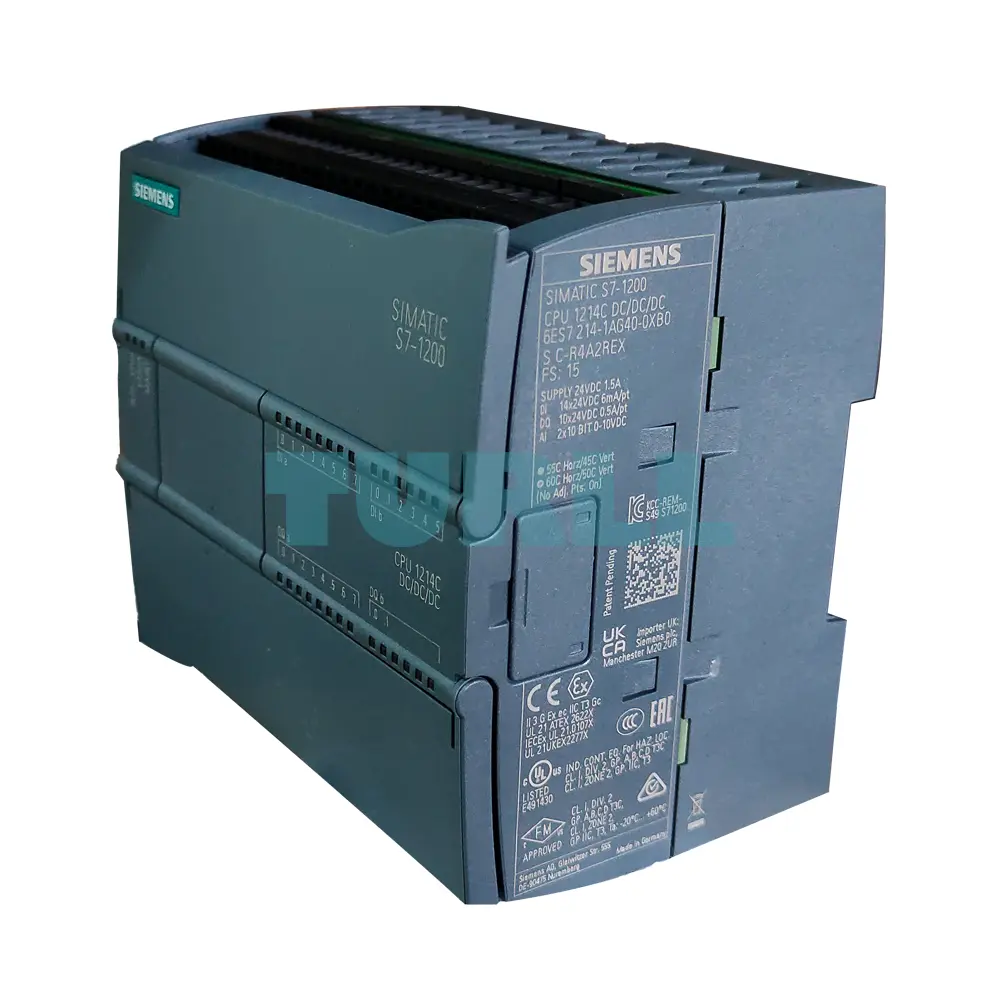

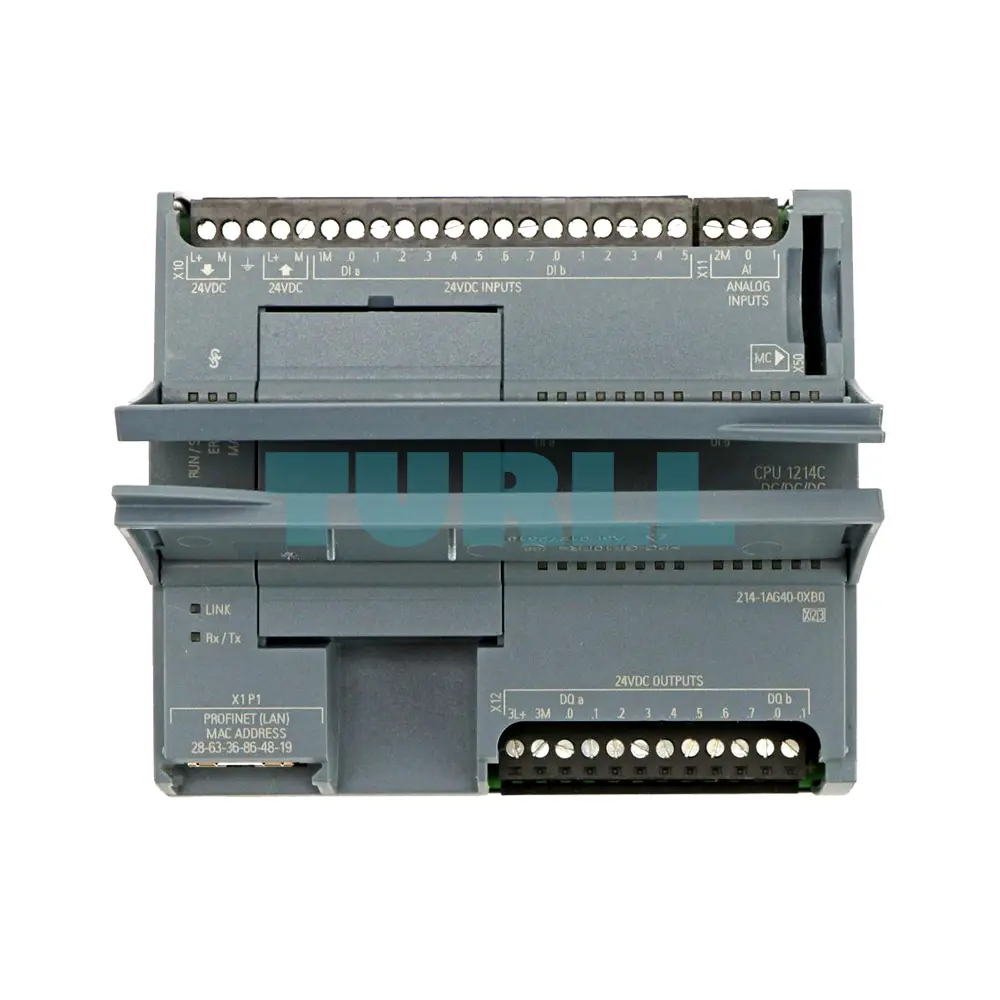

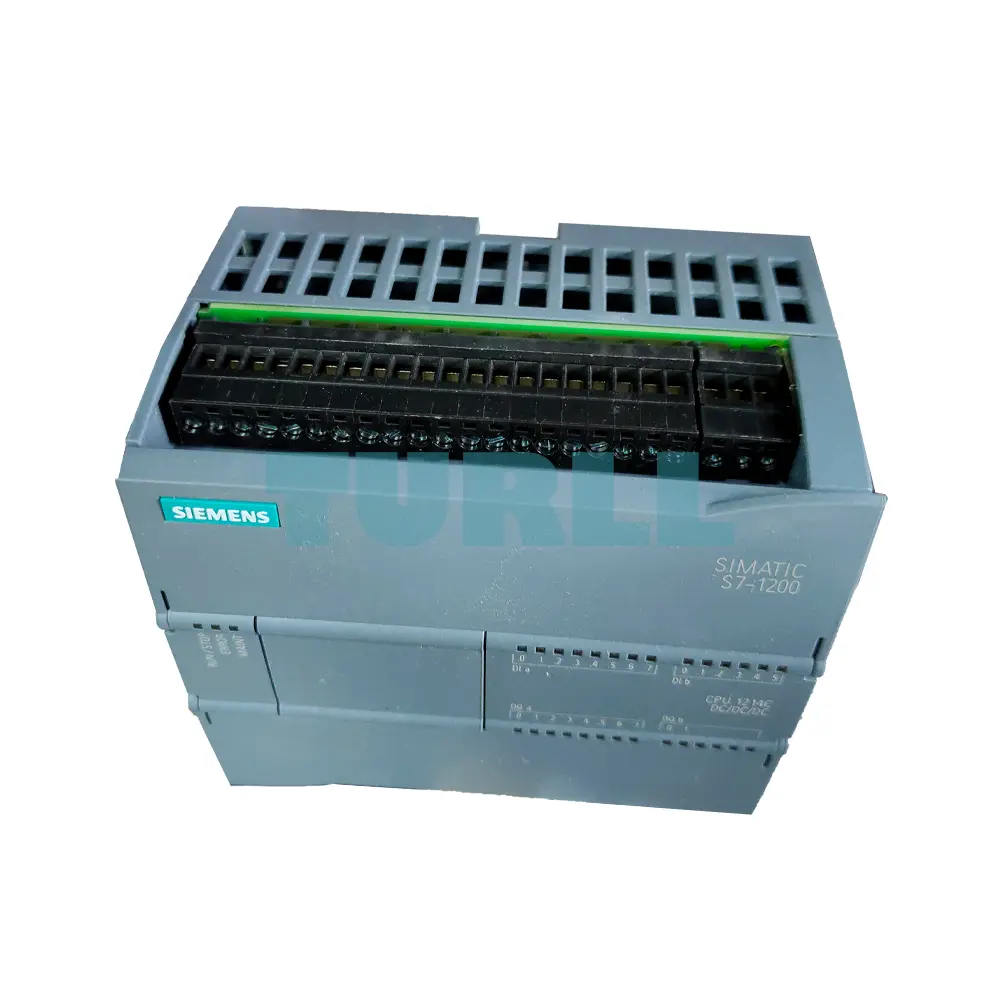

Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200, CPU 1214C, Compact PLC Original Brand New
Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200, CPU 1214C, Compact PLC Original Brand New - Image 2
Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200, CPU 1214C, Compact PLC Original Brand New - Image 3
Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200, CPU 1214C, Compact PLC Original Brand New - Image 4
Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200, CPU 1214C, Compact PLC Original Brand New - Image 5
Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200, CPU 1214C, Compact PLC
Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200, CPU 1214C, Compact PLC

SIEMENS

Siemens 6ES7214-1AG40-0XB0 SIMATIC S7-1200, CPU 1214C, Compact PLC Original Brand New

Model / SKU6ES7214-1AG40-0XB0

Siemens SIMATIC S7-1200 CPU 1214C is a powerful and versatile compact DC/DC/DC Programmable Logic Controller (PLC). Ideal for small to mid-size automation tasks, it features 14 Digital Inputs (DI) 24V DC, 10 Digital Outputs (DO) 24V DC, and 2 Analog Inputs (AI) 0-10V DC integrated on board, along with a 150 KB program/data memory.

Original price was: $815.58.Current price is: $358.52.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 6ES7214-1AG40-0XB0 is a SIMATIC S7-1200 CPU 1214C compact PLC, designed for efficient and reliable industrial automation. This compact CPU features a versatile DC/DC/DC configuration, onboard inputs/outputs, and robust memory, making it suitable for a wide range of applications in process control, manufacturing, and machine automation.

Equipped with 14 digital inputs, 10 digital outputs, and 2 analog inputs, this PLC supports precise monitoring and control of devices. The compact design ensures seamless integration into existing systems, while the reliable 24 V DC power supply guarantees consistent performance.

Key Features & Function

  • Model: Siemens 6ES7214-1AG40-0XB0

  • Type: SIMATIC S7-1200, CPU 1214C compact PLC

  • Power Supply: DC 20.4–28.8 V

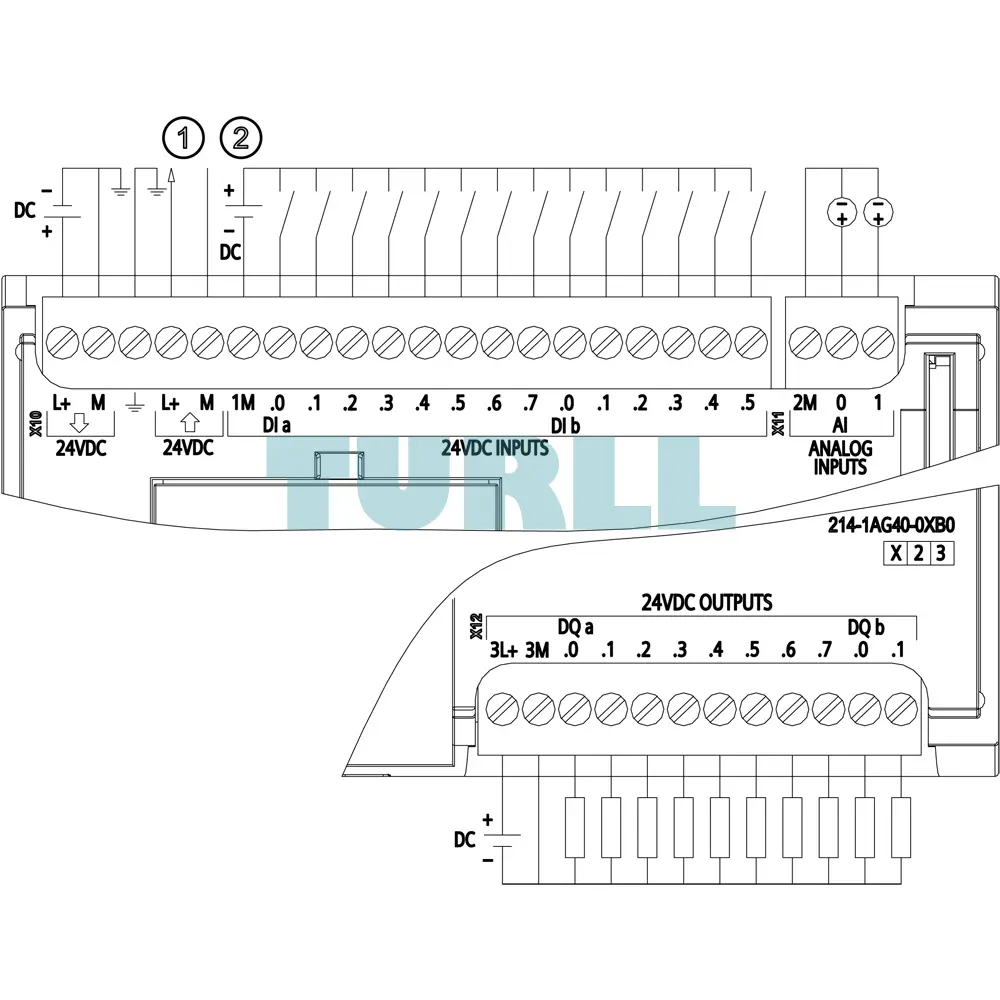

  • Onboard I/O:

    • 14 Digital Inputs (DI) 24 V DC

    • 10 Digital Outputs (DO) 24 V DC

    • 2 Analog Inputs (AI) 0–10 V DC

  • Memory: 150 KB program/data memory

  • Compact Design: Ideal for space-saving industrial applications

  • Functionality: Supports automation, control, and monitoring of industrial processes

  • Reliable Performance: Ensures consistent operation in demanding environments

Benefit

  • Efficient Automation: Streamlines industrial processes with precise control

  • Compact & Flexible: Easy integration in machines and control panels

  • High Reliability: Robust design with stable DC power supply

  • Scalable: Suitable for small to medium-sized automation tasks

  • User-Friendly Programming: Compatible with TIA Portal for fast setup and maintenance

Download

Datasheet in PDF

Visit 6ES7214-1AG40-0XB0 for more detail info

For more our products visit turll



Specifications

SKU / Model6ES7214-1AG40-0XB0
BrandSIEMENS
Product type designationCPU 1214C DC/DC/DC
Firmware versionV4.5
● Programming packageSTEP 7 V17 or higher
Rated value (DC)-
● 24 V DCYes
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Reverse polarity protectionYes
● permissible range, lower limit (DC)20.4 V
● permissible range, upper limit (DC)28.8 V
Current consumption (rated value)500 mA; CPU only
Current consumption, max.1 500 mA; CPU with all expansion modules
Inrush current, max.12 A; at 28.8 V
I²t0.5 A²·s
for backplane bus (5 V DC), max.1 600 mA; Max. 5 V DC for SM and CM
● 24 VL+ minus 4 V DC min.
Power loss, typ.12 W
● expandableNo
● integrated4 Mbyte
● Plug-in (SIMATIC Memory Card), max.with SIMATIC memory card
● maintenance-freeYes
● without batteryYes
for bit operations, typ.0.08 µs; / instruction
for word operations, typ.1.7 µs; / instruction
for floating point arithmetic, typ.2.3 µs; / instruction
Number of blocks (total)DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used
● Number, max.Limited only by RAM for code
Retentive data area (incl. timers, counters, flags), max.14 kbyte
● Size, max.8 kbyte; Size of bit memory address area
● per priority class, max.16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB
● Inputs, adjustable1 kbyte
● Outputs, adjustable1 kbyte
Number of modules per system, max.3 comm. modules, 1 signal board, 8 signal modules
● Hardware clock (real-time)Yes
● Backup time480 h; Typical
● Deviation per day, max.±60 s/month at 25 °C
Number of digital inputs14; Integrated
● of which inputs usable for technological functions6; HSC (High Speed Counting)
Source/sink inputYes
— up to 40 °C, max.14
● Rated value (DC)24 V
● for signal "0"5 V DC at 1 mA
● for signal "1"15 V DC at 2.5 mA
— at "0" to "1", min.0.2 ms
— at "0" to "1", max.12.8 ms
— parameterizableSingle phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz
Number of digital outputs10
● of which high-speed outputs4; 100 kHz Pulse Train Output
Limitation of inductive shutdown voltage toL+ (-48 V)
● with resistive load, max.0.5 A
● on lamp load, max.5 W
● for signal "0", max.0.1 V; with 10 kOhm load
● for signal "1", min.20 V
● for signal "1" rated value0.5 A
● for signal "0" residual current, max.0.1 mA
● "0" to "1", max.1 µs
● "1" to "0", max.5 µs
● of the pulse outputs, with resistive load, max.100 kHz
● Number of relay outputs0
● unshielded, max.150 m
Number of analog inputs2
● VoltageYes
● 0 to +10 VYes
— Input resistance (0 to 10 V)≥100k ohms
● shielded, max.100 m; twisted and shielded
Number of analog outputs0
● Resolution with overrange (bit including sign), max.10 bit
● Integration time, parameterizableYes
● Conversion time (per channel)625 µs
● 2-wire sensorYes
Interface typePROFINET
IsolatedYes
automatic detection of transmission rateYes
AutonegotiationYes
AutocrossingYes
● RJ 45 (Ethernet)Yes
● Number of ports1
● integrated switchNo
● PROFINET IO ControllerYes
● PROFINET IO DeviceYes
● SIMATIC communicationYes
● Open IE communicationYes; Optionally also encrypted
● Web serverYes
● Media redundancyNo
● Transmission rate, max.100 Mbit/s
— Prioritized startupYes
— Number of IO devices with prioritized startup, max.16
— Number of connectable IO Devices, max.16
— Number of connectable IO Devices for RT, max.16
— of which in line, max.16
— Activation/deactivation of IO DevicesYes
— Number of IO Devices that can be simultaneously activated/deactivated, max.8
— Updating timeThe minimum value of the update time also depends on the communication component set for PROFINET IO, on the number of IO devices and the quantity of configured user data.
— PG/OP communicationYes; encryption with TLS V1.3 pre-selected
— Isochronous modeNo
— IRTNo
— PROFIenergyYes
— Shared deviceYes
— Number of IO Controllers with shared device, max.2
Supports protocol for PROFINET IOYes
PROFIsafeNo
PROFIBUSYes; CM 1243-5 (master) or CM 1242-5 (slave) required
OPC UAYes; OPC UA Server
AS-InterfaceYes; CM 1243-2 required
● DHCPNo
● SNMPYes
● DCPYes
● LLDPYes
— MRPNo
— MRPDNo
● S7 routingYes
● TCP/IPYes
● ISO-on-TCP (RFC1006)Yes
● UDPYes
— Data length, max.1 472 byte
● User-defined websitesYes
● Runtime license requiredYes; "Basic" license required
● OPC UA ServerYes; data access (read, write, subscribe), method call, runtime license required
— Application authenticationAvailable security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256
— User authentication"anonymous" or by user name & password
— Number of sessions, max.10
— Number of subscriptions per session, max.50
— Sampling interval, min.100 ms
— Publishing interval, min.200 ms
— Number of server methods, max.20
— Number of monitored items, max.1 000
— Number of server interfaces, max.2
— Number of nodes for user-defined server interfaces, max.2 000
● MODBUSYes
● supportedYes
● as serverYes
● as clientYes
● User data per job, max.See online help (S7 communication, user data size)
● overallPG Connections: 4 reserved / 4 max; HMI Connections: 12 reserved / 18 max; S7 Connections: 8 reserved / 14 max; Open User Connections: 8 reserved / 14 max; Web Connections: 2 reserved / 30 max; OPC UA Connections: 0 reserved / 10 max; Total Connections: 34 reserved / 64 max
● Status/control variableYes
● VariablesInputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
● ForcingYes
● presentYes
● Number of configurable Traces2
● Memory size per trace, max.512 kbyte
● RUN/STOP LEDYes
● ERROR LEDYes
● MAINT LEDYes
Counter-
● Number of counters6
● Counting frequency, max.100 kHz
Frequency measurementYes
controlled positioningYes
Number of position-controlled positioning axes, max.8
Number of positioning axes via pulse-direction interface4; With integrated outputs
PID controllerYes
Number of alarm inputs4
Number of pulse outputs4
Limit frequency (pulse)100 kHz
● Potential separation digital inputsNo
● Potential separation digital outputsYes
● between the channelsNo
● between the channels, in groups of1
● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2Yes
— Test voltage at air discharge8 kV
— Test voltage at contact discharge6 kV
● Interference immunity on supply lines acc. to IEC 61000-4-4Yes
● Interference immunity on signal cables acc. to IEC 61000-4-4Yes
● Interference immunity on supply lines acc. to IEC 61000-4-5Yes
● Interference immunity against high-frequency radiation acc. to IEC 61000-4-6Yes
● Limit class A, for use in industrial areasYes; Group 1
● Limit class B, for use in residential areasYes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011
IP degree of protectionIP20
CE markYes
UL approvalYes
cULusYes
FM approvalYes
RCM (formerly C-TICK)Yes
KC approvalYes
Marine approvalYes
● Fall height, max.0.3 m; five times, in product package
● horizontal installation, min.-20 °C
● horizontal installation, max.60 °C
● vertical installation, min.-20 °C
● vertical installation, max.50 °C
● min.-40 °C
● max.70 °C
● Operation, min.795 hPa
● Storage/transport, min.660 hPa
● Storage/transport, max.1 080 hPa
● Installation altitude, min.-1 000 m
● Installation altitude, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
● Operation, max.95 %; no condensation
● Vibration resistance during operation acc. to IEC 60068-2-62 g (m/s²) wall mounting, 1 g (m/s²) DIN rail
● Operation, tested according to IEC 60068-2-6Yes
● tested according to IEC 60068-2-27Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms
● SO2 at RH < 60% without condensationS02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free
— LADYes
— FBDYes
— SCLYes
● User program protection/password protectionYes
● Copy protectionYes
● Block protectionYes
● protection of confidential configuration dataYes
● Protection level: Write protectionYes
● Protection level: Read/write protectionYes
● Protection level: Complete protectionYes
● adjustableYes

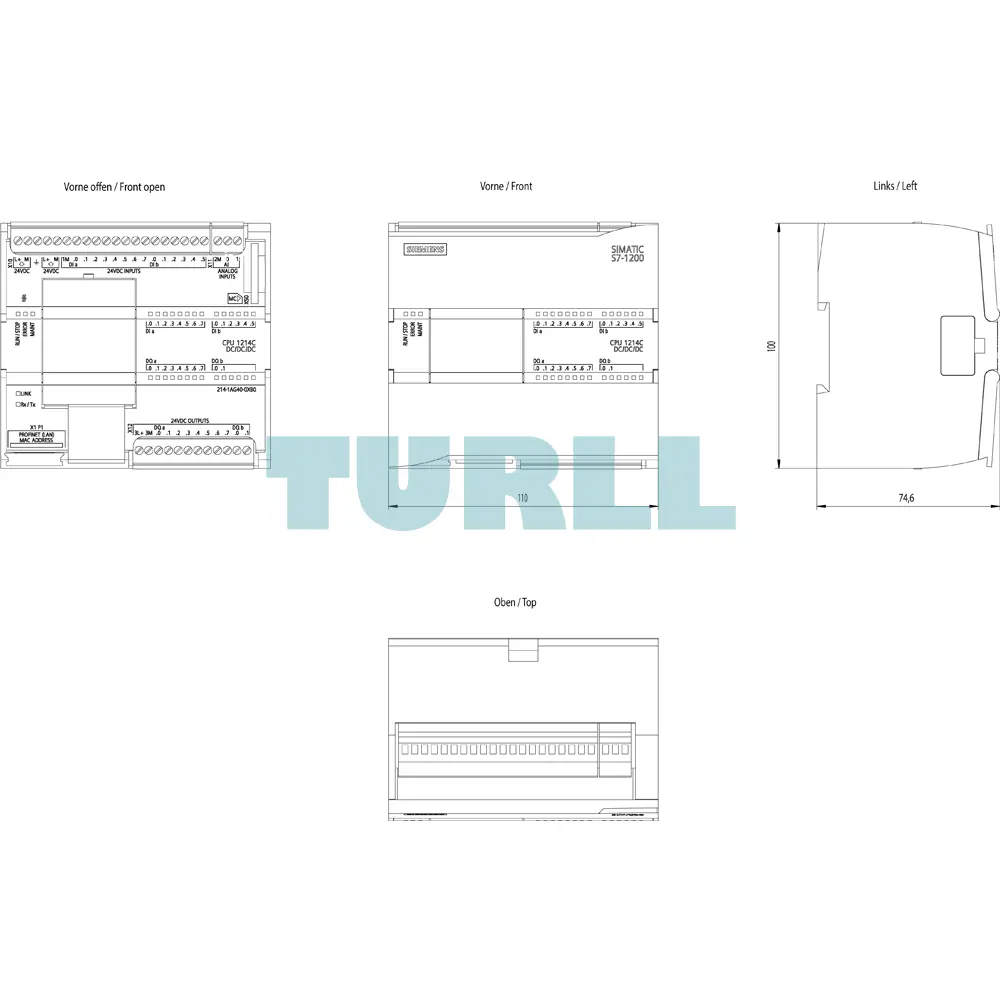

Width110 mm
Height100 mm
Depth75 mm
Weight, approx.415 g
last modified:4/12/2021
Product ConditionBrand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good
Weight0.412 kg
Dimensions11.40 × 11.70 × 9.00 mm
