SIEMENS

6ES7214-1BG40-0XB0

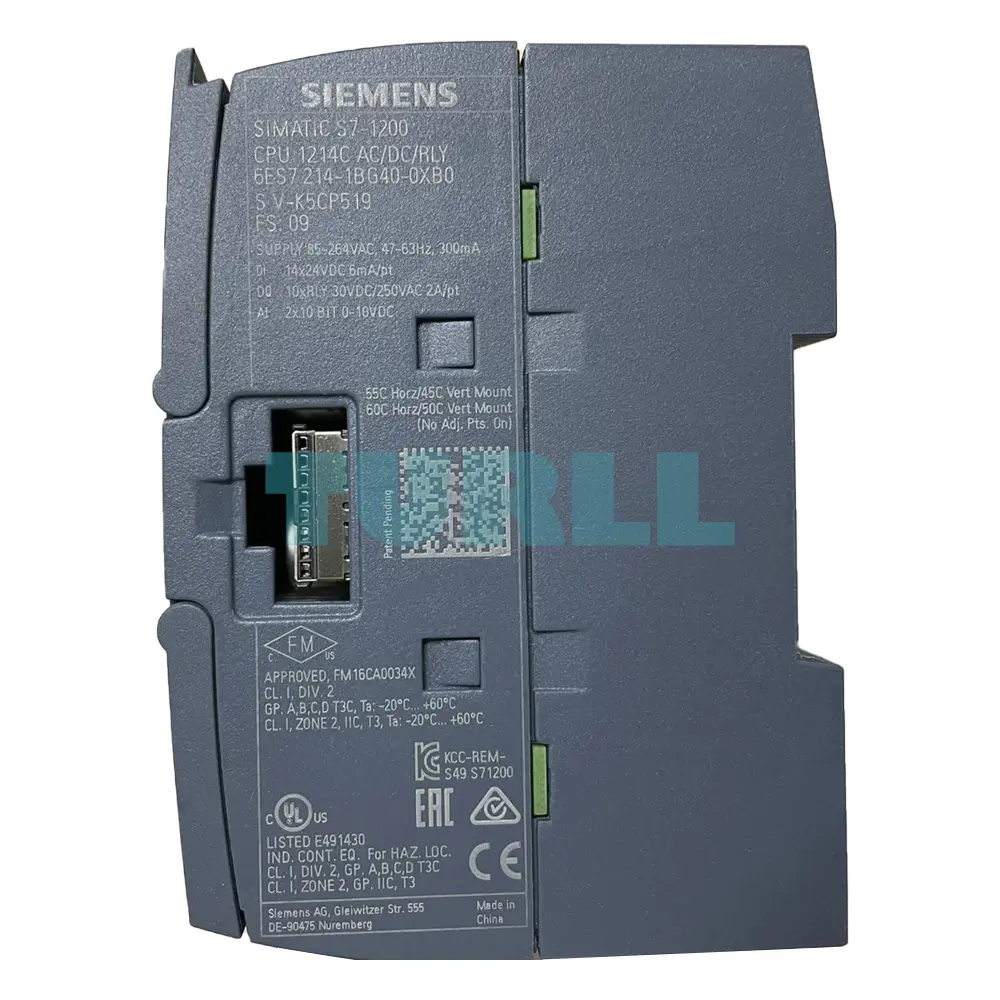

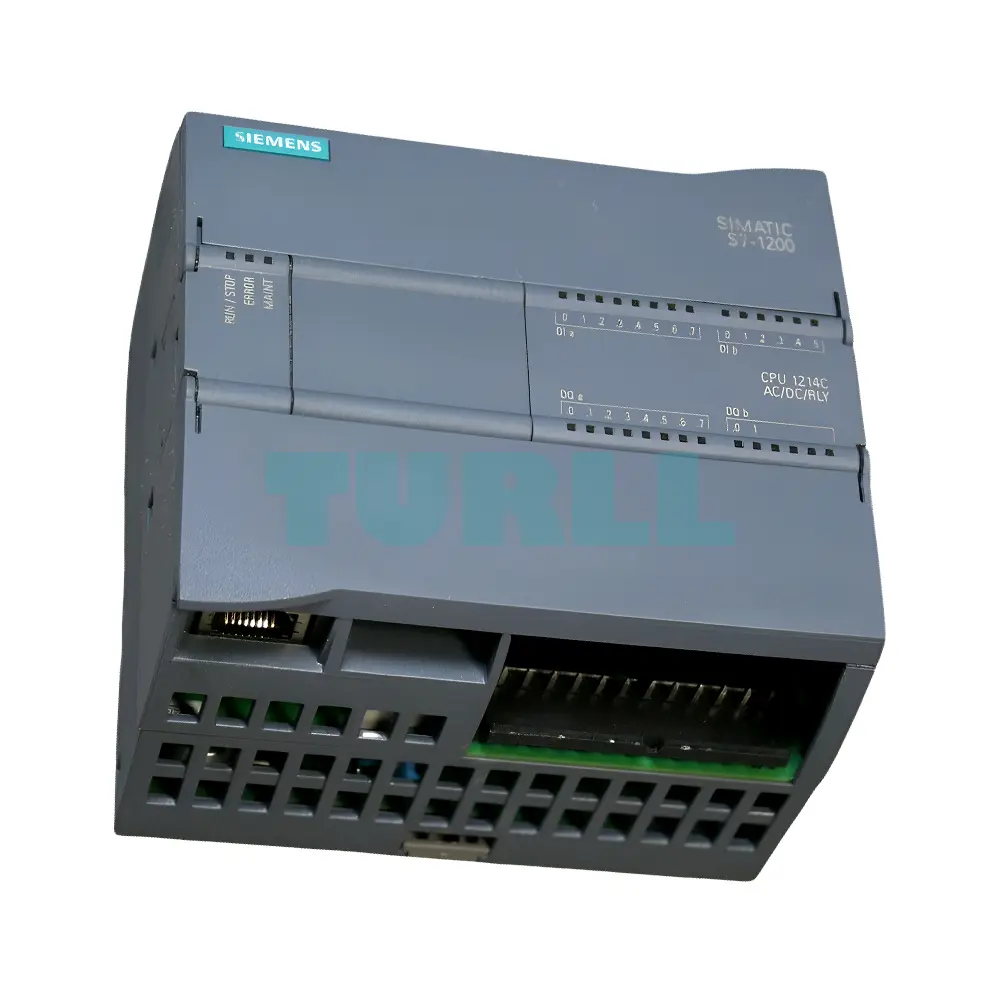

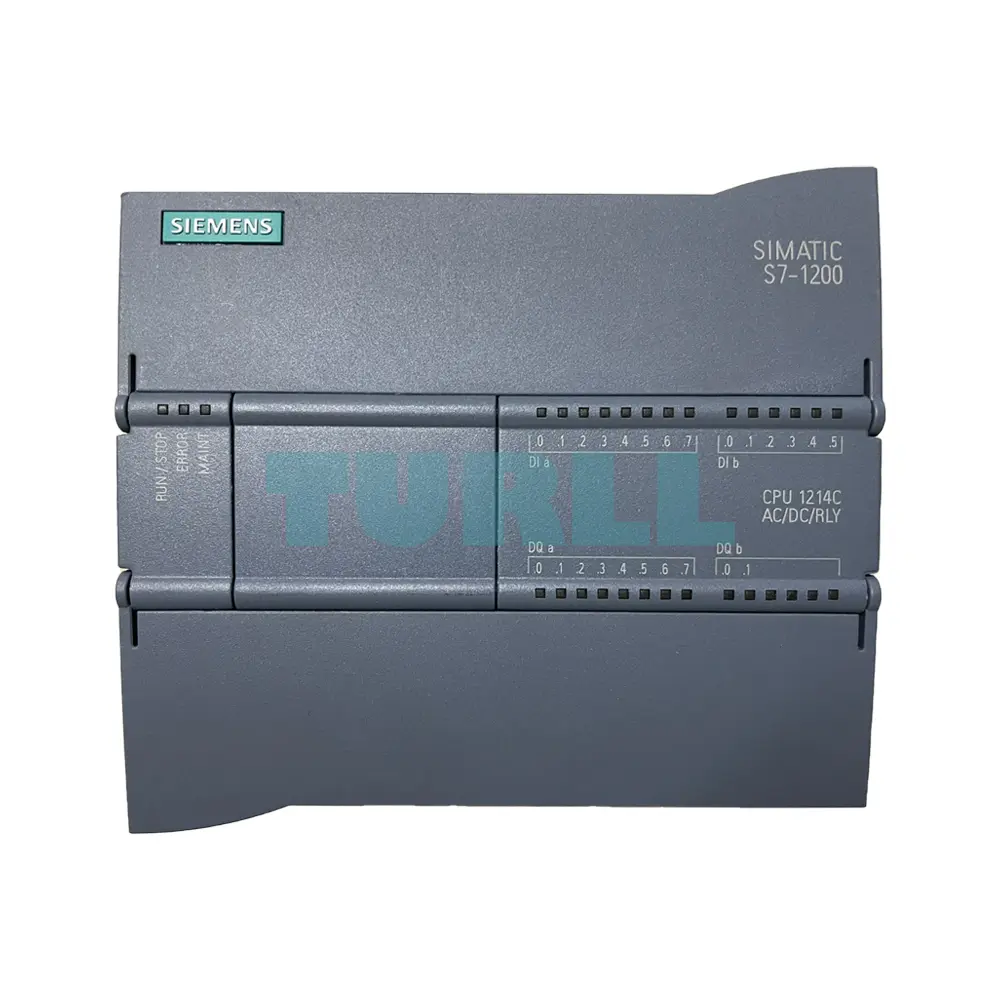

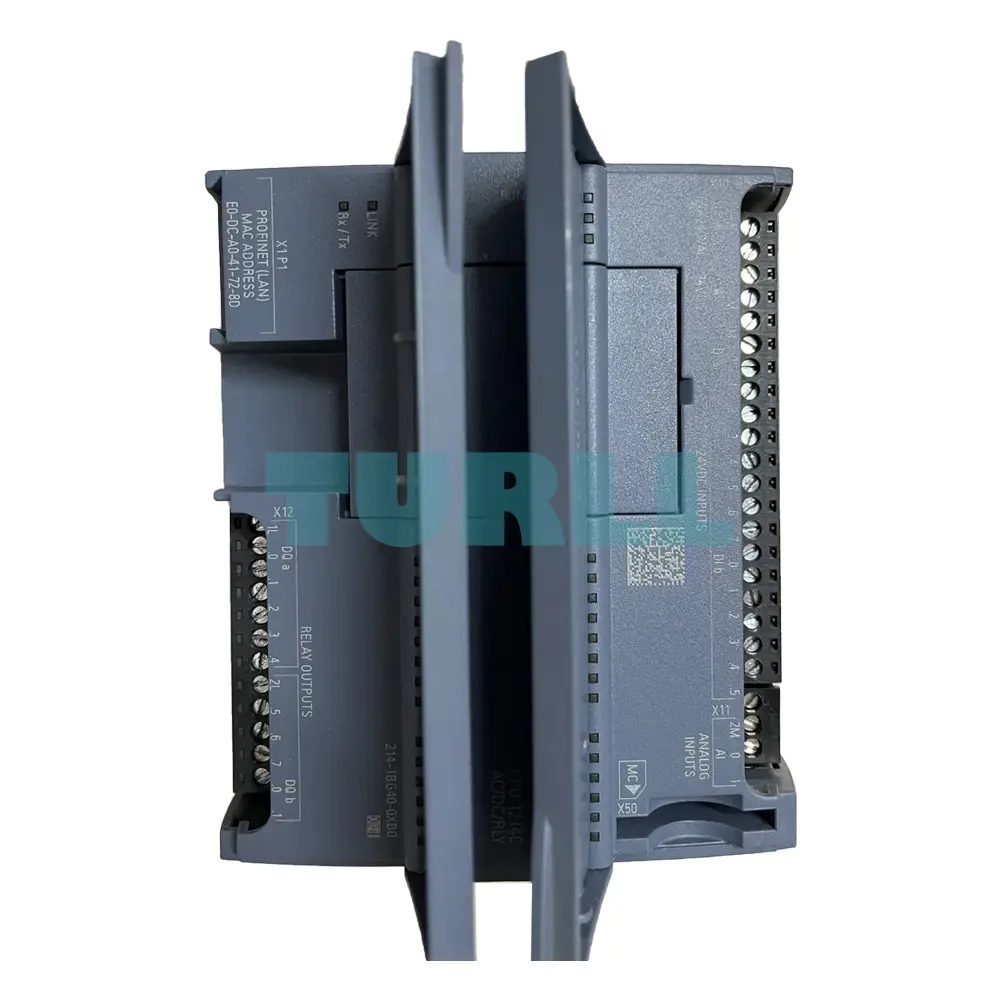

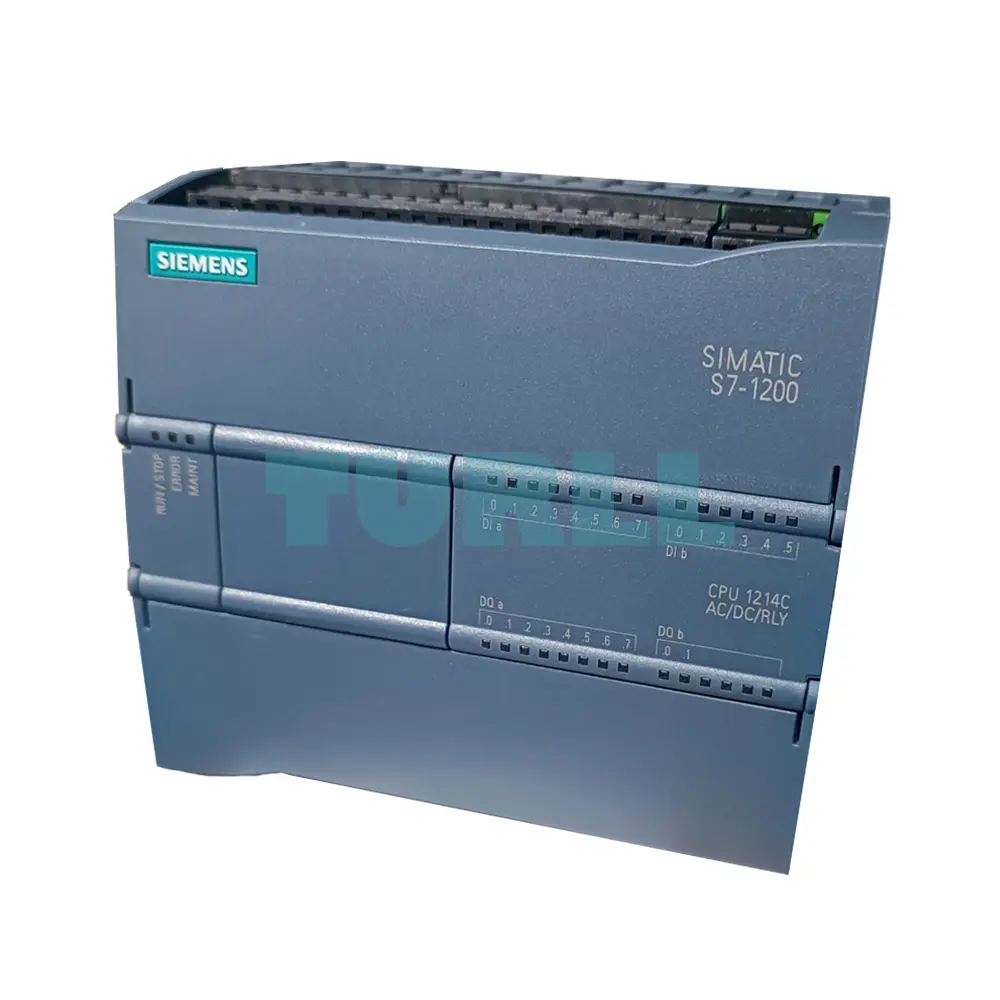

Siemens 6ES7214-1BG40-0XB0 SIMATIC S7-1200, CPU 1214C, Compact PLC Original Brand New

Enlarge

Siemens 6ES7214-1BG40-0XB0 SIMATIC S7-1200, CPU 1214C, Compact PLC

Original price was: $926.21.Current price is: $346.89.

USD

In warehouse stock

Dispatches in 1–3 days

Condition: Original brand new
Warranty: 12 months

Need volume pricing? Request a quote

Review shipping and applicable charges at checkout. Dispatch time excludes transit.

Select a configuration to check its price, availability and supply terms.

Send your model and quantity. We will confirm the price and lead time.

Specifications & documents ↓

Ask about this model on WhatsApp

Payments, shipping & warranty

PayPal
Bank transfer

See available methods at checkout.Payment guide →

PRODUCT DATA

Specifications

Check the full model number and every required specification.

Listed product specifications
SKU / model	6ES7214-1BG40-0XB0
Brand	SIEMENS
Product type designation	CPU 1214C AC/DC/relay
Firmware version	V4.5
● Programming package	STEP 7 V17 or higher
Rated value (AC)	-
● 120 V AC	Yes
● 230 V AC	Yes
permissible range, lower limit (AC)	85 V
permissible range, upper limit (AC)	264 V
● permissible range, lower limit	47 Hz
● permissible range, upper limit	63 Hz
Current consumption (rated value)	100 mA at 120 V AC; 50 mA at 240 V AC
Current consumption, max.	300 mA at 120 V AC; 150 mA at 240 V AC
Inrush current, max.	20 A; at 264 V
I²t	0.8 A²·s
for backplane bus (5 V DC), max.	1 600 mA; Max. 5 V DC for SM and CM
● 24 V	20.4 to 28.8V
Power loss, typ.	14 W
● expandable	No
● integrated	4 Mbyte
● Plug-in (SIMATIC Memory Card), max.	with SIMATIC memory card
● maintenance-free	Yes
● without battery	Yes
for bit operations, typ.	0.08 µs; / instruction
for word operations, typ.	1.7 µs; / instruction
for floating point arithmetic, typ.	2.3 µs; / instruction
Number of blocks (total)	DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. There is no restriction, the entire working memory can be used
● Number, max.	Limited only by RAM for code
Retentive data area (incl. timers, counters, flags), max.	14 kbyte
● Size, max.	8 kbyte; Size of bit memory address area
● per priority class, max.	16 kbyte; Priority class 1 (program cycle): 16 KB, priority class 2 to 26: 6 KB
● Inputs, adjustable	1 kbyte
● Outputs, adjustable	1 kbyte
Number of modules per system, max.	3 comm. modules, 1 signal board, 8 signal modules
● Hardware clock (real-time)	Yes
● Backup time	480 h; Typical
● Deviation per day, max.	±60 s/month at 25 °C
Number of digital inputs	14; Integrated
● of which inputs usable for technological functions	6; HSC (High Speed Counting)
Source/sink input	Yes
— up to 40 °C, max.	14
● Rated value (DC)	24 V
● for signal "0"	5 V DC at 1 mA
● for signal "1"	15 V DC at 2.5 mA
— at "0" to "1", min.	0.2 ms
— at "0" to "1", max.	12.8 ms
— parameterizable	Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz
Number of digital outputs	10; Relays
● with resistive load, max.	2 A
● on lamp load, max.	30 W with DC, 200 W with AC
● "0" to "1", max.	10 ms; max.
● "1" to "0", max.	10 ms; max.
● Number of relay outputs	10
● Number of operating cycles, max.	mechanically 10 million, at rated load voltage 100 000
● unshielded, max.	150 m
Number of analog inputs	2
● Voltage	Yes
● 0 to +10 V	Yes
— Input resistance (0 to 10 V)	≥100k ohms
● shielded, max.	100 m; twisted and shielded
Number of analog outputs	0
● Resolution with overrange (bit including sign), max.	10 bit
● Integration time, parameterizable	Yes
● Conversion time (per channel)	625 µs
● 2-wire sensor	Yes
Interface type	PROFINET
Isolated	Yes
automatic detection of transmission rate	Yes
Autonegotiation	Yes
Autocrossing	Yes
● RJ 45 (Ethernet)	Yes
● Number of ports	1
● integrated switch	No
● PROFINET IO Controller	Yes
● PROFINET IO Device	Yes
● SIMATIC communication	Yes
● Open IE communication	Yes; Optionally also encrypted
● Web server	Yes
● Media redundancy	No
● Transmission rate, max.	100 Mbit/s
— Prioritized startup	Yes
— Number of IO devices with prioritized startup, max.	16
— Number of connectable IO Devices, max.	16
— Number of connectable IO Devices for RT, max.	16
— of which in line, max.	16
— Activation/deactivation of IO Devices	Yes
— Number of IO Devices that can be simultaneously activated/deactivated, max.	8
— Updating time	The minimum value of the update time also depends on the communication component set for PROFINET IO, on the number of IO devices and the quantity of configured user data.
— PG/OP communication	Yes; encryption with TLS V1.3 pre-selected
— Isochronous mode	No
— IRT	No
— PROFIenergy	Yes
— Shared device	Yes
— Number of IO Controllers with shared device, max.	2
Supports protocol for PROFINET IO	Yes
PROFIsafe	No
PROFIBUS	Yes; CM 1243-5 (master) or CM 1242-5 (slave) required
OPC UA	Yes; OPC UA Server
AS-Interface	Yes; CM 1243-2 required
● DHCP	No
● SNMP	Yes
● DCP	Yes
● LLDP	Yes
— MRP	No
— MRPD	No
● S7 routing	Yes
● TCP/IP	Yes
● ISO-on-TCP (RFC1006)	Yes
● UDP	Yes
— Data length, max.	1 472 byte
● User-defined websites	Yes
● Runtime license required	Yes; "Basic" license required
● OPC UA Server	Yes; data access (read, write, subscribe), method call, runtime license required
— Application authentication	Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256
— User authentication	"anonymous" or by user name & password
— Number of sessions, max.	10
— Number of subscriptions per session, max.	50
— Sampling interval, min.	100 ms
— Publishing interval, min.	200 ms
— Number of server methods, max.	20
— Number of monitored items, max.	1 000
— Number of server interfaces, max.	2
— Number of nodes for user-defined server interfaces, max.	2 000
● MODBUS	Yes
● supported	Yes
● as server	Yes
● as client	Yes
● User data per job, max.	See online help (S7 communication, user data size)
● overall	PG Connections: 4 reserved / 4 max; HMI Connections: 12 reserved / 18 max; S7 Connections: 8 reserved / 14 max; Open User Connections: 8 reserved / 14 max; Web Connections: 2 reserved / 30 max; OPC UA Connections: 0 reserved / 10 max; Total Connections: 34 reserved / 64 max
● Status/control variable	Yes
● Variables	Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
● Forcing	Yes
● present	Yes
● Number of configurable Traces	2
● Memory size per trace, max.	512 kbyte
● RUN/STOP LED	Yes
● ERROR LED	Yes
● MAINT LED	Yes
Counter	-
● Number of counters	6
● Counting frequency, max.	100 kHz
Frequency measurement	Yes
controlled positioning	Yes
Number of position-controlled positioning axes, max.	8
Number of positioning axes via pulse-direction interface	Up to 4 with SB 1222
PID controller	Yes
Number of alarm inputs	4
● Potential separation digital inputs	500V AC for 1 minute
● Potential separation digital outputs	Relays
● between the channels	No
● between the channels, in groups of	2
● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2	Yes
— Test voltage at air discharge	8 kV
— Test voltage at contact discharge	6 kV
● Interference immunity on supply lines acc. to IEC 61000-4-4	Yes
● Interference immunity on signal cables acc. to IEC 61000-4-4	Yes
● Interference immunity on supply lines acc. to IEC 61000-4-5	Yes
● Interference immunity against high-frequency radiation acc. to IEC 61000-4-6	Yes
● Limit class A, for use in industrial areas	Yes; Group 1
● Limit class B, for use in residential areas	Yes; When appropriate measures are used to ensure compliance with the limits for Class B according to EN 55011
IP degree of protection	IP20
CE mark	Yes
UL approval	Yes
cULus	Yes
FM approval	Yes
RCM (formerly C-TICK)	Yes
KC approval	Yes
Marine approval	Yes
● Fall height, max.	0.3 m; five times, in product package
● horizontal installation, min.	-20 °C
● horizontal installation, max.	60 °C
● vertical installation, min.	-20 °C
● vertical installation, max.	50 °C
● min.	-40 °C
● max.	70 °C
● Operation, min.	795 hPa
● Storage/transport, min.	660 hPa
● Storage/transport, max.	1 080 hPa
● Installation altitude, min.	-1 000 m
● Installation altitude, max.	5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
● Operation, max.	95 %; no condensation
● Vibration resistance during operation acc. to IEC 60068-2-6	2 g (m/s²) wall mounting, 1 g (m/s²) DIN rail
● Operation, tested according to IEC 60068-2-6	Yes
● tested according to IEC 60068-2-27	Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms
● SO2 at RH < 60% without condensation	S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free
— LAD	Yes
— FBD	Yes
— SCL	Yes
● User program protection/password protection	Yes
● Copy protection	Yes
● Block protection	Yes
● protection of confidential configuration data	Yes
● Protection level: Write protection	Yes
● Protection level: Read/write protection	Yes
● Protection level: Complete protection	Yes
● adjustable	Yes

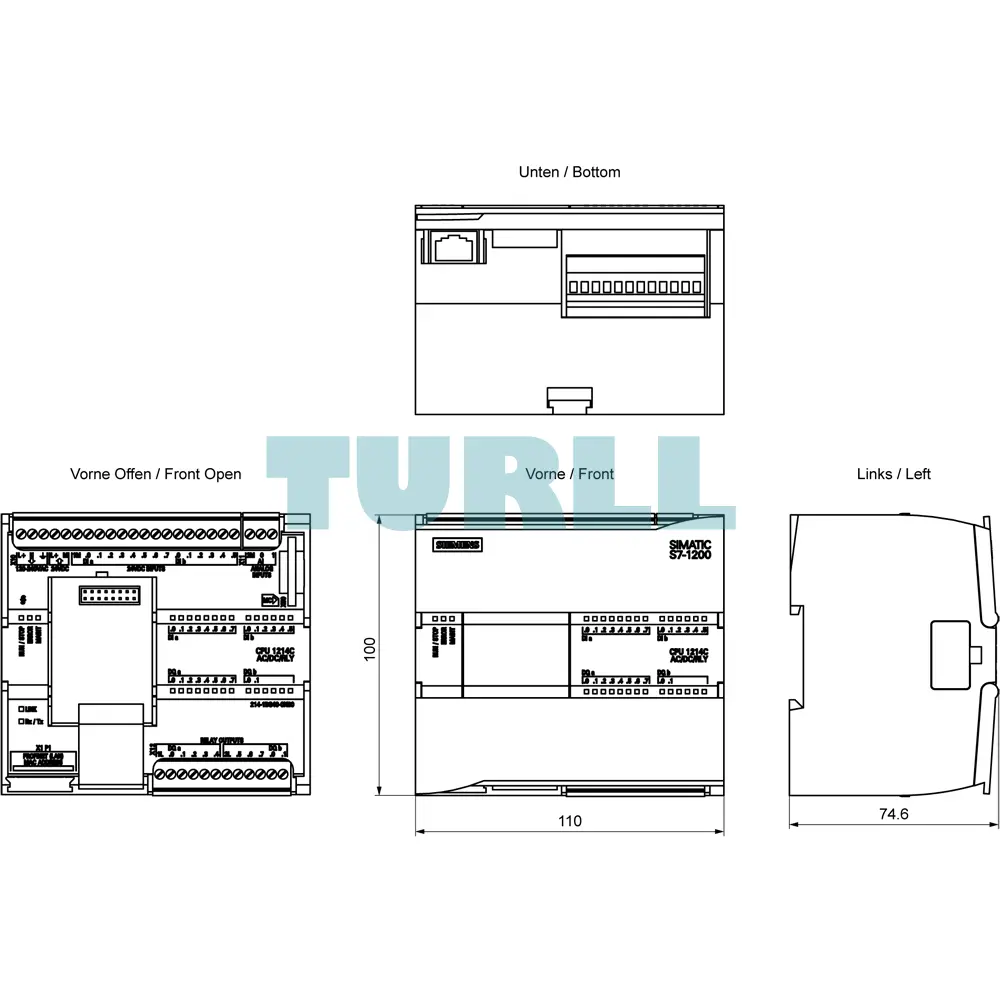

Width	110 mm
Height	100 mm
Depth	75 mm
Weight, approx.	455 g
last modified:	4/12/2021
Product Condition	Brand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good
Weight for shipping	0.491 kg
Dimensions for shipping	11.40 × 11.70 × 8.80 mm

No public document is linked for this model.

Ask for technical documentation

Description

Overview

The Siemens 6ES7214-1BG40-0XB0 is a highly reliable SIMATIC S7-1200 CPU 1214C compact PLC, designed for industrial automation applications. It provides flexible connectivity and powerful processing in a compact form factor, ideal for small to medium-scale automation projects. With integrated digital and analog I/Os, this PLC ensures seamless integration with sensors, actuators, and other automation devices.

Key Benefit

Cost-Effective Automation: Provides an integrated solution with onboard I/O, reducing the need for additional modules for mid-range control tasks.
Maximum Flexibility: The AC/DC/Relay configuration allows for direct connection to a wide range of global power supplies (85-264V AC) and provides high current switching capability on the outputs.
Simplified Engineering: Seamlessly integrates into the TIA Portal (Total Integrated Automation) for efficient configuration, programming, and diagnostics.
Reliable Performance: Features robust design, maintenance-free backup, and fast processing speeds (typ. 0.08 µs per bit operation).
Scalability: Supports expansion modules (Signal Modules and Communication Modules) to easily adapt to growing automation requirements.

Features

CPU Type: 1214C compact CPU for efficient automation control.
Input/Output Configuration:
- 14 Digital Inputs (24 V DC)
- 10 Digital Outputs (Relay, 2 A)
- 2 Analog Inputs (0-10 V DC)
Power Supply: AC 85-264 V, 47-63 Hz
Program/Data Memory: 150 KB
Communication: Ethernet and onboard communication interfaces for easy network integration.
Durability: Designed for industrial environments with high reliability.

Function and Application

The CPU 1214C is primarily used for small and mid-size automation projects across various industries, including:

Machine Automation: Control of simple machines, packaging lines, and assembly equipment.
Process Control: Regulation tasks like temperature control, pump/fan systems, and simple PID loops.
Building Automation: HVAC control, lighting systems, and access control.
Industrial Networking: Acting as a PROFINET IO Controller or Device for distributed I/O systems.
