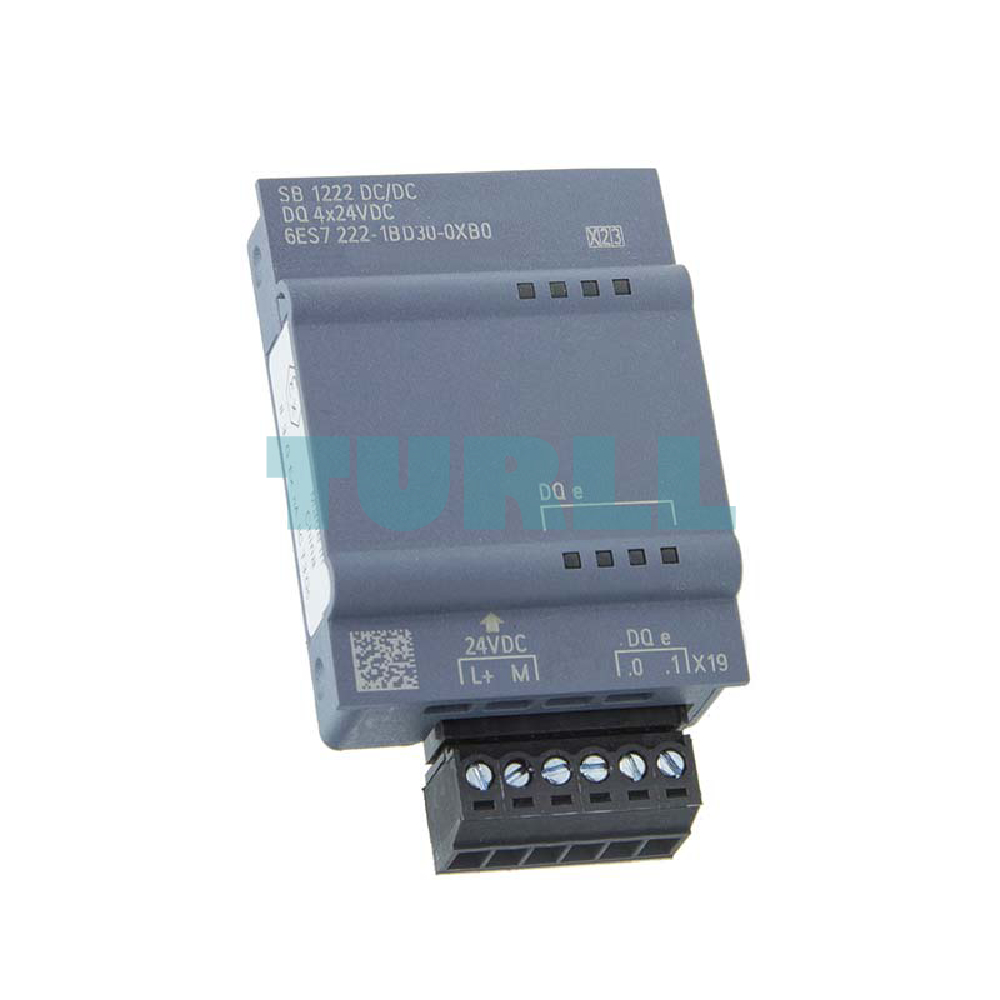

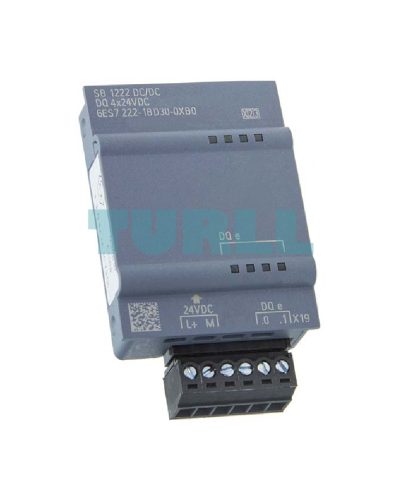

Siemens 6ES7222-1BD30-0XB0 SIMATIC S7-1200, Digital Output Module, SB 1222, 24 V DC, 200 kHz Original Brand New

Model / SKU6ES7222-1BD30-0XB0

SIMATIC S7-1200 SB 1222 Digital Output Module with 4 DQ, 24 V DC, 200 kHz for high-speed automation applications.

Original price was: $149.52.Current price is: $130.81.
In stockShips in 1–3 business days
  • ConditionOriginal Brand New
  • Warranty12 months
Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

Overview

The Siemens 6ES7222-1BD30-0XB0 is a high-performance SIMATIC S7-1200 Digital Output Module (SB 1222) designed to enhance automation systems with reliable, high-speed digital signal switching. With 4 digital outputs, 24 V DC operation, and an impressive 200 kHz switching frequency, this module enables seamless integration into a wide range of industrial automation applications requiring speed, precision, and durability.

Features & Benefit

High-Speed Output Performance

  • Supports switching frequencies up to 200 kHz, ideal for fast-moving automation processes.

Compact & Efficient Design

  • Space-saving Signal Board (SB) format attaches directly to S7-1200 CPUs without requiring extra DIN-rail space.

Reliable 24 V DC Digital Outputs

  • Ensures stable and safe operation across various industrial environments.

Increased Flexibility

  • Expands the functionality of S7-1200 controllers with additional digital output channels for more complex applications.

Easy Integration

  • Seamlessly connects with Siemens TIA Portal, ensuring simplified configuration and diagnostics.

Function

  • Provides 4 digital output channels (DQ)

  • Suitable for standard switching tasks and high-speed pulse applications

  • Enables precise control of actuators, indicators, relays, and other digital loads

  • Works directly with S7-1200 CPU through onboard extension slot

  • Supports PWM and fast pulse output applications

Technical Specification

  • Product Number: 6ES7222-1BD30-0XB0

  • Product Series: SIMATIC S7-1200 SB 1222

  • Digital Outputs: 4

  • Operating Voltage: 24 V DC

  • Switching Frequency: Up to 200 kHz

  • Module Type: Signal Board (Digital Output)

  • Compatible With: S7-1200 CPU modules

Download

Datasheet in PDF

Visit 6ES7222-1BD30-0XB0 for more detail info

For more our products visit turll



Specifications

SKU / Model6ES7222-1BD30-0XB0
BrandSIEMENS
Product type designationSB 1222, DQ 4x24 V DC 200 kHz
from backplane bus 5 V DC, typ.35 mA
Power loss, typ.0.5 W
Number of digital outputs4; MOSFET, solid-state (current-sinking/current-sourcing)
● in groups of4
Short-circuit protectionNo
● with resistive load, max.0.1 A
● upper limit11 Ω
● Rated value (DC)24 V
● for signal "0", max.1 V; with 10 kOhm load
● for signal "1", min.L+ (-1.5 V)
● for signal "1" permissible range, max.0.1 A
● shielded, max.50 m
● for status of the outputsYes
CE markYes
CSA approvalYes
UL approvalYes
cULusYes
FM approvalYes
RCM (formerly C-TICK)Yes
KC approvalYes
Marine approvalYes
● Fall height, max.0.3 m; five times, in product package
● horizontal installation, min.-20 °C
● horizontal installation, max.60 °C
● vertical installation, min.-20 °C
● vertical installation, max.50 °C
● min.-40 °C
● max.70 °C
● Storage/transport, min.660 hPa
● Storage/transport, max.1 080 hPa
● Operation at 25 ℃ without condensation, max.95 %
Enclosure material (front)-
● PlasticYes

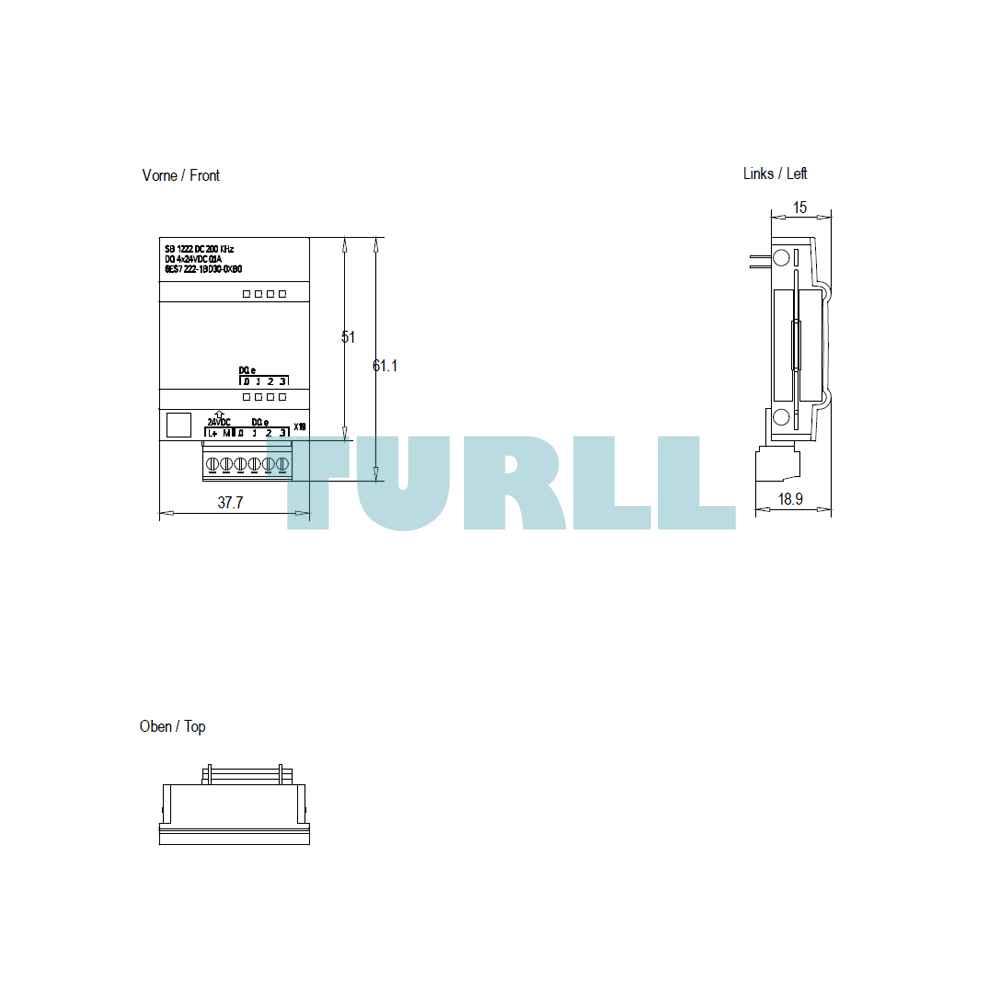

Width38 mm
Height62 mm
Depth21 mm
Weight, approx.35 g
last modified:2/26/2021
Product ConditionBrand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good
Weight0.027 kg
Dimensions5.00 × 8.10 × 3.00 mm
