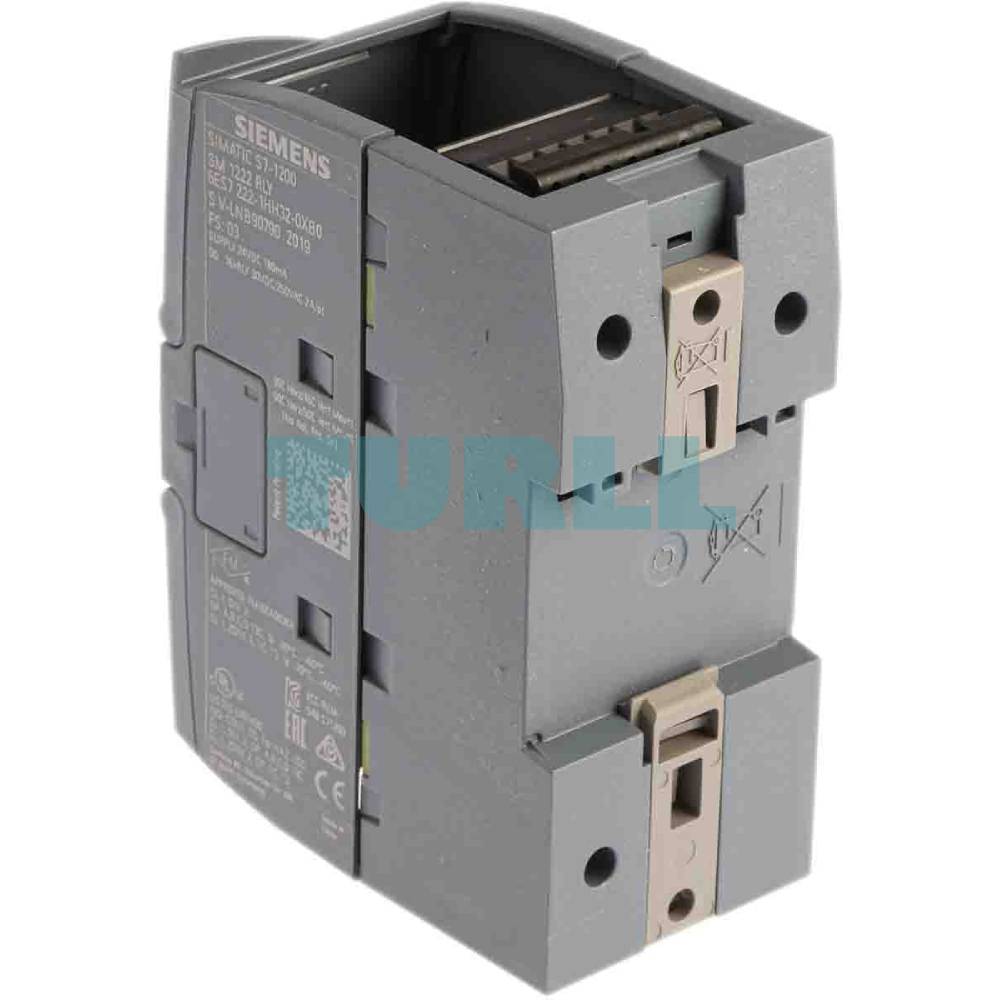

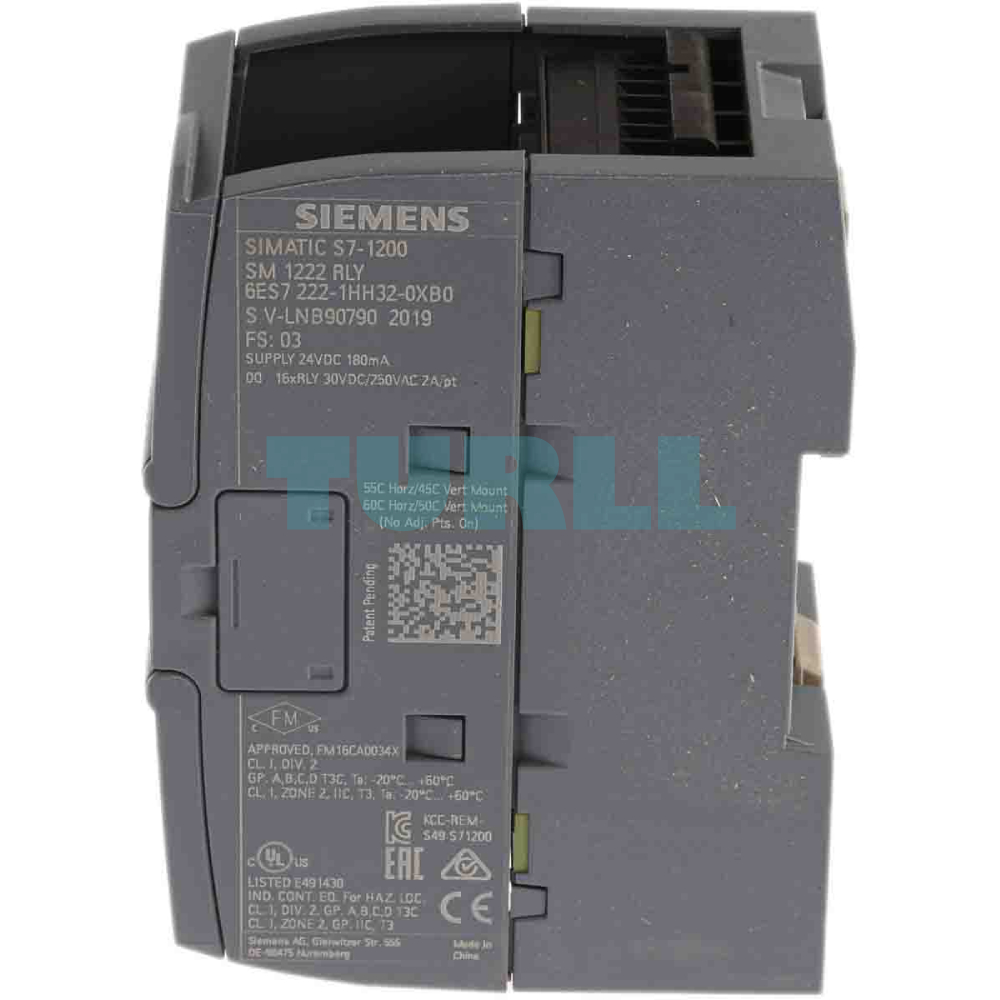

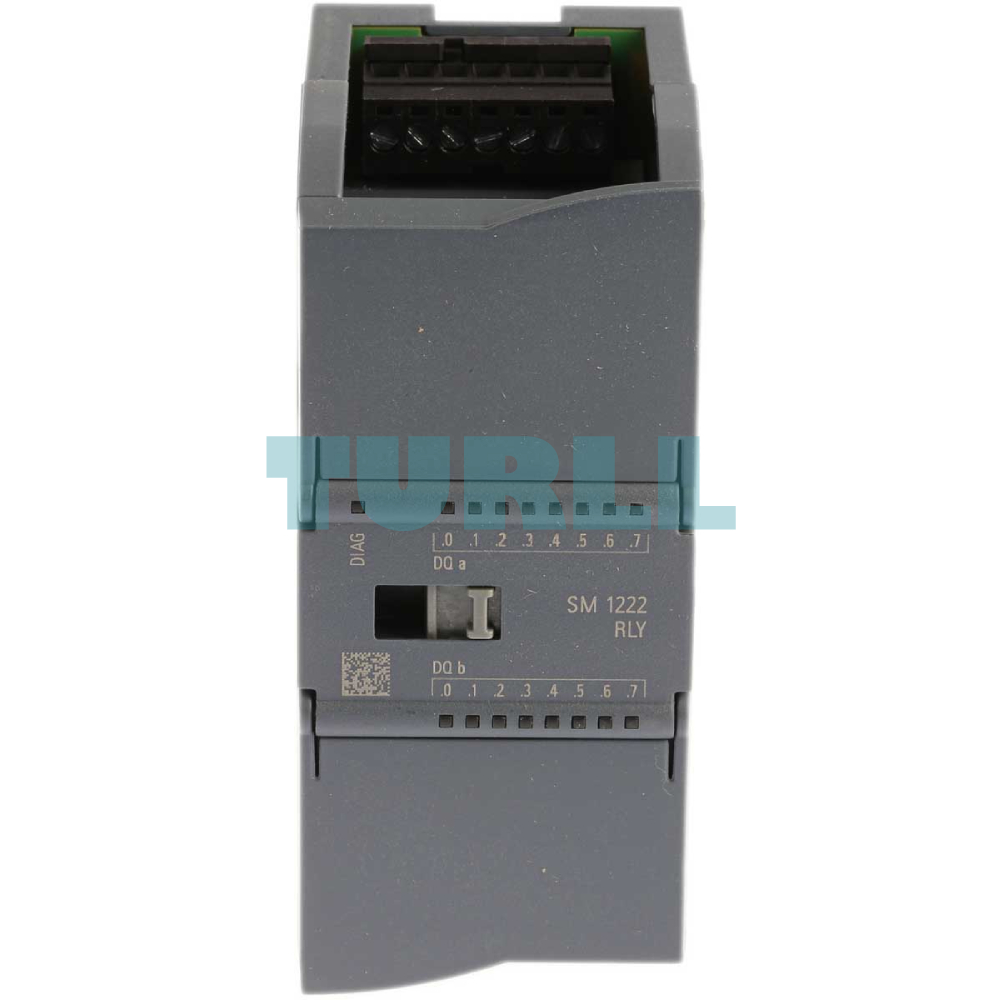

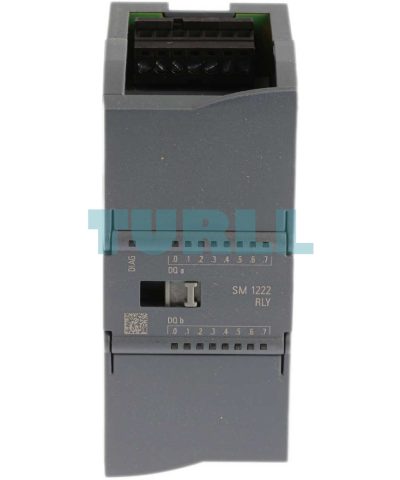

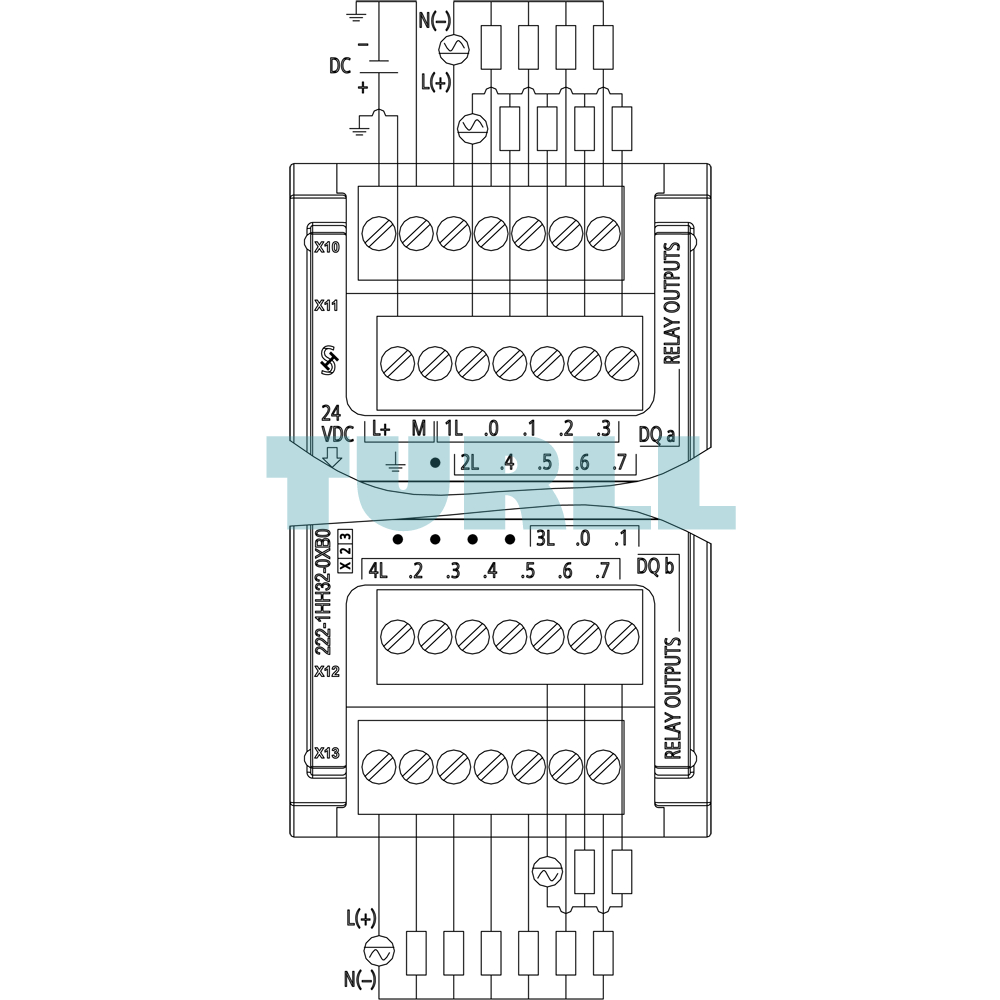

Siemens 6ES7222-1HH32-0XB0 SIMATIC S7-1200, Digital Output, SM 1222, 16 DO Relay 2A Original Brand New
$139.50
SIMATIC S7-1200 Digital Output Module SM 1222 with 16 relay outputs, 2A, ideal for reliable automation control.
Availability: In stock
Overview
The Siemens 6ES7222-1HH32-0XB0 is a high-performance Digital Output (DO) module designed specifically for the modular SIMATIC S7-1200 series of programmable logic controllers (PLCs). Known as the SM 1222, this module significantly expands the S7-1200 CPU’s capabilities by adding 16 digital outputs. Its key feature is the use of relay outputs, each capable of switching up to 2 A, making it ideal for connecting and controlling higher-power external components such as contactors, solenoid valves, and indicator lamps directly. This ensures maximum flexibility and reliability in diverse industrial automation environments.
Key Features & Function
-
Product Number: 6ES7222-1HH32-0XB0
-
Series: SIMATIC S7-1200, SM 1222
-
Module Type: Digital Output Module
-
Output Channels: 16 Digital Outputs (DO)
-
Output Type: Relay (Dry Contact)
-
Switching Capacity: Max. 2 A per channel
-
Isolation: Galvanic isolation between channels and the backplane bus.
-
Installation: Easy mounting onto the S7-1200 CPU rail.
Benefit
-
High Reliability: Uses relay outputs for excellent electrical isolation between the CPU and the field devices, reducing the risk of damage.
-
Versatile Switching: The 2A relay rating allows for direct switching of a wide range of devices, including contactors, solenoid valves, and indicator lights.
-
Seamless Integration: Designed specifically for the SIMATIC S7-1200 family, ensuring simple installation and programming via TIA Portal.
Visit 6ES7222-1HH32-0XB0 for more detail info
For more our products visit turll
Download

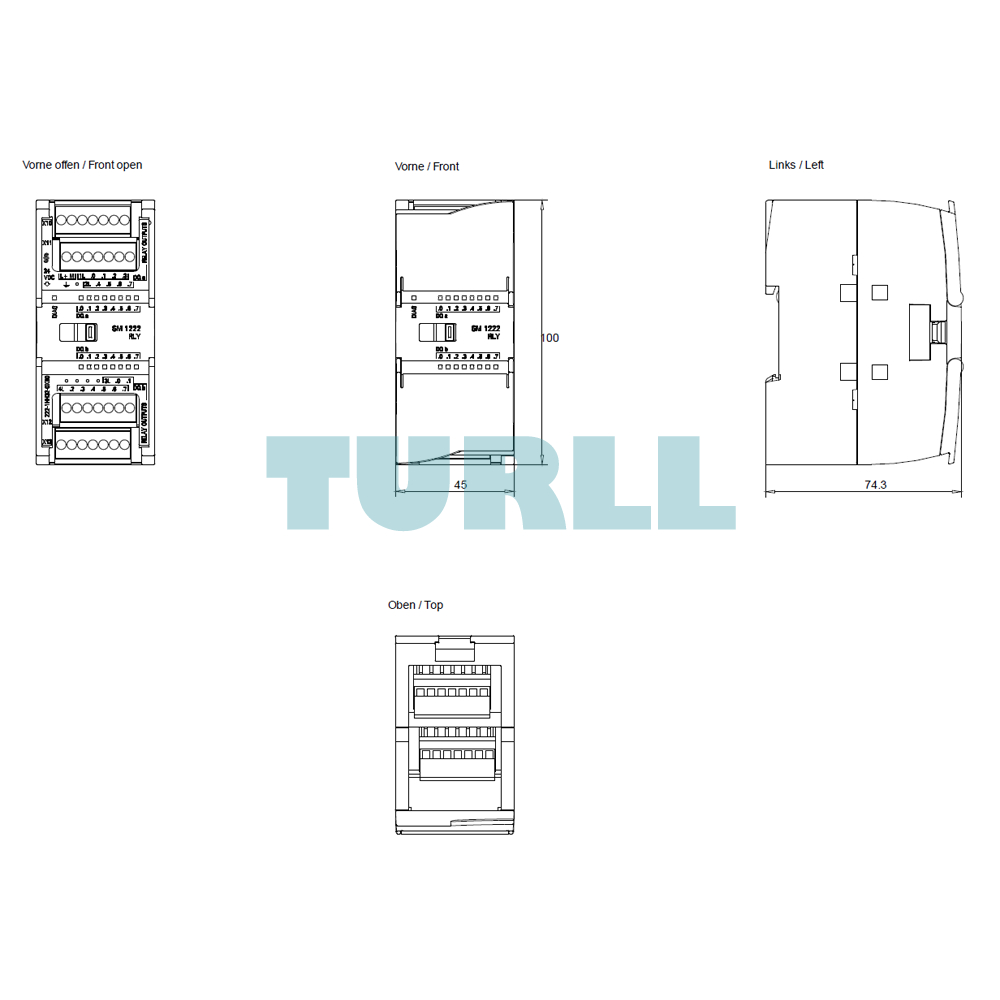

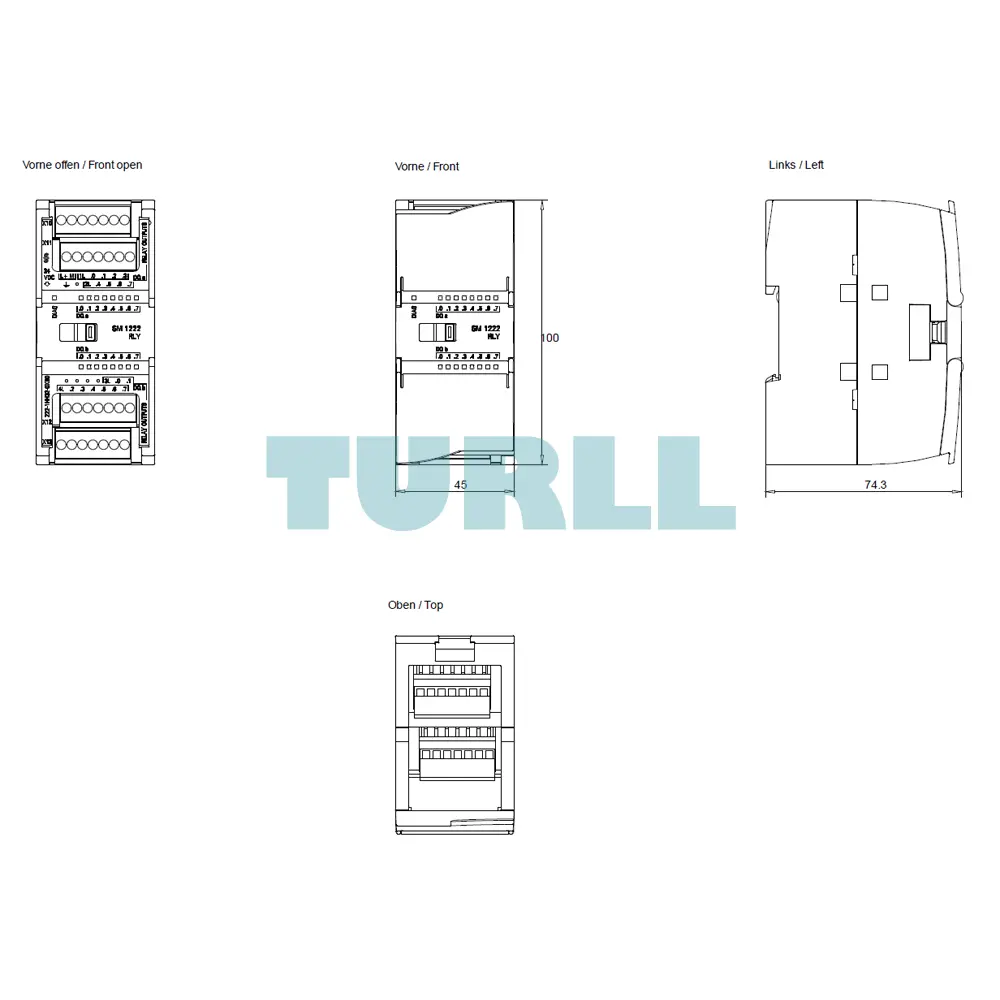

| Weight | 0.260 kg |
|---|---|
| Dimensions | 8.80 × 10.60 × 5.80 mm |
| Brand | SIEMENS |
| Product type designation | SM 1222, DQ 16x relay/2 A |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| from backplane bus 5 V DC, max. | 135 mA |
| ● from load voltage L+, max. | 11 mA/relay coil |
| Power loss, typ. | 8.5 W |
| Number of digital outputs | 16 |
| ● in groups of | 1 |
| Short-circuit protection | No; to be provided externally |
| ● with resistive load, max. | 2 A |
| ● on lamp load, max. | 30 W with DC, 200 W with AC |
| ● Rated value (DC) | 5 V DC to 30 V DC |
| ● Rated value (AC) | 5 V AC to 250 V AC |
| ● for signal "1" rated value | 2 A |
| ● "0" to "1", max. | 10 ms |
| ● "1" to "0", max. | 10 ms |
| — up to 50 °C, max. | 10 A; Current per mass |
| ● Number of relay outputs | 16 |
| ● Rated supply voltage of relay coil L+ (DC) | 24 V |
| ● Number of operating cycles, max. | mechanically 10 million, at rated load voltage 100 000 |
| — with inductive load, max. | 2 A |
| — on lamp load, max. | 30 W with DC, 200 W with AC |
| — with resistive load, max. | 2 A |
| ● shielded, max. | 500 m |
| ● unshielded, max. | 150 m |
| ● Diagnostic alarm | Yes |
| ● for status of the outputs | Yes |
| ● between the channels | Relays |
| ● between the channels, in groups of | 4 |
| ● between the channels and backplane bus | 1 500 V AC for 1 minute |
| between different circuits | 750 V AC for 1 minute |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| ● Fall height, max. | 0.3 m; five times, in product package |
| ● horizontal installation, min. | -20 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -20 °C |
| ● vertical installation, max. | 50 °C |
| ● permissible temperature change | 5°C to 55°C, 3°C / minute |
| ● min. | -40 °C |
| ● max. | 70 °C |
| ● Storage/transport, min. | 660 hPa |
| ● Storage/transport, max. | 1 080 hPa |
| ● Operation at 25 ℃ without condensation, max. | 95 % |
| required front connector | Yes |
| Enclosure material (front) | – |
| ● Plastic | Yes |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 260 g |
