6ES7223-1BM22-0XA8

Description

Overview

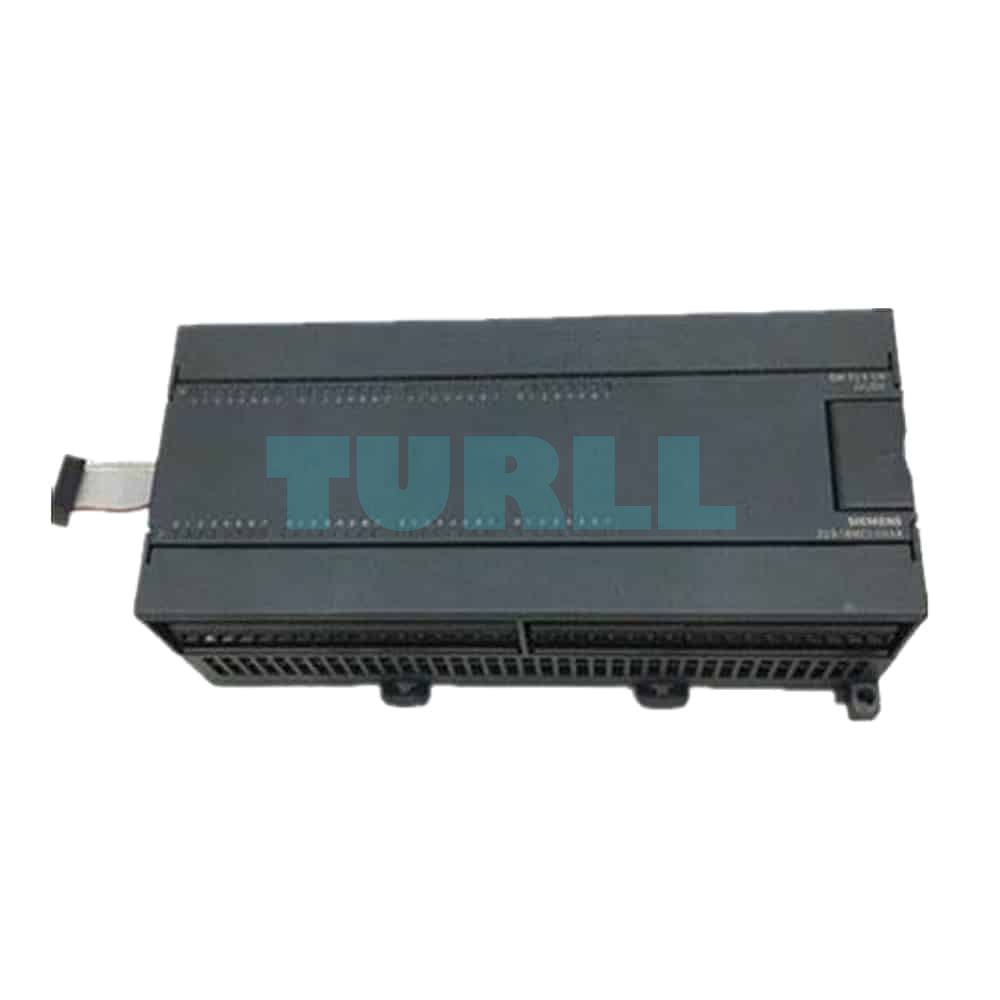

The Siemens SIMATIC S7-200 CN EM 223 (6ES7223-1BM22-0XA8) is a high-performance digital input/output expansion module engineered for seamless integration with S7-22X series CPUs. This module provides reliable signal processing with 32 digital inputs and 32 digital outputs, making it ideal for complex industrial control tasks.

Designed specifically for the S7-200 CN series, this product meets CE certification standards, ensuring dependable operation in compliant automation environments.

Key Benefit

• High Density: Provides a total of 64 digital points (32 in / 32 out) in a single compact module, saving valuable DIN rail space.

• Flexible Wiring: The 32 digital inputs support both sink and source configurations, allowing for versatile sensor integration.

• Reliable Power: Outputs provide a steady 0.75A per channel, sufficient for driving most industrial actuators and solenoids.

• Seamless Integration: Specifically engineered for the S7-22X CPU range, ensuring “plug-and-play” compatibility and easy configuration.

Function & Features

• Digital Inputs: 32 × 24 V DC (sink/source)

• Digital Outputs: 32 × 24 V DC, source

• Output Current: 0.75 A per channel

• Compatibility: Only for Siemens S7-22X CPUs

• Application: Industrial automation, machine control, process control

• Certification: CE approved (S7-200 CN version)

Specification

• Product Number: 6ES7223-1BM22-0XA8

• Series: SIMATIC S7-200 CN

• Module Type: EM 223 Digital I/O

• Voltage Rating: 24 V DC

• Approval: CE only
