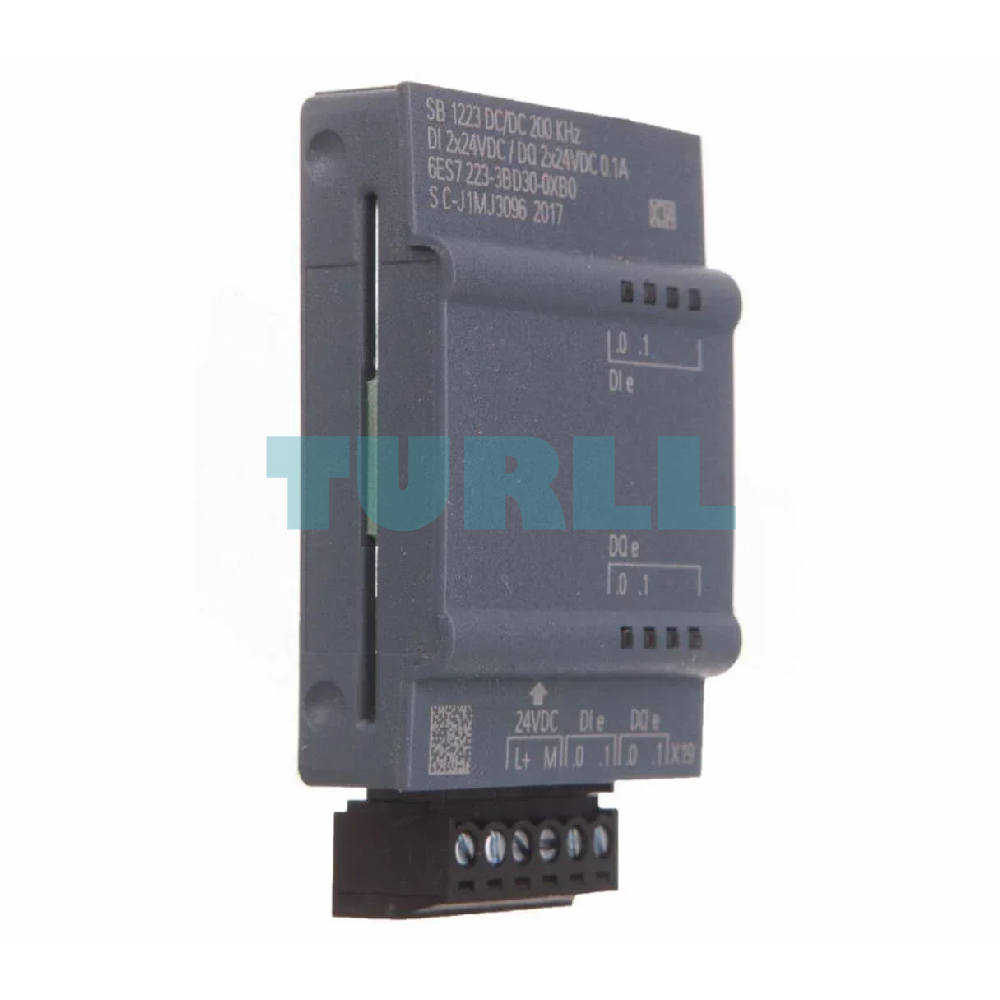

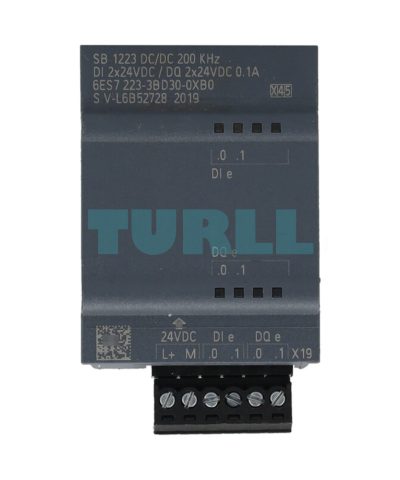

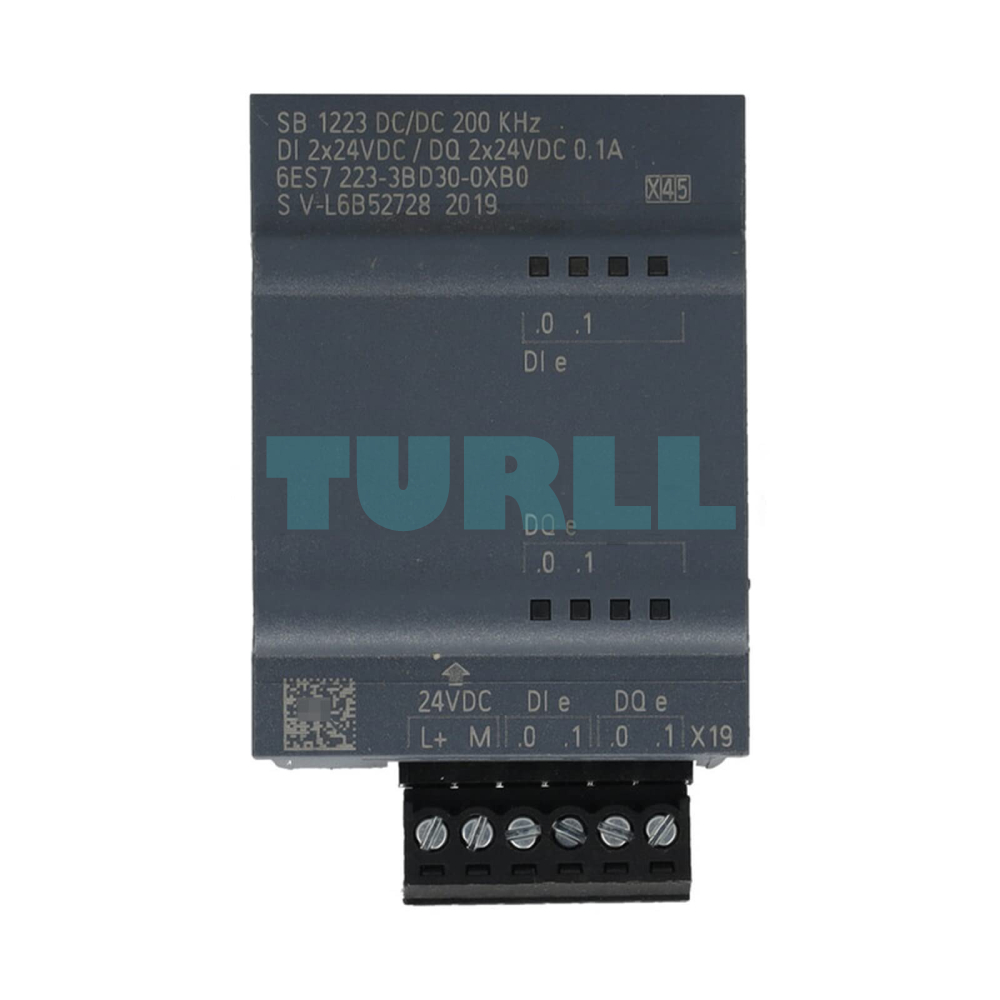

A compact SIMATIC S7-1200 SB 1223 Digital I/O signal board. It features 2 Digital Inputs and 2 Digital Outputs at 24 V DC with a high-speed frequency of 200 kHz, designed for space-saving PLC expansion.
The Siemens 6ES7223-3BD30-0XB0 is a high-performance digital I/O signal board (SB 1223) designed for the SIMATIC S7-1200 PLC series. Equipped with 2 digital inputs and 2 digital outputs, this module supports 24 V DC operations at speeds up to 200 kHz, making it ideal for fast and precise automation tasks in industrial environments.
Built for reliability and efficiency, this digital I/O module seamlessly integrates into your S7-1200 PLC setup, enhancing system flexibility and supporting advanced control applications.
Digital I/O module: 2 DI / 2 DQ
Operating voltage: 24 V DC
High-speed switching: 200 kHz
Compact SIMATIC S7-1200 form factor
Plug-and-play integration with S7-1200 PLC
Space-Efficient: Plugs directly into the front of the S7-1200 CPU, maintaining the original panel dimensions.
High-Speed Performance: Supports up to 200 kHz, making it suitable for precise pulse-catching and fast switching tasks.
Cost-Effective: Adds the exact amount of I/O needed (2 DI/2 DQ) without the cost of a full expansion module.
Seamless Integration: Fully compatible with TIA Portal for easy configuration and diagnostics.
Reads signals from 2 digital input devices
Controls 2 digital output devices
Supports high-speed counting and control tasks
Compatible with TIA Portal software for seamless configuration
Visit 6ES7223-3BD30-0XB0 for more detail info
For more our products visit turll
| SKU / Model | 6ES7223-3BD30-0XB0 |
|---|---|
| Product Condition | Brand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good |
| Weight | 0.035 kg |

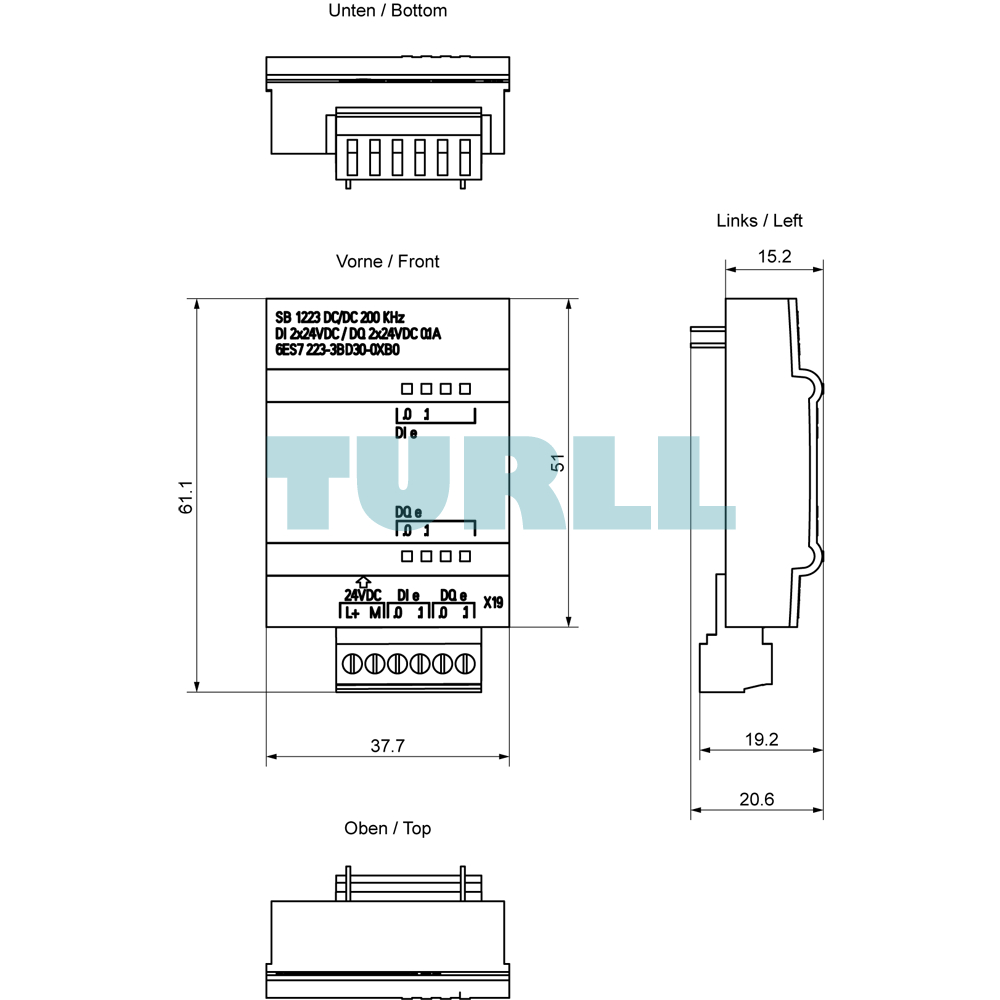

| Dimensions | 21 × 38 × 62 mm |
