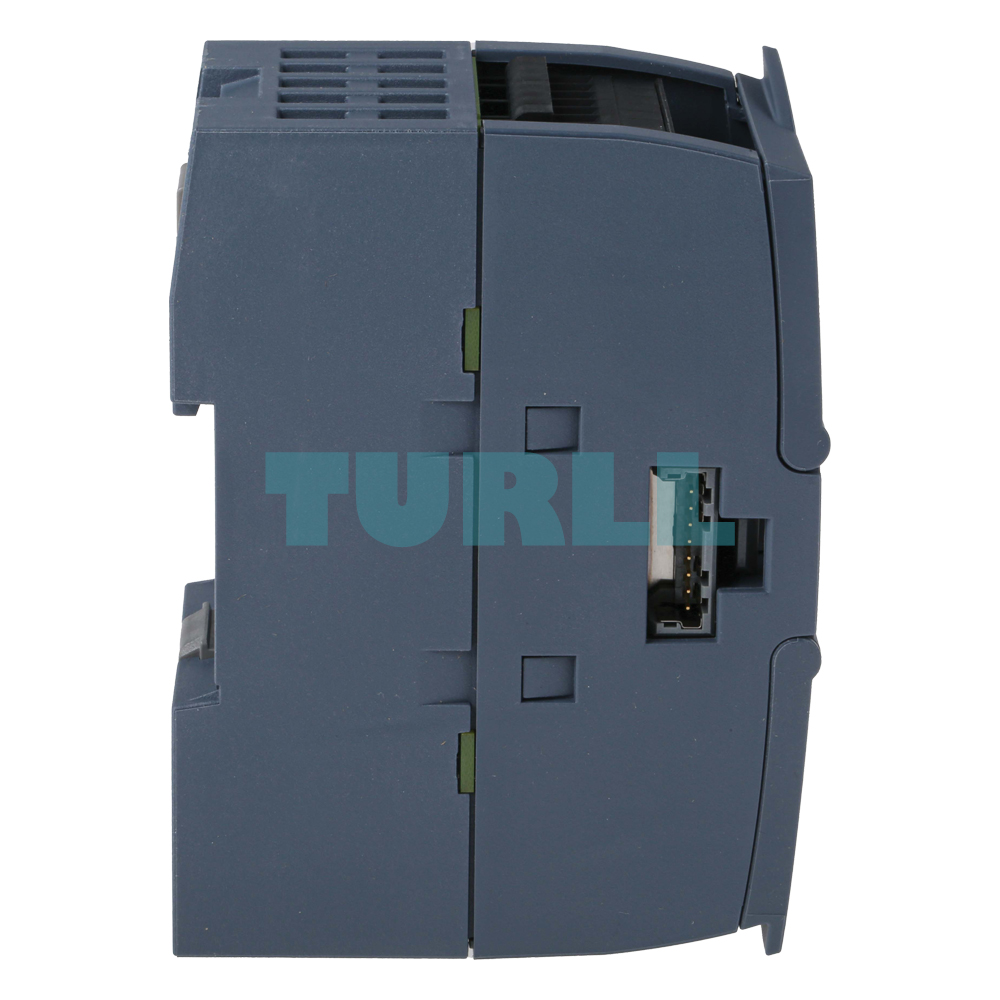

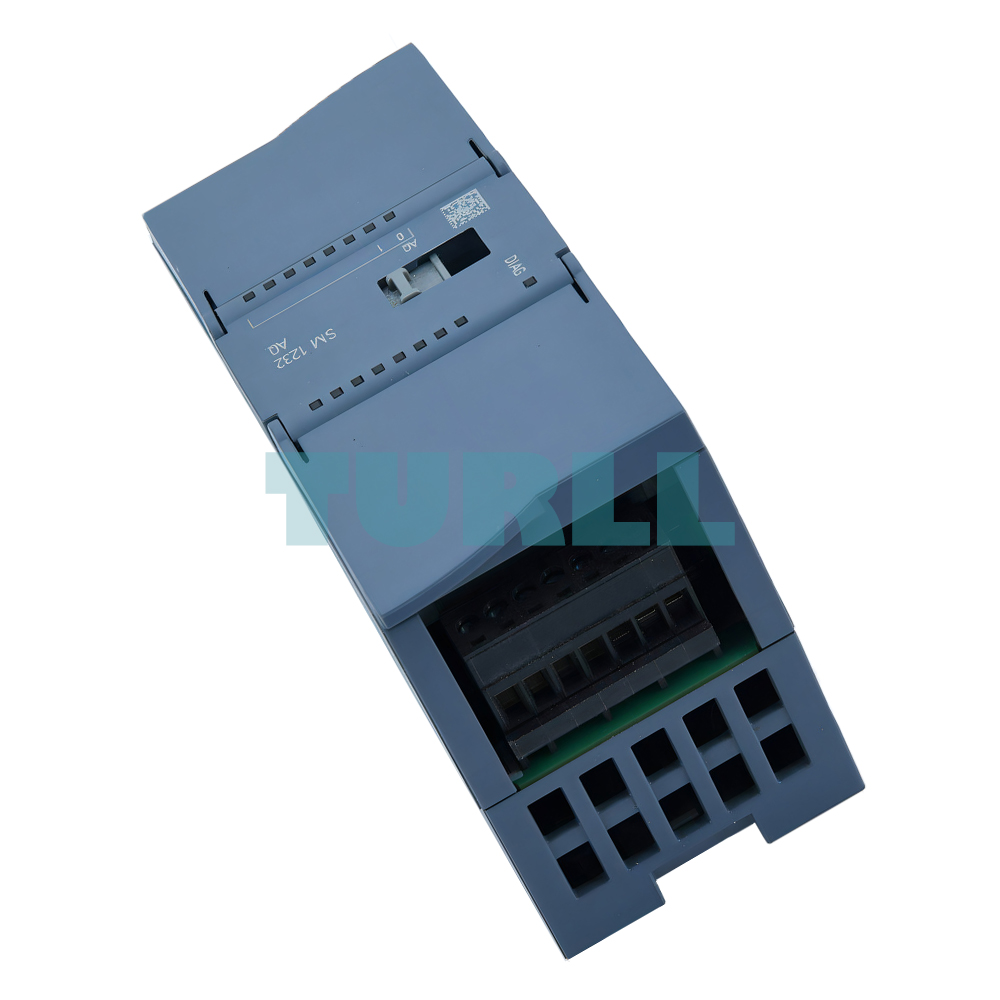

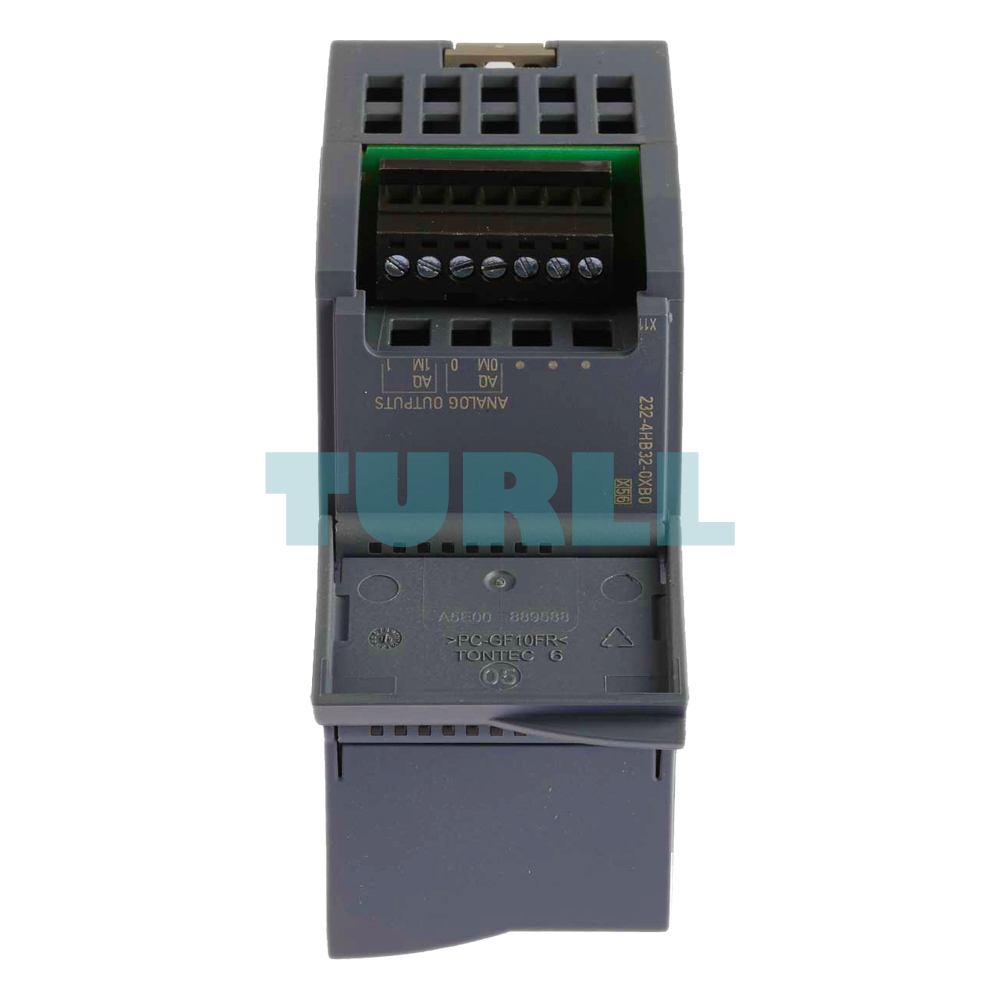

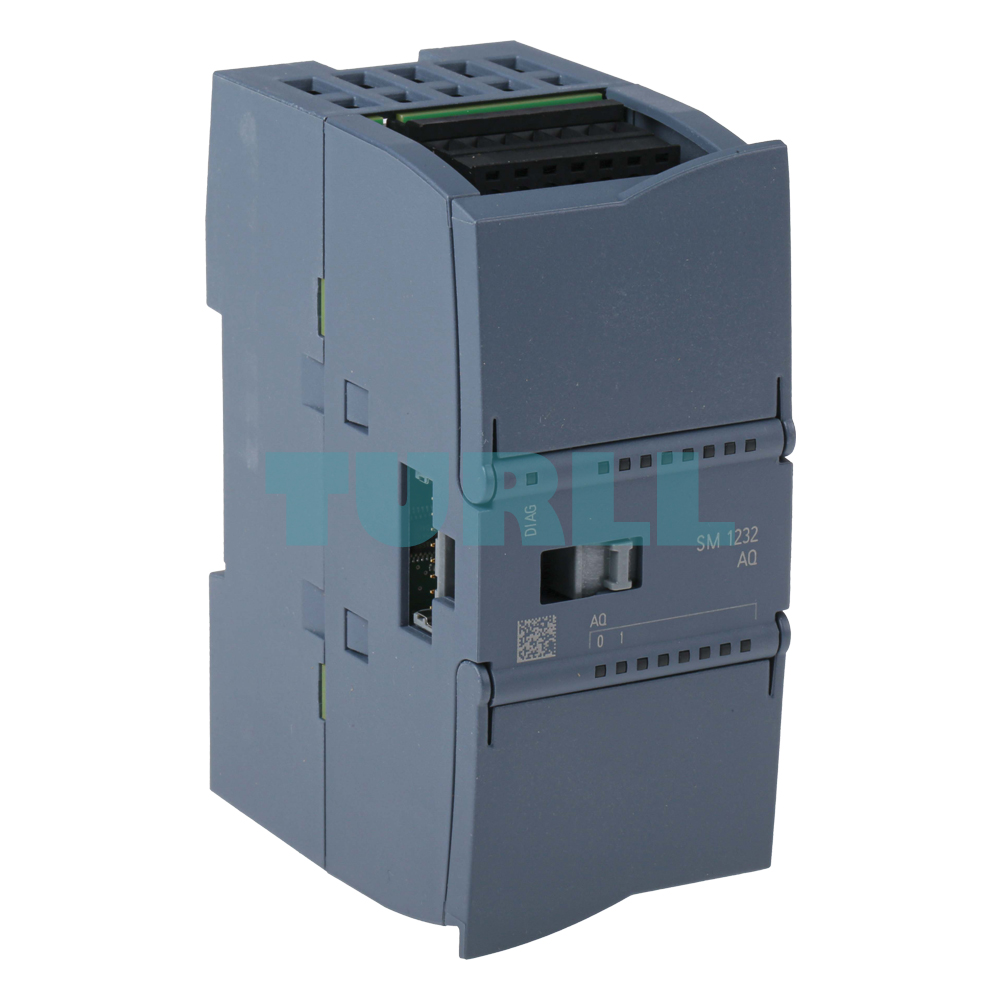

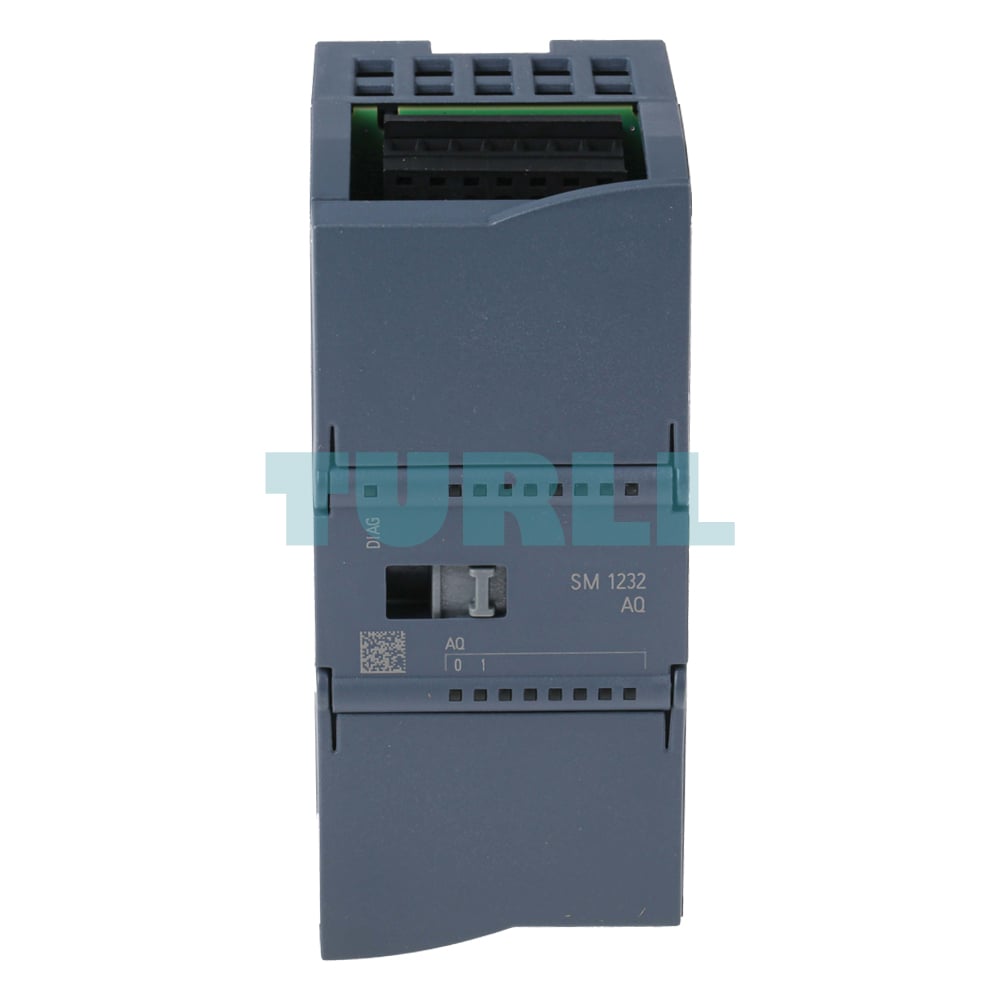

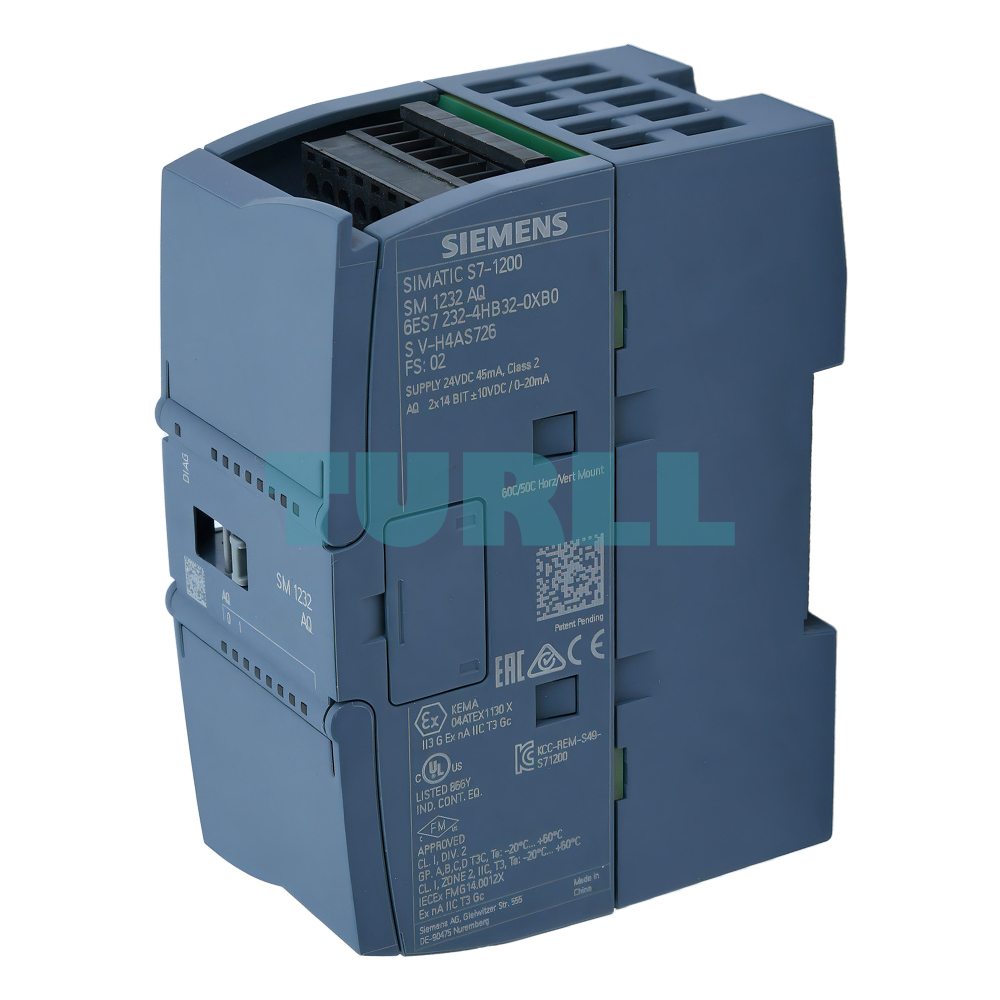

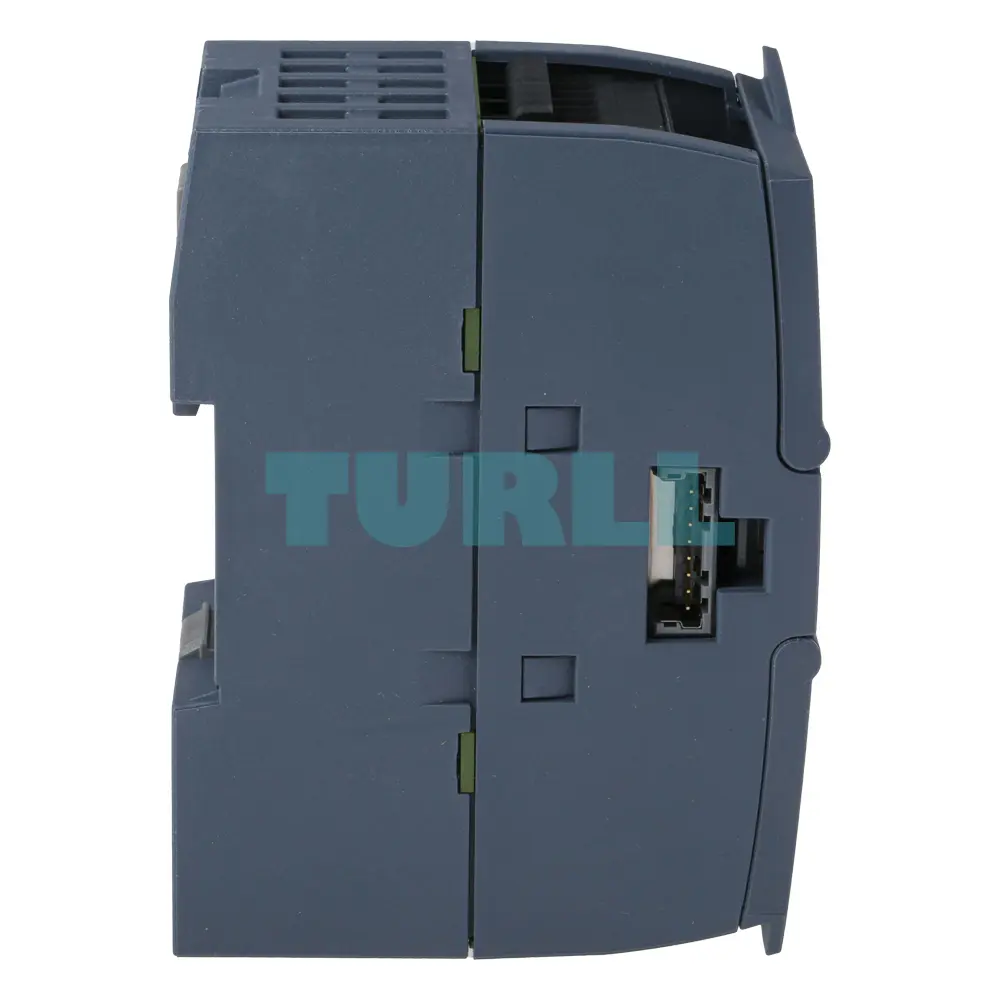

Siemens 6ES7232-4HB32-0XB0 SIMATIC S7-1200, SM 1232 Analog Output Module, 2 AO Original Brand New
Model / SKU6ES7232-4HB32-0XB0
High-performance SM 1232 analog output module for the SIMATIC S7-1200 PLC series. It provides 2 precise analog outputs with up to 14-bit resolution, supporting voltage (+/-10 V) and current (0-20 mA/4-20 mA) signals for seamless industrial automation control.
Original price was: $579.85.$235.08Current price is: $235.08.
In stockShips in 1–3 business days
- ConditionOriginal Brand New
- Warranty12 months
- Genuine Products
- Up to 1-Year Warranty
- Global Shipping
- Secure Payment
- PI / Bank Transfer Available
- Bulk Quote Support
Description
Overview
The Siemens SIMATIC S7-1200 SM 1232 Analog Output Module (6ES7232-4HB32-0XB0) is a high-performance expansion module designed for precise analog signal output in industrial automation systems. Featuring 2 analog outputs, this module supports both voltage and current signals, making it ideal for flexible control applications in manufacturing, process control, and machine automation.
Built for seamless integration with SIMATIC S7-1200 PLCs, the SM 1232 ensures accurate signal conversion, reliable performance, and easy configuration within Siemens TIA Portal.
Benefit
-
High Precision: Achieve granular control with 14-bit resolution for voltage and 13-bit for current.
-
Versatile Integration: Easily switches between voltage (+/-10 V) and current (0-20 mA / 4-20 mA) modes.
-
Space-Efficient: Compact SM 1232 form factor saves valuable cabinet space while adding dual-channel functionality.
-
Seamless Compatibility: Designed specifically for the SIMATIC S7-1200 PLC range for "plug-and-play" configuration in TIA Portal.
Function & Features
-

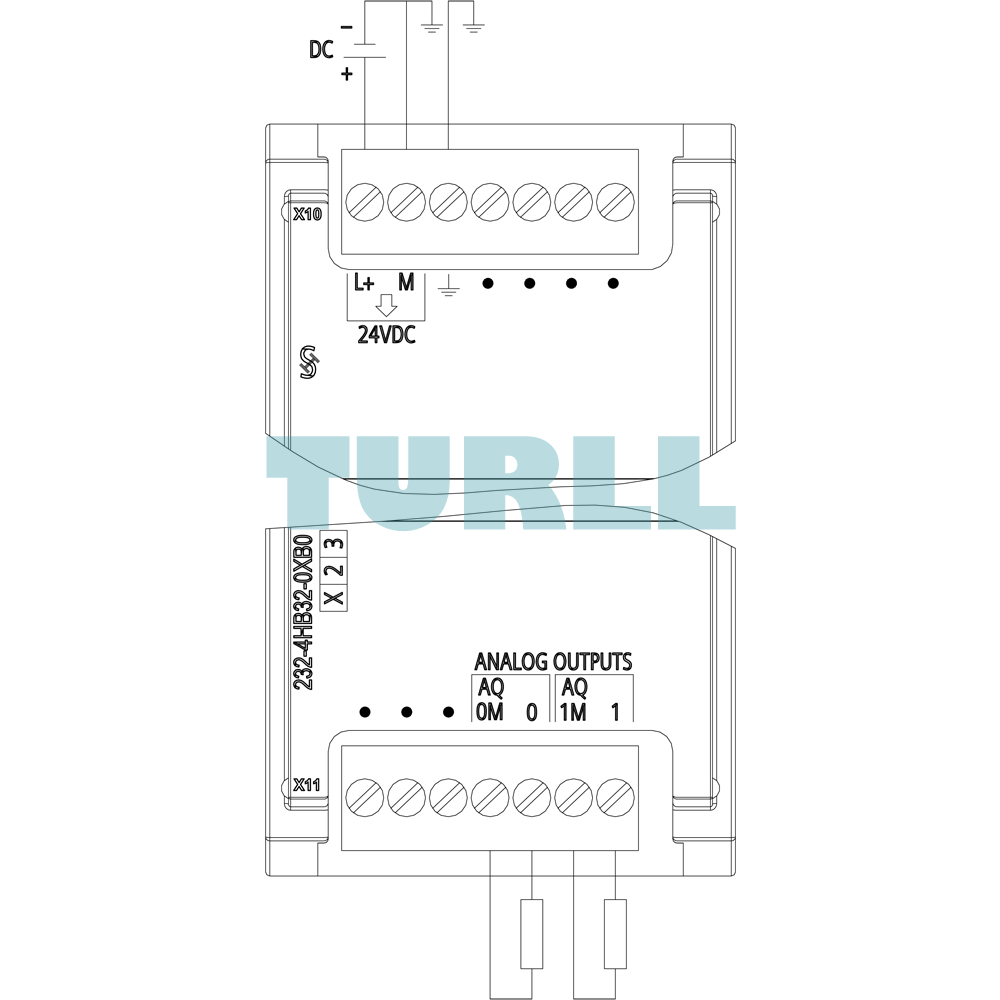

Analog Outputs: 2 AO
-
Voltage Output Range: ±10 V (14-bit resolution)
-
Current Output Range: 0–20 mA / 4–20 mA (13-bit resolution)
-
Module Type: SM 1232
-
Compatibility: SIMATIC S7-1200 PLC series
-
Application Areas: Industrial automation, machine control, process monitoring
Download
Visit 6ES7232-4HB32-0XB0 for more detail info
For more our products visit turll
Specifications
| SKU / Model | 6ES7232-4HB32-0XB0 |
|---|---|
| Brand | SIEMENS |
| Product type designation | SM 1232, AQ 2x14 bit |
| Rated value (DC) | 24 V |
| Current consumption, typ. | 45 mA |
| from backplane bus 5 V DC, typ. | 80 mA |
| Power loss, typ. | 1.5 W |
| Number of analog outputs | 2; Current or voltage |
| ● -10 V to +10 V | Yes |
| ● 0 to 20 mA | Yes |
| ● with voltage outputs, min. | 1 000 Ω |
| ● with current outputs, max. | 600 Ω |
| ● shielded, max. | 100 m; shielded, twisted pair |
| ● Resolution with overrange (bit including sign), max. | 14 bit; Voltage: 14 bit; Current : 13 bit |
| Temperature error (relative to output range), (+/-) | 25 °C ±0.3%, to 55 °C ±0.6% total measurement range |
| ● Voltage, relative to output range, (+/-) | 0.3 % |
| ● Current, relative to output range, (+/-) | 0.3 % |
| ● Common mode voltage, max. | 12 V |
| Alarms | Yes |
| Diagnostics function | Yes |
| ● Diagnostic alarm | Yes |
| ● Monitoring the supply voltage | Yes |
| ● Wire-break | Yes |
| ● Short-circuit | Yes |
| ● for status of the outputs | Yes |
| ● for maintenance | Yes |
| IP degree of protection | IP20 |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| ● Fall height, max. | 0.3 m; five times, in product package |
| ● horizontal installation, min. | -20 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -20 °C |
| ● vertical installation, max. | 50 °C |
| ● min. | -40 °C |
| ● max. | 70 °C |
| ● Operation, min. | 795 hPa |
| ● Operation, max. | 1 080 hPa |
| ● Storage/transport, min. | 660 hPa |
| ● Storage/transport, max. | 1 080 hPa |
| ● Operation at 25 ℃ without condensation, max. | 95 % |
| ● SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free |
| required front connector | Yes |
| Enclosure material (front) | - |
| ● Plastic | Yes |

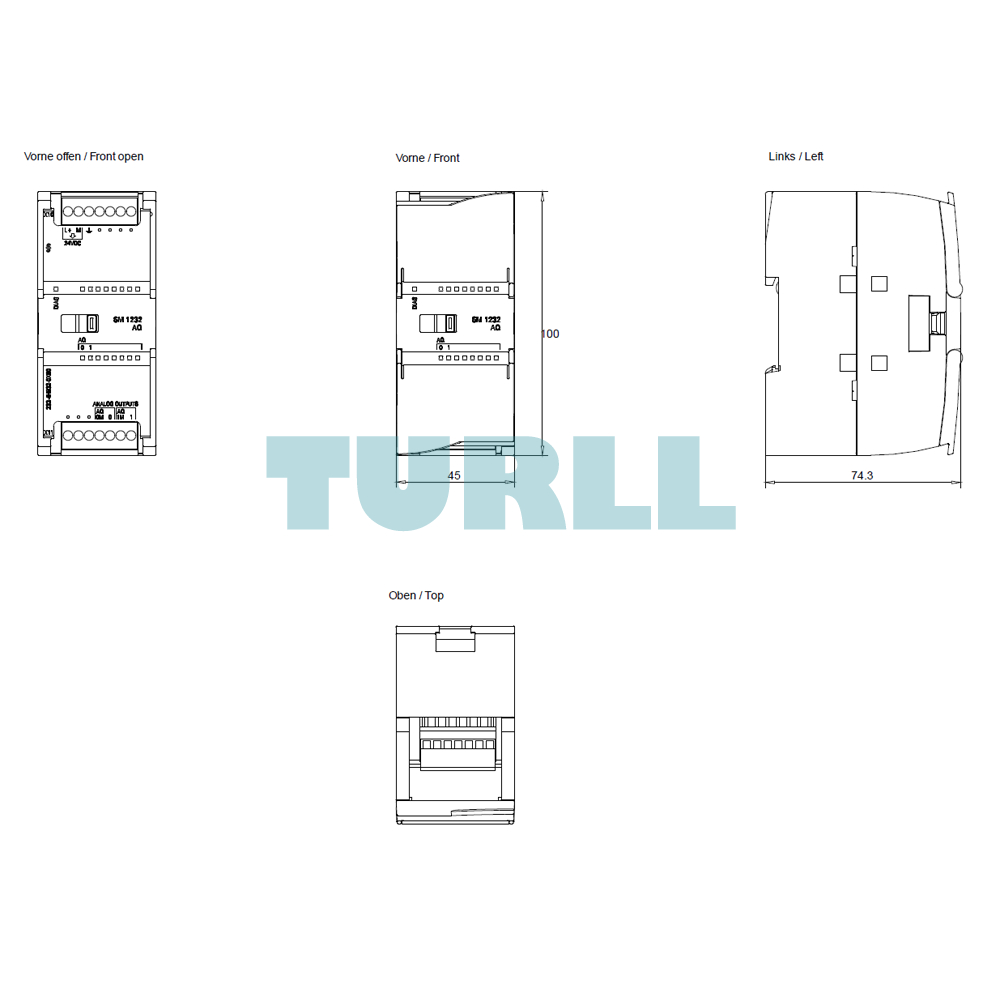

| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 180 g |
| last modified: | 3/11/2021 |
| Product Condition | Brand New, New - Backlog, New - No Original Box, New - Original Box Opened, Used - Average, Used - Below Average, Used - Excellent, Used - Fairly Good, Used - Good, Used - Poor, Used - Very Good |
| Weight | 0.169 kg |
| Dimensions | 9.00 × 10.70 × 5.60 mm |
