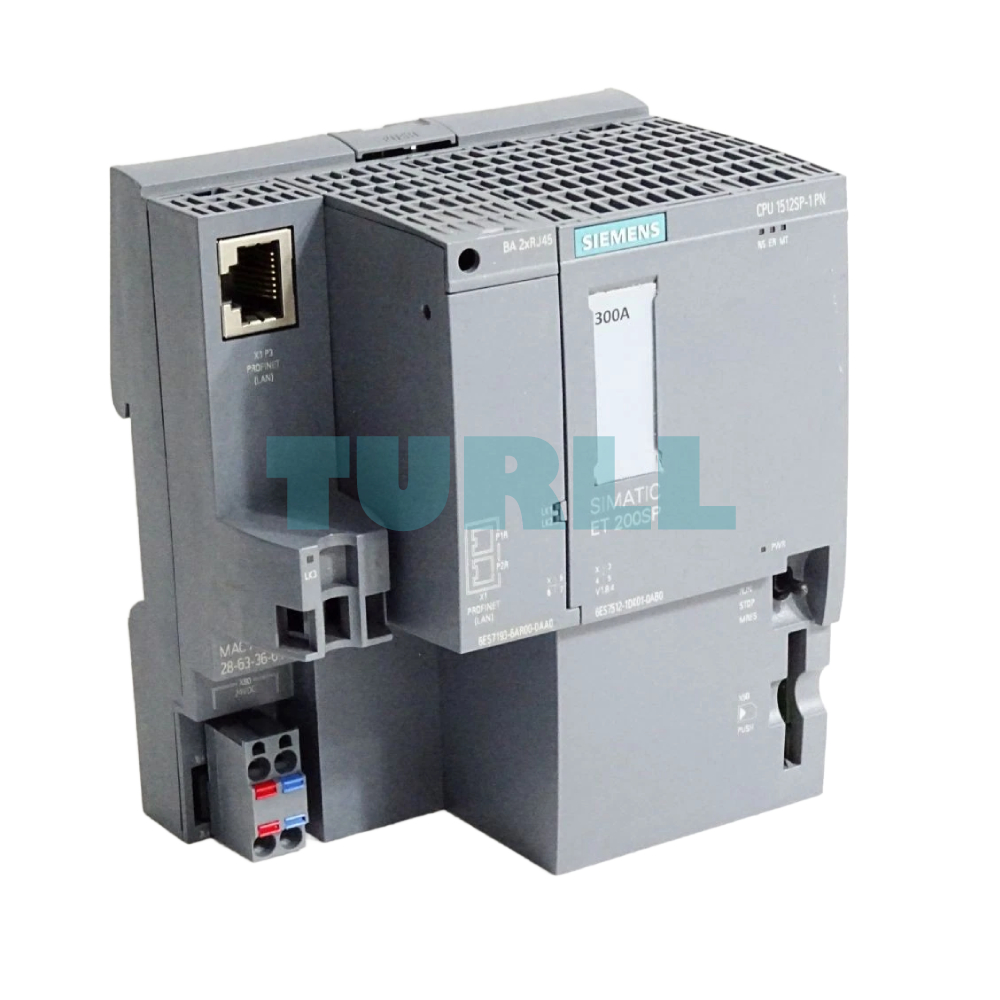

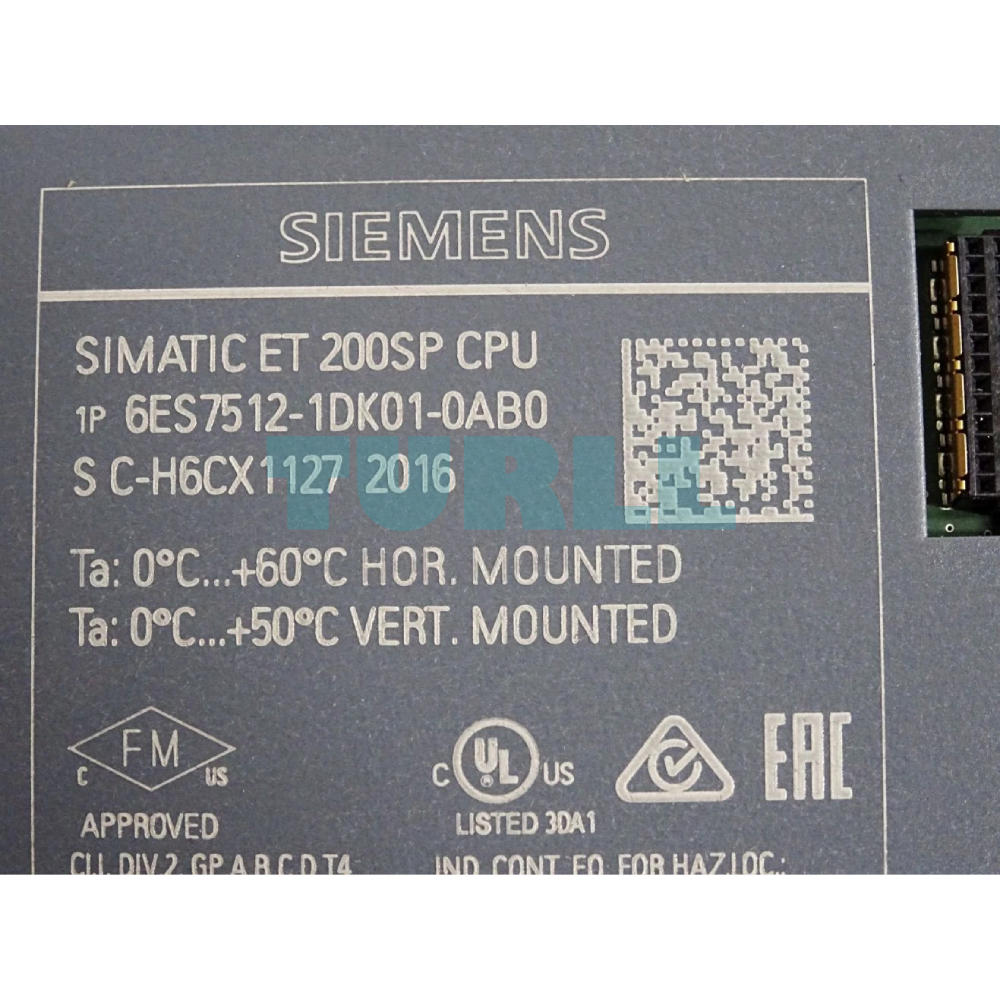

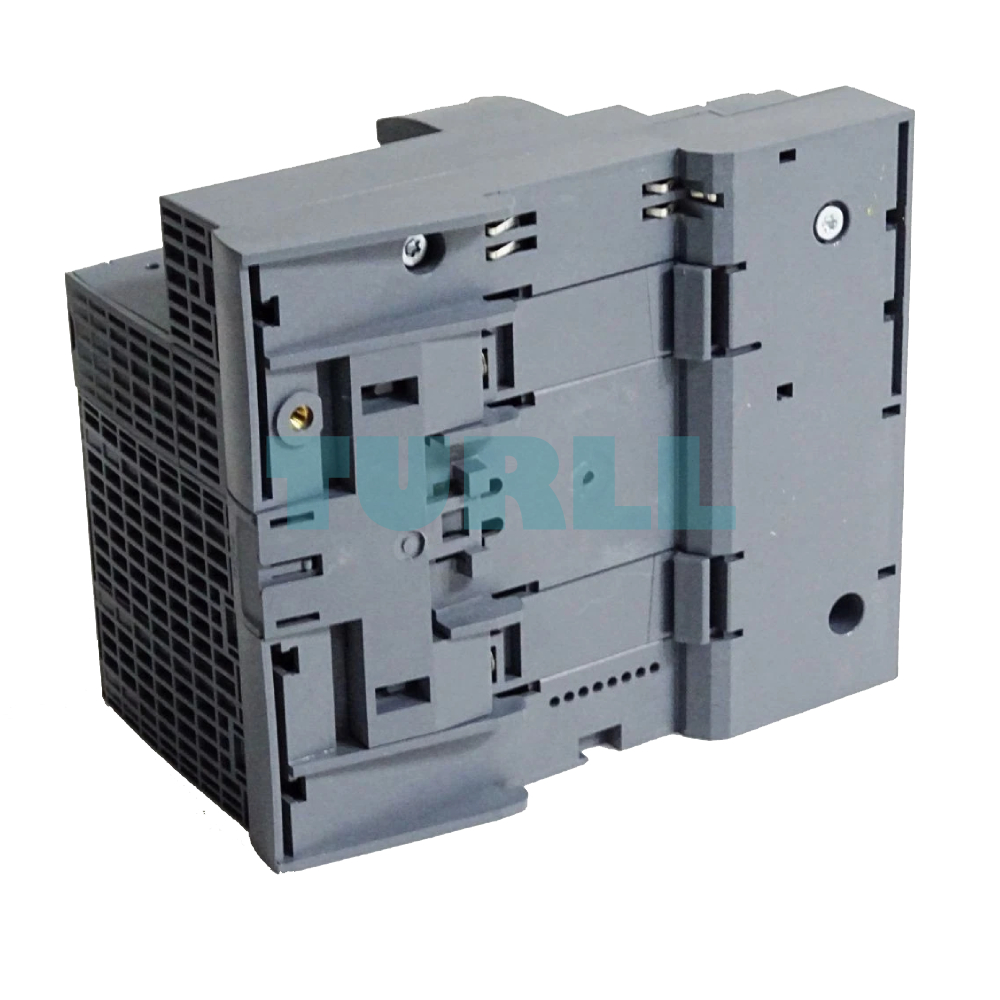

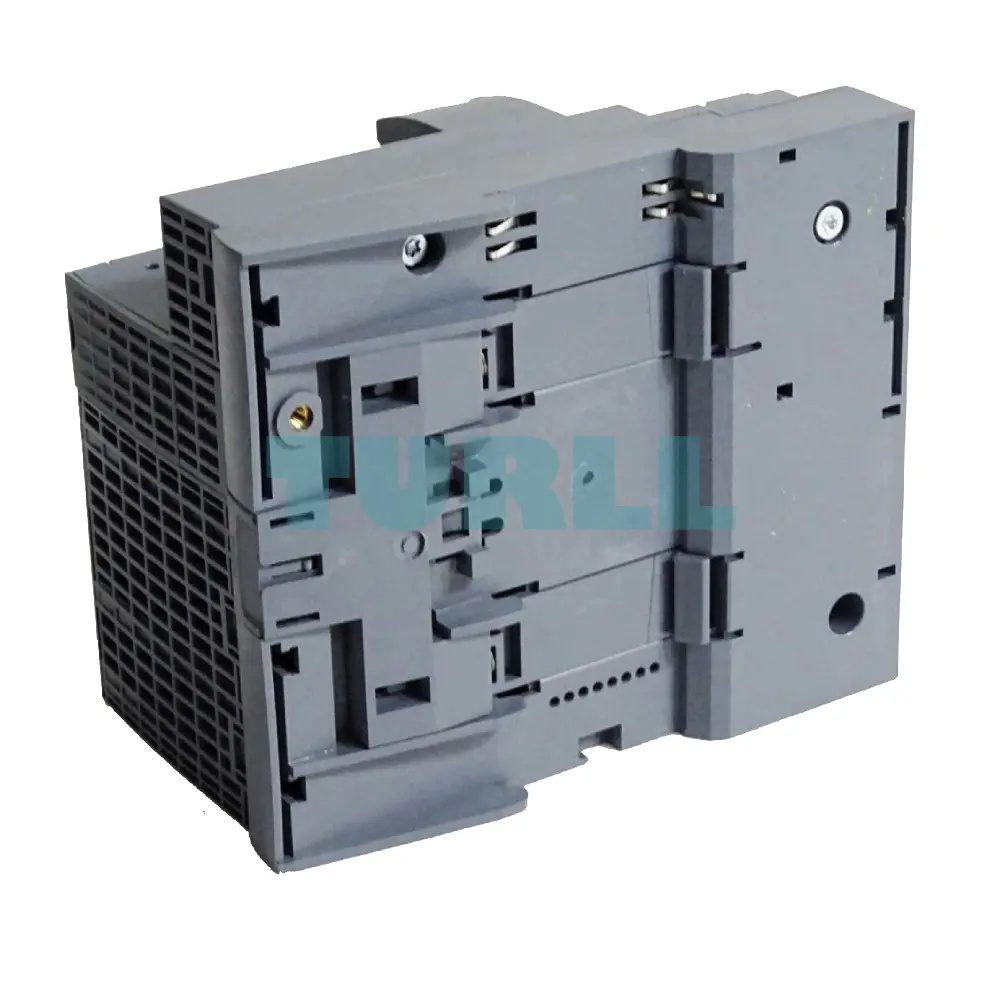

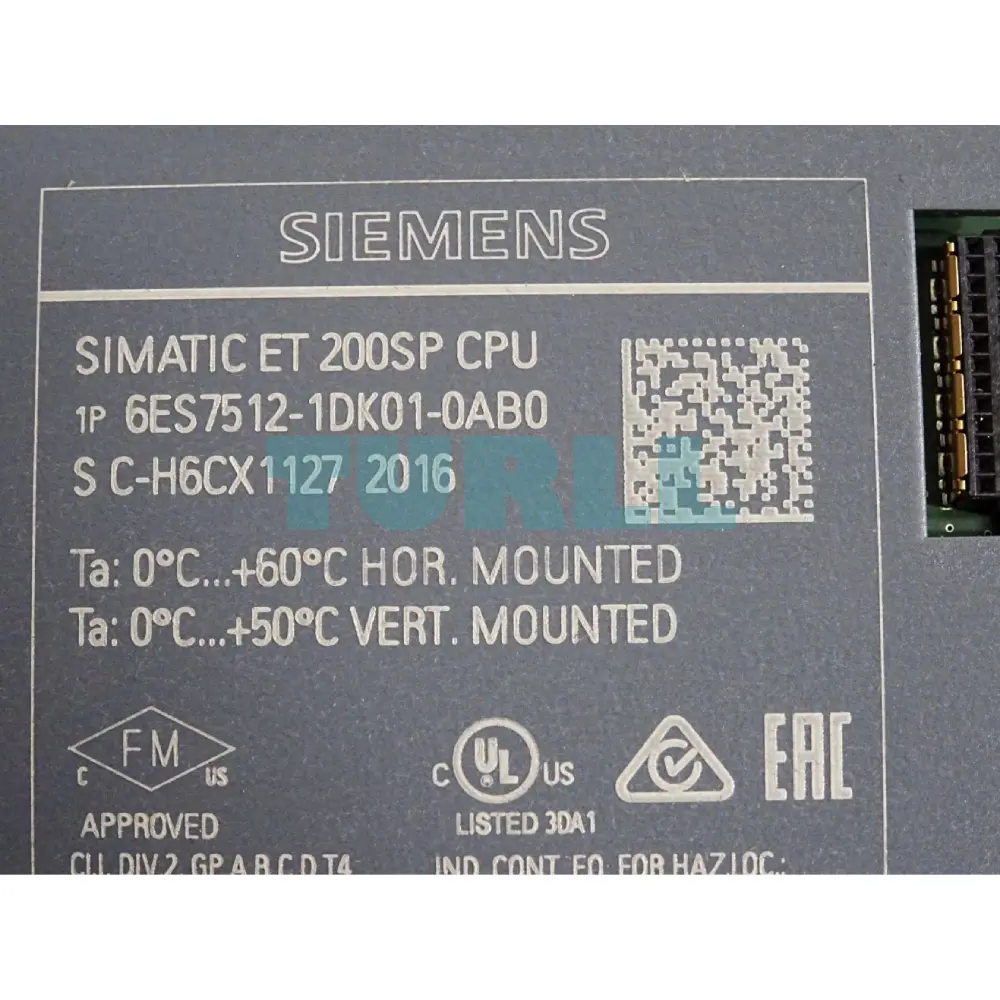

Siemens 6ES7512-1DK01-0AB0 SIMATIC S7-1500, CPU 1512SP-1 PN for ET 200SP Original Brand New
$1,675.13
Siemens CPU 1512SP-1 PN is a compact, powerful controller for the ET 200SP system. It features 200KB program memory, 1MB data memory, and a PROFINET IRT interface. Boasting 48ns bit performance, it is the perfect solution for high-speed automated processes requiring a modular footprint.
Availability: In stock (can be backordered)
Overview
The Siemens 6ES7512-1DK01-0AB0 is a high-performance SIMATIC CPU 1512SP-1 PN designed for the ET 200SP distributed I/O system. This Central Processing Unit is engineered for medium-level applications that require high processing speeds and integrated functionality in a compact form factor.
With a lightning-fast 48 ns bit performance, this CPU ensures real-time responsiveness for complex automation tasks. It features a dual-memory structure—200 KB for program logic and 1 MB for data—providing the balance needed for efficient industrial control.
Key Benefit
-
Space-Saving Design: Ideal for control cabinets with limited space, offering the power of an S7-1500 in the ET 200SP form factor.
-
High-Speed Processing: With a command execution time of 48 ns, it handles demanding arithmetic and logic operations with ease.
-
Advanced Connectivity: The integrated PROFINET IRT (Isochronous Real-Time) interface with a 3-port switch allows for flexible network topologies.
-
Scalability: Seamlessly integrates with the wide range of ET 200SP I/O modules.

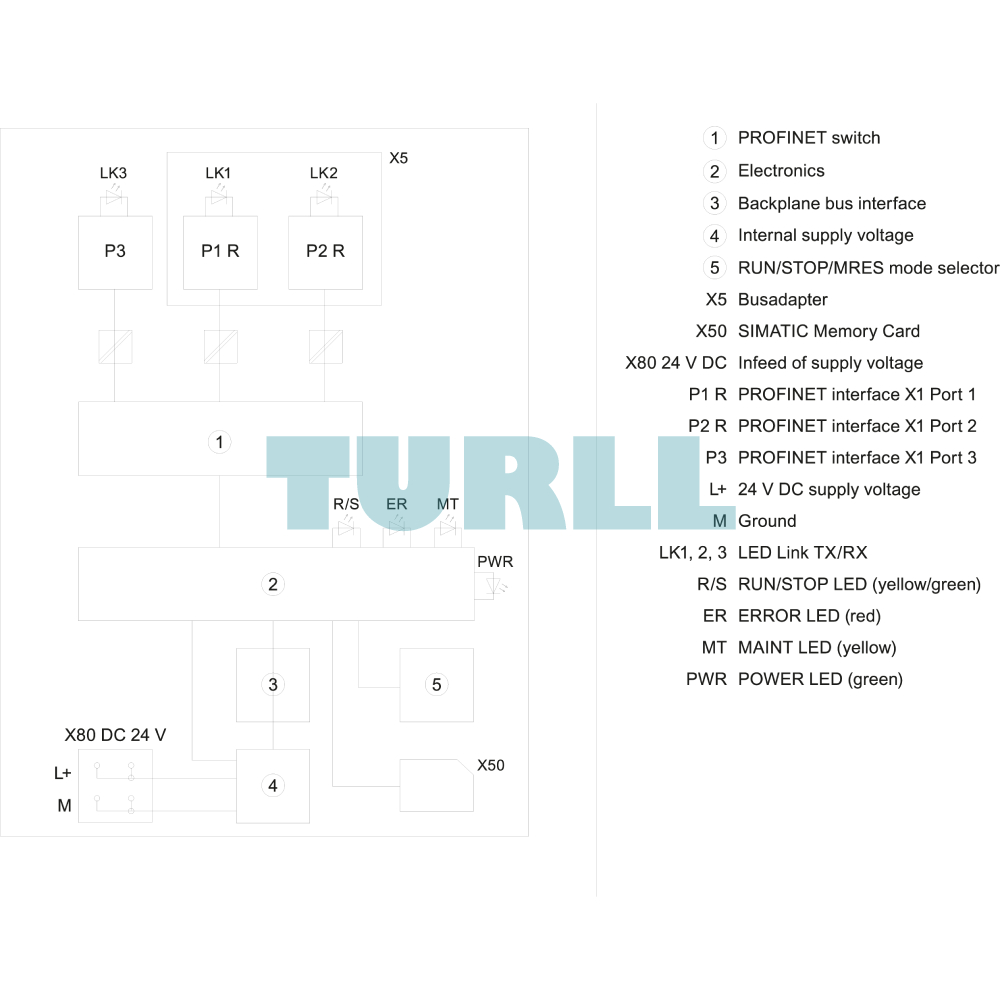

Function & Features
-
Central Processing Unit for SIMATIC ET 200SP
-
200 KB work memory for program execution
-
1 MB work memory for data handling
-
PROFINET IRT interface with integrated 3-port switch
-
Supports deterministic real-time industrial communication
-
Requires SIMATIC Memory Card for operation
-
Requires BusAdapter for ports 1 and 2
Technical Highlight
-
Manufacturer: Siemens
-
Product Number: 6ES7512-1DK01-0AB0
-
CPU Type: SIMATIC DP CPU 1512SP-1 PN
-
Communication: PROFINET IRT
-
Performance: 48 ns per bit
-
Application: Industrial Automation & Control Systems
Visit 6ES7512-1DK01-0AB0 for more detail info
For more our products visit turll
Download
| Weight | 0.386 kg |
|---|---|

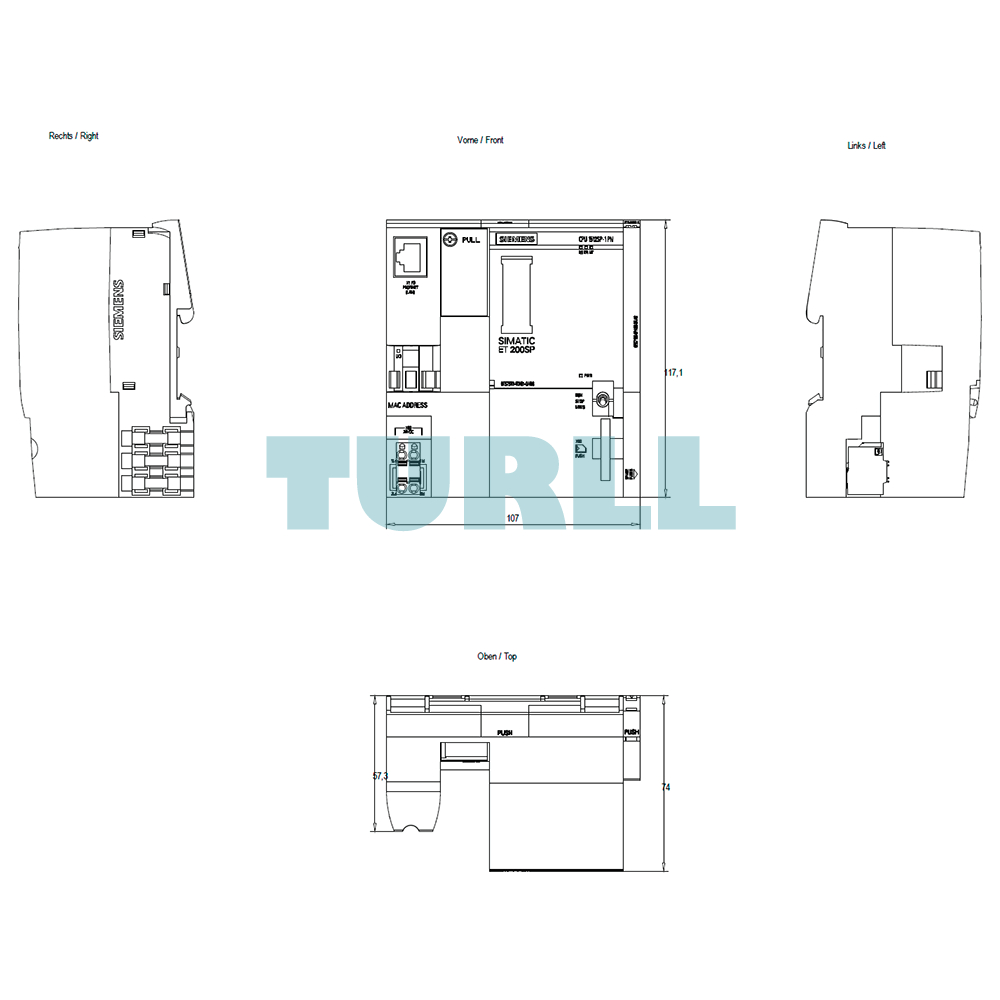

| Dimensions | 10.00 × 12.20 × 6.30 mm |
| Brand | SIEMENS |
| Product type designation | CPU 1512SP-1 PN |
| HW functional status | FS05 |
| Firmware version | V2.9 |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Module swapping during operation (hot swapping) | Yes; Multi-hot swapping |
| ● Isochronous mode | Yes; Only with PROFINET; with minimum OB 6x cycle of 625 µs |
| ● STEP 7 TIA Portal configurable/integrated from version | V17 (FW V2.9) / V13 SP1 Update 4 (FW V1.8) or higher |
| via dataset | Yes |
| Mode selector switch | 1 |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| ● Mains/voltage failure stored energy time | 5 ms |
| Current consumption (rated value) | 0.6 A |
| Current consumption, max. | 0.9 A |
| Inrush current, max. | 4.7 A; Rated value |
| I²t | 0.14 A²·s |
| Infeed power to the backplane bus | 8.75 W |
| Power loss, typ. | 5.6 W |
| Number of slots for SIMATIC memory card | 1 |
| SIMATIC memory card required | Yes |
| ● integrated (for program) | 200 kbyte |
| ● integrated (for data) | 1 Mbyte |
| ● Plug-in (SIMATIC Memory Card), max. | 32 Gbyte |
| ● maintenance-free | Yes |
| for bit operations, typ. | 48 ns |
| for word operations, typ. | 58 ns |
| for fixed point arithmetic, typ. | 77 ns |
| for floating point arithmetic, typ. | 307 ns |
| Number of elements (total) | 4 000; Blocks (OB, FB, FC, DB) and UDTs |
| ● Number range | 0 … 65 535 |
| ● Number of free cycle OBs | 100 |
| ● Number of time alarm OBs | 20 |
| ● Number of delay alarm OBs | 20 |
| ● Number of cyclic interrupt OBs | 20; With minimum OB 3x cycle of 500 µs |
| ● Number of process alarm OBs | 50 |
| ● Number of DPV1 alarm OBs | 3 |
| ● Number of isochronous mode OBs | 1 |
| ● Number of technology synchronous alarm OBs | 2 |
| ● Number of startup OBs | 100 |
| ● Number of asynchronous error OBs | 4 |
| ● Number of synchronous error OBs | 2 |
| ● Number of diagnostic alarm OBs | 1 |
| ● per priority class | 24 |
| — adjustable | Yes |
| Retentive data area (incl. timers, counters, flags), max. | 128 kbyte; Available retentive memory for bit memories, timers, counters, DBs, and technology data (axes): 88 KB |
| ● Size, max. | 16 kbyte |
| ● Number of clock memories | 8; 8 clock memory bit, grouped into one clock memory byte |
| ● Retentivity adjustable | Yes |
| ● Retentivity preset | No |
| ● per priority class, max. | 64 kbyte; max. 16 KB per block |
| Number of IO modules | 2 048; max. number of modules / submodules |
| ● Inputs | 32 kbyte; All inputs are in the process image |
| ● Outputs | 32 kbyte; All outputs are in the process image |
| — Inputs (volume) | 8 kbyte |
| — Outputs (volume) | 8 kbyte |
| ● Number of subprocess images, max. | 32 |
| ● Address space per module, max. | 288 byte; For input and output data respectively |
| ● Address space per station, max. | 2 560 byte; for central inputs and outputs; depending on configuration; 2 048 bytes for ET 200SP modules + 512 bytes for ET 200AL modules |
| Number of distributed IO systems | 32; A distributed I/O system is characterized not only by the integration of distributed I/O via PROFINET or PROFIBUS communication modules, but also by the connection of I/O via AS-i master modules or links (e.g. IE/PB-Link) |
| ● integrated | 1 |
| ● Via CM | 0 |
| ● Modules per rack, max. | 80; CPU + 64 modules + server module (mounting width max. 1 m) + 16 ET 200AL modules |
| ● Quantity of operable ET 200SP modules, max. | 64 |
| ● Quantity of operable ET 200AL modules, max. | 16 |
| ● Number of lines, max. | 1 |
| ● Number of PtP CMs | the number of connectable PtP CMs is only limited by the number of available slots |
| ● Type | Hardware clock |
| ● Backup time | 6 wk; At 40 °C ambient temperature, typically |
| ● Deviation per day, max. | 10 s; Typ.: 2 s |
| ● Number | 16 |
| ● supported | Yes |
| ● to DP, master | Yes; Via CM DP module |
| ● to DP, slave | Yes; Via CM DP module |
| ● in AS, master | Yes |
| ● in AS, slave | Yes |
| ● on Ethernet via NTP | Yes |
| Number of PROFINET interfaces | 1 |
| Number of PROFIBUS interfaces | 1; Via CM DP module |
| Optical interface | Yes; via BusAdapter |
| ● RJ 45 (Ethernet) | Yes; X1 P3; opt. X1 P1 and X1 P2 via BusAdapter BA 2x RJ45 |
| ● integrated switch | Yes |
| ● BusAdapter (PROFINET) | Yes; compatible BusAdapters: BA 2x RJ45, BA 2x M12, BA 2x FC, BA 2x LC, BA LC/RJ45, BA LC/FC, BA 2x SCRJ, BA SCRJ/RJ45, BA SCRJ/FC, |
| ● IP protocol | Yes; IPv4 |
| ● PROFINET IO Controller | Yes |
| ● PROFINET IO Device | Yes |
| ● Open IE communication | Yes; Optionally also encrypted |
| ● Web server | Yes |
| ● Media redundancy | Yes; MRP Automanager according to IEC 62439-2 Edition 2.0 |
| — Direct data exchange | Yes; Requirement: IRT and isochronous mode (MRPD optional) |
| — Prioritized startup | Yes; Max. 32 PROFINET devices |
| — Number of connectable IO Devices, max. | 128; In total, up to 512 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET |
| — Of which IO devices with IRT, max. | 64 |
| — Number of connectable IO Devices for RT, max. | 128 |
| — of which in line, max. | 128 |
| — Number of IO Devices that can be simultaneously activated/deactivated, max. | 8; in total across all interfaces |
| — Number of IO Devices per tool, max. | 8 |
| — Updating times | The minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, and on the quantity of configured user data |
| — With IRT and parameterization of "odd" send cycles | Update time = set "odd" send clock (any multiple of 125 µs: 375 µs, 625 µs … 3 875 µs) |
| — for send cycle of 250 µs | 250 µs to 128 ms |
| — for send cycle of 500 µs | 500 µs to 256 ms |
| — for send cycle of 1 ms | 1 ms to 512 ms |
| — for send cycle of 2 ms | 2 ms to 512 ms |
| — for send cycle of 4 ms | 4 ms to 512 ms |
| — IRT | Yes |
| — PROFIenergy | Yes; per user program |
| — Shared device | Yes |
| — Number of IO Controllers with shared device, max. | 4 |
| — activation/deactivation of I-devices | Yes; per user program |
| — Asset management record | Yes; per user program |
| ● RS 485 | Yes; Via CM DP module |
| ● Number of ports | 1 |
| ● PROFIBUS DP master | Yes |
| ● PROFIBUS DP slave | Yes |
| ● SIMATIC communication | Yes |
| ● Number of DP slaves, max. | 125; In total, up to 512 distributed I/O devices can be connected via AS-i, PROFIBUS or PROFINET |
| — PG/OP communication | Yes |
| — Equidistance | No |
| — Isochronous mode | No |
| — Activation/deactivation of DP slaves | Yes |
| ● 100 Mbps | Yes |
| ● Autonegotiation | Yes |
| ● Autocrossing | Yes |
| ● Industrial Ethernet status LED | Yes |
| ● Transmission rate, max. | 12 Mbit/s |
| PROFIsafe | No |
| ● Number of connections, max. | 128; via integrated interfaces of the CPU and connected CPs / CMs |
| ● Number of connections reserved for ES/HMI/web | 10 |
| ● Number of connections via integrated interfaces | 88 |
| ● Number of connections per CP/CM | 32 |
| ● Number of S7 routing paths | 16 |
| ● H-Sync forwarding | Yes |
| — Media redundancy | Yes; only via BusAdapter |
| — MRP | Yes; MRP Automanager according to IEC 62439-2 Edition 2.0, MRP Manager; MRP Client |
| — MRP interconnection, supported | Yes; as MRP ring node according to IEC 62439-2 Edition 3.0 |
| — MRPD | Yes; Requirement: IRT |
| — Switchover time on line break, typ. | 200 ms; For MRP, bumpless for MRPD |
| — Number of stations in the ring, max. | 50 |
| ● PG/OP communication | Yes; encryption with TLS V1.3 pre-selected |
| ● S7 routing | Yes |
| ● Data record routing | Yes |
| ● S7 communication, as server | Yes |
| ● S7 communication, as client | Yes |
| ● User data per job, max. | See online help (S7 communication, user data size) |
| ● TCP/IP | Yes |
| — several passive connections per port, supported | Yes |
| ● ISO-on-TCP (RFC1006) | Yes |
| ● UDP | Yes |
| — Data length, max. | 2 kbyte; 1 472 bytes for UDP broadcast |
| — UDP multicast | Yes; Max. 5 multicast circuits |
| ● DHCP | Yes |
| ● DNS | Yes |
| ● SNMP | Yes |
| ● DCP | Yes |
| ● LLDP | Yes |
| ● Encryption | Yes; Optional |
| ● HTTP | Yes; Standard and user pages |
| ● HTTPS | Yes; Standard and user pages |
| ● Runtime license required | Yes; "Small" license required |
| ● OPC UA Client | Yes |
| — Number of connections, max. | 4 |
| — Number of nodes of the client interfaces, max. | 1 000 |
| — Number of elements for one call of OPC_UA_NodeGetHandleList/OPC_UA_ReadList/OPC_UA_WriteList, max. | 300 |
| — Number of elements for one call of OPC_UA_NameSpaceGetIndexList, max. | 20 |
| — Number of elements for one call of OPC_UA_MethodGetHandleList, max. | 100 |
| — Number of simultaneous calls of the client instructions per connection (except OPC_UA_ReadList,OPC_UA_WriteList,OPC_UA_MethodCall), max. | 1 |
| — Number of simultaneous calls of the client instructions OPC_UA_ReadList,OPC_UA_WriteList and OPC_UA_MethodCall, max. | 5 |
| — Number of registerable method calls of OPC_UA_MethodCall, max. | 100 |
| — Number of inputs/outputs when calling OPC_UA_MethodCall, max. | 20 |
| ● OPC UA Server | Yes; Data access (read, write, subscribe), method call, custom address space |
| — Application authentication | Yes |
| — Security policies | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 |
| — User authentication | "anonymous" or by user name & password |
| — GDS support (certificate management) | Yes |
| — Number of sessions, max. | 32 |
| — Number of accessible variables, max. | 50 000 |
| — Number of registerable nodes, max. | 10 000 |
| — Number of subscriptions per session, max. | 20 |
| — Sampling interval, min. | 100 ms |
| — Publishing interval, min. | 500 ms |
| — Number of server methods, max. | 20 |
| — Number of inputs/outputs per server method, max. | 20 |
| — Number of monitored items, max. | 1 000; for 1 s sampling interval and 1 s send interval |
| — Number of server interfaces, max. | 10 of each "Server interfaces" / "Companion specification" type and 20 of the type "Reference namespace" |
| — Number of nodes for user-defined server interfaces, max. | 1 000 |
| ● Alarms and Conditions | Yes |
| — Number of program alarms | 100 |
| — Number of alarms for system diagnostics | 50 |
| ● MODBUS | Yes; MODBUS TCP |
| Program alarms | Yes |
| Joint commission (Team Engineering) | Yes; Parallel online access possible for up to 5 engineering systems |
| Status block | Yes; Up to 8 simultaneously (in total across all ES clients) |
| Single step | No |
| Number of breakpoints | 8 |
| ● Status/control variable | Yes |
| ● Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters |
| — of which status variables, max. | 200; per job |
| — of which control variables, max. | 200; per job |
| ● Forcing | Yes |
| ● Forcing, variables | Peripheral inputs/outputs |
| ● Number of variables, max. | 200 |
| ● present | Yes |
| ● Number of entries, max. | 1 000 |
| — of which powerfail-proof | 500 |
| ● Number of configurable Traces | 4; Up to 512 KB of data per trace are possible |
| ● RUN/STOP LED | Yes |
| ● ERROR LED | Yes |
| Product Condition | Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good |
