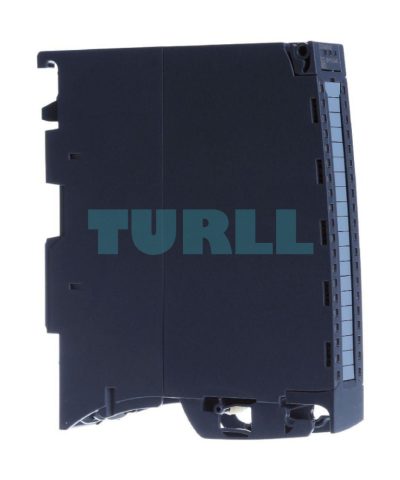

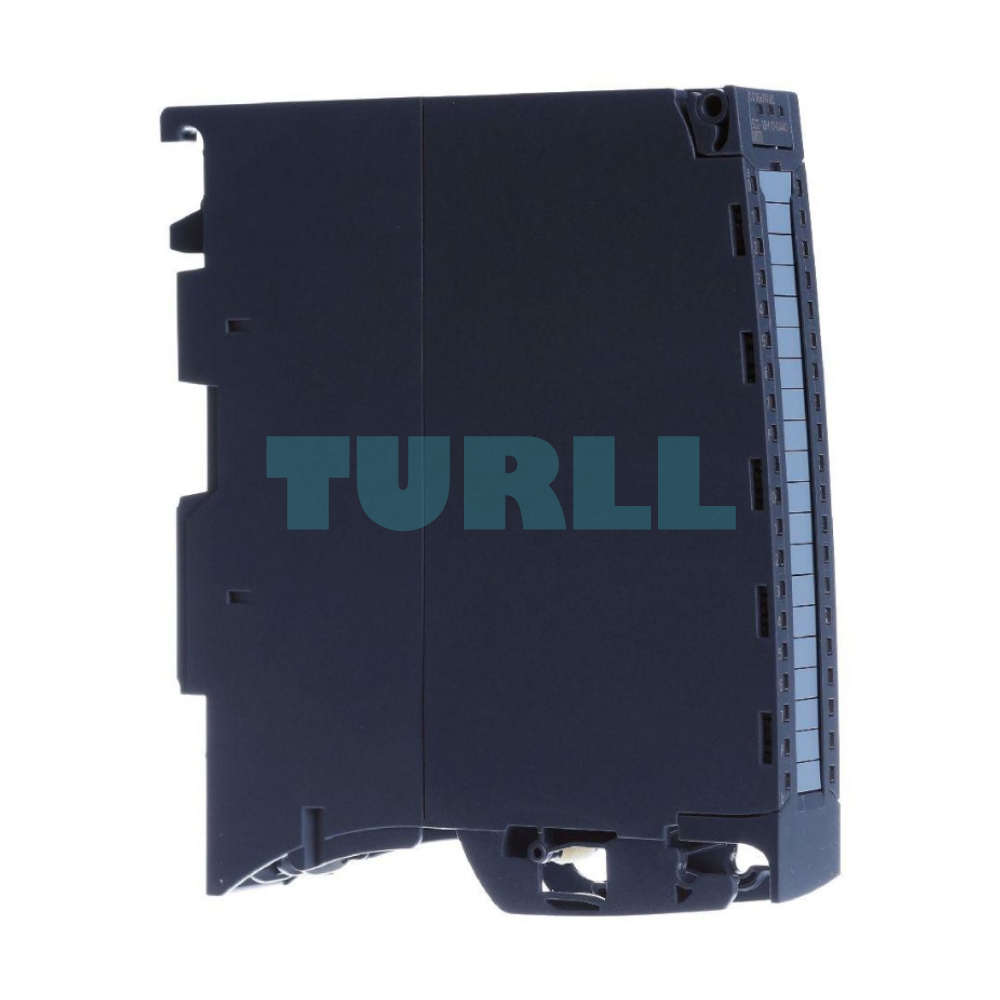

Siemens 6ES7522-1BH10-0AA0 SIMATIC S7-1500 Digital Output Module, DQ 16 x 24V DC/0.5A BA Original Brand New

Overview

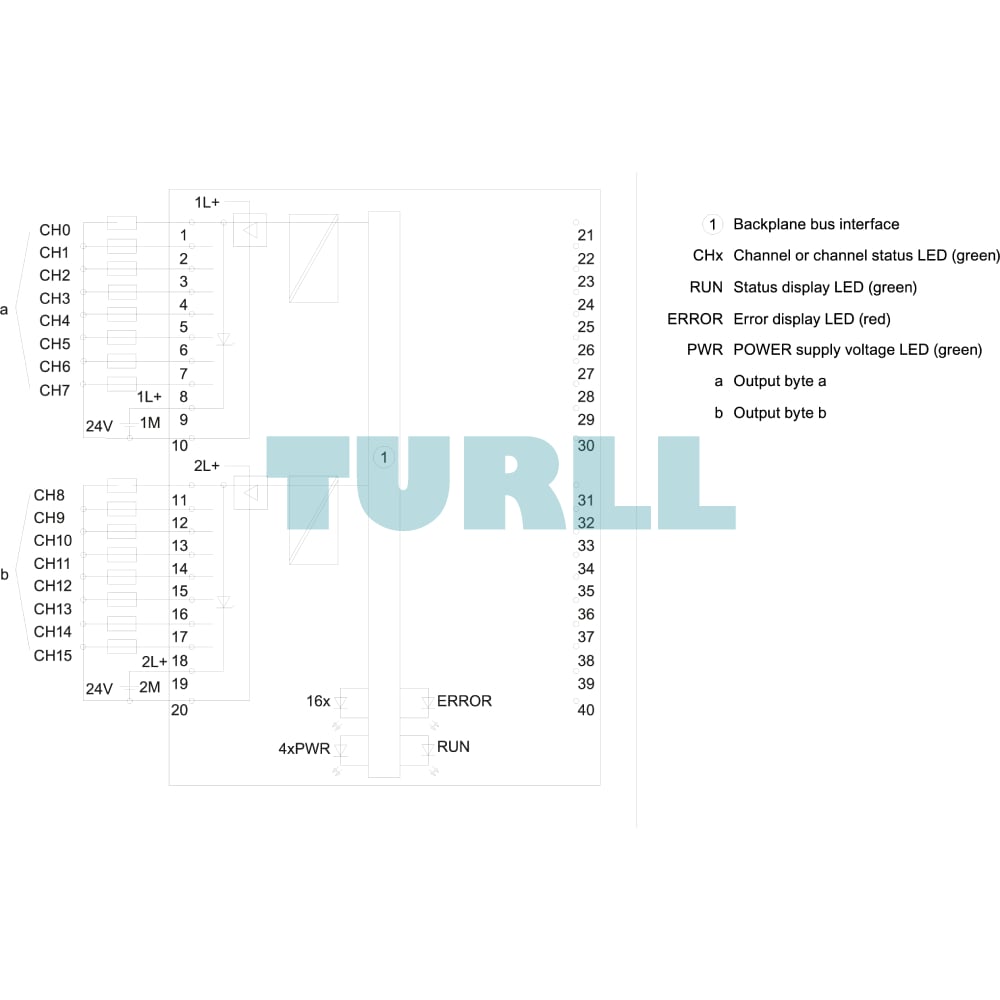

The Siemens 6ES7522-1BH10-0AA0 is a high-performance Digital Output Module belonging to the SIMATIC S7-1500 controller series. Designed for reliability and precision, this DQ 16x24V DC/0.5A BA module features 16 channels organized into groups of 8. It is engineered for modern industrial environments that require integrated safety, supporting load group shutdowns up to SIL2 and PL d.

Key Benefits & Features

High-Efficiency Output

Provides 16 digital output channels at 24V DC with a 0.5A current rating, ensuring stable power delivery for actuators, solenoids, and motor starters.

Integrated Safety Compliance

One of the standout features of this module is its ability to support safety-oriented shutdowns of load groups:

• SIL2 (EN IEC 62061:2021)

• Category 3 / PL d (EN ISO 13849-1:2015)

Easy Installation

The module is delivered including a front connector with push-in technology, significantly reducing wiring time and minimizing the risk of loose connections in high-vibration environments.

Robust Power Management

Supports up to 4 A per group, allowing for flexible power distribution across the 16 channels.

Technical Function

• Switching Capacity: 0.5 A per channel.

• Total Current: Max 4 A per channel group.

• Diagnostics: Integrated diagnostic functions for simplified troubleshooting.

• Compatibility: Seamlessly integrates with the TIA Portal and S7-1500 mounting rails.

Download

Datasheet in PDF
