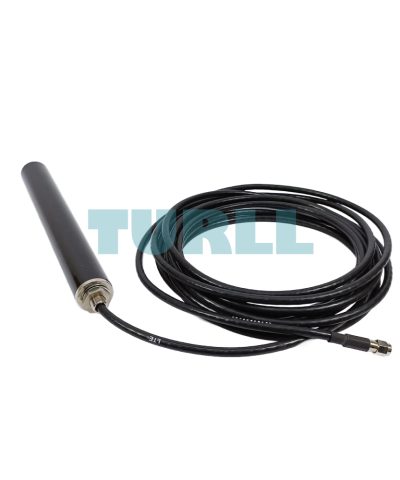

Siemens 6NH9860-1AA00 ANT794-4MR 2G/3G/4G EU Industrial Antenna Original Brand New
$54.67

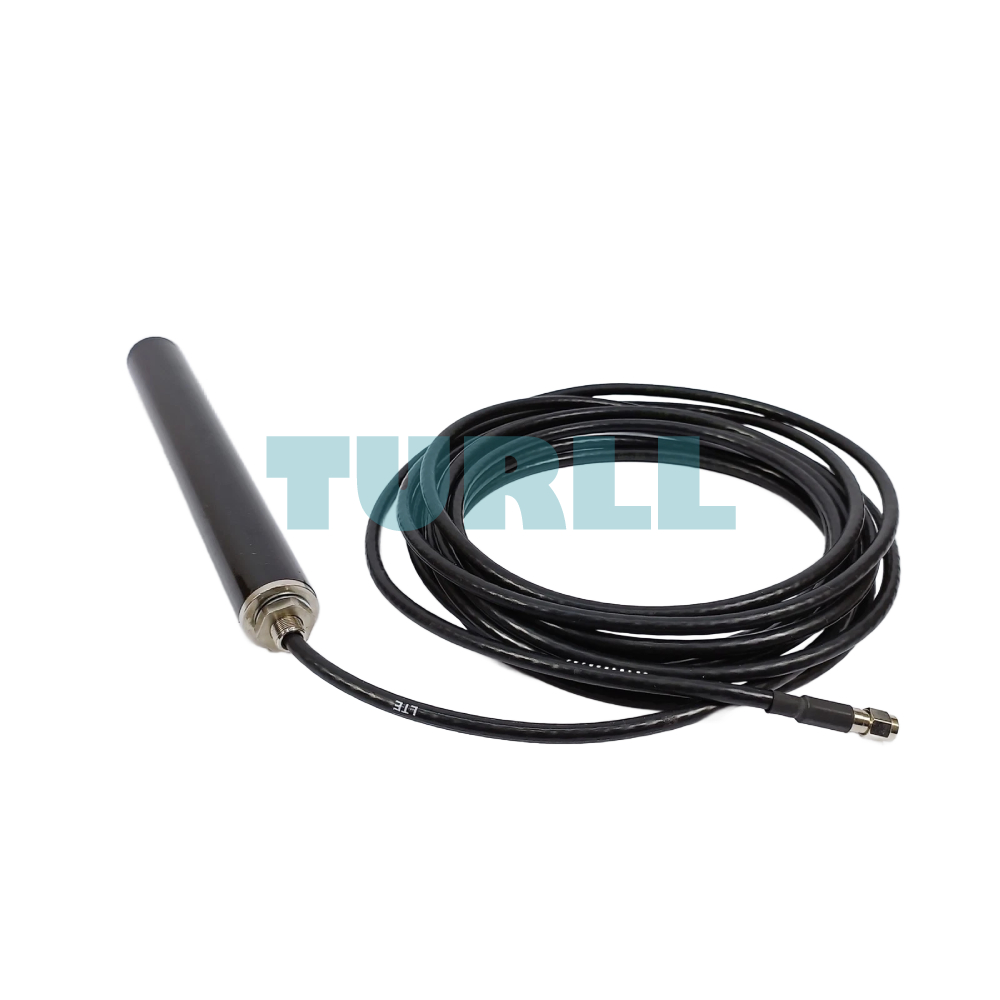

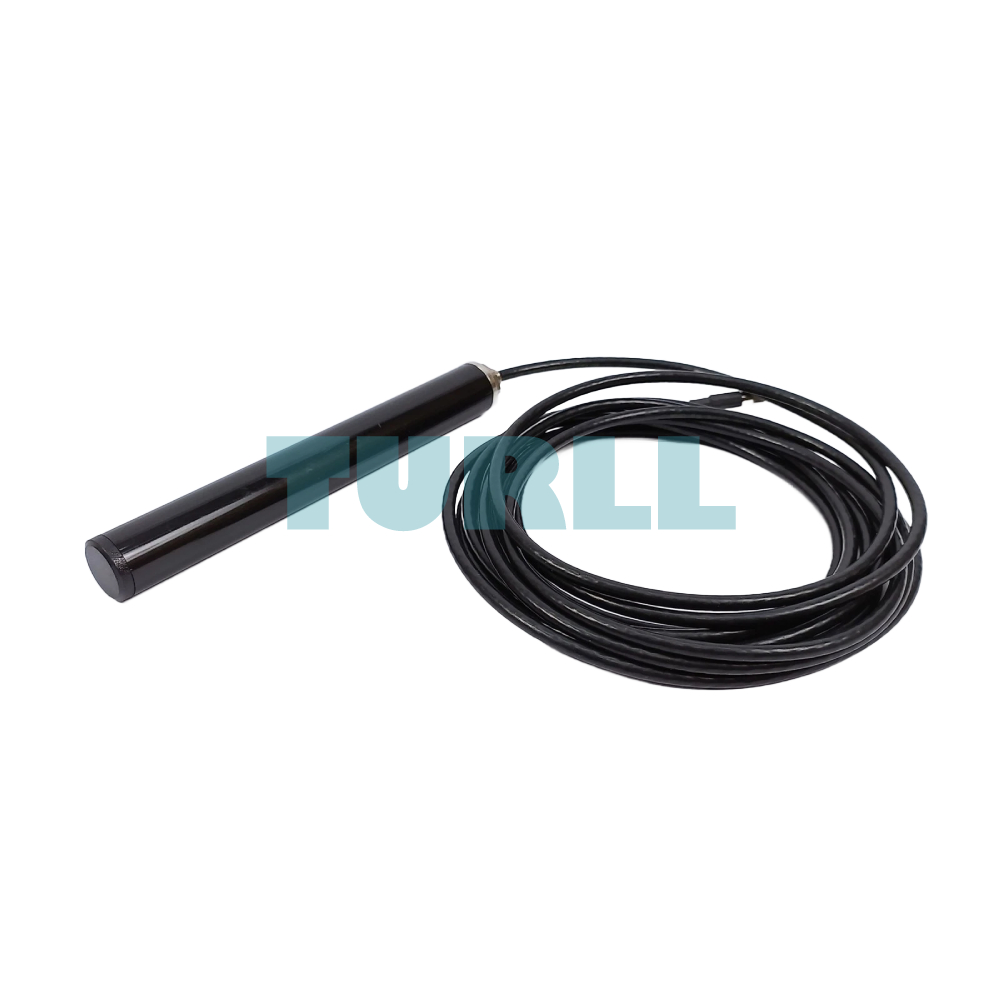

Siemens ANT794-4MR is a weatherproof, omnidirectional rod antenna designed for reliable 2G/3G/4G EU (GSM/UMTS/LTE) industrial networks. Features a permanently attached 5m cable and SMA connector for easy installation indoors or outdoors.
Availability: In stock
Overview
Enhance your industrial communication with the Siemens 6NH9860-1AA00 ANT794-4MR mobile wireless antenna. Specifically designed for reliable machine-to-machine (M2M) and industrial IoT applications, this high-performance omnidirectional rod antenna ensures robust connectivity across European (EU) networks. It is the ideal, flexible solution for demanding environments, supporting a wide array of mobile standards.
Functions & Technical Specifications
The ANT794-4MR antenna is engineered to provide superior signal reception and transmission for critical industrial operations.
-
Network Compatibility: Supports 2G/3G/4G EU standards, including GSM, UMTS, and LTE EU networks, ensuring broad, future-proof connectivity across Europe.
-
Design: Robust rod antenna format with omnidirectional radiation for consistent, 360-degree signal coverage, minimizing installation complexity.
-
Durability: Fully weatherproof design suitable for both indoors and outdoors installation in harsh industrial settings.
-

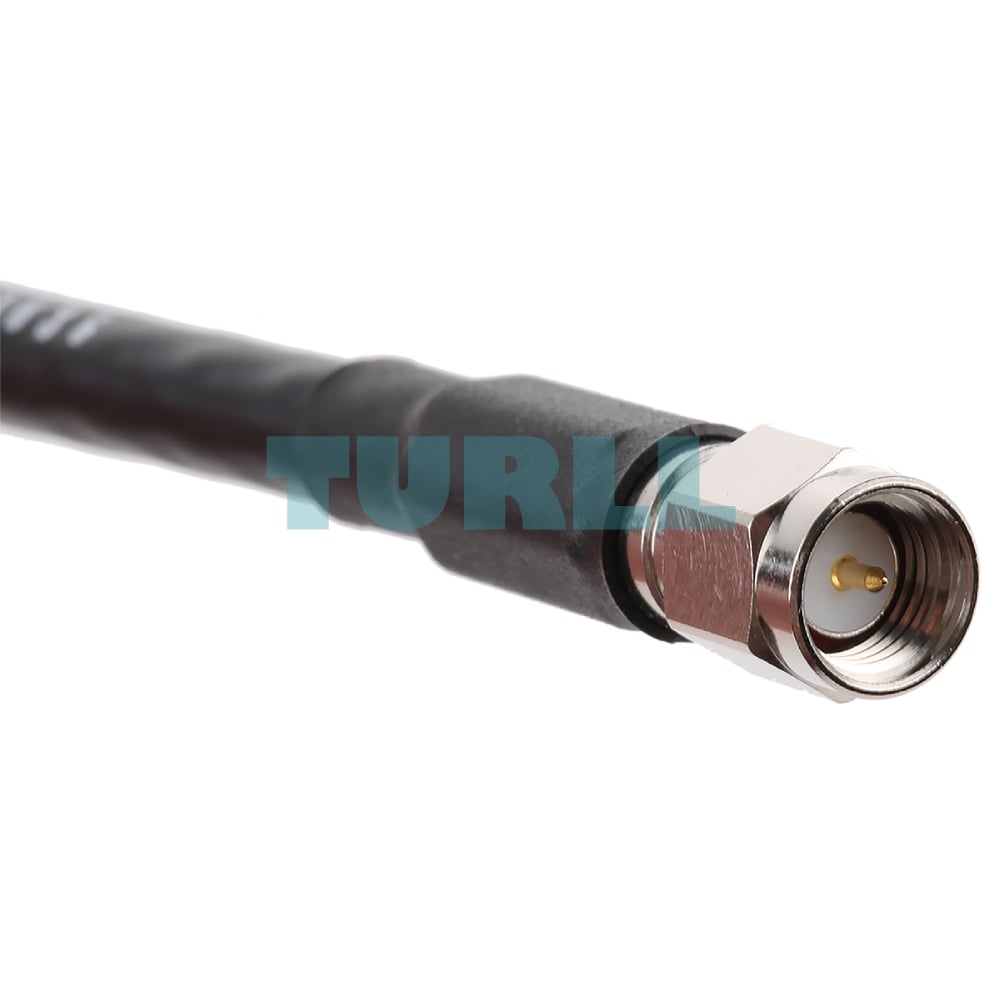

Connectivity: Features a pre-attached 5-meter connection cable terminated with a standard SMA connector for direct and easy integration with industrial communication devices.
Benefit
-
Maximized Uptime: Reliable, high-gain performance across all major EU mobile networks reduces connectivity dropouts and ensures continuous data flow.
-
Flexible Installation: The weatherproof housing and included mounting bracket allow for versatile deployment in cabinets, walls, or poles, inside or outside.
-
Plug-and-Play Integration: The 5m permanently connected cable and SMA connector simplify setup and reduce the need for complex field wiring.
-
Industrial Grade: Built for longevity and stability in challenging temperature and environmental conditions typical of M2M applications.
Scope of Supply
The Siemens 6NH9860-1AA00 package includes everything needed for immediate installation:
-
1 x ANT794-4MR mobile wireless antenna
-
1 x Mounting bracket
-
Screws and screw anchors
-
Note: National approval and the product data sheet must be observed prior to commissioning.
Visit 6NH9860-1AA00 for more detail info
For more our products visit turll
Download
| Weight | 0.364 kg |
|---|---|
| Dimensions | 18.70 × 29.70 × 4.60 mm |
| Brand | SIEMENS |
| product type designation | Antenna ANT794-4MR |
| suitability for operation | for indoor and outdoor applications |
| type of wireless network / is supported | LTE, UMTS, GSM |
| operating frequency | 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2600 MHz |
| impedance | 50 Ω |
| polarization | linear vertical |
| radiation characteristic | omnidirectional |
| antenna gain | 0 dB |
| standing wave ratio (VSWR) / maximum | 1.9 |
| type of electrical connection / of the antenna | SMA Connector |
| design of plug-in connection | male |
| material | – |
| ● of outer shell | Hard PVC, UV-resistant |
| ambient temperature | – |
| ● during operation | -40 … +70 °C |
| protection class IP | IP65 |
| diameter | 25 mm |
| fastening method | – |
| ● mast mounting | Yes |
| ● flat roof mounting | No |
| ● wall mounting | Yes |
| ● roof mounting | No |
| ● directly on the device | No |
| wire length / of antenna wire | 5 m |
| certificate of suitability | – |
| ● RoHS conformity | Yes |
| reference code | – |
| ● acc. to IEC 81346-2 | TF |
| ● according to IEC 81346-2:2019 | TFB |
| Internet-Link | – |
| ● to web page: selection aid TIA Selection Tool | |
| ● to website: Industrial communication | |
| ● to website: Industry Mall | |
| ● to website: Information and Download Center | |
| ● to website: Image database | |
| ● to website: CAx-Download-Manager | |
| ● to website: Industry Online Support | |
| last modified: | 11/3/2021 |
