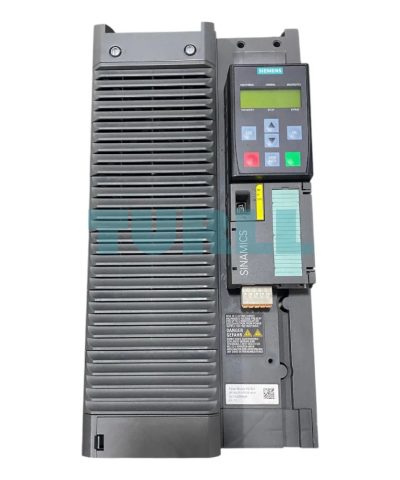

Siemens 6SL3210-1PC25-4UL0 SINAMICS G120 Power Module PM240-2, 3AC 200-240V, 11kW/15kW, IP20 Original Brand New
$1,340.80
High-performance SINAMICS G120 PM240-2 Power Module designed for versatile industrial applications. This unfiltered module features a built-in braking chopper and supports a dual power rating of 11kW (High Overload) and 15kW (Low Overload). Operating on a 3-phase 200-240V input, it offers robust performance in a compact FSD frame size with IP20 protection.
Availability: In stock
Overview
The Siemens SINAMICS G120 Power Module PM240-2 (6SL3210-1PC25-4UL0) is a high-performance, unfiltered power module designed for demanding industrial drive applications. Equipped with a built-in braking chopper, this module supports reliable motor control across a wide range of operating conditions. It operates on a 3-phase 200–240V AC supply and is engineered to deliver both high overload (HO) and low overload (LO) performance, making it suitable for conveyors, pumps, fans, compressors, and general machinery.
This power module is part of the modular SINAMICS G120 drive system, offering flexibility, scalability, and long-term operational efficiency. It is supplied without a control unit and operator panel, allowing customized system integration.
Benefit
-
High overload capability for demanding industrial applications
-
Integrated braking chopper for enhanced stopping performance
-
Wide ambient temperature range for harsh environments
-
Modular design for flexible system configuration
-
Siemens reliability and long service life
-
Optimized energy efficiency and stable motor control
Function & Features
-
Input Voltage: 3AC 200–240V (+10% / -20%)
-
Input Frequency: 47–63 Hz
-
High Overload (HO):
-
11 kW
-
200% for 3 seconds
-
150% for 57 seconds
-
100% for 240 seconds
-
Ambient temperature: -20°C to +50°C
-
-
Low Overload (LO):
-
15 kW
-
150% for 3 seconds
-
110% for 57 seconds
-
100% for 240 seconds
-
Ambient temperature: -20°C to +40°C
-
-
Braking Chopper: Built-in
-
Protection Class: IP20
-
Frame Size: FSD
-
Dimensions (H × W × D): 472 × 200 × 237 mm
-
Firmware Compatibility: CU firmware version V4.7 HF8
-
Configuration: Without control unit and operator panel
Application
-
Conveyor systems
-
Pumps and fans
-
Compressors
-
Material handling systems
-
Industrial automation and machinery
-
General-purpose drive applications
Visit 6SL3210-1PC25-4UL0 for more detail info
For more our products visit turll
Download
| Weight | 18.300 kg |
|---|---|
| Dimensions | 356.00 × 495.00 × 300.00 mm |
