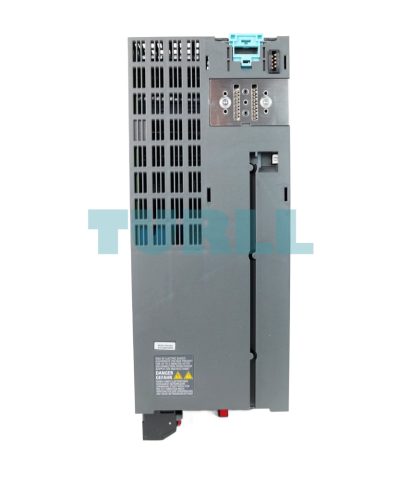

Siemens 6SL3210-1PE23-3AL0 SINAMICS PM240-2 Power Module 11kW/15kW, 3AC 380-480V Original Brand New

Overview

The Siemens 6SL3210-1PE23-3AL0 belongs to the robust SINAMICS PM240-2 series, specifically engineered to provide reliable power conversion for industrial drive systems. This module is versatile, supporting both high-torque demands and standard centrifugal applications. With integrated safety features and an efficient thermal design, it ensures longevity and performance in demanding environments.

Key Benefit

• Integrated Filtering: Built-in Class A filter reduces electromagnetic interference, ensuring compliance with industrial EMC standards.

• Dynamic Braking: Features an integrated braking chopper for controlled deceleration of heavy loads.

• Dual Overload Ratings: Flexibility to handle 11kW (High Overload) for rapid cycling or 15kW (Low Overload) for continuous tasks.

• Compact Frame Size C (FSC): Space-saving design with dimensions of 355 x 140 x 165 mm for easy cabinet integration.

• Broad Compatibility: Approved for Control Unit (CU) firmware version V4.6 and higher.

Technical Function

• Voltage Range: Reliable operation within 3AC 380–480V (+10% / -10%).

• High Overload (HO): 11kW output, capable of 200% for 3s, 150% for 57s, and 100% for 240s.

• Low Overload (LO): 15kW output, capable of 150% for 3s, 110% for 57s, and 100% for 240s.

• Environmental Resilience: Operates in temperatures from -10 °C to +50 °C (HO) or +40 °C (LO).

• Protection Rating: IP20 rated, designed for installation in control cabinets.

Application

• Industrial motor drives

• Conveyor systems

• Automation production lines

• High-performance machinery requiring precise control
