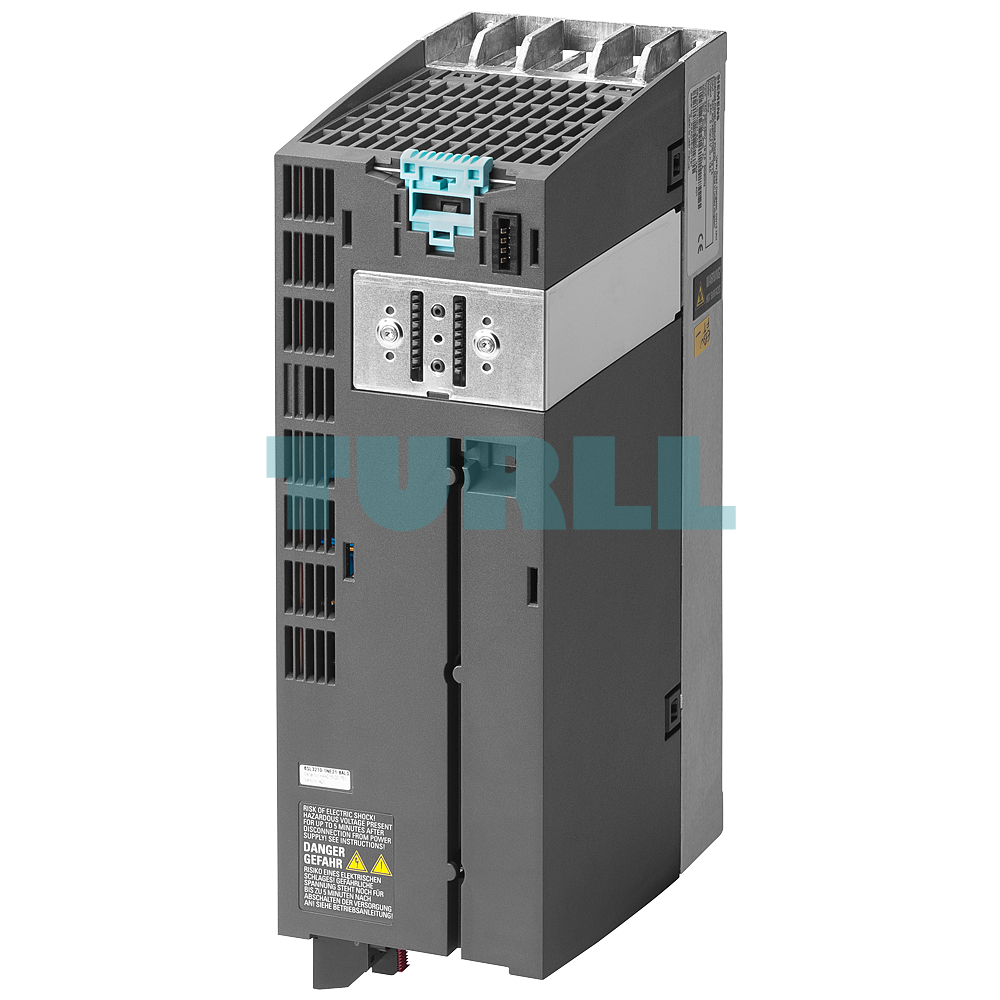

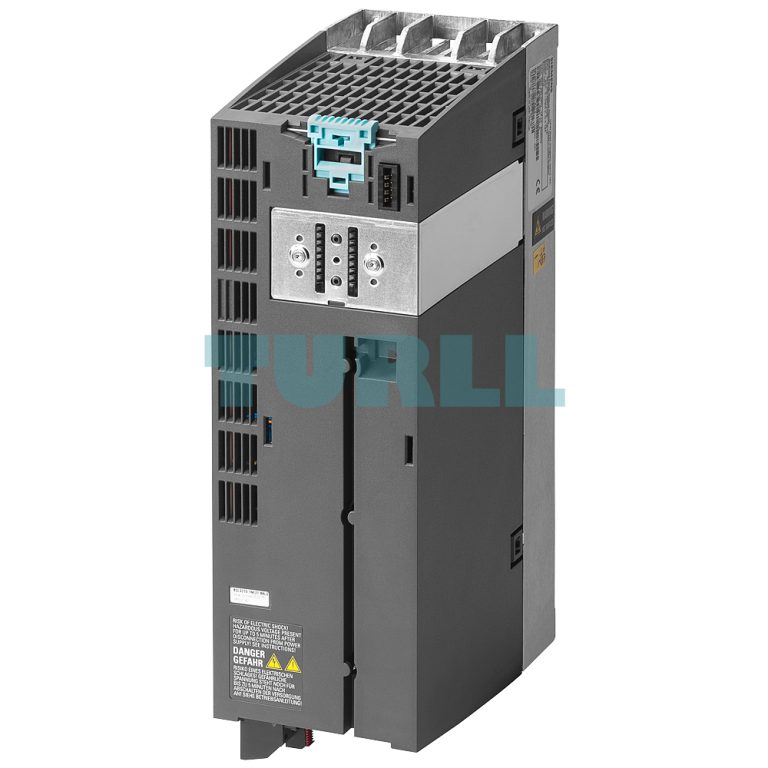

Siemens 6SL3210-1PB21-8AL0 SINAMICS PM240-2 Power Module 3kW/4kW Original Brand New

Overview

The Siemens SINAMICS PM240-2 Power Module (6SL3210-1PB21-8AL0) is a high-performance drive module designed for industrial applications requiring reliable power conversion. Equipped with a built-in Class A filter and integrated braking chopper, this module delivers superior energy efficiency and precise control for AC motors. With robust overload capacity and wide ambient temperature tolerance, it ensures maximum uptime in demanding environments.

Key Benefits

• High Overload Capability: Supports 3 kW for 200% for 3s, 150% for 57s, 100% for 240s at -10°C to +50°C ambient temperature.

• Low Overload Capacity: Supports 4 kW for 150% for 3s, 110% for 57s, 100% for 240s at -10°C to +40°C ambient temperature.

• Compact Design: Dimensions of 355 x 140 x 165 mm (H x W x D) for easy integration in control cabinets.

• IP20 Protection: Ensures safety against solid objects and provides reliable operation.

• CU Firmware Approved (v4.6): Guarantees compatibility with Siemens control units.

• Energy Efficiency: Built-in Class A filter reduces harmonic distortions, while the braking chopper enhances energy recovery.

Key Features / Function

• Model Number: 6SL3210-1PB21-8AL0

• Input Voltage: 1/3 AC 200-240V ±10%

• Frequency Range: 47–63 Hz

• Overload Ratings: High and Low Overload with precise timing

• Ambient Temperature Range: -10°C to +50°C (High), -10°C to +40°C (Low)

• Protection Class: IP20

• Built-In Class A Filter and Braking Chopper

• Dimensions: 355 x 140 x 165 mm (H x W x D)

• Requires Control Unit (CU) – Not Included

• Firmware Version: V4.6

Visit 6SL3210-1PB21-8AL0 for more detail info

For more our products visit turll

Download

Datasheet in PDF
