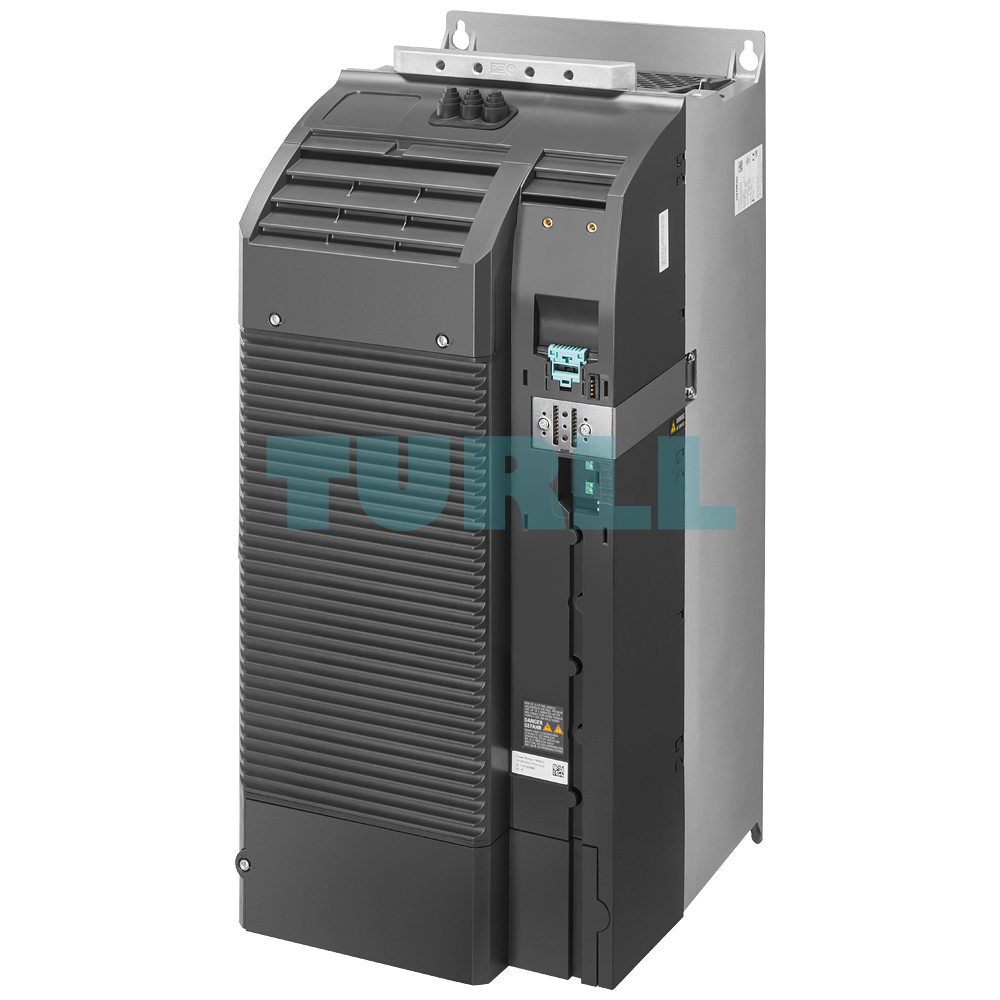

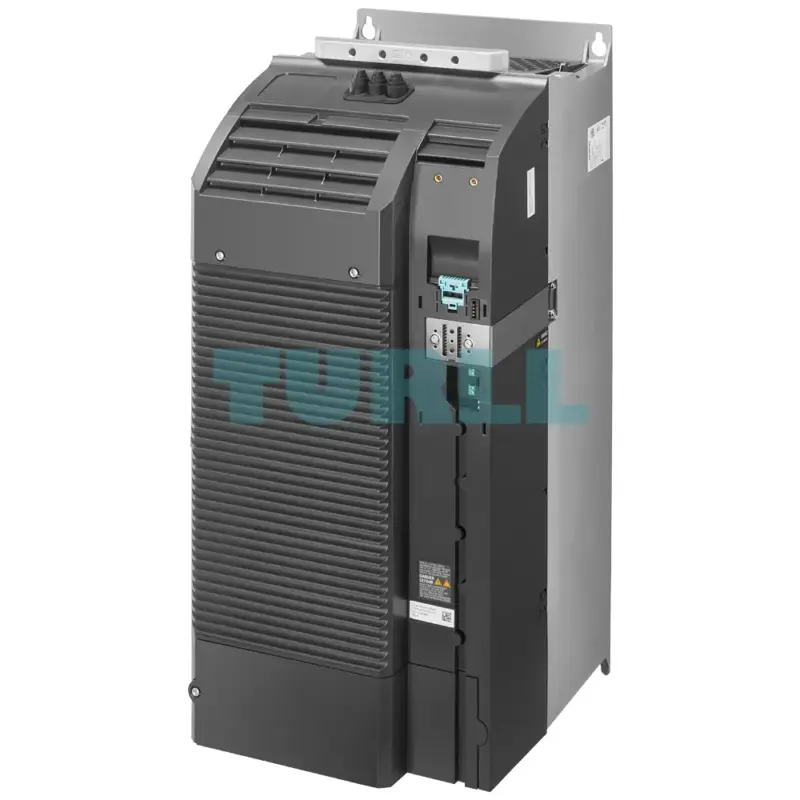

Siemens 6SL3210-1PE31-5UL0 SINAMICS G120 Power Module PM240-2, 75kW (LO), IP20, FSF Original Brand New

Overview

The Siemens 6SL3210-1PE31-5UL0 is a cornerstone of the SINAMICS G120 modular frequency converter system. As a PM240-2 Power Module, it is engineered to drive induction motors and synchronous motors with high precision. This specific unit operates on a 3-phase supply (380-480V) and is characterized by its compact Frame Size FSF design, which offers high power density for cabinet installations.

Note: This is a power module only; it requires a separate Control Unit (CU) and Operator Panel for full functionality.

Key Benefit

• Flexible Overload Capabilities: Switch between High Overload (55kW) for heavy-duty cycling and Low Overload (75kW) for continuous processes.

• Integrated Safety: Features a built-in braking chopper, reducing the need for external components and saving cabinet space.

• Modular Design: Part of the G120 family, allowing for easy maintenance and hardware upgrades by simply swapping control units.

• Rugged Performance: Operates reliably in temperatures ranging from -20°C to +50°C (HO).

Technical Function & Specification

• Model Number: 6SL3210-1PE31-5UL0

• Input Voltage: 3AC 380-480V (+10/-20%), 47-63Hz

• Power Output (LO): 75kW (150% 3s, 110% 57s, 100% 240s)

• Power Output (HO): 55kW (200% 3s, 150% 57s, 100% 240s)

• Frame Size: FSF (Dimensions: 708 x 305 x 357 mm)

• Protection Rating: IP20 (Cabinet installation)

• Filtering: Unfiltered (Without filter)

• Firmware Support: Optimized for CU Firmware Version V4.7 HF8 and above.
