Siemens 6SL3210-1PE32-5UL0 SINAMICS G120 Power Module PM240-2, 132kW (LO) / 110kW (HO) Original Brand New

Overview

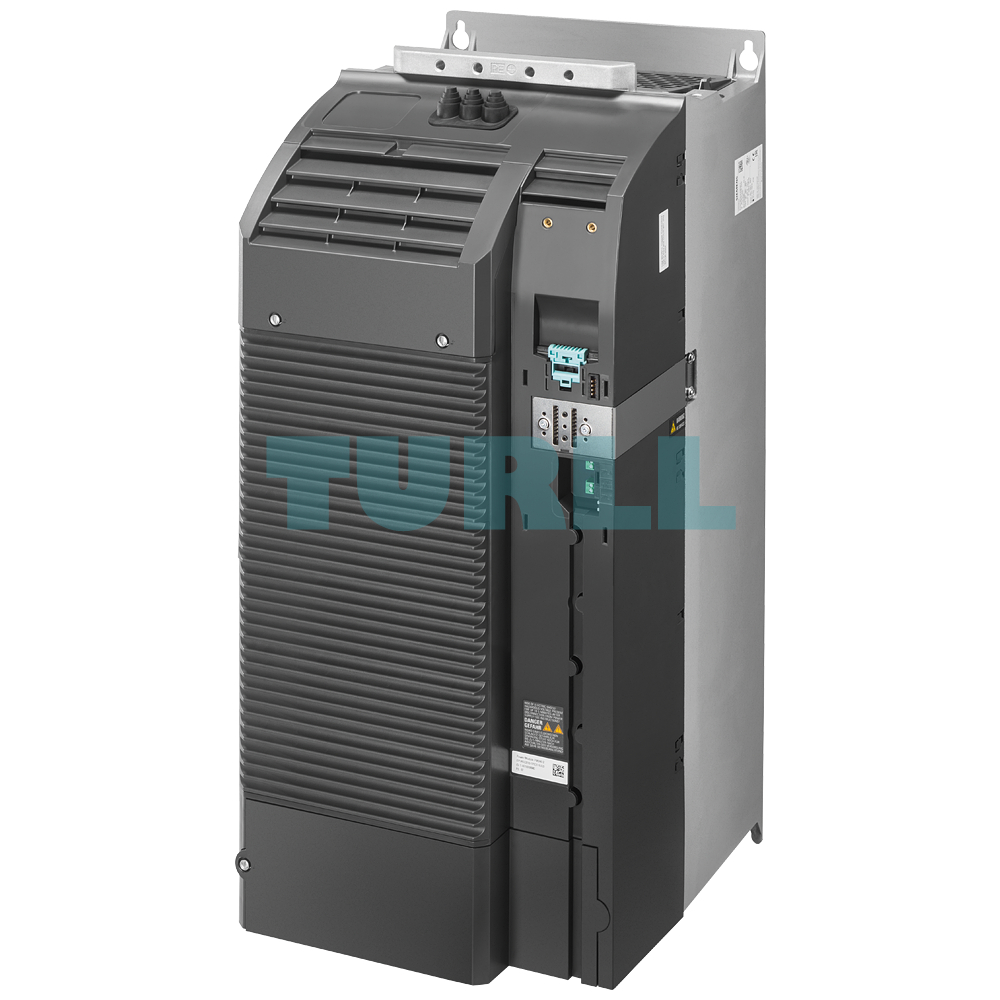

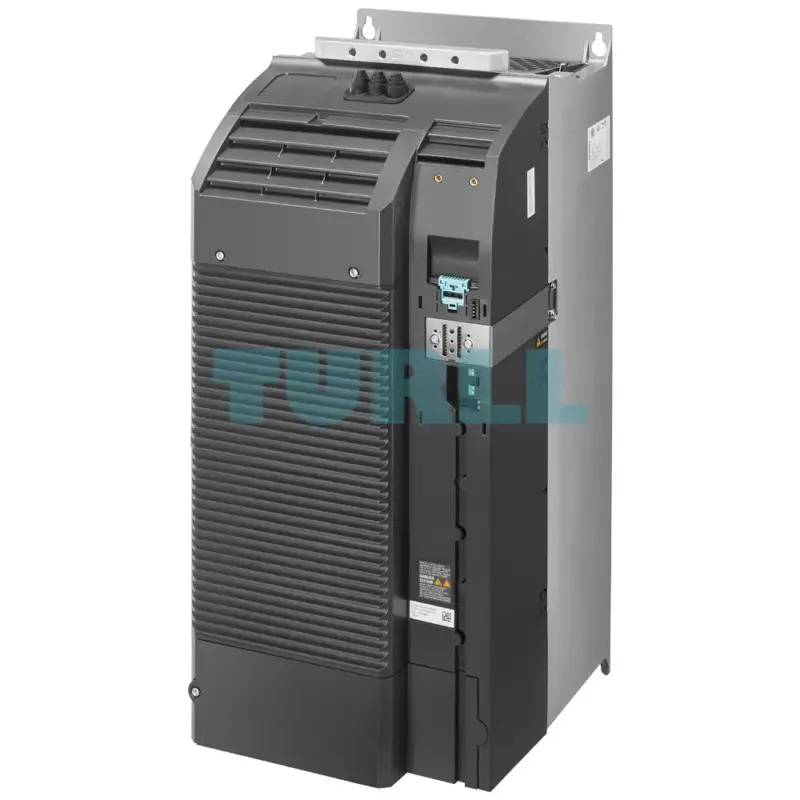

The Siemens SINAMICS G120 PM240-2 Power Module 6SL3210-1PE32-5UL0 is a robust and efficient power module designed for demanding industrial drive applications. It operates on a 3-phase 380–480V AC supply and includes a built-in braking chopper, eliminating the need for external braking components.

This module supports both high overload (HO) and low overload (LO) operation modes, making it ideal for a wide range of machinery such as pumps, compressors, conveyors, fans, and heavy-duty industrial equipment. The PM240-2 is engineered for reliability, thermal efficiency, and seamless integration with SINAMICS G120 control units.

Benefit

• High power density with compact FSF frame size

• Built-in braking chopper reduces system complexity

• Supports both high and low overload applications

• Wide ambient temperature operating range

• Optimized for energy-efficient industrial automation

• Approved for SINAMICS G120 CU firmware version V4.7 HF8

• Proven Siemens quality for long service life

Function & Features

• Input Voltage: 3AC 380–480V (+10% / −20%)

• Frequency Range: 47–63 Hz

• Built-in Braking Chopper: Yes

• Overload Capability (High Overload – HO):

  • 110 kW @ 200% for 3s

  • 150% for 57s

  • 100% for 240s

  • Ambient temperature: −20°C to +50°C

• Overload Capability (Low Overload – LO):

  • 132 kW @ 150% for 3s

  • 110% for 57s

  • 100% for 240s

  • Ambient temperature: −20°C to +40°C

• Protection Class: IP20

• Cooling & Thermal Design: Optimized for continuous industrial operation

• Control Unit: Not included

Technical Specification

• Manufacturer: Siemens

• Product Number: 6SL3210-1PE32-5UL0

• Product Series: SINAMICS G120

• Power Module Type: PM240-2

• Rated Power:

  • 110 kW (High Overload)

  • 132 kW (Low Overload)

• Frame Size: FSF

• Dimensions (H × W × D): 708 × 305 × 357 mm

• Protection Rating: IP20

• Firmware Compatibility: CU firmware V4.7 HF8

Application

• Industrial pumps and fans

• Compressors

• Conveyors and material handling systems

• Process automation

• Heavy-duty industrial machinery

• Manufacturing and production lines
