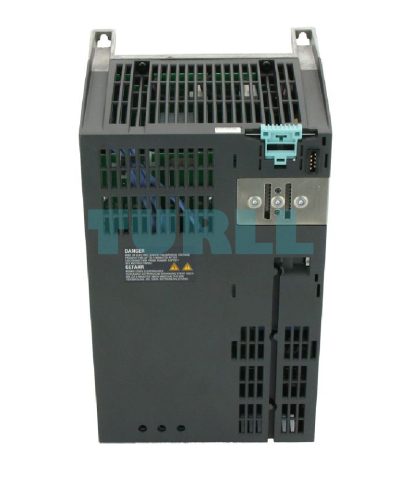

Siemens 6SL3225-0BE25-5AA1 | SINAMICS G120 Power Module PM250, Integrated Filter, Energy Recovery, 5.5kW – 7.5kW Original Brand New
$1,486.28
High-performance SINAMICS G120 Power Module (PM250) featuring an integrated Class A filter and innovative energy recovery capabilities. Designed for 380-480V 3-phase systems, it provides reliable power ranging from 5.5kW (High Overload) to 7.5kW (Low Overload) in a compact FSC frame size.
Availability: In stock
Overview
The SINAMICS G120 PM250 Power Module is engineered for efficiency and sustainability. Unlike standard modules, the PM250 is capable of energy recovery, meaning braking energy is fed back into the supply system instead of being dissipated as heat. This makes it an ideal choice for applications with frequent braking cycles.
It features an integrated Class A filter, ensuring electromagnetic compatibility for industrial environments, and is designed with an IP20 protection rating.
Key Benefit
-
Energy Efficiency: Regenerative braking returns energy to the grid, significantly reducing electricity costs and heat generation.
-
Reduced Footprint: No need for braking resistors or choppers, saving space in your control cabinet.
-
Integrated Safety: Optimized for use with SINAMICS G120 Control Units for advanced safety functions.
-
Built-in EMC Filter: Includes a Class A filter to minimize electromagnetic interference.
Technical Function
-
Power Output (High Overload): 5.5kW (200% for 3s, 150% for 57s, 100% for 240s).
-
Power Output (Low Overload): 7.5kW (150% for 3s, 110% for 57s, 100% for 240s).
-
Voltage Range: 380V to 480V 3 AC (+10%/-10%).
-
Frequency: 47–63 Hz.
-

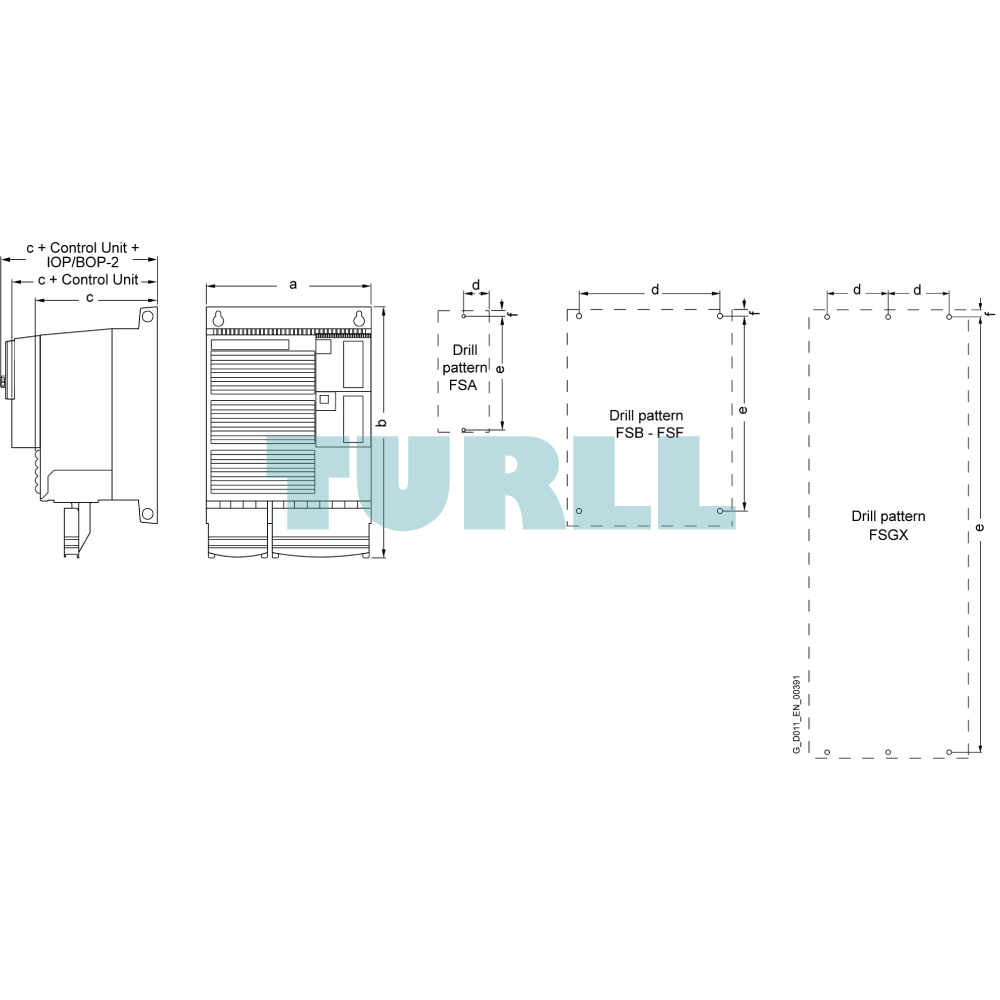

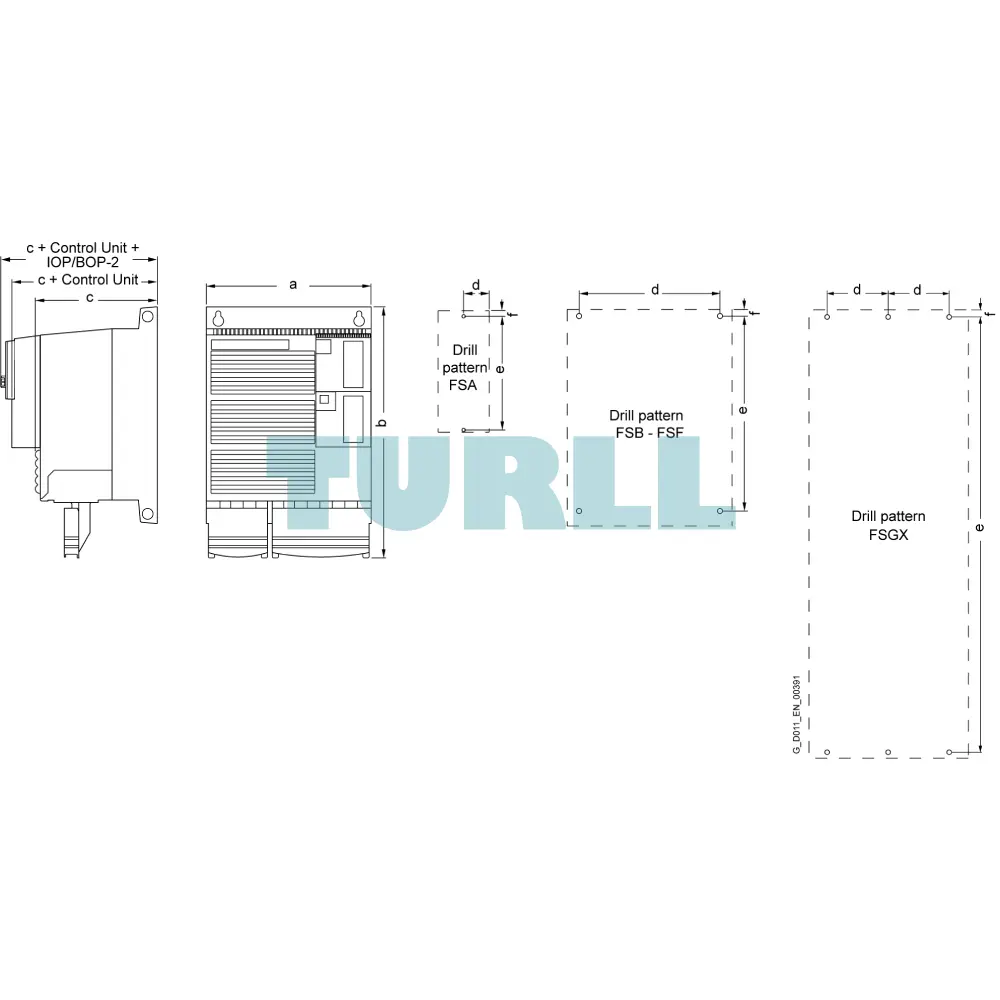

Frame Size: FSC (334 x 189 x 185 mm).
-
Cooling: Ambient operating temperature up to +50°C (High Overload).
Visit 6SL3225-0BE25-5AA1 for more detail info
For more our products visit turll
Download
| Weight | 7.500 kg |
|---|---|
| Dimensions | 255.00 × 390.00 × 220.00 mm |
