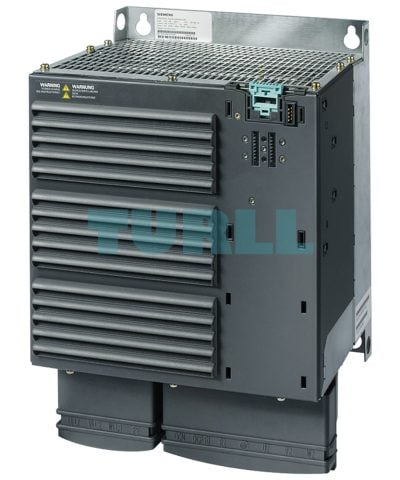

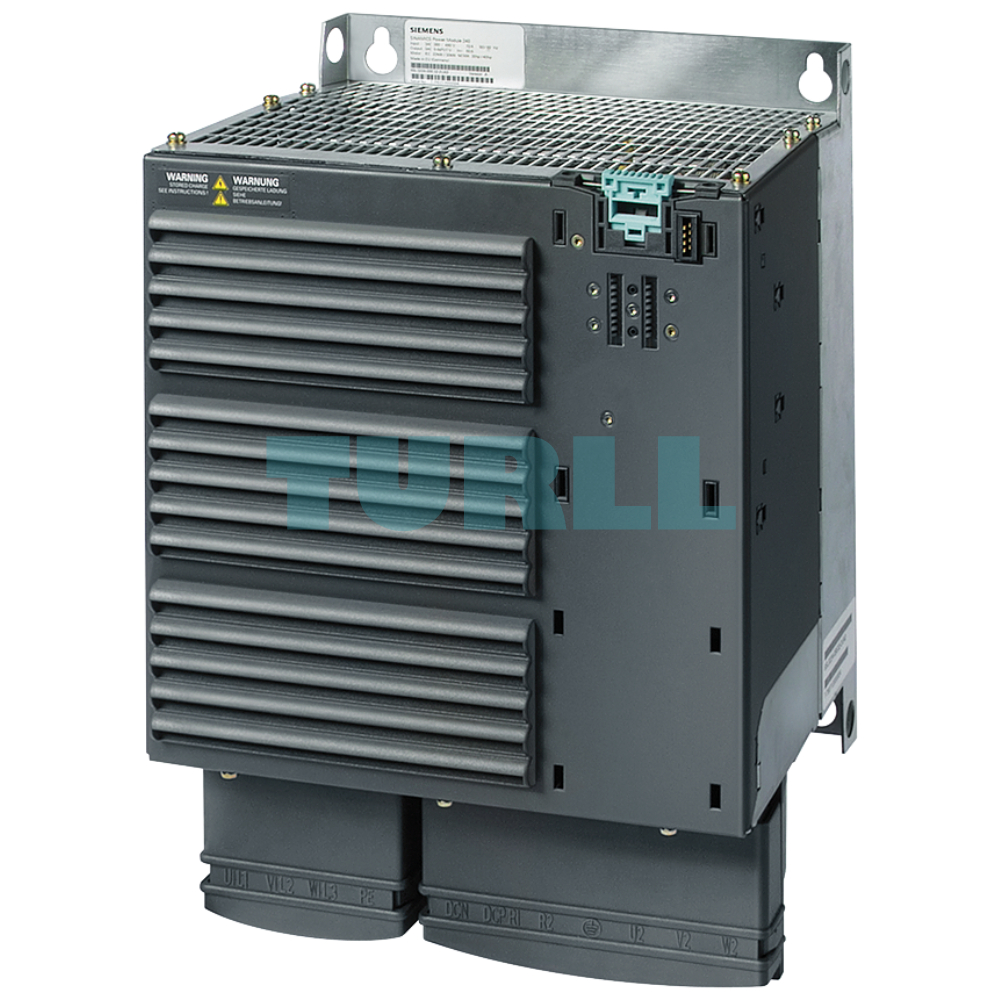

Siemens 6SL3225-0BE31-8UA0 SINAMICS G120 PM250 Power Module 18.5kW, 22kW Original Brand New

Overview

The Siemens 6SL3225-0BE31-8UA0 is a robust SINAMICS G120 PM250 Power Module designed for high-efficiency industrial drive systems. This “unfiltered” module is specifically engineered with regenerative feedback capabilities, allowing braking energy to be fed back into the supply system rather than dissipated as heat. This makes it an ideal solution for applications requiring frequent braking or continuous regenerative operation.

Key Benefit

• Energy Efficiency: Built-in regeneration technology eliminates the need for braking resistors, reducing heat waste and lowering energy costs.

• Space-Saving Design: Its compact FSD (Frame Size D) footprint and integrated feedback functionality save significant control cabinet space.

• High Reliability: Designed to operate in ambient temperatures up to +50°C (High Overload), ensuring stability in demanding environments.

• Versatile Performance: Dual-rated for both High Overload (HO) and Light Overload (LO) tasks.

Technical Function & Specification

• Model Number: 6SL3225-0BE31-8UA0

• Input Voltage: 3AC 380V to 480V (+10% / -10%)

• Frequency: 47–63 Hz

• Power Ratings:

  • High Overload (HO): 18.5kW (200% for 3s, 150% for 57s, 100% for 240s)

  • Light Overload (LO): 22kW (150% for 3s, 110% for 57s, 100% for 240s)

• Cooling & Protection: IP20 protection rating; Internal cooling.

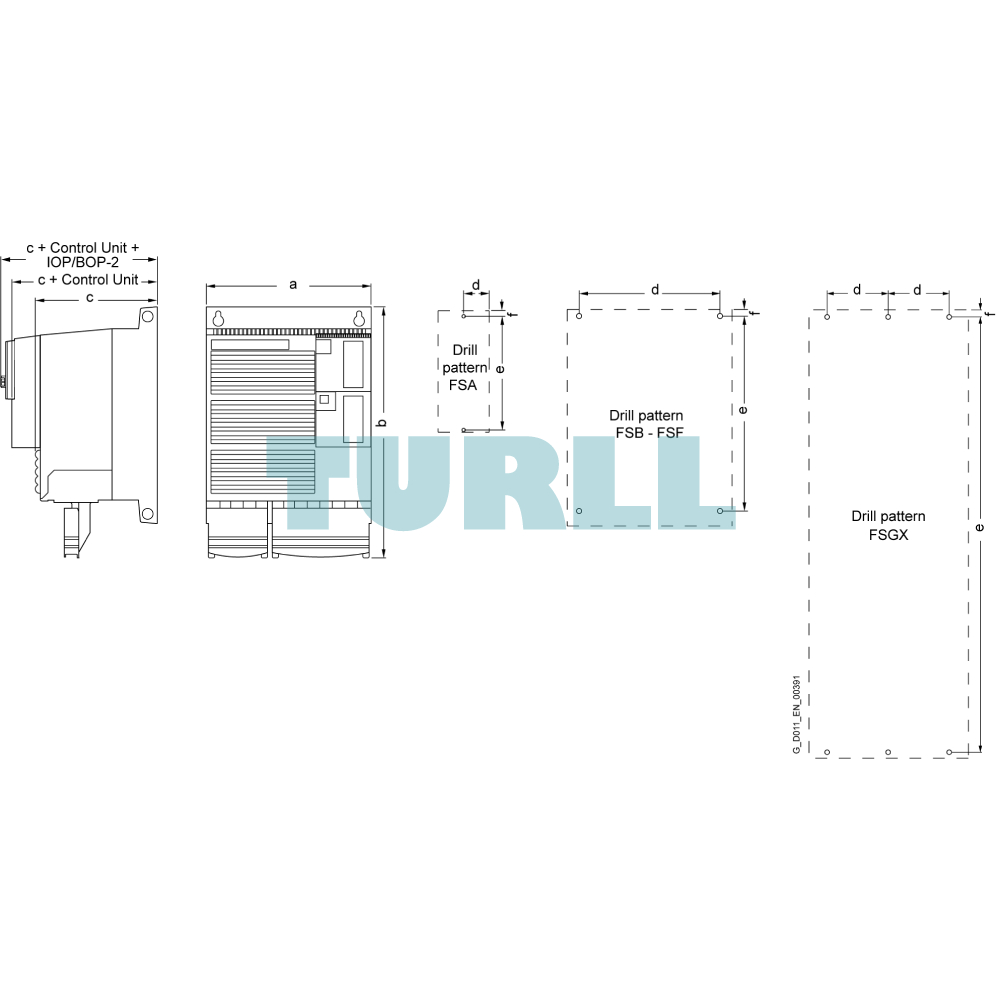

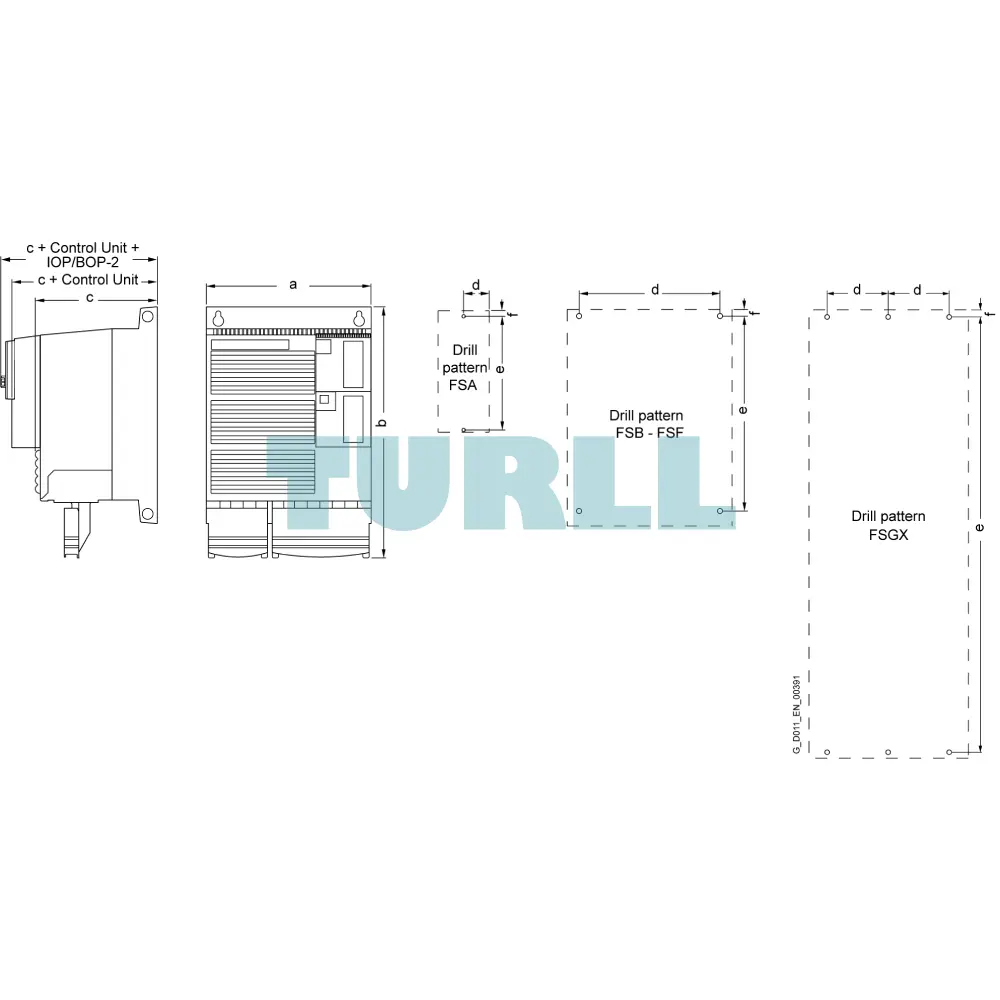

• Dimensions: 512mm x 275mm x 204mm (H x W x D)

• Compatibility: Requires a SINAMICS Control Unit (CU) and Operator Panel (BOP/IOP) for full operation.
