6SL3225-0BE33-0AA0

Description

Overview

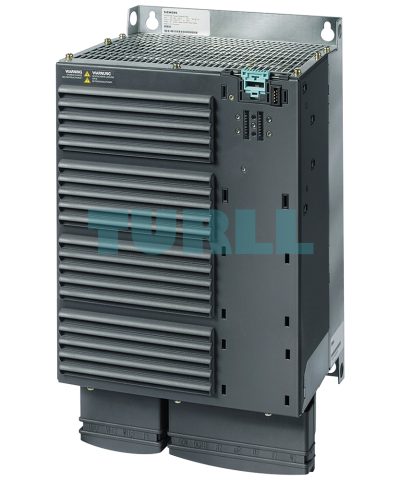

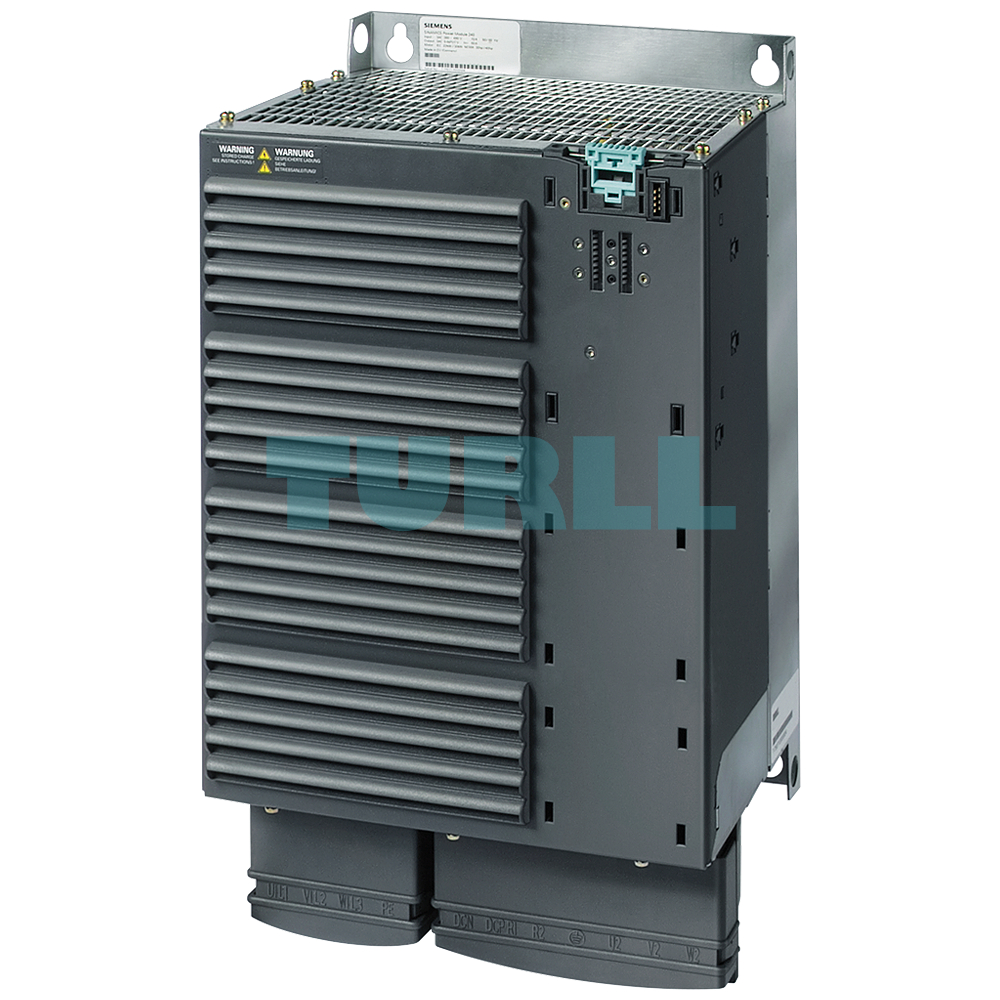

The Siemens 6SL3225-0BE33-0AA0 is a core component of the SINAMICS G120 modular drive system. As a PM250 Power Module, it is uniquely engineered to feed energy back into the supply system during braking, rather than dissipating it as heat. This regenerative capability makes it an ideal choice for energy-conscious industrial environments.

Key Benefit

• Energy Efficiency: The integrated regeneration technology allows for braking energy to be returned to the grid, eliminating the need for braking resistors and reducing cooling costs.

• Space-Saving Design: Its high power density and integrated Class A filter minimize the footprint required within the control cabinet.

• Flexible Performance: Offers dual overload ratings (High and Light) to match specific application demands perfectly.

• Reduced Harmonics: The PM250 design inherently reduces line harmonics compared to standard power modules.

Function & Technical Specification

• Product Series: SINAMICS G120 (PM250)

• Input Voltage: 3AC 380-480V (+10/-10%)

• Line Frequency: 47–63 Hz

• Power Ratings:

  • High Overload (HO): 30kW (200% for 3s, 150% for 57s) at 0 to +50 °C

  • Light Overload (LO): 37kW (150% for 3s, 110% for 57s) at 0 to +40 °C

• Integrated Filter: Class A (Radio Interference Suppression)

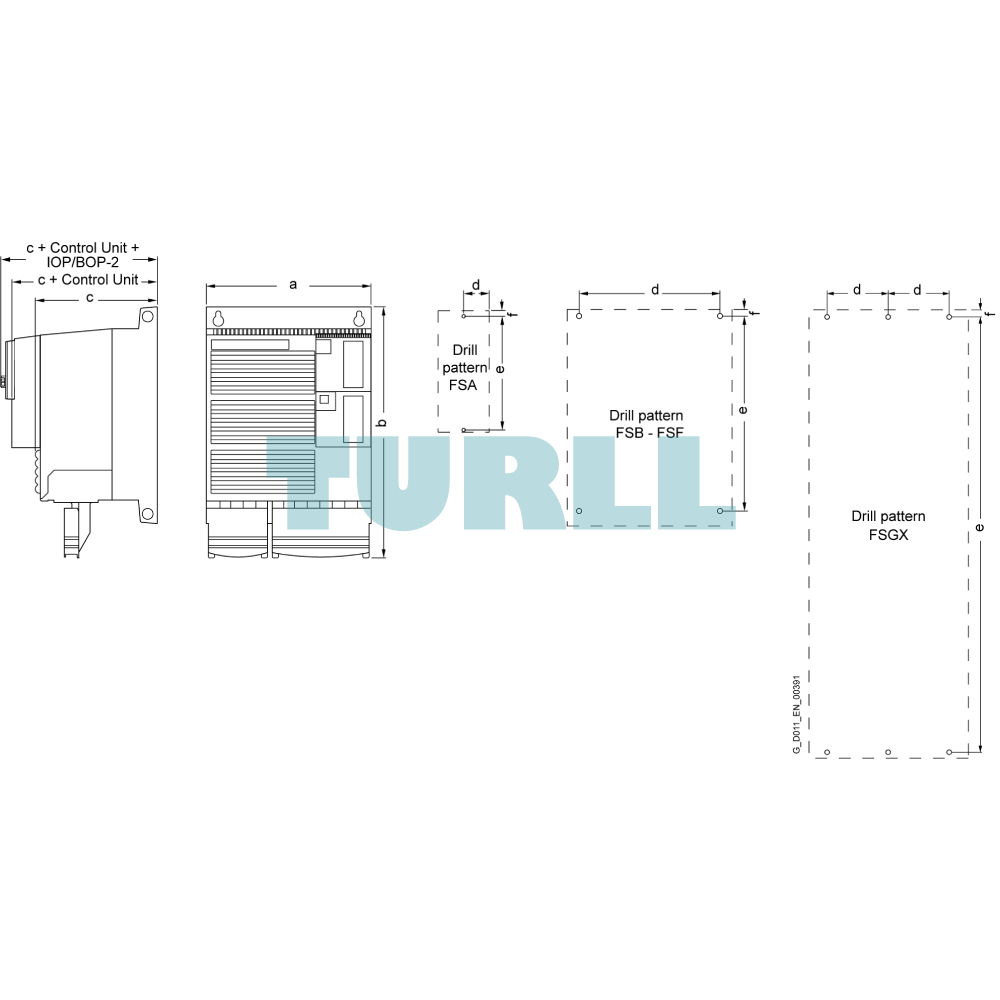

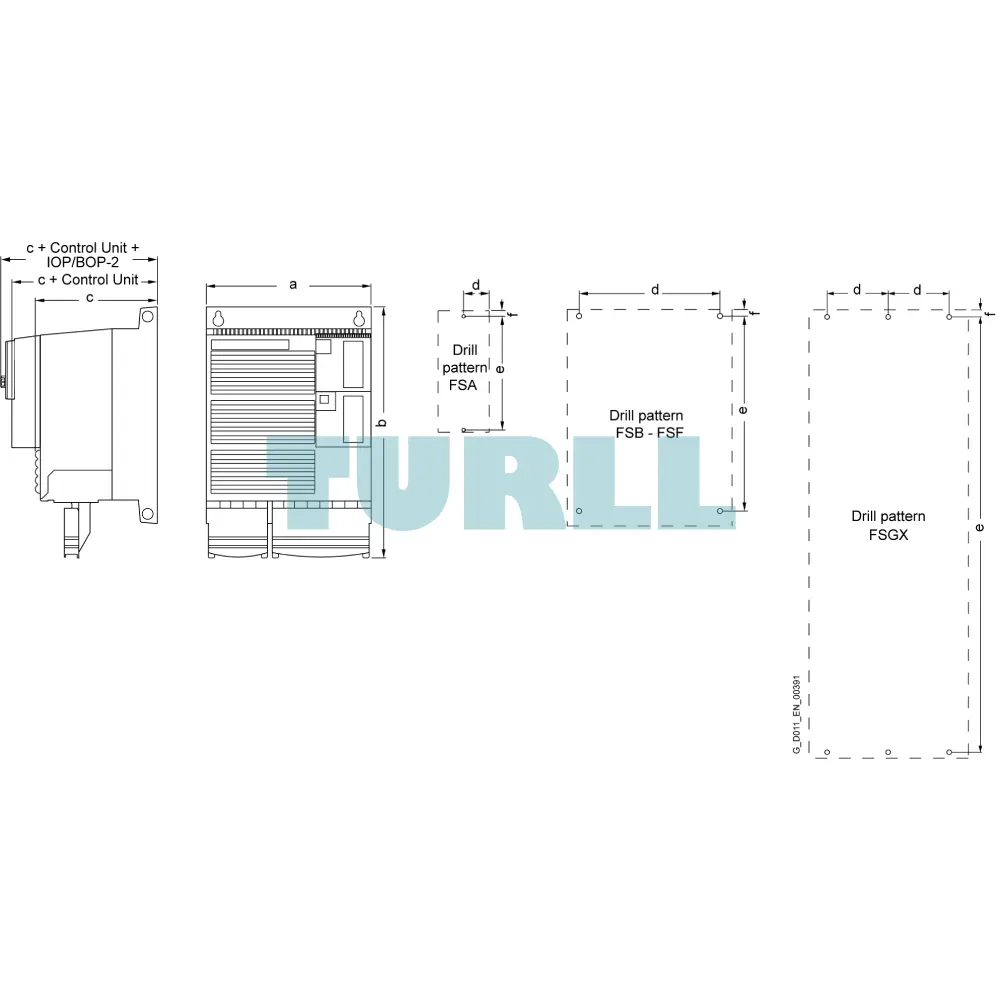

• Frame Size: FSE (635mm x 275mm x 204mm)

• Protection Rating: IP20

• Note: This module is sold without a Control Unit (CU) or Basic Operator Panel (BOP).
