6SL3225-0BE37-5AA0

Description

Overview

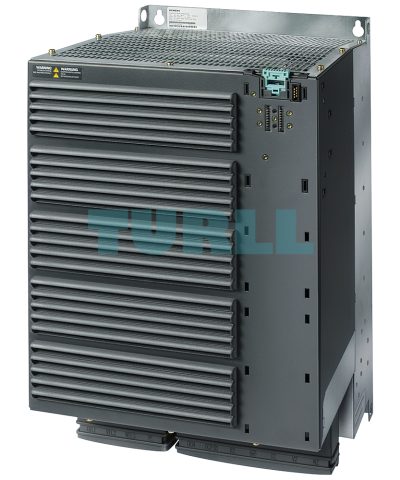

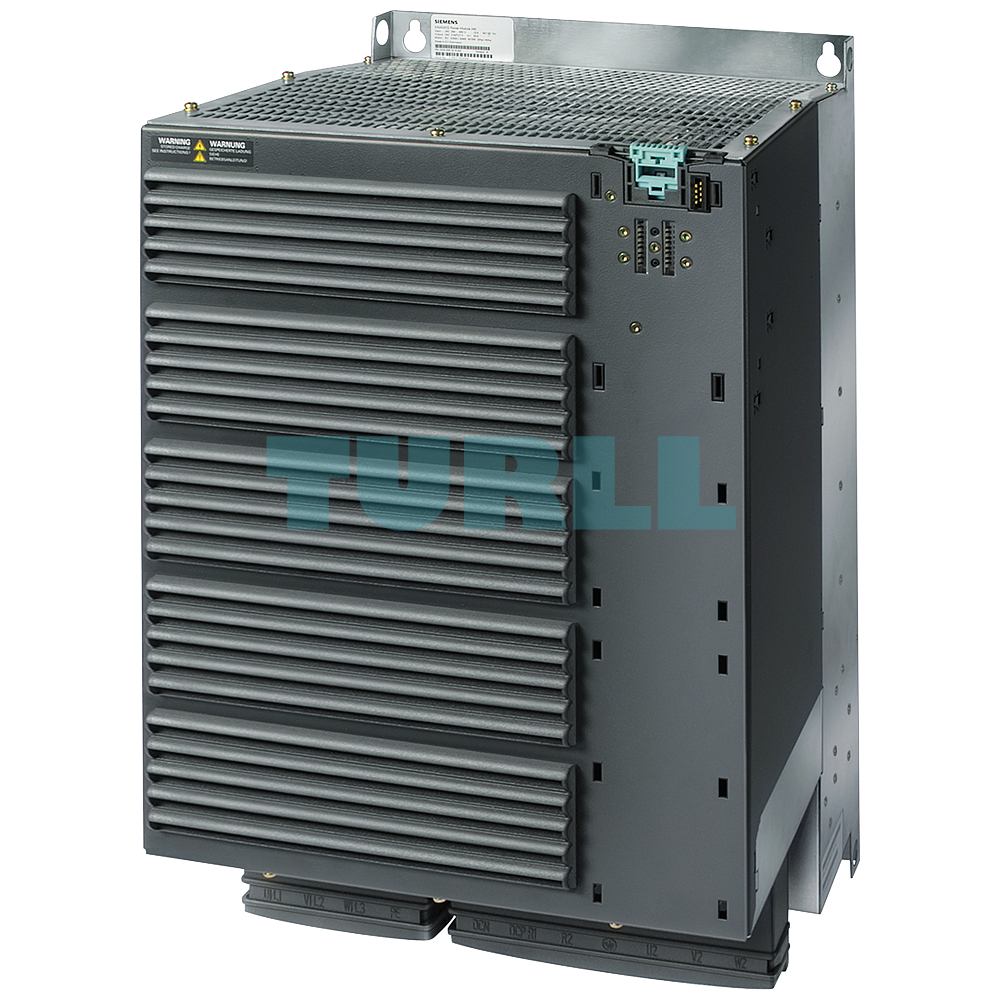

The Siemens SINAMICS G120 Power Module PM250 (6SL3225-0BE37-5AA0) is a high-performance variable frequency drive power module designed for energy-efficient industrial motor control. Featuring a built-in Class A filter and regenerative capability, this module allows excess braking energy to be fed back into the supply system, significantly reducing energy consumption.

Engineered for reliability and flexibility, the PM250 supports both high overload and light overload operating modes and is suitable for a wide range of automation and motion control applications. This unit is supplied without control unit and BOP, allowing customized system configuration.

Benefit

• Energy Efficiency: Built-in regenerative technology reduces energy consumption and eliminates the need for braking resistors.

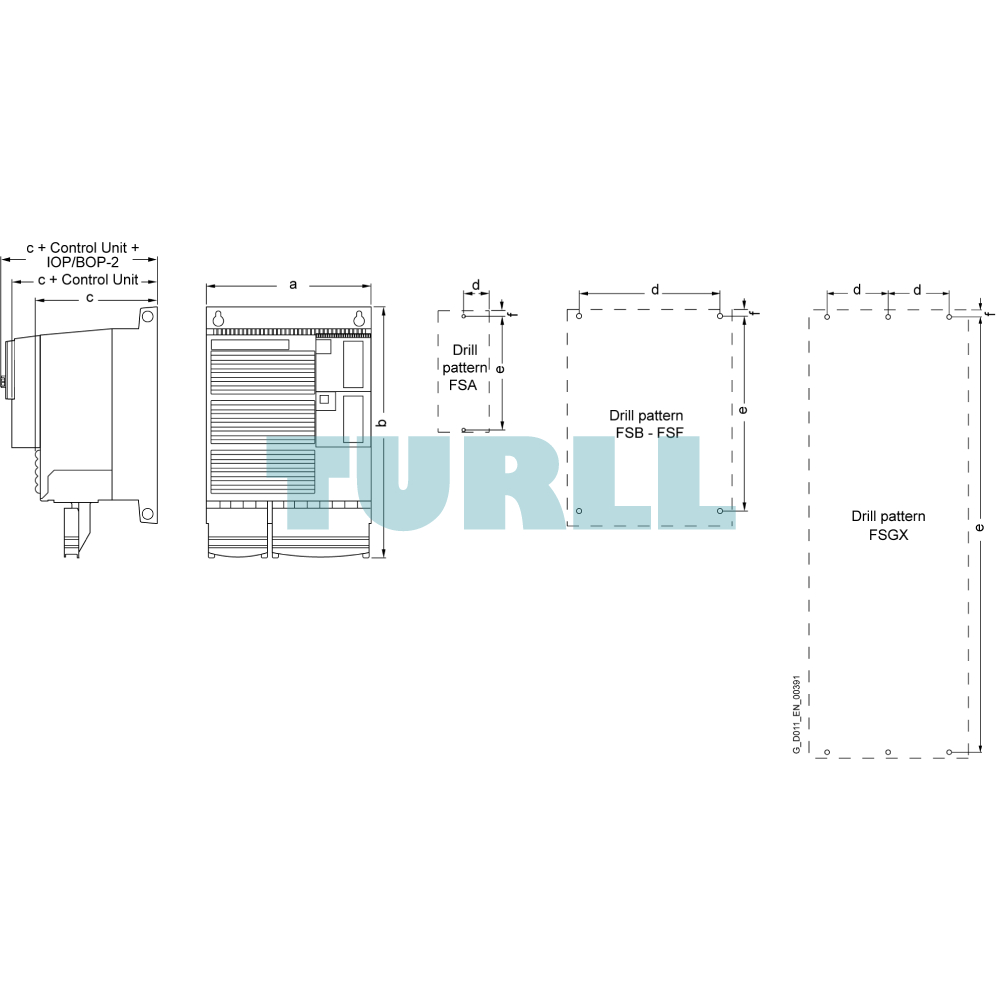

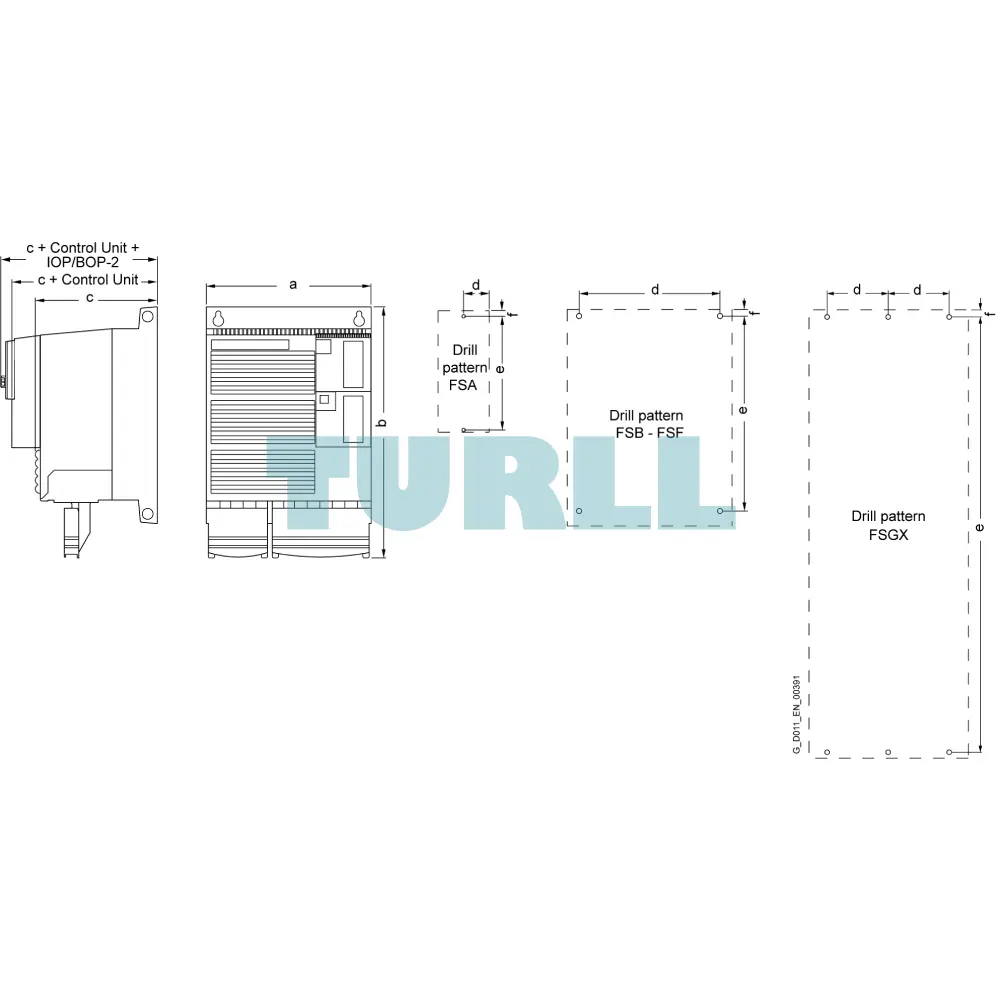

• Space Saving: The integrated Class A filter and compact FSF frame size (934 x 350 x 316 mm) minimize cabinet space requirements.

• Thermal Resilience: Operates reliably in ambient temperatures up to +50°C (High Overload).

• Cost Effective: Reduced heat dissipation lowers the need for intensive cooling systems within the control cabinet.

Function & Features

• Input Voltage: 3AC 380–480V (+10% / -10%)

• Frequency Range: 47–63 Hz

• Regenerative Capability: Yes

• Cooling Concept: Designed for industrial continuous operation

• Protection Class: IP20

• Frame Size: FSF

• Installation: Cabinet-mounted

• Supplied Without: Control Unit and BOP (Basic Operator Panel)

Application

• Industrial automation systems

• Pumps and fans

• Conveyors

• Compressors

• Material handling systems

• Energy-efficient motor control solutions

Visit 6SL3225-0BE37-5AA0 for more detail info

For more our products visit turll

Download

Datasheet in PDF
