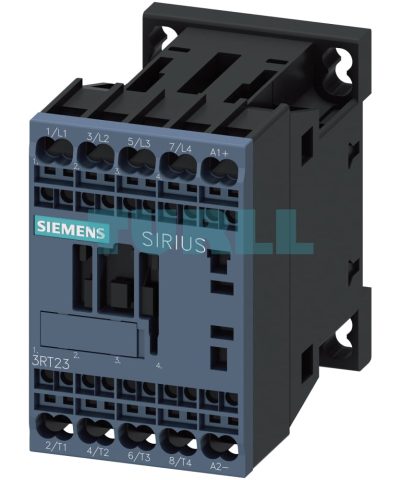

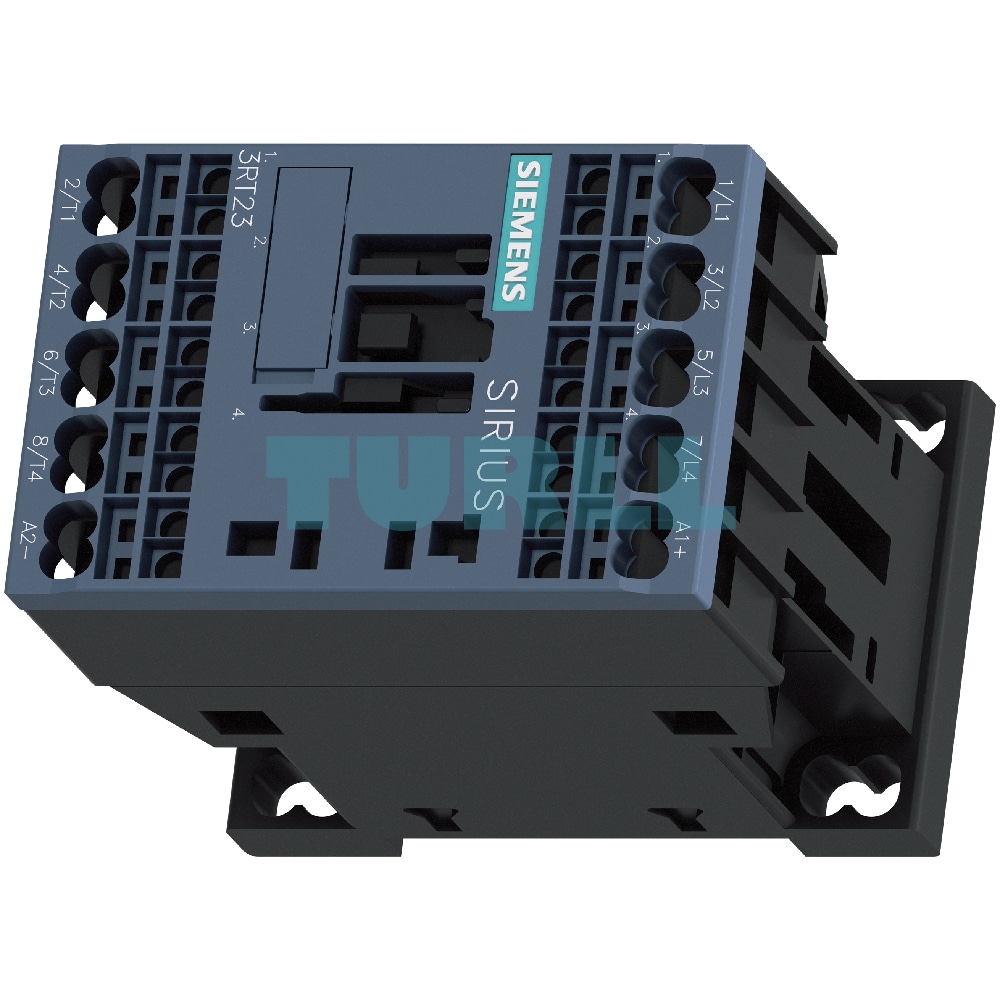

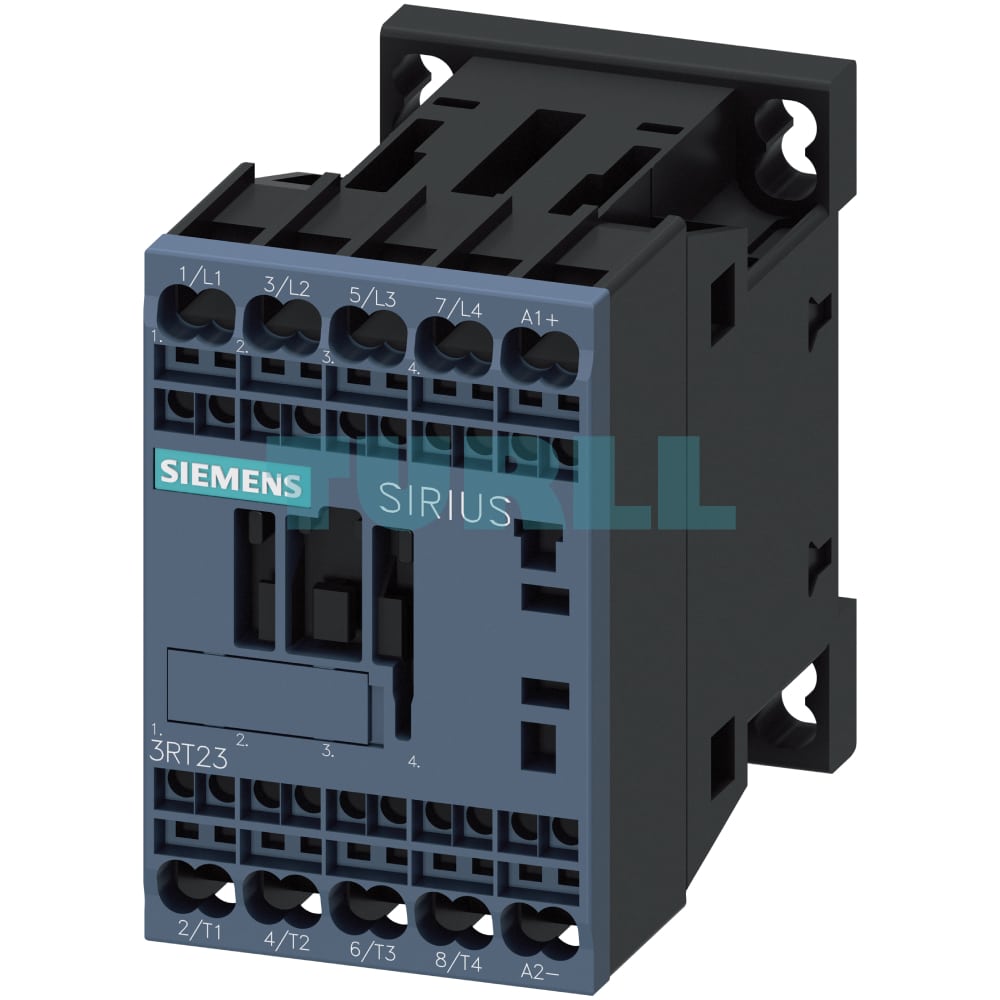

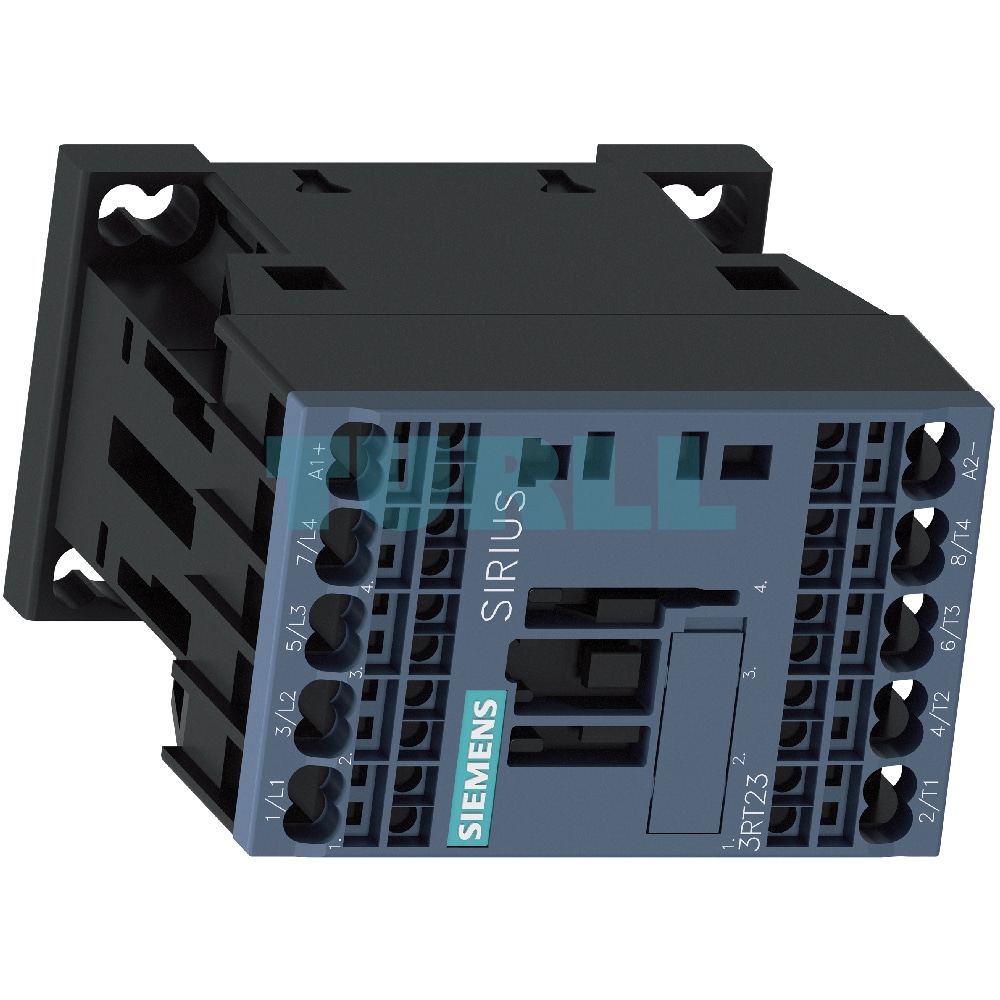

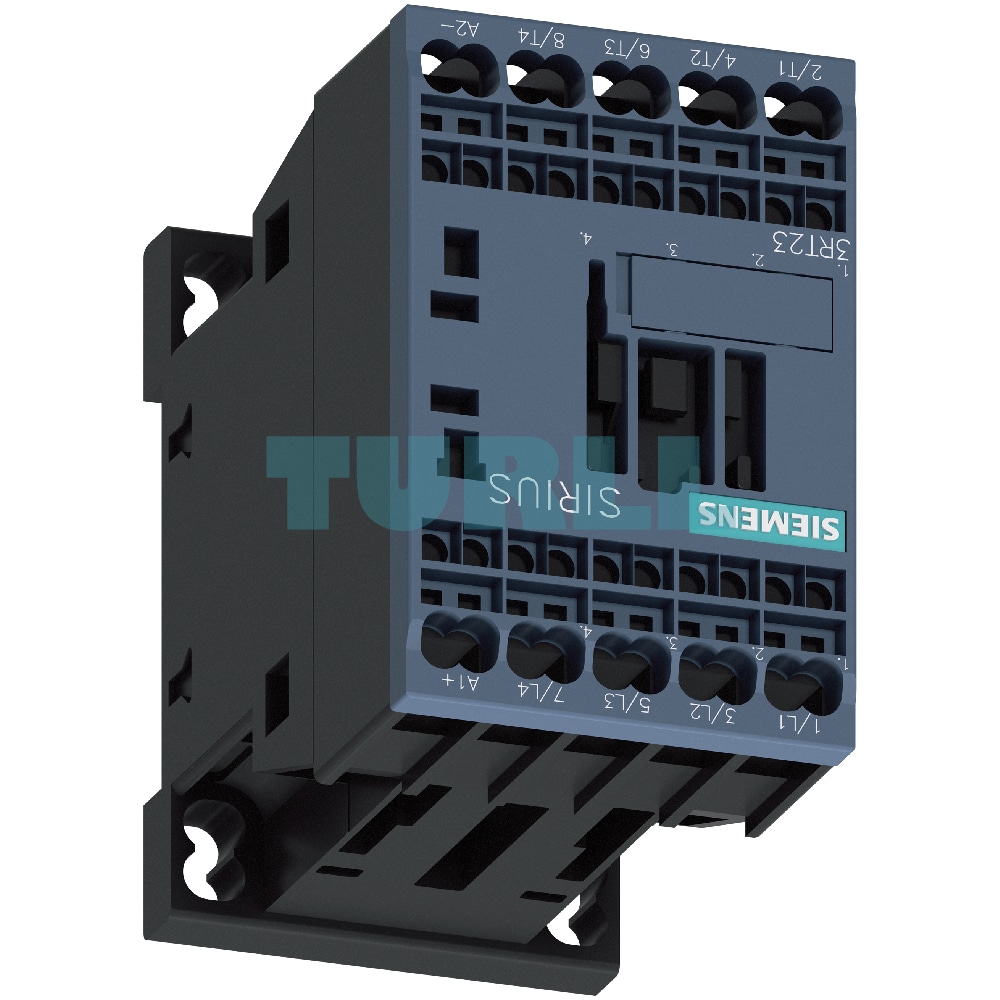

Siemens SIRIUS 3RT2316-2BM40 Contactor, AC-1, 18A, 400V/220V DC, 4-Pole, Spring-Loaded, Size S00 Original Brand New

Overview

The Siemens SIRIUS 3RT2316-2BM40 is a high-performance 4-pole contactor designed for reliable switching of weak or non-inductive loads (AC-1) up to 18 A at 400 V / 40 °C. Featuring a 220 V DC spring-loaded terminal operating mechanism and a compact S00 size, this contactor offers excellent performance for a wide range of industrial applications.

Key Features & Benefit

• Robust Performance: Rated for AC-1 applications, ideal for resistive and non-inductive loads, disconnecting loads, or power generation plants from the grid, and transfer switching.
• Efficient Control: Equipped with a 220 V DC spring-loaded terminal operating mechanism for secure and reliable connections.
• Compact Design: Size S00 ensures space-saving installation in control panels and industrial enclosures.
• Integrated Auxiliary Contact: Includes one integrated auxiliary contact (NO) in the basic unit, with options for further expansion.
• High Reliability: Designed to meet demanding industrial standards, ensuring long-term operational stability.
• Standards Compliant: Fully compliant with IEC 60947-1, IEC 60947-4-1, and IEC 60947-5-1 (auxiliary switches) for global applicability and safety.

Comprehensive Protection & Integration

The Siemens 3RT2316-2BM40 is engineered with robust protection in mind:

• Short-Circuit & Overload Protection: Essential for main, auxiliary, and control circuit connections. Consult the technical product data sheet for specific protection requirements for free-standing contactors and device combinations (e.g., with overload relays or circuit breakers).
• Overvoltage Protection: Can be retrofitted with RC elements, varistors, diodes, or diode assemblies (ordered separately) for effective damping of opening surges in the coil, protecting your control circuits.
• Electromagnetic Compatibility (EMC): Fulfills requirements for environment category A, ensuring reliable operation in various industrial settings.

Versatile Connection Methods:

• Main Circuit: Features convenient spring-loaded terminals with a plug-in design for easy and secure wiring.
• Auxiliary & Control Circuit: Utilizes reliable screw terminals for flexible connection.

Seamless System Integration:

• Motor Protection: Compatible with Siemens 3RU2 thermal overload relays or 3RB3 electronic overload relays for comprehensive motor protection when used in conjunction with specific 3RT23 contactor versions (this 3RT2316-2BM40 is primarily for AC-1 loads, but this feature is relevant to the 3RT23 series).
• Auxiliary Contact Expansion: Expandable with additional auxiliary switches to meet diverse control requirements.
• Operating Mechanism: Features a conventional DC operating mechanism, ensuring precise control.

For further technical specifications, detailed configuration guidance, and accessories, refer to the Siemens technical product data sheet, Digital Configuration Manuals, and the Turll.com product page.

Application

• Switching non-inductive or weakly inductive loads
• Disconnecting power generation plants from the grid
• Transfer switching applications
• General industrial control circuits
