Siemens 1FK7044-4CF71-1RA0: A Deep Dive into the SIMOTICS S Compact Servo Motor
The Siemens 1FK7044-4CF71-1RA0 is a high-performance, compact synchronous servo motor from the renowned SIMOTICS S-1FK7 series. Engineered for precision, dynamics, and reliability, this motor is a workhorse in applications demanding accurate motion control, such as CNC machines, packaging lines, robotics, and material handling systems.
The Siemens 1FK7044-4CF71-1RA0 is a compact permanent magnet synchronous servo motor with a rated speed of 3000 rpm, 2.6 Nm of rated torque, and an integrated 24-bit multi-turn absolute encoder. It is designed for use with Siemens SINAMICS drive systems.

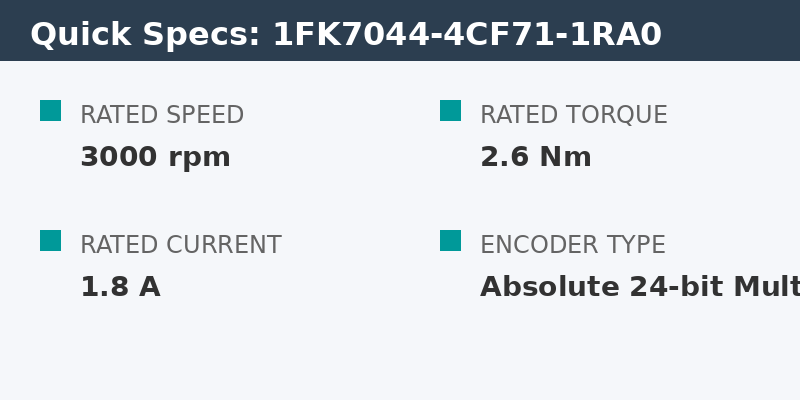

Technical Specifications: 1FK7044-4CF71-1RA0
Understanding the precise specifications is critical for system design, integration, or replacement. Here is a detailed breakdown of the key technical data for this motor.
| Parameter | Value |
|---|---|
| Motor Series | SIMOTICS S-1FK7 Compact |
| Motor Type | Synchronous Motor |
| Rated Speed (n_n) | 3000 rpm |
| Rated Torque (M_n) at 100K | 2.6 Nm |
| Rated Current (I_n) at 100K | 1.8 A |
| Static Torque (M0) | 3.5 Nm |
| Static Current (I0) | 2.8 A |
| Shaft Height | 48 mm |
| Encoder System | Absolute encoder 24-bit + 12-bit multi-turn (AM24DQI) |
| Shaft End | Plain shaft (no keyway) |
| Holding Brake | No |
| Connector Type | Rotatable Power Connector |
| Degree of Protection | IP64 (IP65 with sealing ring option) |
Application and Integration Notes
When working with the 1FK7044-4CF71-1RA0, proper system integration is key to unlocking its full performance potential. This motor is not a standalone component; it’s part of the larger SINAMICS motion control ecosystem.
This motor must be paired with a compatible Siemens SINAMICS drive, such as the S120. The integrated AM24DQI absolute encoder communicates via the DRIVE-CLiQ protocol. Using this motor with a non-DRIVE-CLiQ or third-party drive is not supported and will result in system failure. Always ensure your drive firmware supports this specific motor and encoder combination.
Frequently Asked Questions (FAQ)
What is the primary compatible drive for the 1FK7044-4CF71-1RA0?
The recommended drive system is the Siemens SINAMICS S120. The motor and its DRIVE-CLiQ encoder are specifically designed to integrate seamlessly with the S120’s control loops and safety functions. Other drives like the SINAMICS S110 may also be compatible, but you must verify the specific configuration.
How can I identify the encoder type from the part number?
The suffix -1RA0 in the part number provides key information. The ‘R’ typically indicates an absolute encoder, and the full code corresponds to the specific model: Absolute Encoder 24-bit + 12-bit Multi-turn with DRIVE-CLiQ interface (AM24DQI). This encoder retains position information even when the machine is powered off.
Can this motor replace an older Siemens 1FT6 series motor?
While possible, it is not a direct drop-in replacement. You must consider several factors:
1. Mechanical Fit: Check shaft height, diameter, and mounting flange dimensions.
2. Electrical Mismatch: The 1FK7 has different electrical characteristics and requires a SINAMICS drive, whereas many 1FT6 motors were paired with older SIMODRIVE controllers.
3. Tuning: The control loops in the SINAMICS drive will need to be re-tuned for the 1FK7’s dynamic response. A full system upgrade is often necessary.
