Introduction to the Siemens 6ES7134-6TD00-0CA1
The Siemens 6ES7134-6TD00-0CA1 is a powerhouse in the world of industrial temperature measurement. As part of the highly flexible SIMATIC ET 200SP distributed I/O system, this ‘High Feature’ (HF) analog input module is engineered for precision, diagnostics, and versatility. It’s the go-to solution when you need to connect multiple temperature sensors, like RTDs and thermocouples, directly to your PLC system with minimal fuss and maximum accuracy.
The Siemens 6ES7134-6TD00-0CA1 is an 8-channel analog input module for the SIMATIC ET 200SP I/O system. It is specifically designed for high-precision temperature and resistance measurement, supporting a wide range of Resistance Temperature Detectors (RTDs) and Thermocouples (TCs).
Core Functionality & Use Cases
This module excels in applications requiring accurate temperature monitoring and control. Its ability to handle eight independent channels makes it ideal for machine temperature profiling, process control loops, HVAC systems, and material testing labs. The ‘High Feature’ designation means it provides enhanced diagnostics, such as wire-break detection and short-circuit monitoring per channel, which is critical for reducing downtime and ensuring process integrity. If you’re upgrading an existing system or specifying a new installation requiring reliable temperature inputs, this module is a top contender. 🛒 Check Price & Stock for the 6ES7134-6TD00-0CA1.
BaseUnit Required: This I/O module cannot be used on its own. It must be plugged into a compatible SIMATIC ET 200SP BaseUnit (e.g., type A0, like 6ES7193-6BP00-0DA0). The BaseUnit provides the physical wiring terminals and completes the connection to the backplane bus. Failing to order the correct BaseUnit is a common oversight that will halt your installation.

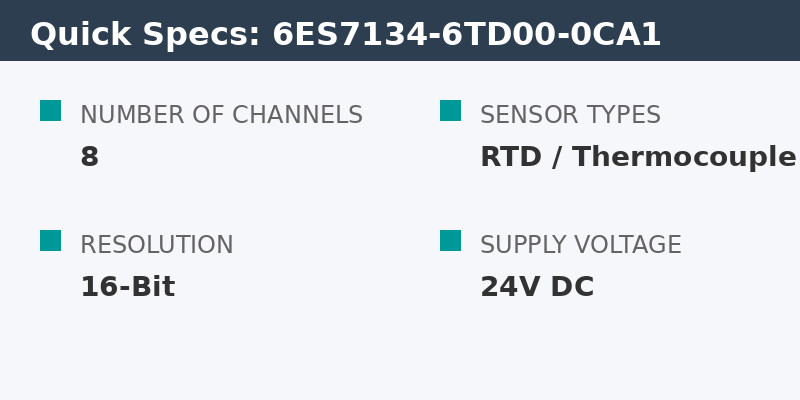

Technical Specifications: 6ES7134-6TD00-0CA1
| Specification | Value |
|---|---|
| Product Type | Analog Input Module AI 8xRTD/TC HF |
| Supply Voltage | 24 V DC (Rated) |
| Number of Analog Inputs | 8 |
| Supported RTD Types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10, LG-Ni1000 |
| Supported Thermocouple Types | Type B, E, J, K, L, N, R, S, T, U, TXK/TXK(L) |
| Resolution (including sign) | 16 bits |
| Diagnostics Functions | Wire-break, short-circuit, overflow/underflow, group error |
| Isolation | Tested with 707 V DC (Type Test) between channels and backplane bus |
| Permissible potential difference | 10 V DC between the inputs (UCM) |
| Dimensions (W x H x D) | 15 mm x 73 mm x 58 mm |
| Typical Power Loss | 0.75 W |
Frequently Asked Questions (FAQ)
What’s the main advantage of a ‘High Feature’ (HF) module over a ‘Standard’ (ST) one?
High Feature (HF) modules like this one offer significantly more advanced features. This includes enhanced, channel-specific diagnostics (like wire-break detection), higher resolution/accuracy, and greater parameterization flexibility within the TIA Portal programming environment. For critical processes where uptime and accuracy are paramount, HF modules are the recommended choice.
Can I mix different sensor types on the 6ES7134-6TD00-0CA1?
Absolutely. Each of the eight channels is individually configurable. This means you can, for example, connect a Pt100 RTD to Channel 0, a Type K thermocouple to Channel 1, and a resistive sensor to Channel 2, all on the same module. The configuration is done in your hardware configuration within TIA Portal.
Does this module handle cold junction compensation for thermocouples internally?
Yes, it has integrated internal cold junction compensation. For most applications, this is sufficient. However, for scenarios requiring the highest possible accuracy, it also supports the use of an external compensation junction wired to one of the channels, which can be configured in the device parameters.
