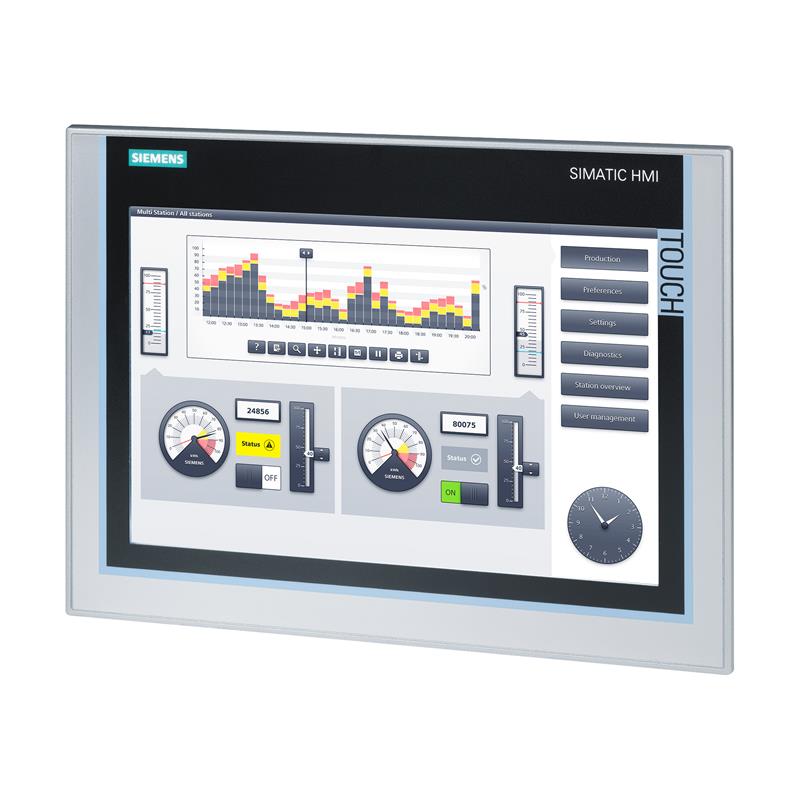

6AV2124-0MC01-0AX0 Siemens SIMATIC HMI TP1200 Comfort Original Brand New

 2,470.42 3,291.67

  • 6AV2124-0MC01-0AX0
  • SIMATIC HMI TP1200 Comfort
  • Comfort Panel
  • Touch operation
  • 12 “TFT display (widescreen)
  • 16 million Colours
  • PROFINET interface
  • MPI/PROFIBUS-DP interface
  • Configuration memory: 12 MByte
  • Windows CE 6.0 (Microsoft-Support incl. Security updates discontinued) configurable from WinCC Comfort V11

Siemens SIMATIC HMI TP1200 Comfort – 6AV2124-0MC01-0AX0

Overview

SIMATIC HMI Comfort Panels – Standard devices
  • Excellent HMI functionality for demanding applications
  • Widescreen TFT displays with 4″, 7″, 9″, 12″, 15″, 19″ and 22″ diagonals (all 16 million colors) with up to 40% more visualization area as compared to the predecessor devices
  • Integrated high-end functionality with archives, scripts, PDF/Word/Excel viewer, Internet Explorer, Media Player and Web Server
  • Dimmable displays from 0 to 100% via PROFIenergy, via the HMI project or via a controller
  • Modern industrial design, cast aluminum fronts for 7″ upwards
  • Upright installation for all touch devices
  • Data security in the event of a power failure for the device and for the SIMATIC HMI memory card
  • Innovative service and commissioning concept
  • Maximum performance with short screen refresh times
  • Suitable for extremely harsh industrial environments thanks to extended approvals such as ATEX 2/22 and marine approvals
  • All versions can be used as an OPC UA client or as a server
  • Key-operated devices with LED in every function key and new text input mechanism, similar to the keypads of mobile phones
  • All keys have a service life of 2 million operations
  • Configuring with the WinCC engineering software of the TIA Portal engineering framework

Note:

A 7″ and a 15″ Comfort Outdoor version are available. These devices have been specially designed for outdoor applications in difficult environments. Best display quality, even under sunlight, UV-resistant fronts and much more.

For more information, please go to:

Benefits

  • Integral component of Totally Integrated Automation (TIA):
    Increased productivity, minimum engineering overhead, reduction in life-cycle costs

    • Can also be used in a vertical position where installation space is restricted (all touch devices)
  • Reduction of service and commissioning costs due to:
    • Short configuring and commissioning times through efficient engineering and fast project downloading
    • Automatic backup via optional SIMATIC HMI memory card
    • Long service life of the backlighting
    • Maintenance-free design
    • Data security in the event of a power failure
  • Simple and user-friendly representation of process values thanks to, for example, input/output fields, graphics, trend curves, bar charts, text and bitmaps
  • Graphics library is available with preconfigured screen objects
  • Can be used worldwide:
    • 32 online languages (incl. Asian and Cyrillic character sets) can be configured
    • Up to 32 languages can be switched online
    • Language-dependent texts and graphics
  • Standard hardware and software interfaces for increasing flexibility and for saving on additional hardware:
    • PROFIBUS and PROFINET onboard (with 7″ and above, two PROFINET ports with integrated switches, with 15″ and above additional interface with gigabit support)
    • Two SD card slots for storing archives, user data and for automatic backup
    • USB host interfaces for connecting USB flash drive, keyboard, mouse and printer
    • With 7″ and above, audio out interface for use with the integrated media player
    • Standard Windows storage formats (CSV) for archives and recipes permit further processing with standard tools (e.g. Microsoft Excel)
    • SmartServer for remote access between different SIMATIC HMI systems or mobile end devices

Application

The SIMATIC HMI Comfort Panels can be used wherever machines and plants are controlled and monitored locally – in production, process and building automation alike. They may be used in all kinds of industries and applications. They are ideally suited to demanding visualization tasks, and due to the integrated functionality, the right device can be selected for every application.

Design

KTP400 Comfort
  • 4.3″ widescreen TFT display, resolution 480 x 272, 16 million colors
  • 1 PROFINET and 1 PROFIBUS interface
  • Touch screen and membrane keyboard with 4 tactile function keys
  • Innovative successor to the TP 177B Touch Panels 4″
KP400 Comfort
  • 4.3″ widescreen TFT display, resolution 480 x 272, 16 million colors
  • 1 PROFINET and 1 PROFIBUS interface
  • Membrane keyboard with 8 tactile function keys and system keyboard
  • Innovative successor to the Operator Panels OP77B
TP700 Comfort
  • 7.0″ widescreen TFT display, resolution 800 x 480, 16 million colors
  • 1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
  • Touch screen
  • Innovative successor to the TP 177B/TP 277 Touch Panels and to the Multi Panel MP 177 6″
KP700 Comfort
  • 7.0″ widescreen TFT display, resolution 800 x 480, 16 million colors
  • 1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
  • Membrane keyboard with 24 function keys and system keyboard
  • Innovative successor to the OP 177B/OP 277 6″ Operator Panels
TP900 Comfort
  • 9.0″ widescreen TFT display, resolution 800 x 480, 16 million colors
  • 1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
  • Touch screen
  • Innovative successor to the Multi Panel MP 277 8″ Touch
KP900 Comfort
  • 9.0″ widescreen TFT display, resolution 800 x 480, 16 million colors
  • 1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
  • Membrane keyboard with 26 function keys and system keyboard
  • Innovative successor to the Multi Panel MP 277 8″ Key
TP1200 Comfort
  • 12.1″ widescreen TFT display, resolution 1280 x 800, 16 million colors
  • 1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
  • Touch screen
  • Innovative successor to the Multi Panel MP 277 10″ Touch
KP1200 Comfort
  • 12.1″ widescreen TFT display, resolution 1280 x 800, 16 million colors
  • 1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
  • Membrane keyboard with 34 function keys and system keyboard
  • Innovative successor to the Multi Panel MP 277 10″ Key
TP1500 Comfort
  • 15.4″ widescreen TFT display, resolution 1280 x 800, 16 million colors
  • 2 PROFINET (2 ports with integrated switch + additional interface with Gigabit support) and 1 PROFIBUS interface
  • Touch screen
  • Innovative successor to the Multi Panel MP 377 12″ Touch
KP1500 Comfort
  • 15.4″ widescreen TFT display, resolution 1280 x 800, 16 million colors
  • 2 PROFINET (2 ports with integrated switch + additional interface with Gigabit support) and 1 PROFIBUS interface
  • Membrane keyboard with 36 function keys and system keyboard
  • Innovative successor to the Multi Panel MP 377 12″ Key
TP1900 Comfort
  • 18.5″ widescreen TFT display, resolution 1366 x 768, 16 million colors
  • 2 PROFINET (2 ports with integrated switch + additional interface with Gigabit support) and 1 PROFIBUS interface
  • Touch screen
  • Innovative successor to the Multi Panel MP 377 15″ Touch
TP2200 Comfort
  • 21.5″ widescreen TFT display, resolution 1920 x 1080, 16 million colors
  • 2 PROFINET (2 ports with integrated switch + additional interface with Gigabit support) and 1 PROFIBUS interface
  • Touch screen
  • Innovative successor to the Multi Panel MP 377 19″ Touch

Function

  • Display and changing of process parameters
  • Function keys are used for directly triggering functions and actions in the key-operated devices and with KTP400. Up to 16 functions can be configured simultaneously on function keys. The function keys can also be used direct as PROFIBUS DP or PROFINET IO input peripherals.
  • Process display:
    • Vector graphic (various line and plane objects)
    • Dynamic positioning and dynamic showing/hiding of objects
    • Fully-graphical displays, plots, and bar graph display
    • Display of up to 8 trends per trend field; trend curve graphic with scroll and zoom functions for accessing the history and flexible selection of the representation period; read ruler for determining current values and display in a table
    • Comprehensive graphics libraries (SIMATIC HMI Symbol Library)
    • Icons: slider, gauge, clock
    • Cyclic function processing by alarm clock
  • Multiplex function for variables
  • Signaling system
    • Discrete alarms and analog alarms (limit alarms)
    • Freely-definable message classes (e.g. status/fault messages) for definition of acknowledgment response and display of message events
    • Status and fault messages with message history
    • Preconfigured message screen, message window, and message line
  • Archiving of messages and process values (on SD/multimedia card/USB flash drive, etc. or network drives via Ethernet)
    • Various archive types: Circulating and sequence archive
    • Storage of archive data in standard Windows format (CSV)
    • Online evaluation of process value archives using trend curves
    • External evaluation using standard tools (MS Excel, MS Access) is possible
  • Alarm log and shift log
  • Print functions (see “Recommended printers”)
  • Language change
    • 32 online languages, 32 configuration languages including Asian and Cyrillic character sets
  • Recipe management
    • With additional data storage (on SD/multimedia card/USB flash drive, etc.)
    • Online/offline processing on the panel
    • Storage of recipe data in standard Windows format (CSV)
    • External processing using standard tools (MS Excel, MS Access) is possible
  • PG functionality STATUS/FORCE VAR in combination with SIMATIC S7
  • Diagnostics display in combination with SIMATIC S7 supports fast troubleshooting
  • Screen selection from PLC permits operator control from the PLC
  • Display of HTML documents using MS Internet Explorer
  • Visual Basic Script offers flexibility through implementing new functions incl. interfacing to tags (comparison operations, loop-through, etc.)
  • Help texts for process pictures, alarms, and tags
  • Arithmetic functions
  • Limit value monitoring for reliable process control of inputs and outputs
Configuration

The configuration is implemented using the engineering software SIMATIC WinCC Comfort (TIA Portal).

Integration

The SIMATIC HMI Comfort Panels can be connected to:

  • SIMATIC S7 controllers
  • Third-party controllers
    • Allen Bradley DF1, Allen Bradley EtherNet/IP
    • Modicon MODBUS RTU, Modicon MODBUS TCP/IP
    • Mitsubishi FX, Mitsubishi MC TCP/IP
    • Omron Hostlink/Multilink
  • OPC UA client or OPC DA server
  • Multi-protocol capability
  • http communication with other SIMATIC HMI systems
  • Over Ethernet (TCP/IP) to a higher-level PC, network printer

Note:

Further information can be found under “System interfaces”.

Technical specifications

Dimensional drawings

All dimensions in mm. For installation cutout, see technical specifications.

TP700 Comfort

TP900 Comfort

TP1200 Comfort

TP1500 Comfort

TP1900 Comfort

TP2200 Comfort

KP400 Comfort

KP700 Comfort

KP900 Comfort

KP1200 Comfort

KP1500 Comfort

KTP400 Comfort

6AV2124-0MC01-0AX0

Siemens 6AV21240MC010AX0, SIMATIC HMI TP1200 Comfort, Comfort Panel, touch operation, 12″ widescreen TFT display, 16 million colors, Siemens TP1200 Comfort, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11

Download

DataSheet in PDF

Weight 3.463 kg
Dimensions 36.00 × 49.80 × 12.40 mm
Brand

SIEMENS

Product type designation

TP1200 Comfort

Design of display

TFT

Screen diagonal

12.1 in

Display width

261.1 mm

Display height

163.2 mm

Number of colors

16 777 216

● Horizontal image resolution

1 280 pixel

● Vertical image resolution

800 pixel

● MTBF backlighting (at 25 °C)

80 000 h

● Backlight dimmable

Yes; 0-100 %

● Function keys

— Number of function keys

0

— Number of function keys with LEDs

0

● Keys with LED

No

● System keys

No

● Numeric keyboard

Yes; Onscreen keyboard

● alphanumeric keyboard

Yes; Onscreen keyboard

● Design as touch screen

Yes; Analog-resistive

● DP direct LEDs (LEDs as S7 output I/O)

● Direct keys (keys as S7 input I/O)

— F1...Fx

0

● Direct keys (touch buttons as S7 input I/O)

40

Mounting position

vertical

Wall mounting/direct mounting

No

Mounting in portrait format possible

Yes

Mounting in landscape format possible

Yes

maximum permissible angle of inclination without external ventilation

35°

Type of supply voltage

DC

Rated value (DC)

24 V

permissible range, lower limit (DC)

19.2 V

permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

0.85 A

Starting current inrush I²t

0.5 A²·s

Active power input, typ.

20 W

Processor type

X86

Flash

Yes

RAM

Yes

Memory available for user data

12 Mbyte

Info LED

No

Power LED

No

Error LED

No

Acoustics

● Buzzer

No

● Speaker

Yes

● Hardware clock (real-time)

Yes

● Software clock

Yes

● retentive

Yes; Back-up duration typically 6 weeks

● synchronizable

Yes

Number of industrial Ethernet interfaces

1; 2 ports (switch)

Number of RS 485 interfaces

1; RS 422 / 485 combined

Number of RS 422 interfaces

0; together with RS 485

Number of RS 232 interfaces

0

Number of USB interfaces

2; USB 2.0

● USB Mini B

1; 5-pole

Number of 20 mA interfaces (TTY)

0

Number of parallel interfaces

0

Number of other interfaces

0

Number of SD card slots

2

With software interfaces

No

● Industrial Ethernet status LED

2

● Number of ports of the integrated switch

2

PROFINET

Yes

Supports protocol for PROFINET IO

Yes

IRT

Yes; As of WinCC V12

PROFIBUS

Yes

EtherNet/IP

Yes

MPI

Yes

● TCP/IP

Yes

● DHCP

Yes

● SNMP

Yes

● DCP

Yes

● LLDP

Yes

● HTTP

Yes

● HTTPS

Yes

● HTML

Yes

● XML

Yes

● CSS

Yes

● Active X

Yes

● JavaScript

Yes

● Java VM

No

— MRP

Yes; As of WinCC V12

● CAN

No

● MODBUS

Yes

● Diagnostic information readable

Yes; S7 controller

● Limit class A, for use in industrial areas

Yes

● Limit class B, for use in residential areas

No

IP (at the front)

IP65

IP (rear)

IP20

NEMA (front)

● Enclosure Type 4 at the front

Yes

● Enclosure Type 4x at the front

Yes

CE mark

Yes

cULus

Yes

RCM (formerly C-TICK)

Yes

KC approval

Yes

● ATEX Zone 2

Yes

● ATEX Zone 22

Yes

● IECEx Zone 2

Yes

● IECEx Zone 22

Yes

● cULus Class I Zone 1

No

● cULus Class I Zone 2, Division 2

Yes

● FM Class I Division 2

Yes

● Germanischer Lloyd (GL)

Yes; As of product version: 10

● American Bureau of Shipping (ABS)

Yes; As of product version: 10

● Bureau Veritas (BV)

Yes; As of product version: 10

● Det Norske Veritas (DNV)

Yes; As of product version: 10

● Lloyds Register of Shipping (LRS)

Yes; As of product version: 10

● Nippon Kaiji Kyokai (Class NK)

Yes; As of product version: 10

● Polski Rejestr Statkow (PRS)

No

— For vertical installation, min.

0 °C

— For vertical installation, max.

40 °C

— At maximum tilt angle, min.

35 °C

● min.

-20 °C

● max.

60 °C

● Operation, max.

90 %; no condensation

proprietary

No

● Windows CE

Yes

Message indicator

Yes

Alarm system (incl. buffer and acknowledgment)

Yes

Process value display (output)

Yes

Process value default (input) possible

Yes

Recipe management

Yes

● STEP 7 Basic (TIA Portal)

No

● STEP 7 Professional (TIA Portal)

No

● WinCC flexible Compact

No

● WinCC flexible Standard

No

● WinCC flexible Advanced

No

● WinCC Basic (TIA Portal)

No

● WinCC Comfort (TIA Portal)

Yes; from V11

● WinCC Advanced (TIA Portal)

Yes; from V11

● WinCC Professional (TIA Portal)

Yes; from V11

● Number of online/runtime languages

32

● Languages per project

32

Libraries

Yes

Applications/options

● Web browser

Yes

● Pocket Word

Yes

● Pocket Excel

Yes

● PDF Viewer

Yes

● SIMATIC WinCC [email protected]

Yes

● SIMATIC WinCC Audit

Yes

Number of Visual Basic Scripts

Yes

Task planner

● time-controlled

Yes

● task-controlled

Yes

Help system

● Number of characters per info text

70

● Number of alarm classes

32

● Bit messages

Yes

— Number of bit messages

4 000

● Analog messages

Yes

— Number of analog messages

200

● S7 alarm number procedure

Yes

● System messages HMI

Yes

● System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )

Yes

● Number of characters per message

80

● Number of process values per message

8

● Acknowledgment groups

Yes

● Message indicator

Yes

● Message buffer

— Number of entries

1 024

— Circulating buffer

Yes

— retentive

Yes

— maintenance-free

Yes

● Number of recipes

300

● Data records per recipe

500

● Entries per data record

1 000

● Size of internal recipe memory

2 Mbyte

● Recipe memory expandable

Yes

● Number of variables per device

2 048

● Number of variables per screen

400

● Limit values

Yes

● Multiplexing

Yes

● Structures

Yes

● Arrays

Yes

● Number of configurable images

500

● Permanent window/default

Yes

● Global image

Yes

● Pop-up images

Yes

● Slide-in images

Yes

● Image selection by PLC

Yes

● Image number in the PLC

Yes

● Number of objects per image

400

● Text fields

Yes

● I/O fields

Yes

● Graphic I/O fields (graphics list)

Yes

● Symbolic I/O fields (text list)

Yes

● Switches

Yes

● Buttons

Yes

● Graphic display

Yes

● Icons

Yes

● Geometric objects

Yes

● Number of complex objects per screen

20

● Alarm view

Yes

● Trend view

Yes

● User view

Yes

● Status/control

Yes

[email protected] view

Yes

● Recipe view

Yes

● f(x) trend view

Yes

● System diagnostics view

Yes

● Media Player

Yes

● HTML browser

Yes

● PDF display

Yes

● IP camera display

Yes

● Bar graphs

Yes

● Sliders

Yes

● Pointer instruments

Yes

● Analog/digital clock

Yes

Product Condition

Brand New, New – Backlog, New – No Original Box, New – Original Box Opened, Used – Average, Used – Below Average, Used – Excellent, Used – Fairly Good, Used – Good, Used – Poor, Used – Very Good

Shopping Cart
