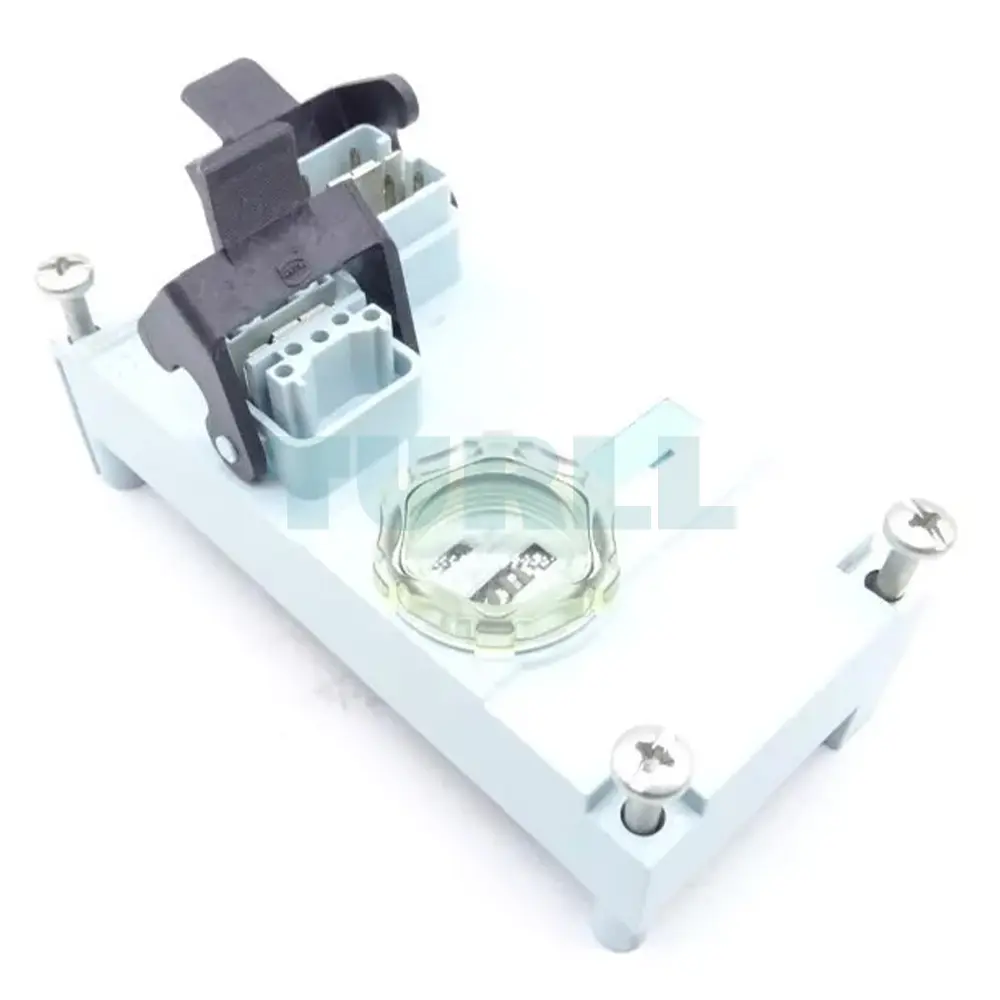

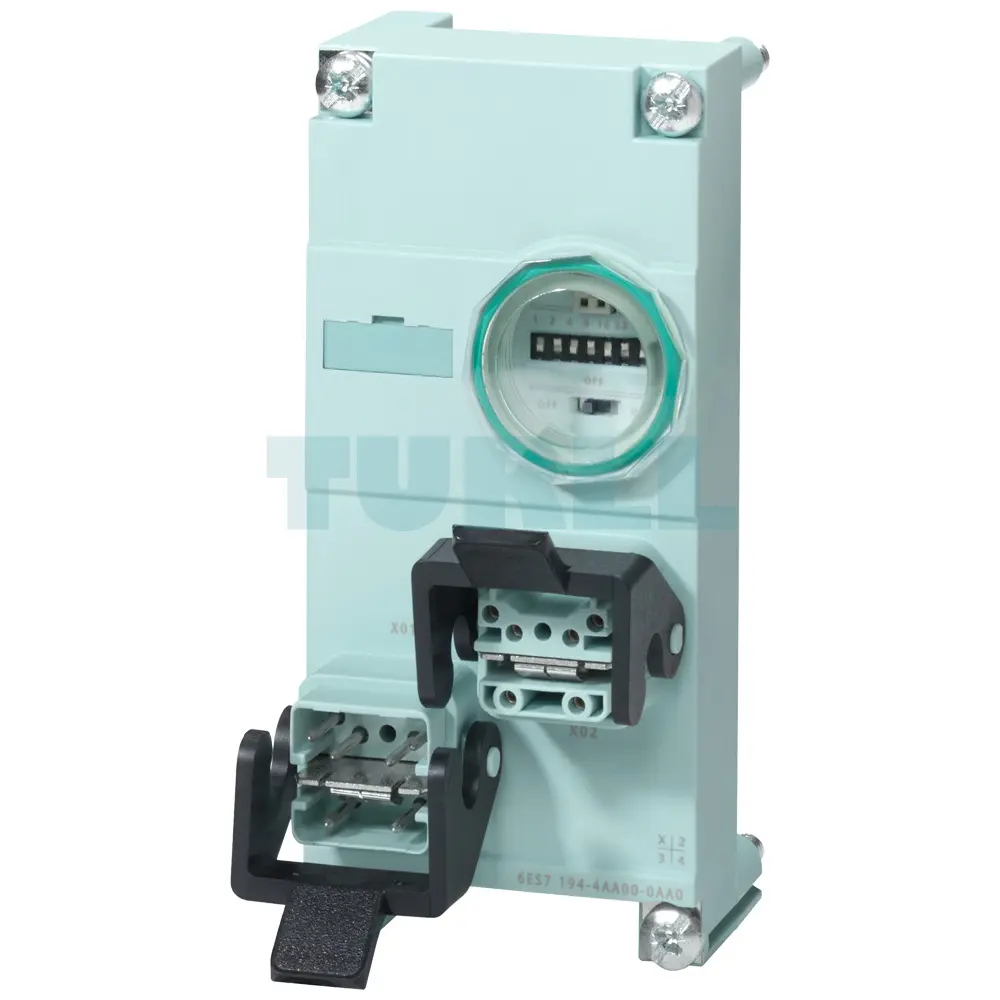

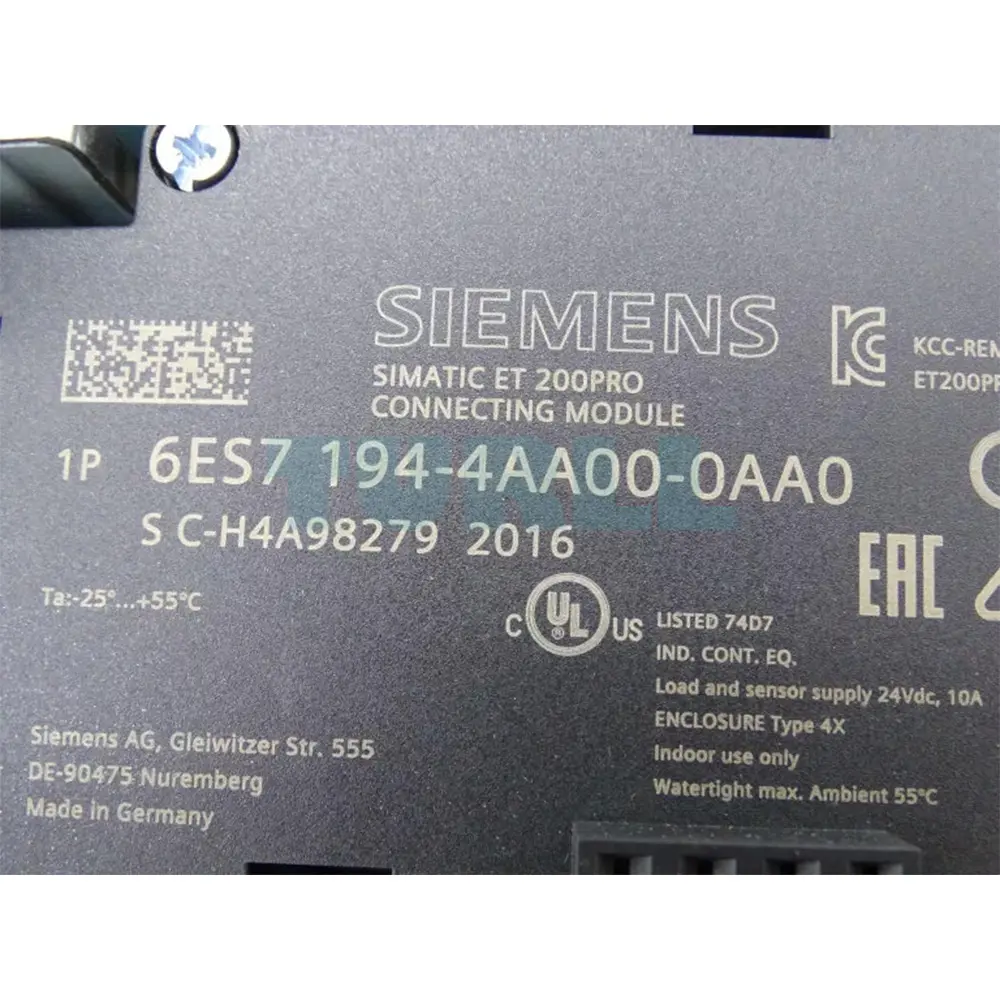

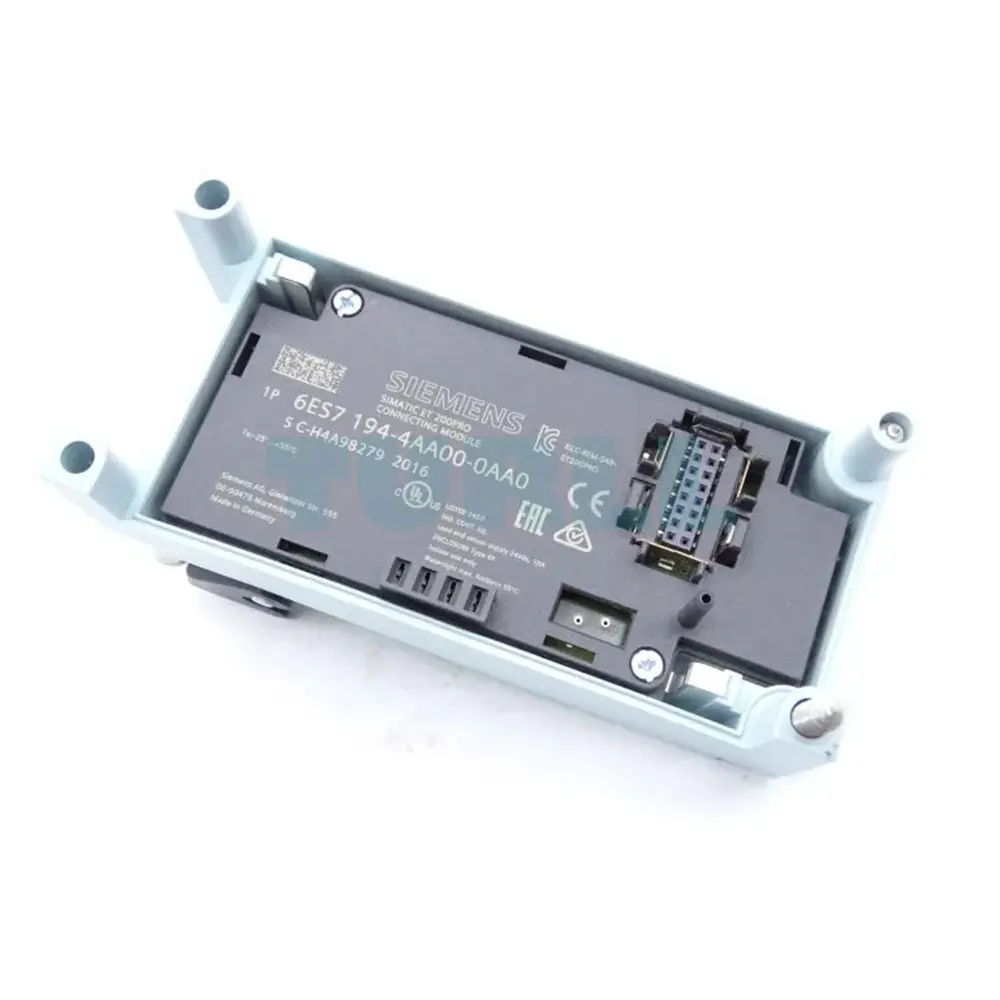

6ES7194-4AA00-0AA0 Siemens SIMATIC DP Connection Module
6ES7194-4AA00-0AA0 Siemens SIMATIC DP Connection Module
6ES7194-4AA00-0AA0 Siemens SIMATIC DP Connection Module
6ES7194-4AA00-0AA0 Siemens SIMATIC DP Connection Module

6ES7194-4AA00-0AA0 Siemens SIMATIC DP Connection Module Original Brand New

Model / SKU6ES7194-4AA00-0AA0

6ES7194-4AA00-0AA0

Siemens SIMATIC DP, Connection module for PROFIBUS interface module ET 200 PRO; ECOFAST CU, 2x ECOFAST connections RS485, integrated address setter and terminating resistor for PROFIBUS DP

Original price was: $167.57.Current price is: $153.65.
Available on backorder
  • ConditionOriginal Brand New
  • Warranty12 months

Backorder available · Factory lead time 2–3 weeks.

Request bulk quoteAsk on WhatsApp
  • Genuine Products
  • Up to 1-Year Warranty
  • Global Shipping
  • Secure Payment
  • PI / Bank Transfer Available
  • Bulk Quote Support

Description

6ES7194-4AA00-0AA0

Siemens SIMATIC DP, Connection module for PROFIBUS interface module ET 200 PRO; ECOFAST CU, 2x ECOFAST connections RS485, integrated address setter and terminating resistor for PROFIBUS DP

Overview

Interface modules for handling communication between the ET 200pro and the higher-level master over PROFIBUS DP.

Application

The IM 154-1 DP and IM 154-2 DP High Feature interface modules handle the communication between the ET 200pro and higher-level masters over PROFIBUS DP.

Design

Interface modules:

  • IM 154-1 DP
  • IM 154-2 DP High Feature

Connecting modules for DP interface modules (must be ordered separately):

  • CM IM DP direct
  • CM IM DP ECOFAST Cu
  • CM IM DP M12 7/8"

All connecting modules contain a PROFIBUS address adjuster that is visible and adjustable from the outside as well as a selectable, segmenting terminating resistor.

The IM 154-2 DP High Feature interface module must be implemented in PROFIsafe applications.

Function

The IM 154-1 DP and IM 154-2 DP High Feature interface modules are configured using STEP 7 V5.3 SP3. A hardware support package is available for STEP 7 V5.3 SP2 and higher.

Integration into older versions is possible via GSD.

Download

Data Sheet (PDF)

Visit 6ES7194-4AA00-0AA0

For more our products visit turll.com

Specifications

SKU / Model6ES7194-4AA00-0AA0
Weight0.226 kg
Dimensions76.00 × 151.00 × 68.00 mm
