1FK2103-4AG11-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$876.19
SIEMENS SIMOTICS S-1FK2 High Dynamic servo motor, 0.4 kW at 3000 rpm, 1.27 Nm torque, IP65 protection, encoder AM22DQC, and integrated holding brake.
1FK2103-4AG11-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

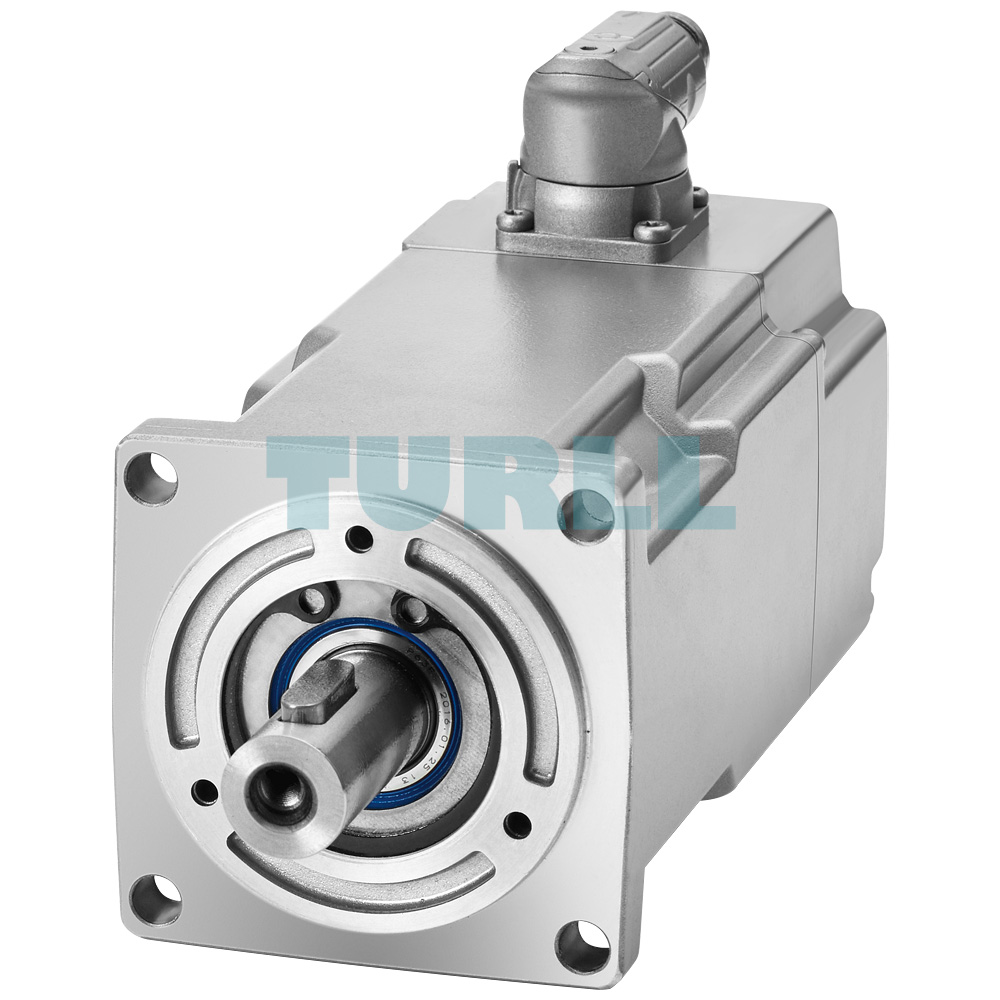

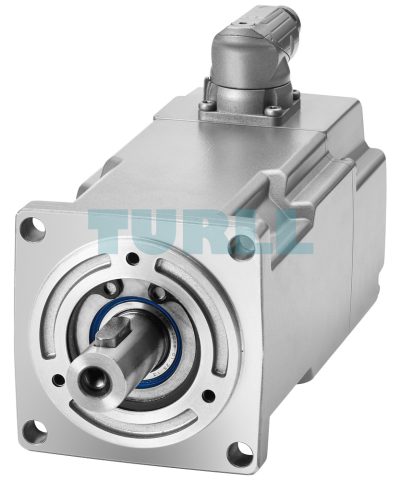

The SIEMENS 1FK2103-4AG11-1MA0 SIMOTICS S-1FK2 High Dynamic servo motor is an advanced synchronous motor engineered to deliver compact design, high torque density, and reliable performance in demanding industrial environments. Offering a rated torque of 1.27 Nm and power of 0.4 kW at 3000 rpm with a voltage range of 200–240 V, this model is an ideal solution for precision-driven applications. It comes with a holding brake, IP65 protection degree, and an absolute multiturn encoder (AM22DQC) providing 22-bit + 12-bit resolution, ensuring accuracy and operational safety. The motor is also equipped with a rotatable M12 connector and OCC interface for efficient installation.
The SIMOTICS S-1FK2 series is designed to meet the challenges of servo drive technology by combining durability, compact structure, and high overload capacity. This family of motors is well-suited for a variety of automation tasks, ranging from packaging machinery and robotics to advanced production systems. With fewer variants and simplified selection, the 1FK2 series enables quick integration while providing the flexibility required for both standard and dynamic applications. Its robust IP65 housing allows reliable use even in harsh conditions, ensuring long service life and dependable performance.
Overview
These servo motors form the backbone of the SINAMICS S210 drive system, supporting high-performance motion control in industrial automation. The 1FK2 range is complemented by the 1FT2 portfolio, which offers additional torque levels, broader speed gradations, and extended options. Together, they address diverse automation requirements, from standard applications to complex, high-demand environments.
SIMOTICS S-1FK2 Motor Variants
- High Dynamic motors: Optimized with low inertia, delivering rapid response for applications requiring maximum agility and speed.
- Compact motors: Balanced design for stable and precise control when moving medium to heavy loads with medium inertia.
Product Code: 1FK2103-4AG11-1MA0
More Siemens products at Turll.com
| Weight | 2.15 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
