1FK2104-4AF00-2MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$691.87
SIEMENS SIMOTICS S-1FK2 High Dynamic servo motor, 0.4 kW at 3000 rpm, IP64 protection, with absolute encoder and OCC interface for precision automation.
1FK2104-4AF00-2MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

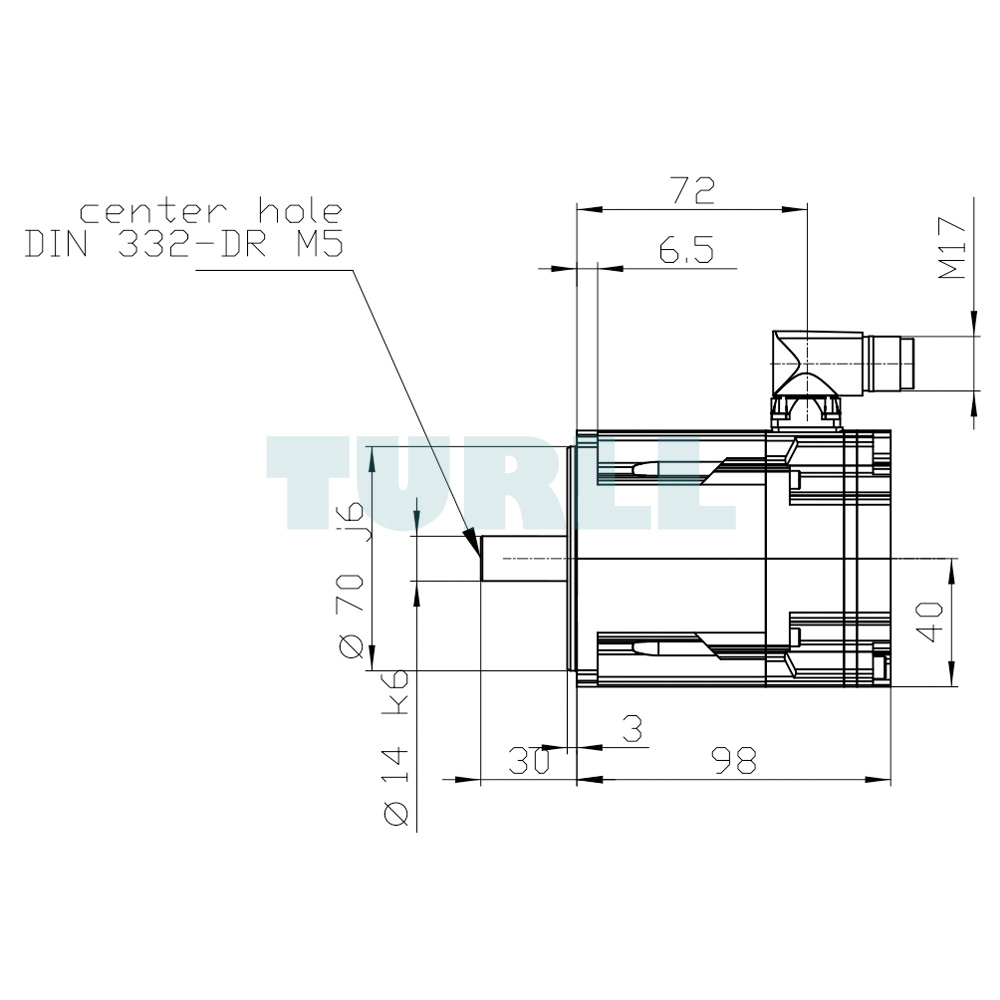

The SIEMENS 1FK2104-4AF00-2MA0 SIMOTICS S-1FK2 High Dynamic servo motor is engineered to deliver precision, reliability, and adaptability for industrial automation. Designed with a rated torque of 1.27 Nm and a power rating of 0.4 kW at 3000 rpm (380–480 V) or 0.2 kW at 1500 rpm (200–240 V), this compact synchronous motor ensures stable and efficient operation across different voltage ranges. With IP64 protection, a cylindrical shaft (D14 x 30 mm), and a rotatable M17 plug, the motor offers flexibility for diverse installation requirements while maintaining robust durability.
Equipped with an absolute encoder (22-bit + 12-bit multiturn, AM22DQC) and OCC interface, the motor provides highly accurate position feedback, making it suitable for demanding servo applications. Its low inertia enables dynamic response, while its overload capability ensures reliable performance even in challenging conditions. The compact design makes it a preferred solution for space-constrained environments without compromising performance or quality.
Overview
The SIMOTICS S-1FK2 servomotors are designed for a wide variety of industrial applications, characterized by high power density, strong overload capability, and excellent dynamic response. Their streamlined product range simplifies configuration and selection, ensuring faster deployment. These motors serve as the core drive components for the SINAMICS S210 system, enabling efficient integration into modern automation networks.
Design
The 1FK2 motor family includes both compact and high dynamic variants. Compact motors offer precise and stable control for medium to high load applications, while high dynamic motors provide exceptional performance for tasks requiring fast acceleration and deceleration with low moving masses. For more advanced or specialized applications, the extended 1FT2 motor family builds upon the 1FK2 portfolio with additional torque options and refined rated speeds.
Download
Product Code: 1FK2104-4AF00-2MA0
More Siemens products at Turll.com
| Weight | 2.05 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
