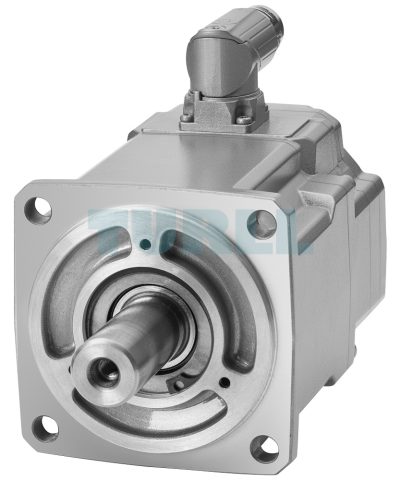

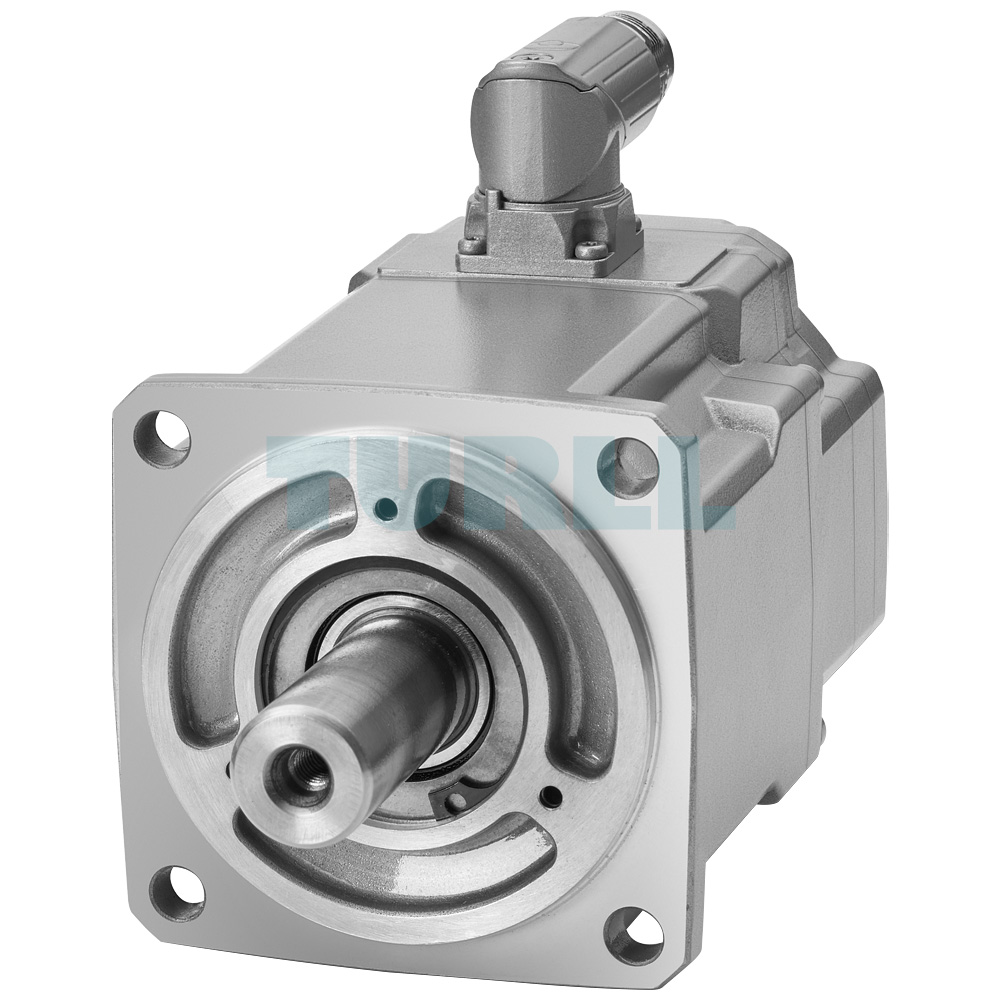

1FK2104-4AF01-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-4AF01-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

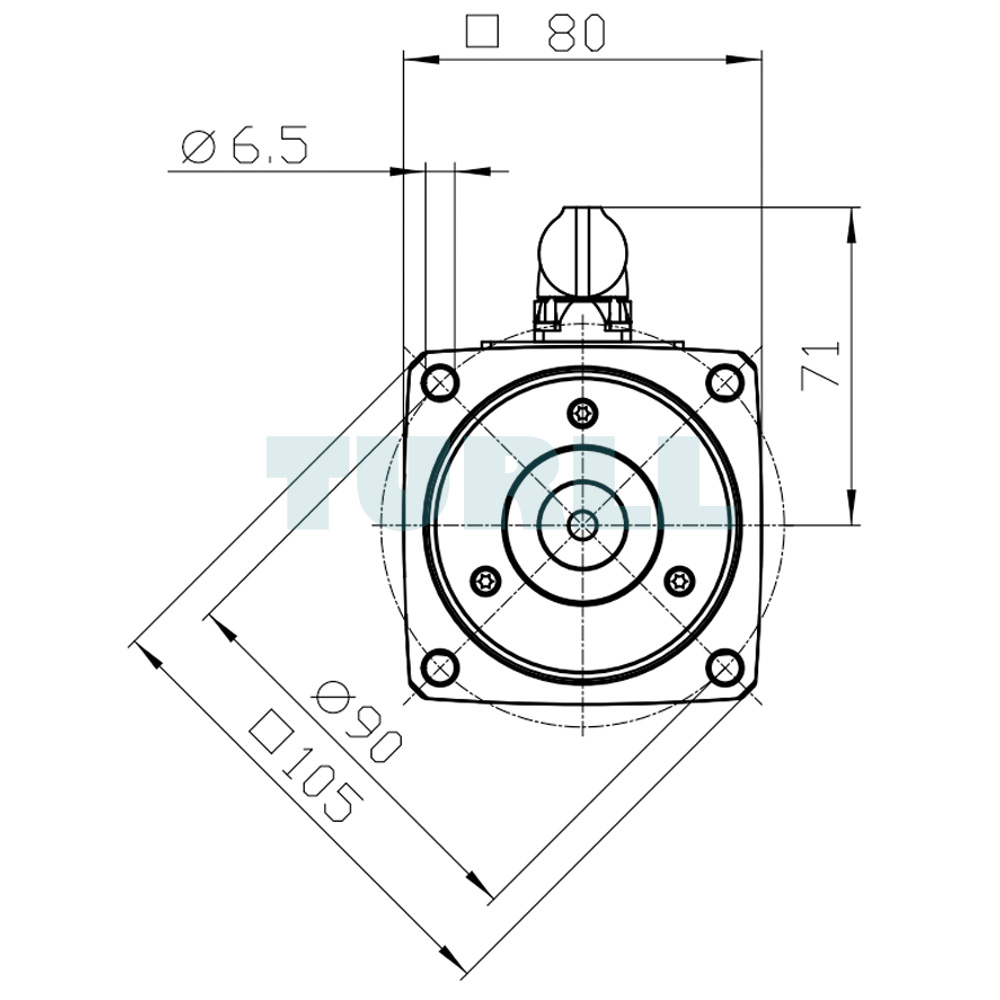

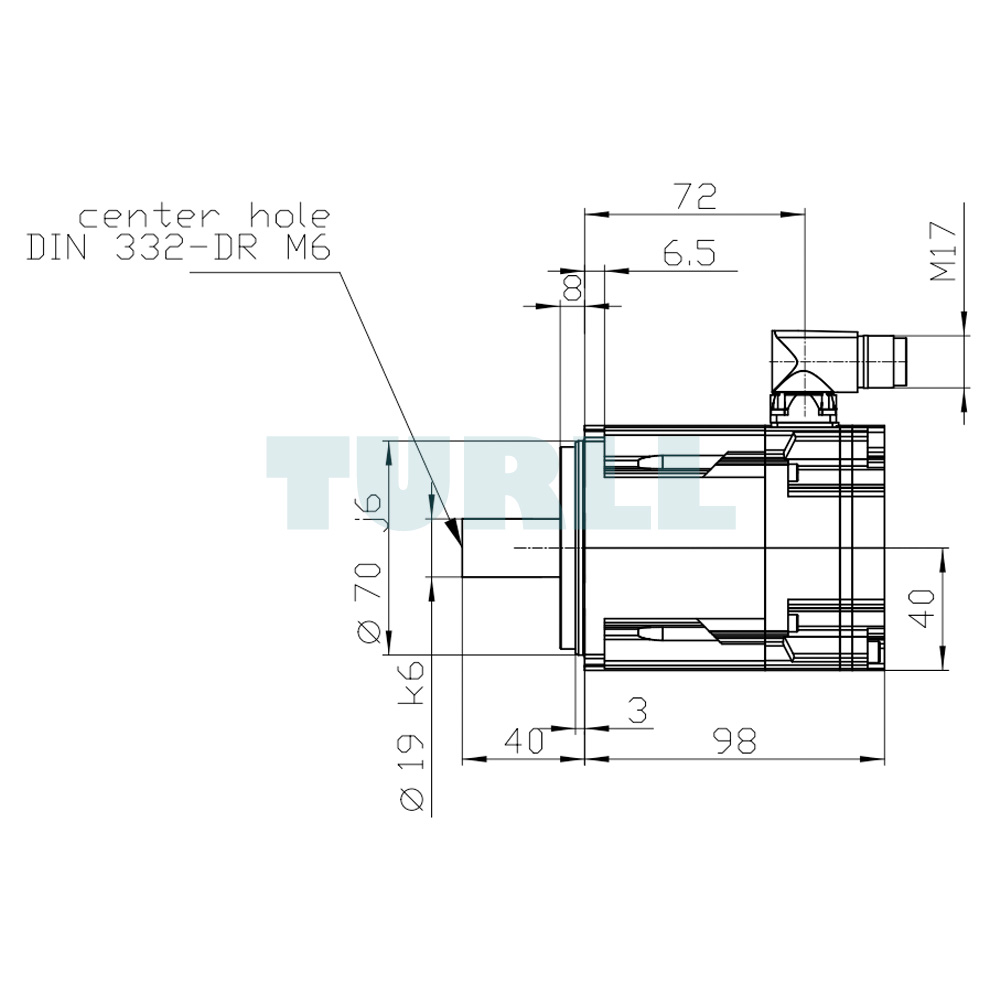

The SIEMENS 1FK2104-4AF01-0MA0 SIMOTICS S-1FK2 HD servo motor is a powerful and compact synchronous motor designed to deliver reliable performance in industrial automation. With a rated torque of 1.27 Nm, this high-efficiency motor provides a power output of 0.4 kW at 3000 rpm (380–480 V) and 0.2 kW at 1500 rpm (200–240 V). Engineered with IP65 protection, a cylindrical shaft (D19x40 mm), and a 22-bit absolute encoder with multiturn functionality, the motor ensures precise positioning and long-term durability in demanding applications.

The integration of an OCC interface and rotatable M17 plug connection further enhances installation flexibility. This motor is ideally suited for modern automation systems where high performance, compact design, and precision control are essential. With its optimized structure, the S-1FK2 family represents one of the most advanced solutions for motion control, combining efficiency with robustness for a wide range of applications.

Overview

The SIMOTICS S-1FK2 range is built to address the core challenges of servo drive technology. These motors provide high power density, excellent overload capability, and a straightforward product portfolio that simplifies selection. As the core motor series for the SINAMICS S210 servo drive system, they offer reliability and streamlined integration into industrial setups. Their compact size allows for easy installation, while their dynamic performance makes them suitable for precise automation tasks.

The extended 1FT2 portfolio complements the 1FK2 series with additional torque options, wider speed ranges, and numerous variants to handle more demanding tasks. This adaptability makes the SIMOTICS portfolio highly flexible, covering everything from compact drives to heavy-duty servo applications.

SIMOTICS S-1FK2 High Dynamic Motors

Designed for applications requiring maximum responsiveness, these motors feature low inertia, enabling fast acceleration and precision with low moved masses.

SIMOTICS S-1FK2 Compact Motors

Optimized for applications with medium to high inertia loads, these motors ensure smooth and stable control, delivering precision and efficiency for diverse automation tasks.

Download

Data Sheet (PDF)

Product Code: 1FK2104-4AF01-0MA0
