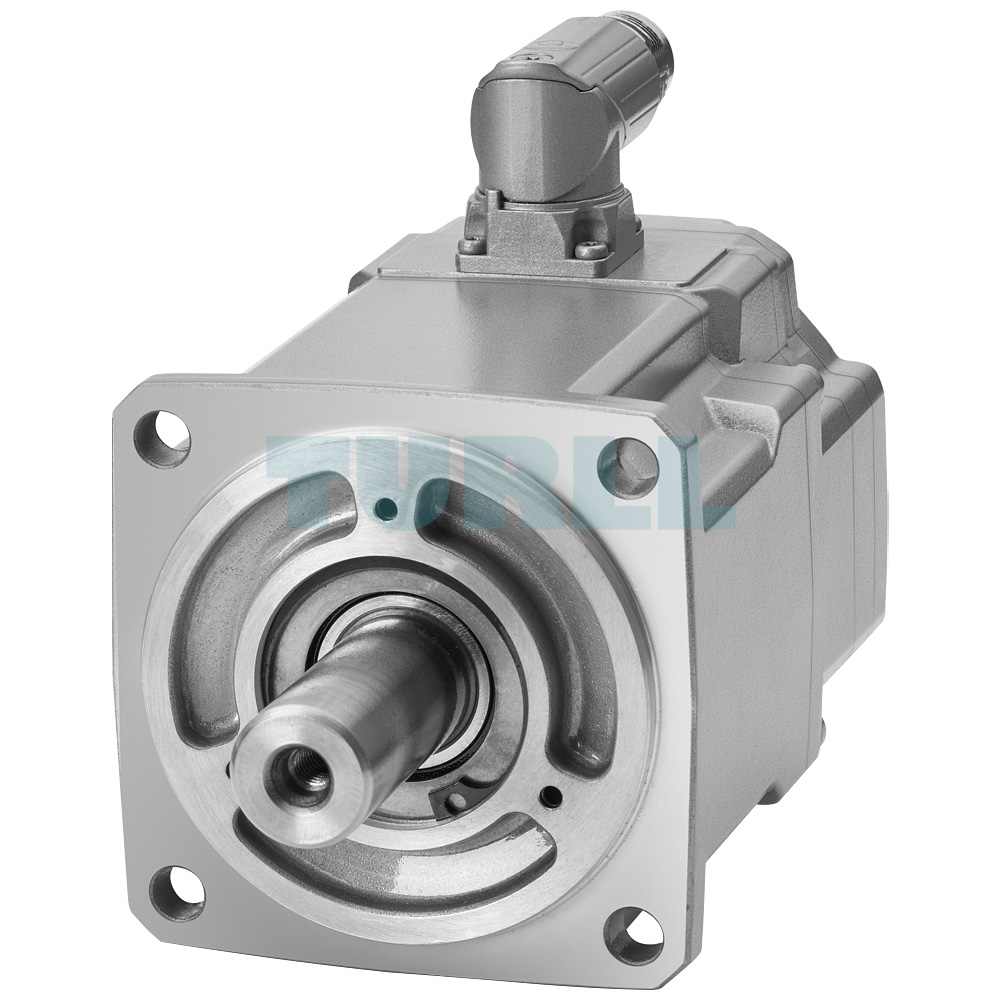

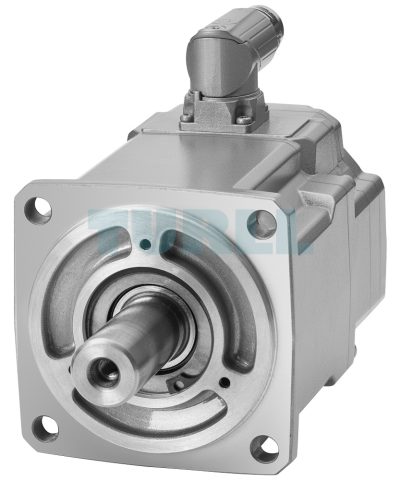

1FK2104-4AF10-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$828.58
High-performance SIEMENS SIMOTICS S-1FK2 HD servo motor with 1.27 Nm torque, 0.4 kW at 3000 rpm, IP64 protection, holding brake, and absolute encoder.
1FK2104-4AF10-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

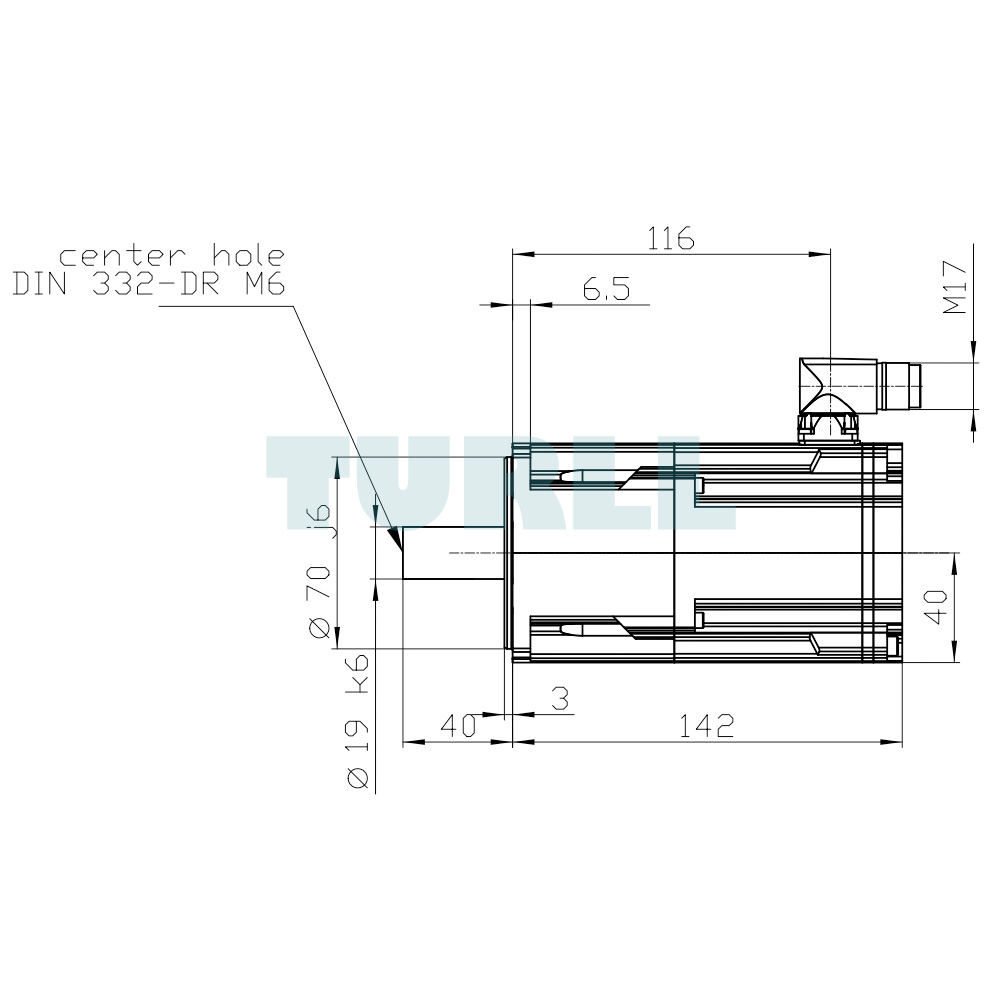

The SIEMENS 1FK2104-4AF10-0MA0 SIMOTICS S-1FK2 HD servo motor is a compact, high-performance synchronous motor designed for precise and dynamic industrial applications. With a rated torque of 1.27 Nm, it delivers 0.4 kW at 3000 rpm with a supply voltage of 380–480 V and 0.2 kW at 1500 rpm with a supply voltage of 200–240 V. Equipped with a holding brake, IP64 protection rating, and a robust cylindrical shaft (D19x40 mm), this servo motor is built to withstand challenging environments while maintaining exceptional reliability and accuracy.
This motor features a 22-bit + 12-bit multiturn absolute encoder (AM22DQC) with OCC interface, ensuring precise position feedback for highly dynamic motion control. Its compact form factor and rotatable M17 connector provide installation flexibility in a wide range of automation systems. Designed for integration with SINAMICS S210 servo drives, the motor delivers efficient performance in motion control applications that demand responsiveness, stability, and long service life.
Overview
The SIMOTICS S-1FK2 series offers a high power density, wide overload capability, and versatile design options for use in industrial automation. These motors are engineered to handle essential challenges in servo drive technology by combining compact dimensions with advanced performance. Their straightforward selection of variants makes integration easy while supporting demanding servo applications across different industries.
The extended SIMOTICS 1FT2 series complements the 1FK2 portfolio by offering more finely graded speed ranges, additional torque levels, and broader variations. This flexibility ensures that even complex or demanding motion control applications in harsh operating environments can be managed effectively.
SIMOTICS S-1FK2 Motor Options
- High Dynamic (HD): Low inertia design for fast response in applications with light moving masses.
- Compact: Balanced control for applications with medium to heavy load inertia, ensuring stable and precise operation.
Download
Product Code: 1FK2104-4AF10-0MA0
More Siemens products at Turll.com
| Weight | 2.05 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
