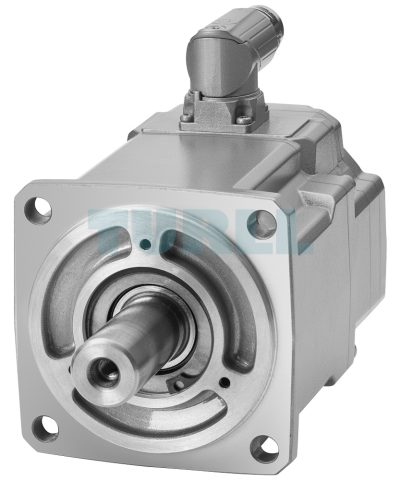

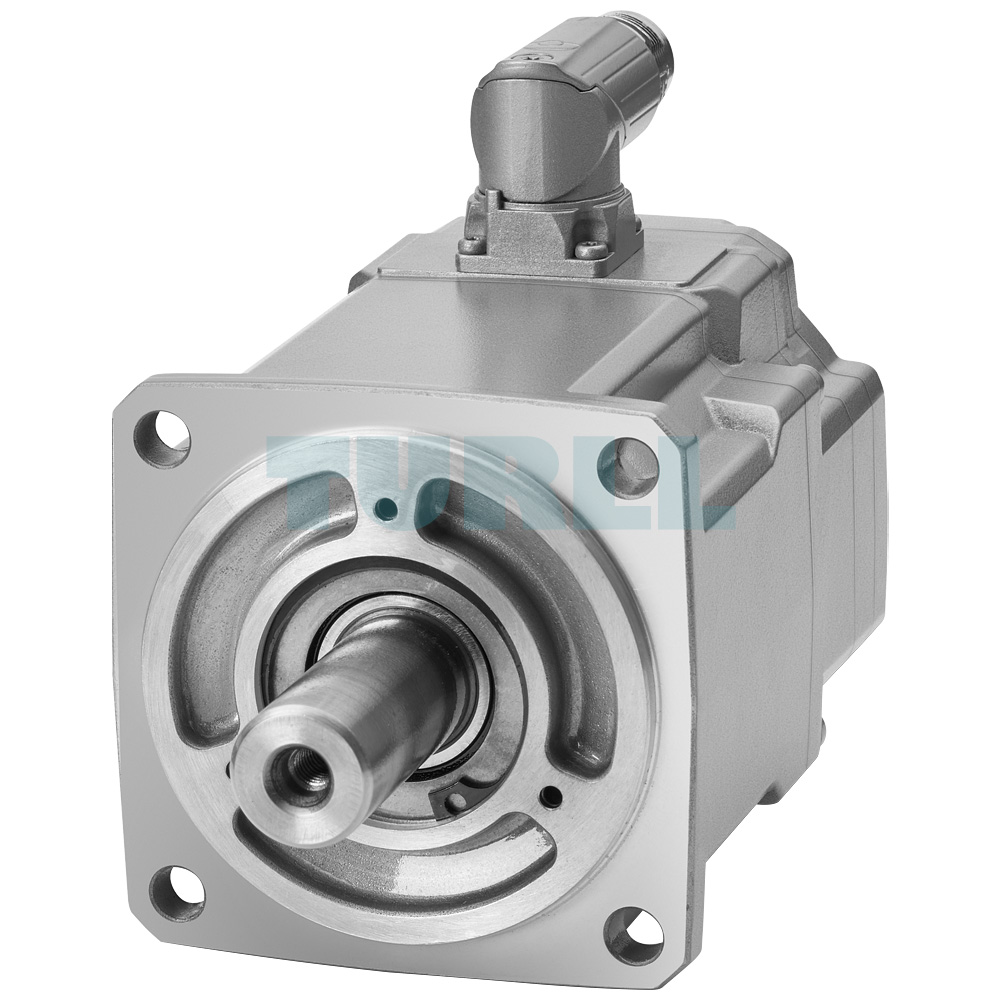

1FK2104-4AF11-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-4AF11-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

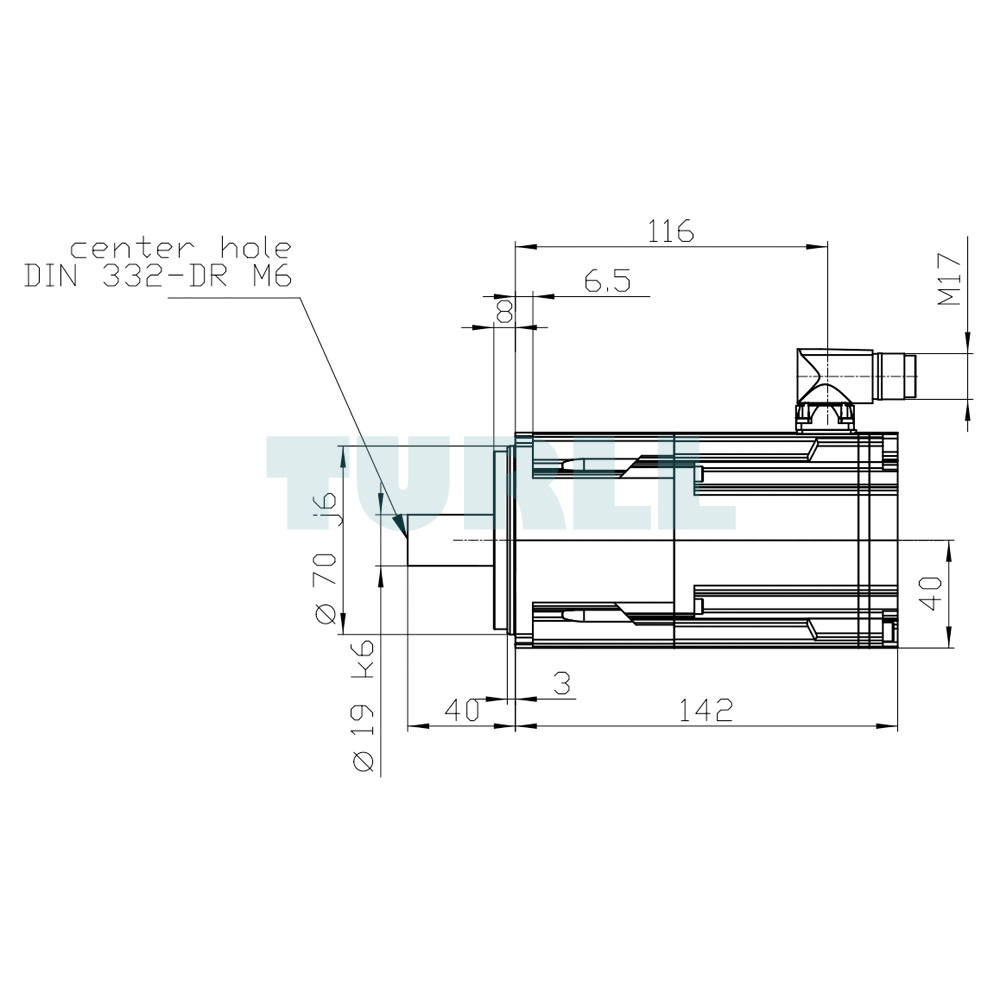

The SIEMENS 1FK2104-4AF11-0MA0 SIMOTICS S-1FK2 High Dynamic servo motor is a premium motion control solution engineered for precision, performance, and reliability in demanding industrial environments. With a rated torque of 1.27 Nm, nominal power output of 0.4 kW at 3000 rpm (380–480 V) and 0.2 kW at 1500 rpm (200–240 V), this synchronous motor is designed to deliver outstanding results across a broad range of automation tasks. The motor is equipped with an integrated holding brake, IP65 degree of protection, and a cylindrical shaft measuring D19x40 mm, making it highly versatile and robust in operation. The absolute encoder with 22-bit + 12-bit multiturn resolution ensures precise position detection, while the OCC interface and rotatable M17 connector provide flexible installation options.

Compact, powerful, and highly dynamic, this motor belongs to the SIMOTICS S-1FK2 series, a family known for its superior power density, overload capability, and long service life. It is designed to be the ideal partner for SINAMICS S210 servo drive systems, enabling precise motion control for applications requiring high efficiency and fast response. By combining compact dimensions with powerful performance, the motor addresses the core requirements of modern servo drive technology.

Overview

The SIMOTICS S-1FK2 range represents a new standard in servo drive engineering. These motors excel through their low inertia and high dynamic response, making them suitable for applications with low moved masses that demand rapid acceleration and deceleration. They also include compact variants optimized for stable control when moving medium to high inertial loads. With a streamlined range of variants, selection and integration into automation systems is straightforward, reducing engineering time while enhancing system reliability.

For even more demanding applications, the extended 1FT2 motor series offers finer gradations of rated speed and torque levels, along with additional options, providing tailored solutions for challenging environments. Together, these motor families ensure Siemens can provide the right solution for diverse servo drive applications in industry.

Download

Data Sheet (PDF)

Product Code: 1FK2104-4AF11-0MA0
