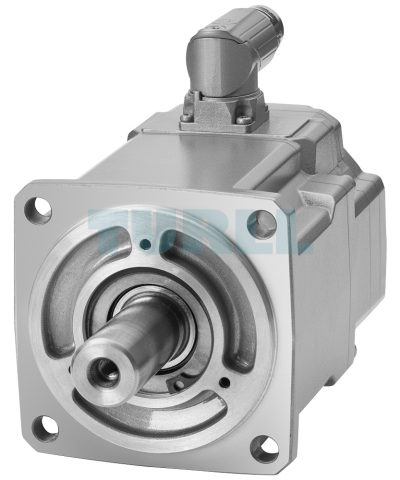

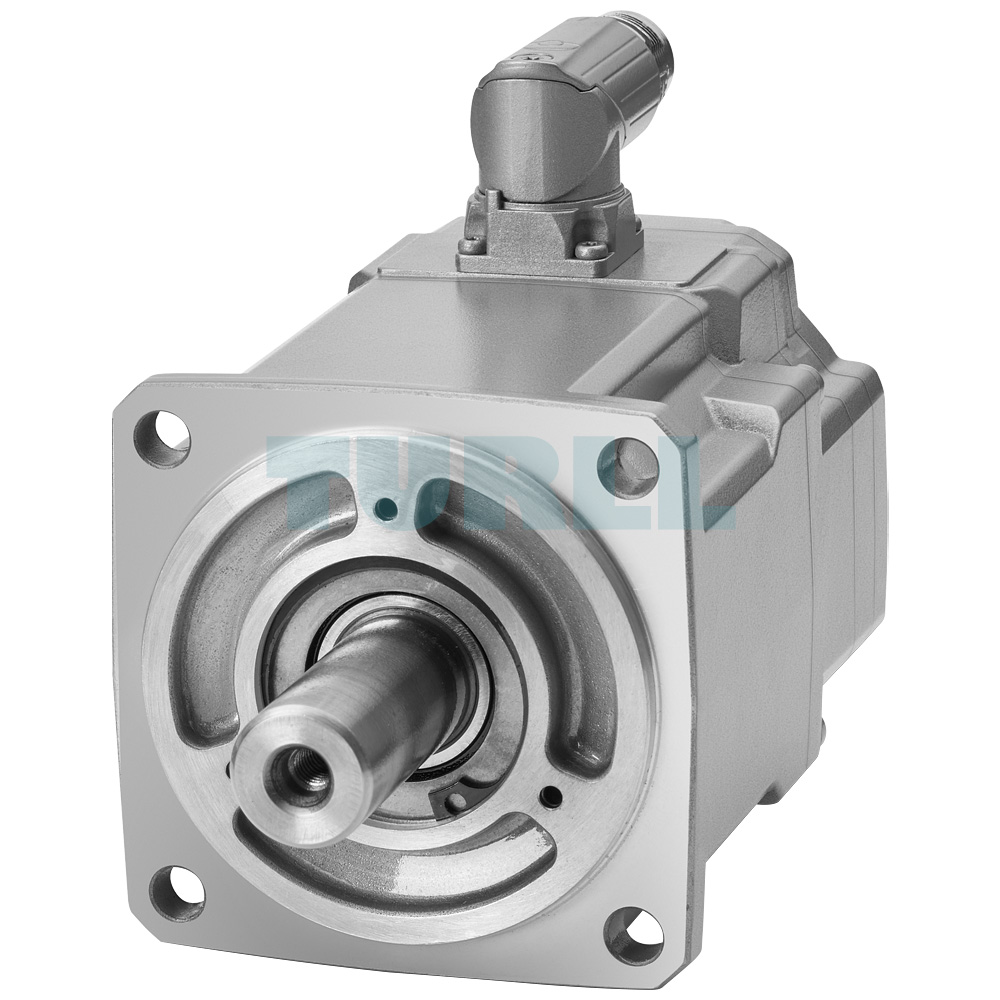

1FK2104-4AK00-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$691.87
High-performance SIEMENS SIMOTICS S-1FK2 HD servo motor with 0.6 kW power, 1.27 Nm torque, IP64 protection, multiturn encoder, and OCC interface.
1FK2104-4AK00-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
The SIEMENS 1FK2104-4AK00-1MA0 is a compact and powerful servo motor from the SIMOTICS S-1FK2 family, designed to deliver precision, efficiency, and high dynamic response in industrial automation environments. With a rated torque of 1.27 Nm and a nominal power of 0.6 kW at 6000 rpm (380–480 V), this motor offers reliable performance for demanding applications. At lower speed ratings, such as 3000 rpm with 200–240 V, the motor provides 0.4 kW of output, demonstrating its versatility across multiple voltage conditions. Its degree of protection IP64 ensures durability in harsh operating environments, while the shaft with feather key, absolute encoder, and OCC interface further enhance accuracy and operational reliability.
The SIMOTICS S-1FK2 series is recognized for its high power density and overload capability. The motors are engineered to address the key challenges of servo drive technology, making them suitable for a wide range of automated systems. With a limited number of variants, the 1FK2 lineup allows straightforward selection and integration, forming the core motor range for SINAMICS S210 servo drive systems. This balance of performance and simplicity reduces complexity while maintaining maximum productivity.
Overview
The S-1FK2 motors are designed for compact installation yet deliver exceptional dynamics through low inertia, making them ideal for highly responsive applications. Whether operating with light loads or in tasks requiring precision movement, they ensure smooth control and dependable torque delivery. In addition, SIEMENS provides extensions through the 1FT2 series, offering expanded torque levels, finer speed gradations, and broader options to meet advanced challenges. Together, these families enable flexible, scalable, and future-ready drive solutions.
Design
The 1FK2104-4AK00-1MA0 includes a rotatable M17 connector for easy installation, a 22-bit + 12-bit multiturn absolute encoder (AM22DQC) for high-resolution feedback, and a robust mechanical design optimized for long service life. These features make the motor a dependable choice for machine builders seeking compactness, accuracy, and durability in their automation equipment.
Download
Product Code: 1FK2104-4AK00-1MA0
More Siemens products at Turll.com
| Weight | 2.05 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
