1FK2104-4AK10-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$658.03
SIEMENS SIMOTICS S-1FK2 HD servo motor with 1.27 Nm torque, 0.6 kW power, IP64 protection, absolute 22-bit encoder, and compact high-dynamic design.
1FK2104-4AK10-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

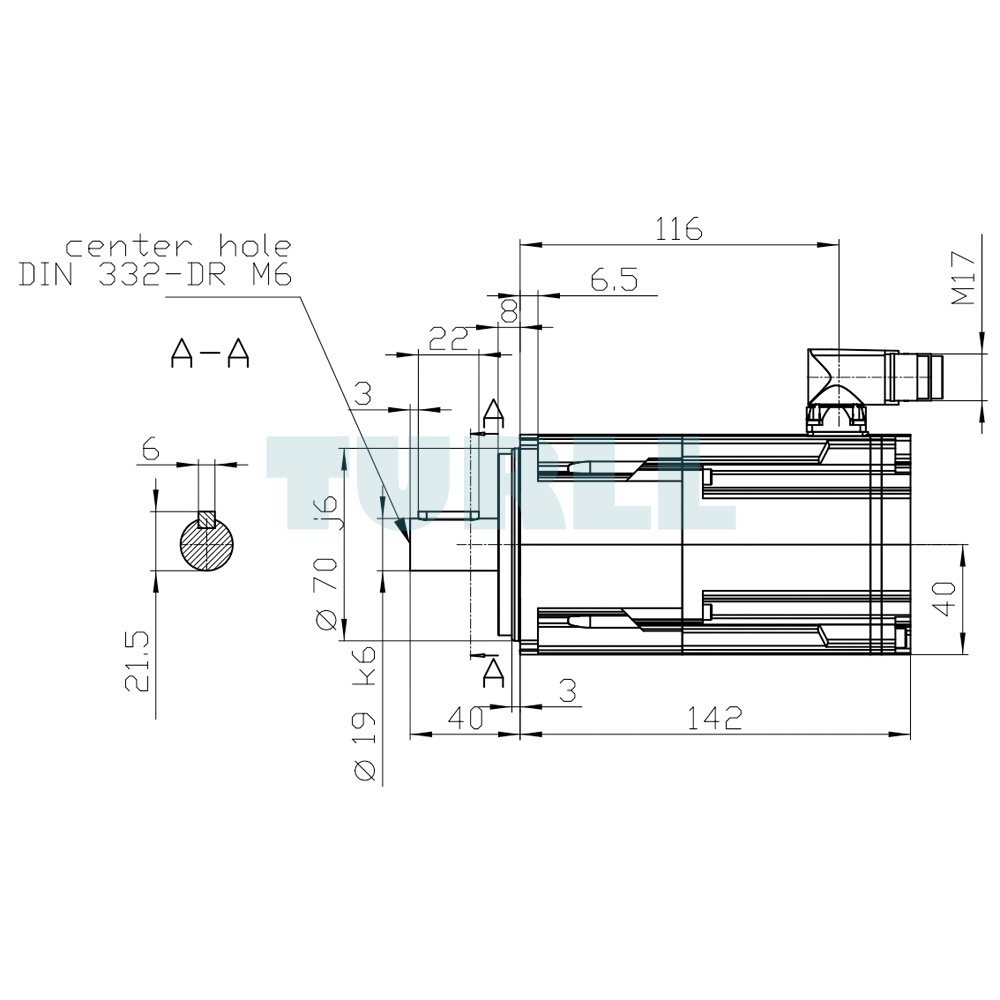

The SIEMENS 1FK2104-4AK10-1SB0 SIMOTICS S-1FK2 HD servo motor is a high-performance synchronous motor designed for advanced industrial automation. Delivering rated torque of 1.27 Nm with a power rating of 0.6 kW at 6000 rpm (380–480 V) and 0.4 kW at 3000 rpm (200–240 V), this motor offers flexibility across multiple voltage ranges. Equipped with a holding brake, IP64 protection class, and a precisely engineered D19x40 mm shaft with feather key, it is suitable for demanding environments where reliability and precision are essential.
This unit includes an absolute single-turn 22-bit encoder (AS22DQC) with DRIVE-CLiQ connectivity, ensuring accurate position feedback and seamless integration with SINAMICS drive systems. Compact yet powerful, the motor balances dynamic performance with robust mechanical stability, making it ideal for a wide spectrum of automation tasks.
Overview
The SIMOTICS S-1FK2 family represents compact and dynamic motors designed for industrial versatility. With a limited number of variants and simplified configuration options, these motors are easy to select and implement. Their high overload capacity and strong mechanical design enable consistent operation even under challenging load conditions.
They form the backbone of the SINAMICS S210 servo drive system, where compactness, accuracy, and responsiveness are critical. For more advanced requirements, the 1FT2 series complements the 1FK2 range by providing additional torque levels, extended speed options, and greater flexibility.
SIMOTICS S-1FK2 High Dynamic Motors
With reduced inertia, the high dynamic versions of the S-1FK2 achieve excellent acceleration and responsiveness, ideal for applications with low moving mass.
SIMOTICS S-1FK2 Compact Motors
The compact variants ensure stable and precise control when working with medium to high moving masses. They provide balanced inertia characteristics, ensuring both precision and operational stability.
Download
Product Code: 1FK2104-4AK10-1SB0
More Siemens products at Turll.com
| Weight | 2.05 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
