1FK2104-4AK11-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-4AK11-0MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

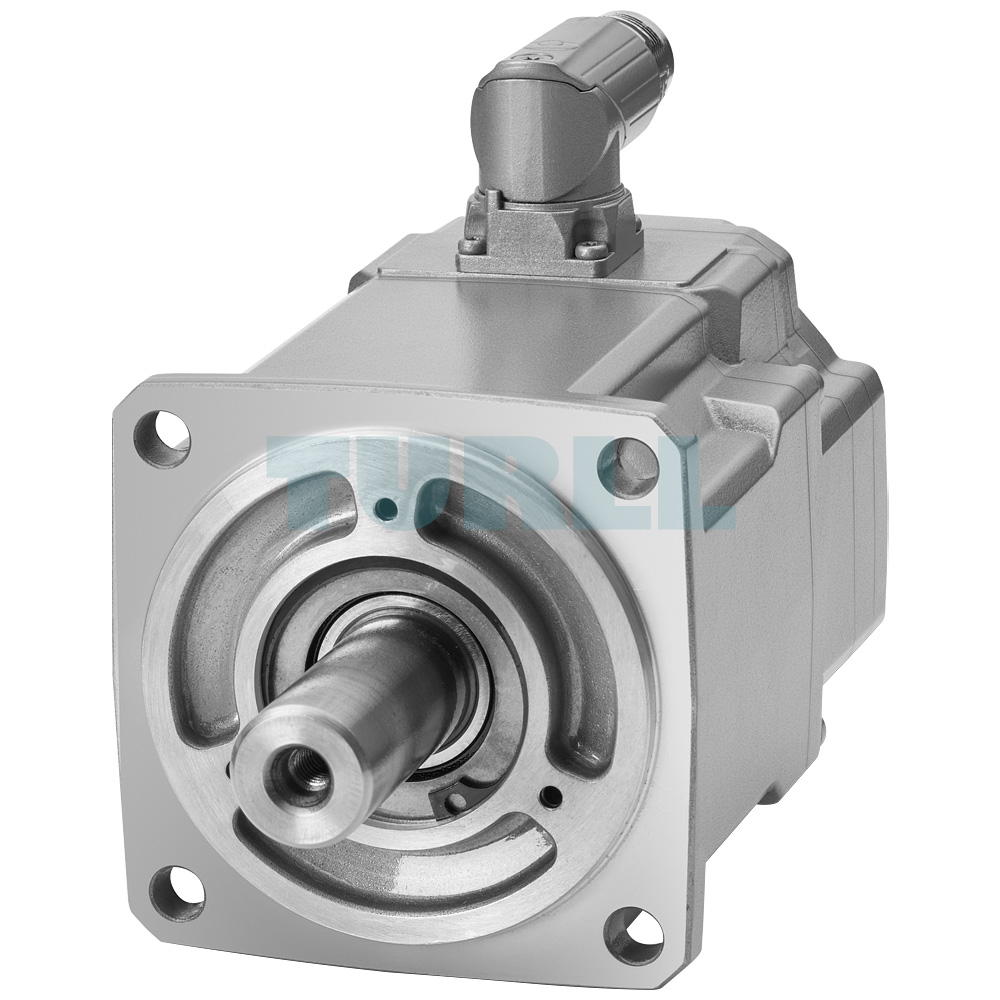

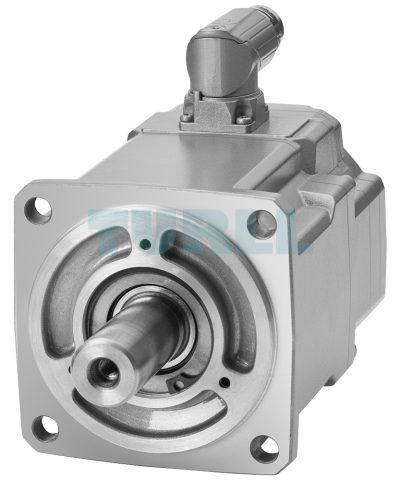

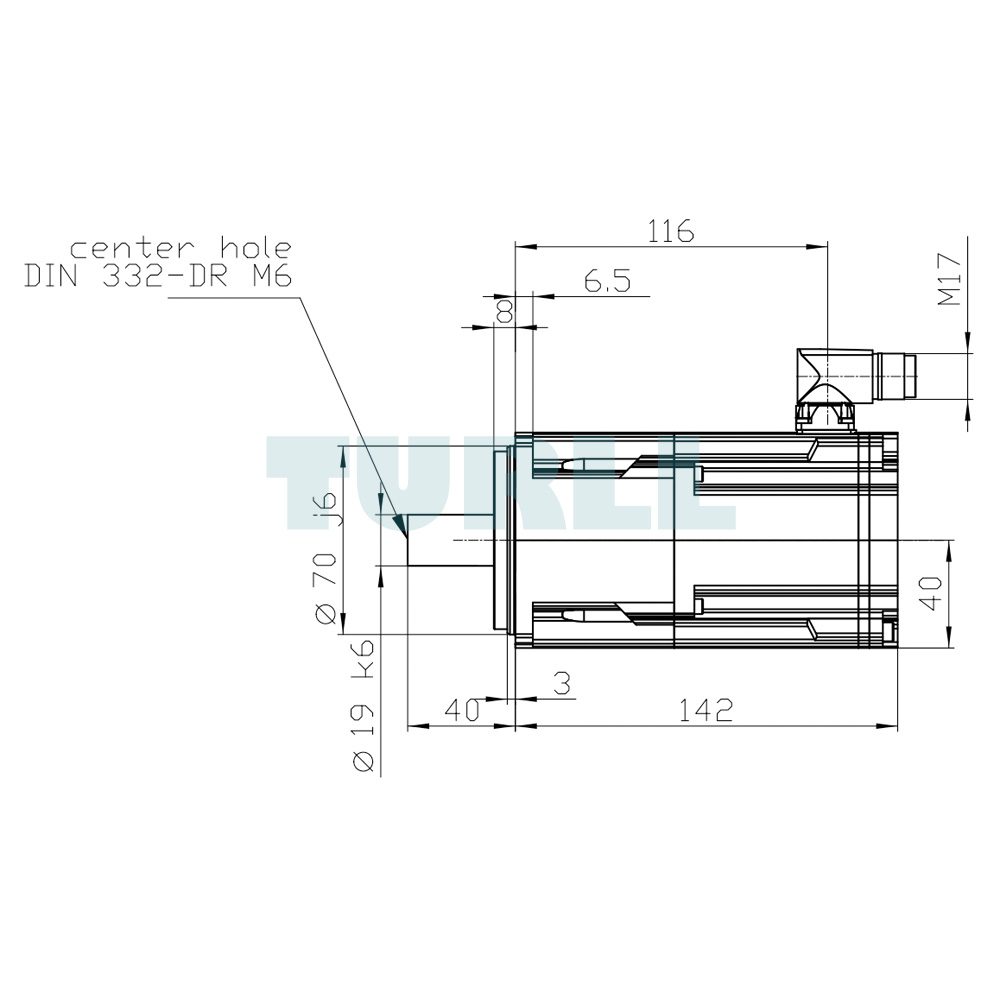

The SIEMENS 1FK2104-4AK11-0MA0 SIMOTICS S-1FK2 High Dynamic servo motor is a compact, high-performance synchronous motor designed for industrial automation. With a rated torque of 1.27 Nm, nominal power of 0.6 kW at 6000 rpm (380–480 V), and 0.4 kW at 3000 rpm (200–240 V), this motor delivers precision and reliability for demanding servo drive applications. Equipped with a holding brake, cylindrical shaft D19x40 mm, IP65 protection, and an advanced absolute encoder AM22DQC with 22-bit + 12-bit multiturn capability, the unit ensures accuracy and durability even under challenging operating conditions.

This servo motor is equipped with an OCC interface and a rotatable M17 plug connector, making installation and integration straightforward. The combination of high torque density, overload capacity, and superior control precision ensures that the SIMOTICS S-1FK2 series meets the requirements of diverse automation environments, from packaging machinery to production systems that demand exact positioning and dynamic response.

Overview

The SIMOTICS S-1FK2 series is engineered for performance and versatility. These synchronous motors are known for their high power density, robust construction, and dynamic response. They are particularly effective for overcoming challenges in modern servo drive technology and are fully compatible with SINAMICS S210 drive systems. With a clear product range and optimized selection of variants, the S-1FK2 motors simplify decision-making while delivering reliability across applications.

For more advanced requirements, the portfolio extends to the SIMOTICS S-1FT2 family, which offers additional speed classes, torque options, and configurations. This allows industries to address more complex drive challenges with precise and efficient solutions.

SIMOTICS S-1FK2 High Dynamic & Compact Motors

The High Dynamic versions provide extremely fast acceleration and response for applications involving low moved masses, while the Compact versions ensure stable and precise control where medium to high inertial loads are present. Both types demonstrate SIEMENS’ dedication to offering reliable, energy-efficient, and application-specific solutions for the evolving demands of automation technology.

Download

Data Sheet (PDF)

Product Code: 1FK2104-4AK11-0MA0
