1FK2104-5AF00-0SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-5AF00-0SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

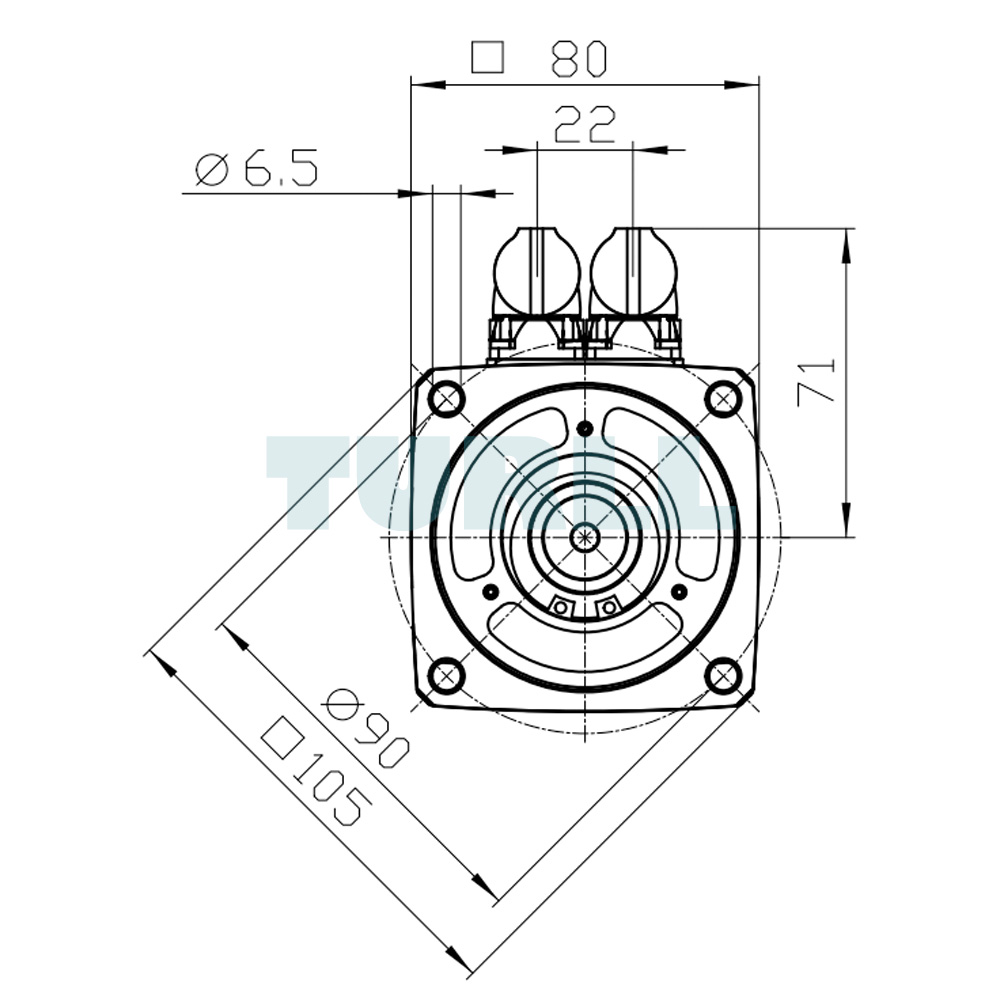

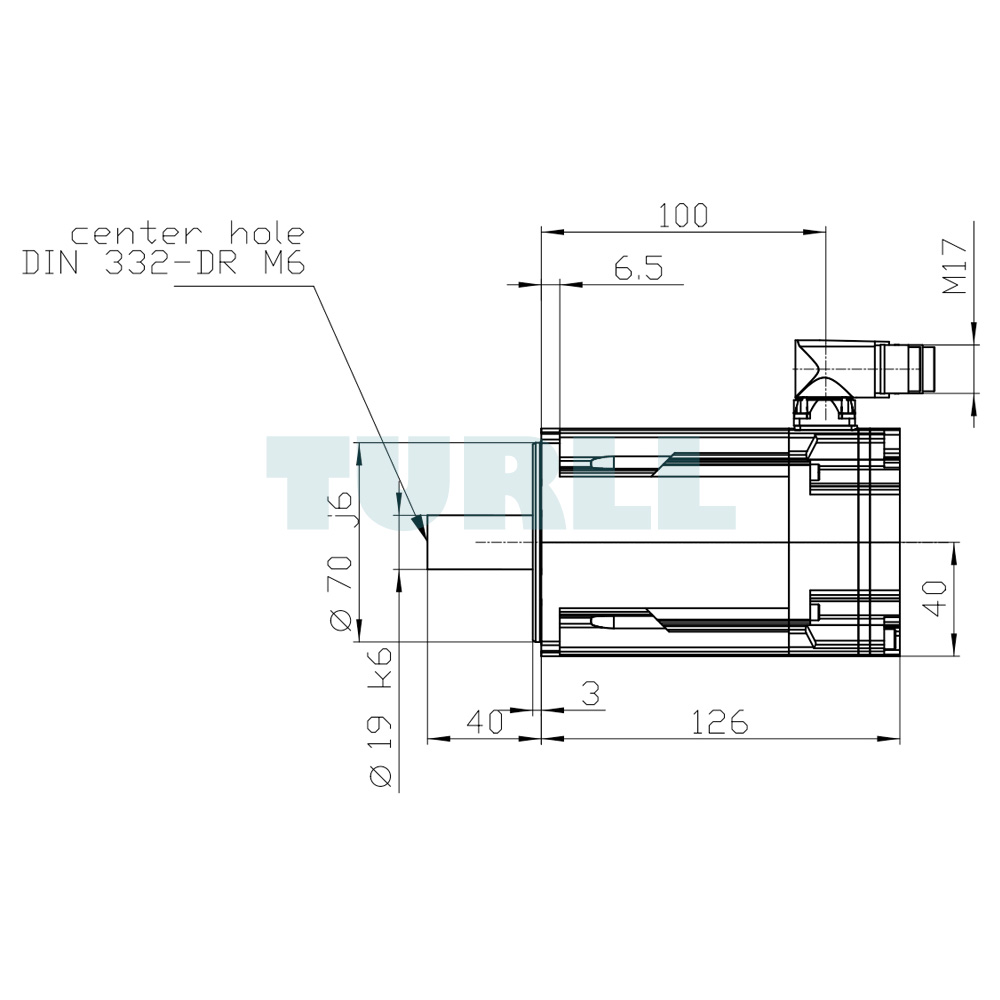

The SIEMENS 1FK2104-5AF00-0SB0 SIMOTICS S-1FK2 High Dynamic servo motor is designed to deliver precise performance, reliability, and efficiency in modern automation systems. With a rated torque of 2.4 Nm and a power output of 0.75 kW at 3000 rpm (380–480 V) or 0.375 kW at 1500 rpm (200–240 V), this synchronous motor ensures stable operation across multiple voltage ranges. Its IP64 degree of protection provides durability against dust and environmental influences, while the robust cylindrical shaft design (19x40 mm) enhances mechanical stability for demanding industrial use.

The motor is equipped with a single-turn 22-bit absolute encoder (AS22DQC), offering high-resolution feedback for precise positioning and speed control. Integrated with a DRIVE-CLiQ plug (M17) and a compact M17 power connector, it ensures smooth communication and simplified integration with SINAMICS drive systems. This compact design, combined with high torque density, makes the 1FK2 series an excellent choice for applications such as robotics, packaging machines, and production automation requiring dynamic motion control.

Overview

The SIMOTICS S-1FK2 servo motors are compact, high-performance synchronous motors designed to meet the core challenges of servo drive technology. Featuring excellent overload capability, dynamic response, and optimized design, they form the foundation of the SINAMICS S210 servo drive system. With limited but versatile configurations, selection is simplified while maintaining high flexibility for a wide range of industrial applications.

For users requiring extended performance, the 1FT2 motor series expands the range with additional torque classes, finer speed ratings, and a broader set of options. Together, the 1FK2 and 1FT2 product families enable engineers to handle both standard and highly demanding applications with precision and long-term reliability.

Download

Data Sheet (PDF)

Product Code: 1FK2104-5AF00-0SB0
