1FK2104-5AF00-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$748.54
SIEMENS SIMOTICS S-1FK2 High Dynamic servo motor, 2.4 Nm torque, 0.75 kW output, IP64 protection, multiturn encoder AM22DQC, and OCC interface.
1FK2104-5AF00-1MA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

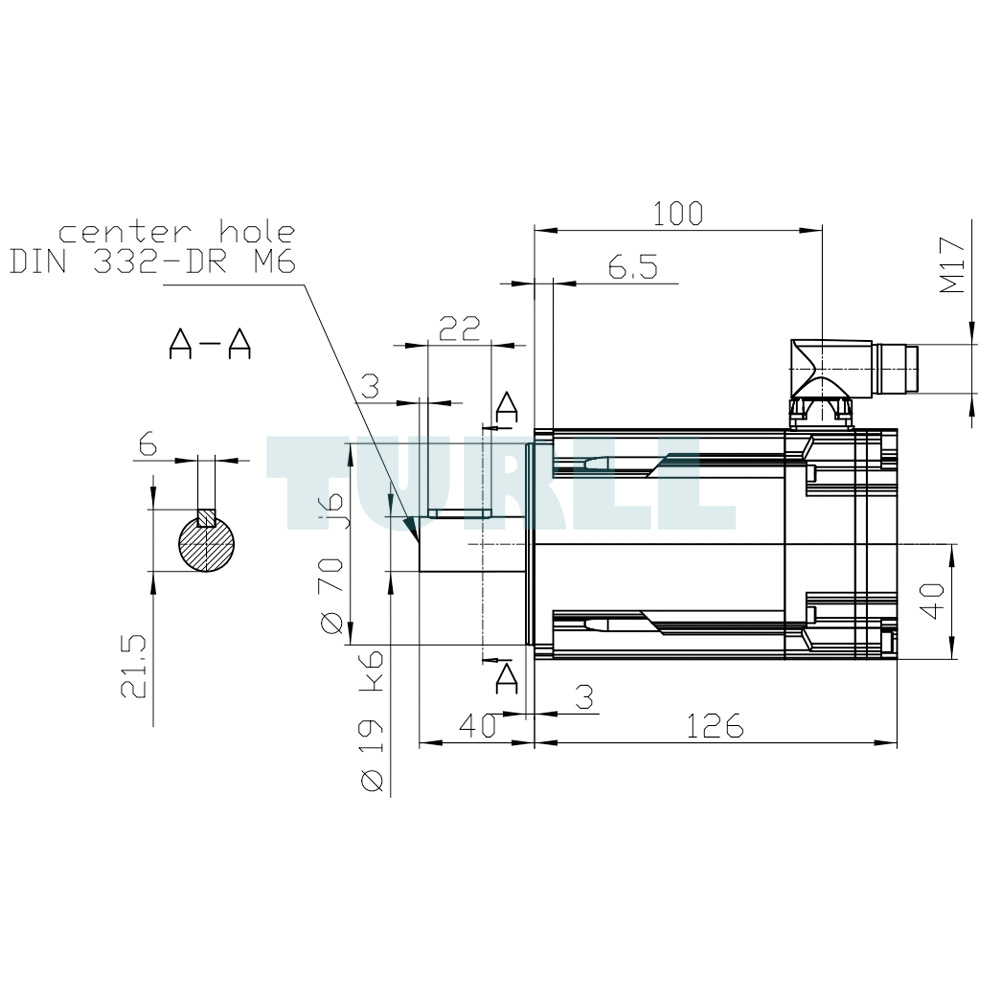

The SIEMENS 1FK2104-5AF00-1MA0 SIMOTICS S-1FK2 High Dynamic servo motor delivers a powerful combination of efficiency, precision, and compact design. With a rated torque of 2.4 Nm, this synchronous motor provides 0.75 kW output at 3000 rpm (380–480 V) and 0.375 kW output at 1500 rpm (200–240 V), making it versatile for a wide range of industrial applications. The robust construction with IP64 protection ensures reliable operation in challenging environments. Its shaft, measuring D19x40 mm with a feather key, offers secure mechanical performance, while the rotatable M17 plug interface adds flexibility in installation.
Equipped with a 22-bit absolute encoder combined with a 12-bit multiturn encoder (AM22DQC), the motor provides highly accurate feedback for precise motion control. The OCC interface enhances communication and integration with advanced automation systems. This motor is designed for compatibility with the SINAMICS S210 servo drive system, enabling seamless integration in modern production lines where performance, stability, and responsiveness are essential.
Overview
The SIMOTICS S-1FK2 series is known for its high dynamic response, overload capacity, and compact form factor. With limited but efficient variants, selection and integration are straightforward, making it easier to design reliable drive systems. These motors serve as the backbone of industrial automation, particularly in robotics, packaging machinery, and precision tools.
The extended 1FT2 family complements this series by offering additional torque levels, broader speed ranges, and greater flexibility, ensuring solutions for even the most demanding drive technology requirements. Together, the 1FK2 and 1FT2 families represent Siemens’ dedication to precision, reliability, and scalable motor technology.
Download
Product Code: 1FK2104-5AF00-1MA0
More Siemens products at Turll.com
| Weight | 2.85 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
