1FK2104-5AF00-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$578.00
SIEMENS SIMOTICS S-1FK2 HD servo motor with 2.4 Nm torque, 0.75 kW output, IP64 protection, 22-bit encoder, and DRIVE-CLiQ M17 connectivity.
1FK2104-5AF00-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

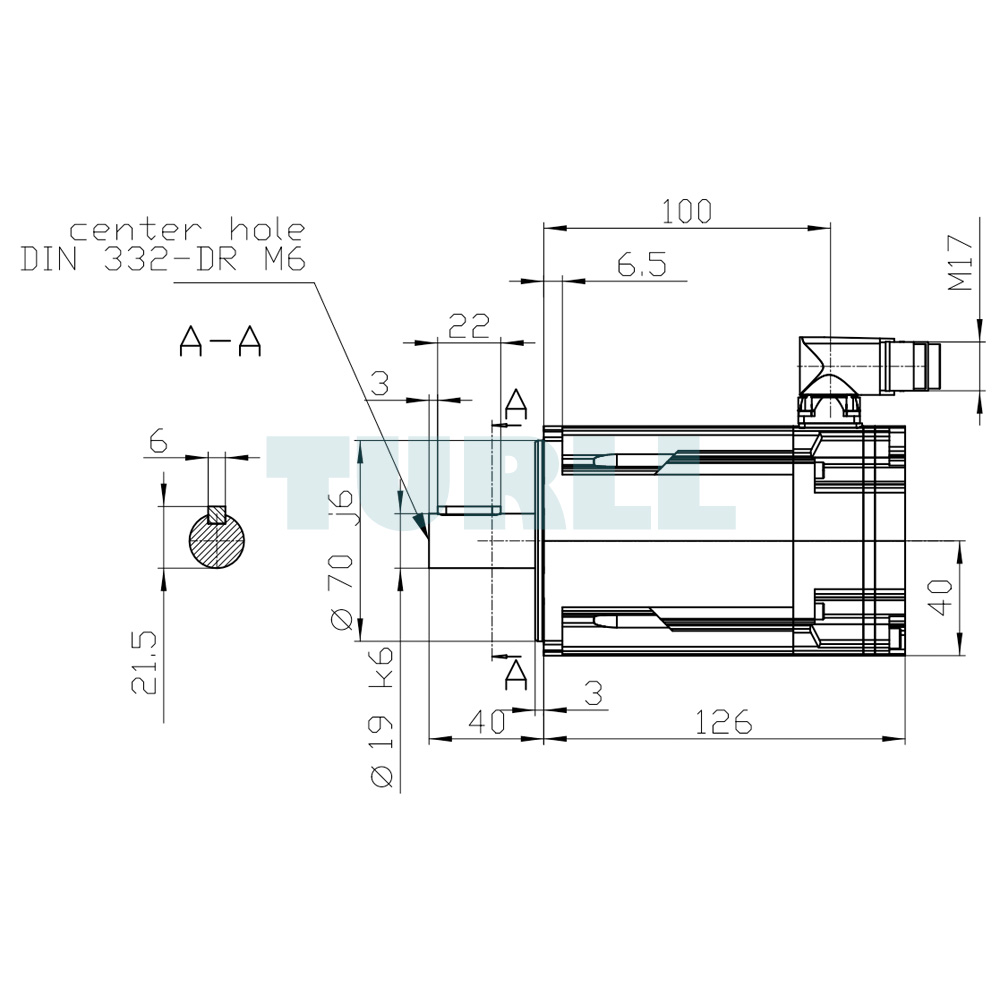

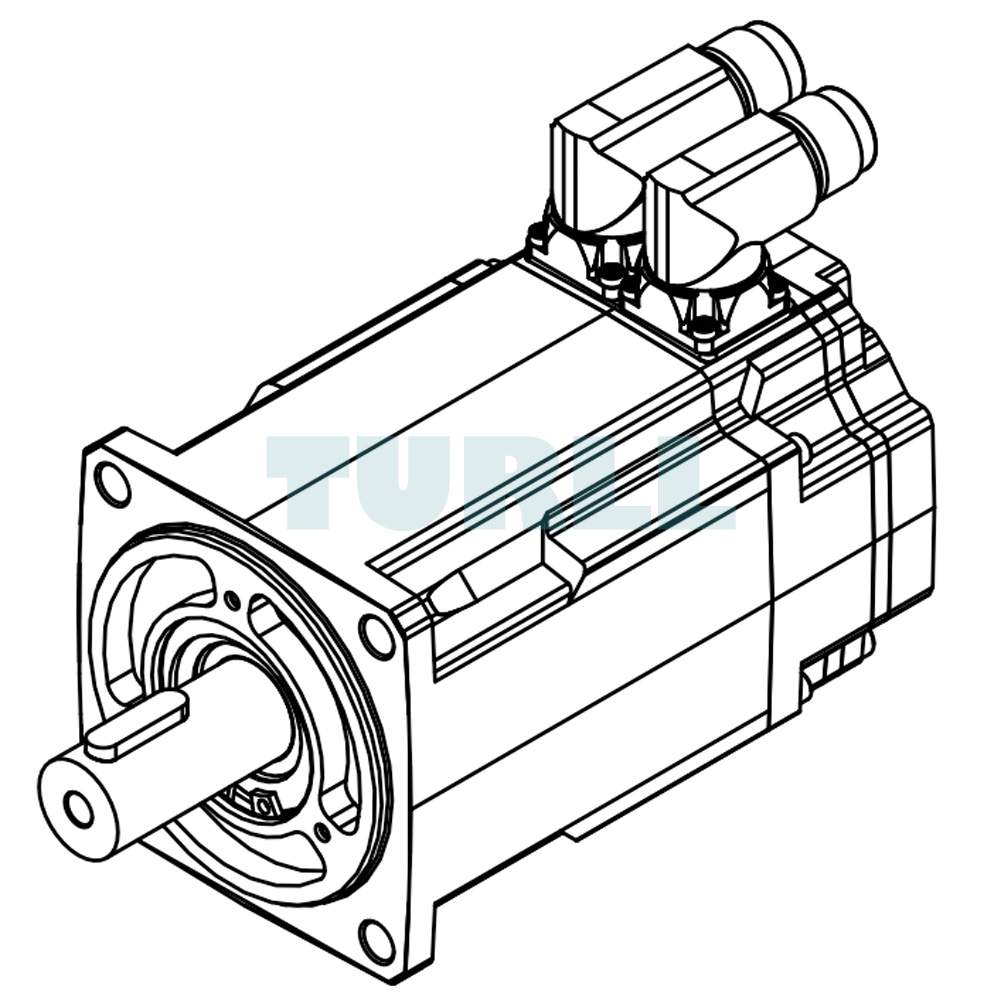

The SIEMENS 1FK2104-5AF00-1SB0 SIMOTICS S-1FK2 High Dynamic servo motor is a high-performance synchronous motor developed for advanced motion control in modern automation. With a rated torque of 2.4 Nm and a nominal power of 0.75 kW at 3000 rpm (380–480 V) or 0.375 kW at 1500 rpm (200–240 V), this compact drive unit ensures efficient operation across different voltage ranges. The robust design includes IP64 protection, a shaft dimension of 19×40 mm with a feather key, and precise positioning enabled by the integrated absolute single-turn 22-bit encoder (AS22DQC). The DRIVE-CLiQ M17 plug connection and M17 power connector guarantee seamless integration with SINAMICS servo drive systems.
The compact construction and high power density make the motor particularly well-suited for machine tools, handling systems, packaging machines, and robotics. It delivers the responsiveness needed for applications with frequent accelerations while maintaining precise and stable operation for medium-to-high inertial loads. This adaptability provides users with both flexibility and reliability in diverse industrial environments.
Overview
The SIMOTICS S-1FK2 motor family is engineered to meet the essential requirements of modern servo drive technology. With high overload capacity and optimized cooling, these motors enable continuous performance under demanding conditions. The simplified portfolio structure makes selection straightforward, while still covering a broad range of applications.
For even greater versatility, the 1FT2 motor series extends the product range with more finely graded speeds, expanded torque options, and specialized variations. Together, the 1FK2 and 1FT2 motors deliver scalable solutions that allow engineers to master complex automation tasks with confidence.
Download
Product Code: 1FK2104-5AF00-1SB0
More Siemens products at Turll.com
| Weight | 2.85 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
