1FK2104-5AF00-2SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-5AF00-2SA0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

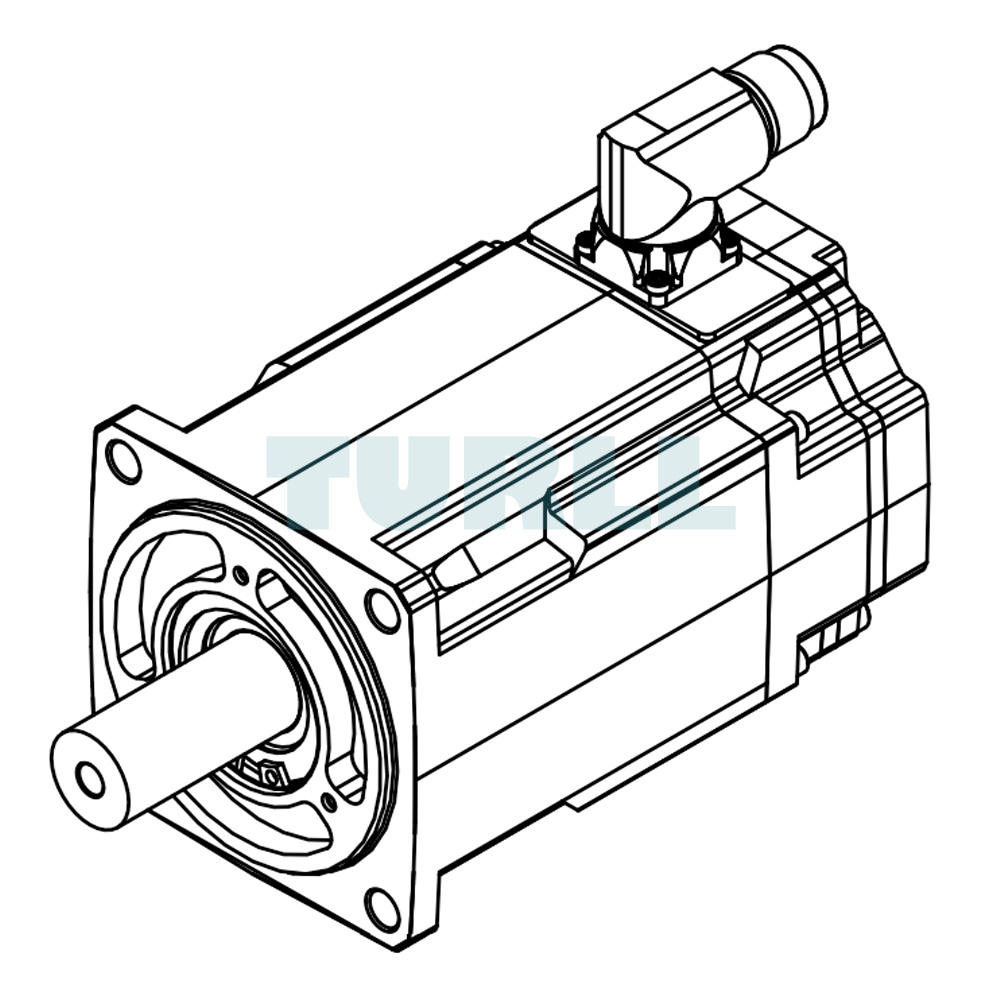

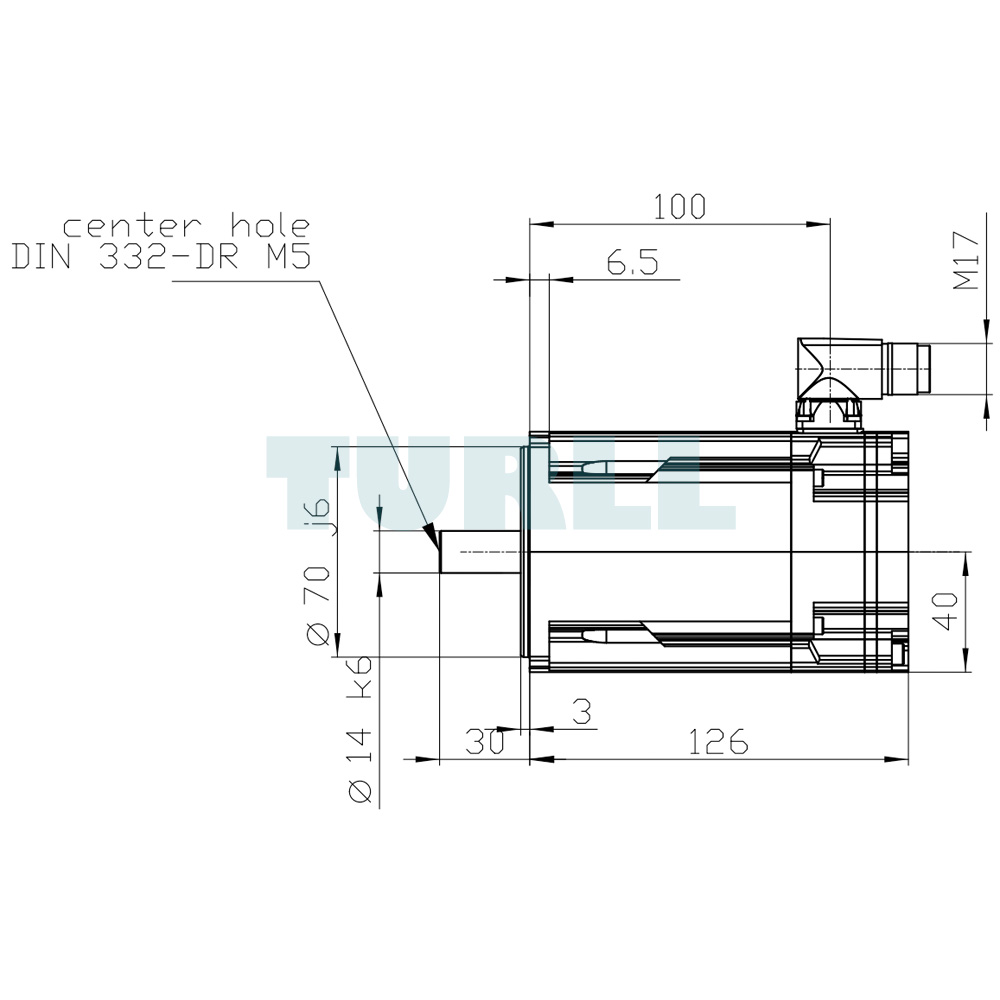

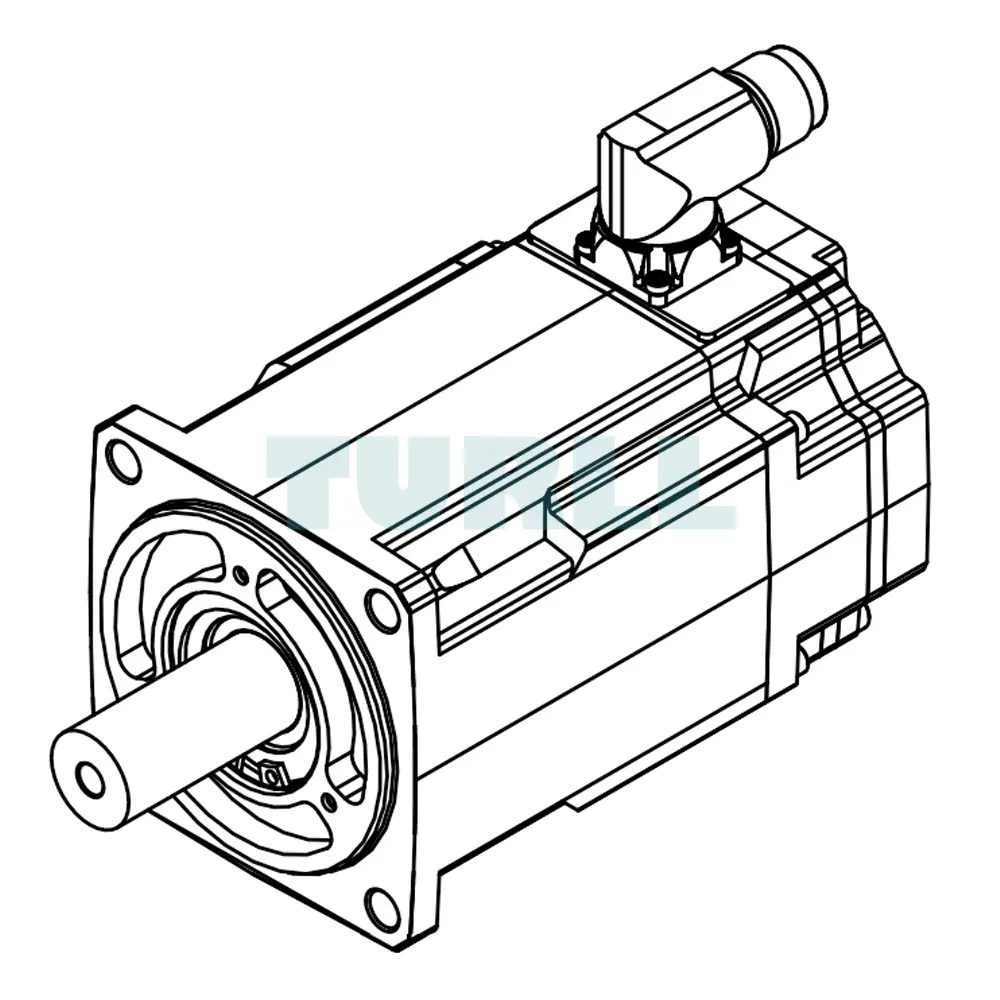

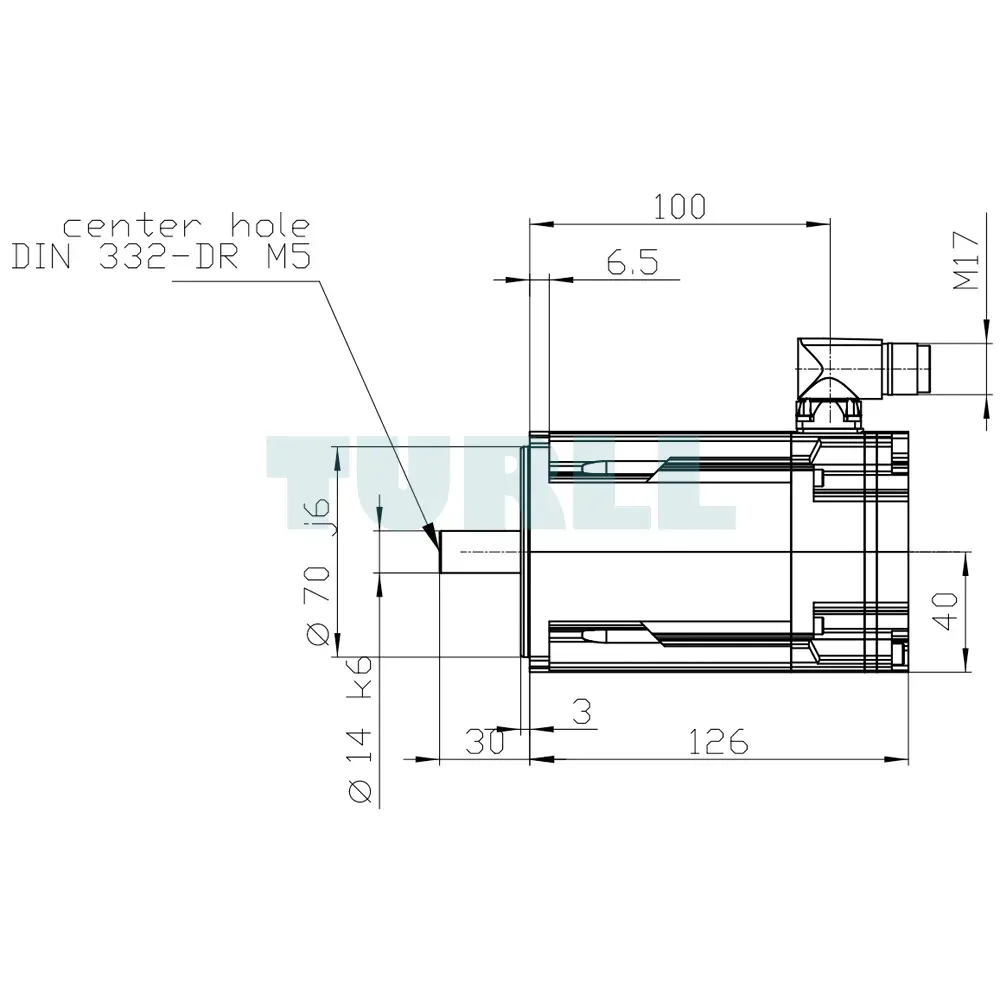

The SIEMENS 1FK2104-5AF00-2SA0 SIMOTICS S-1FK2 High Dynamic servo motor is designed for industrial automation systems that demand accuracy, stability, and long-lasting performance. With a rated torque of 2.4 Nm and a power output of 0.75 kW at 3000 rpm (380–480 V), or 0.375 kW at 1500 rpm (200–240 V), this synchronous motor provides the flexibility needed to support diverse applications. The unit is equipped with IP64 protection, ensuring resistance to dust and splash water, and features a cylindrical shaft measuring 14 x 30 mm. A 22-bit single-turn absolute encoder (AS22DQC) ensures high-resolution position feedback, while the OCC interface with a rotatable M17 connector enables easy integration and optimized cabling.

Thanks to its compact build and high power density, this motor delivers reliable performance in robotics, packaging machines, machine tools, and other industrial systems. Its dynamic response and ability to handle varying loads make it suitable for both high-speed and precision-oriented applications. The carefully engineered design provides durability and stable operation even in challenging conditions.

Overview

The SIMOTICS S-1FK2 series motors are compact and dynamic synchronous motors that deliver high performance for a broad range of industrial applications. With a simplified product range and well-structured options, these motors are easy to configure and integrate, forming the foundation of the SINAMICS S210 servo drive system.

For more specialized requirements, the 1FT2 motor family extends the offering with a wider range of torque levels, finely graded speeds, and additional variants. Together, the 1FK2 and 1FT2 product lines provide scalable solutions to meet the most demanding challenges in motion control technology.

Download

Data Sheet (PDF)

Product Code: 1FK2104-5AF00-2SA0
