1FK2104-5AF11-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$762.32
SIEMENS SIMOTICS S-1FK2 servo motor with 2.4 Nm torque, 0.75 kW power at 3000 rpm, IP65 protection, AS22DQC encoder, and DRIVE-CLiQ interface.
1FK2104-5AF11-1SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

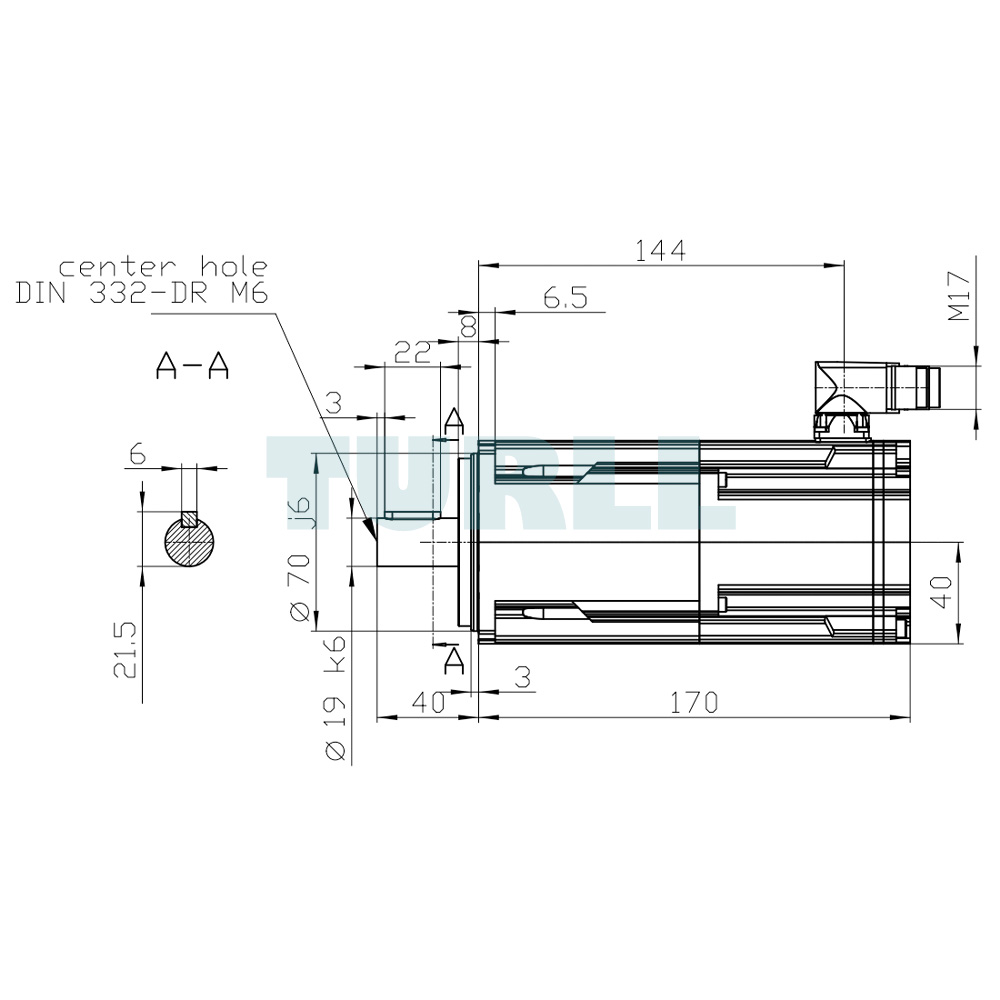

The SIEMENS 1FK2104-5AF11-1SB0 SIMOTICS S-1FK2 High Dynamic servo motor combines compact design with powerful performance, making it an essential solution for advanced industrial applications. This synchronous motor provides a rated torque of 2.4 Nm and delivers 0.75 kW at 3000 rpm with a voltage range of 380–480 V. When operated at 200–240 V, it achieves 0.375 kW at 1500 rpm. With a rugged IP65 protection rating, integrated holding brake, and robust shaft dimension of 19×40 mm featuring a feather key, it ensures operational reliability in demanding environments.
Engineered with a 22-bit single-turn absolute encoder (AS22DQC) and equipped with DRIVE-CLiQ plug M17 connectivity, the motor supports seamless integration with SINAMICS servo drive systems. Its high resolution enables precise feedback for smooth control and efficiency in machine tools, automation systems, and robotics applications. The compact form factor combined with high torque density ensures flexibility in installation without sacrificing output performance.
Overview
The SIMOTICS S-1FK2 series is specifically designed to meet industrial demands for reliability, high dynamics, and long service life. As the core range for SINAMICS S210 drive systems, these motors simplify project planning by offering optimized variants while maintaining flexibility. The portfolio also includes the extended 1FT2 family, which provides finer speed gradations, higher torque ratings, and additional options for even more demanding automation requirements.
SIMOTICS S-1FK2 High Dynamic motors are built for applications with low inertia, allowing for rapid acceleration and precise control. Meanwhile, Compact motors in the same family are optimized for stable operation where medium to high mass loads must be moved with precision. Together, these designs provide a scalable solution for varied automation challenges across industries such as packaging, material handling, and precision manufacturing.
Download
Product Code: 1FK2104-5AF11-1SB0
More Siemens products at Turll.com
| Weight | 3.7 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
