1FK2104-5AK00-0MB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New
$748.54
SIEMENS SIMOTICS S-1FK2 servo motor with 2.4 Nm torque, 1.07 kW output, IP64 protection, AM22DQC multiturn encoder, and DRIVE-CLiQ M17 interface.
1FK2104-5AK00-0MB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

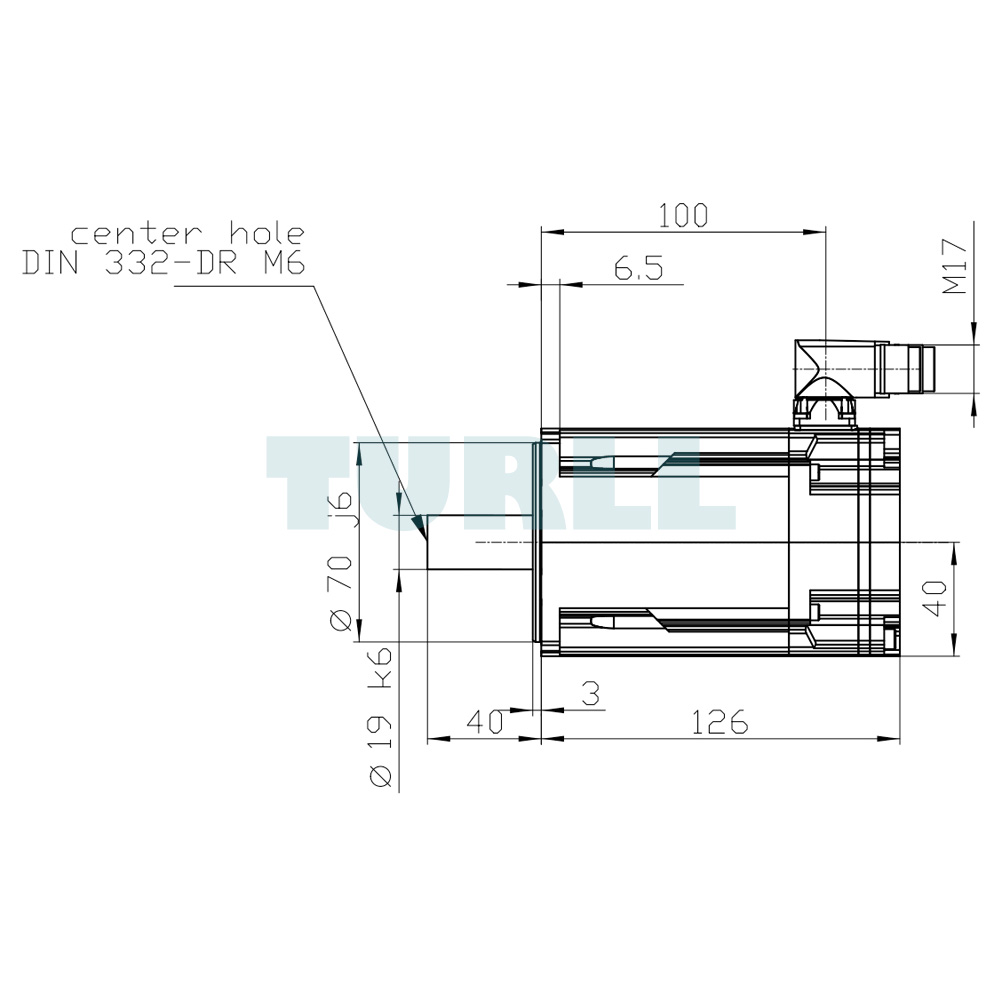

The SIEMENS 1FK2104-5AK00-0MB0 SIMOTICS S-1FK2 High Dynamic servo motor is a premium industrial solution designed to deliver excellent performance, durability, and precision. With a torque rating of 2.4 Nm, the motor achieves 1.07 kW at 6000 rpm with a voltage supply of 380–480 V, and 0.75 kW at 3000 rpm with 200–240 V supply. Featuring IP64 degree of protection, a cylindrical shaft design of 19×40 mm, and an integrated 22-bit + 12-bit multiturn absolute encoder (AM22DQC), this motor provides reliable feedback and robust operation even under demanding industrial conditions.
The compact design and high power density make the motor a strong choice for a variety of industrial applications, including packaging machines, robotics, conveyor systems, and precision automation. With its DRIVE-CLiQ M17 plug and power connector, seamless integration into SINAMICS drive systems is ensured, enabling flexible deployment in both simple and advanced setups. The motor’s multiturn encoder capability adds an additional level of reliability, allowing precise positioning even after power loss.
Overview
The SIMOTICS S-1FK2 series combines compact dimensions with high dynamic response, delivering an optimized balance between performance and efficiency. These motors are central to the SINAMICS S210 servo drive ecosystem, designed for stable control across a broad range of load conditions. The 1FK2 portfolio simplifies selection with a limited number of standardized options while still offering versatile configurations suitable for multiple industries.
For applications that demand even finer speed gradations or enhanced torque levels, the 1FT2 series complements the 1FK2 family by extending the performance range. Together, these motors cover a wide spectrum of requirements, ensuring that both standard automation needs and complex drive challenges are addressed with precision.
Download
Product Code: 1FK2104-5AK00-0MB0
More Siemens products at Turll.com
| Weight | 2.85 kg |
|---|---|
| Dimensions | 452 × 250 × 267 mm |
