1FK2104-5AK00-0SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

1FK2104-5AK00-0SB0 SIEMENS Exclusive SIMOTICS S-1FK2 HD Servo Motor Original Brand New

The SIEMENS 1FK2104-5AK00-0SB0 SIMOTICS S-1FK2 High Dynamic servo motor is a precision-engineered synchronous motor designed to provide outstanding accuracy, high torque output, and consistent reliability for industrial automation. With a rated torque of 2.4 Nm and a nominal power of 1.07 kW at 6000 rpm (380–480 V), or 0.75 kW at 3000 rpm (200–240 V), this motor is suitable for a wide variety of demanding applications where efficiency and dynamic response are essential. The unit is built with an IP64 degree of protection, ensuring resilience against dust and splashing water, making it suitable for robust working conditions.

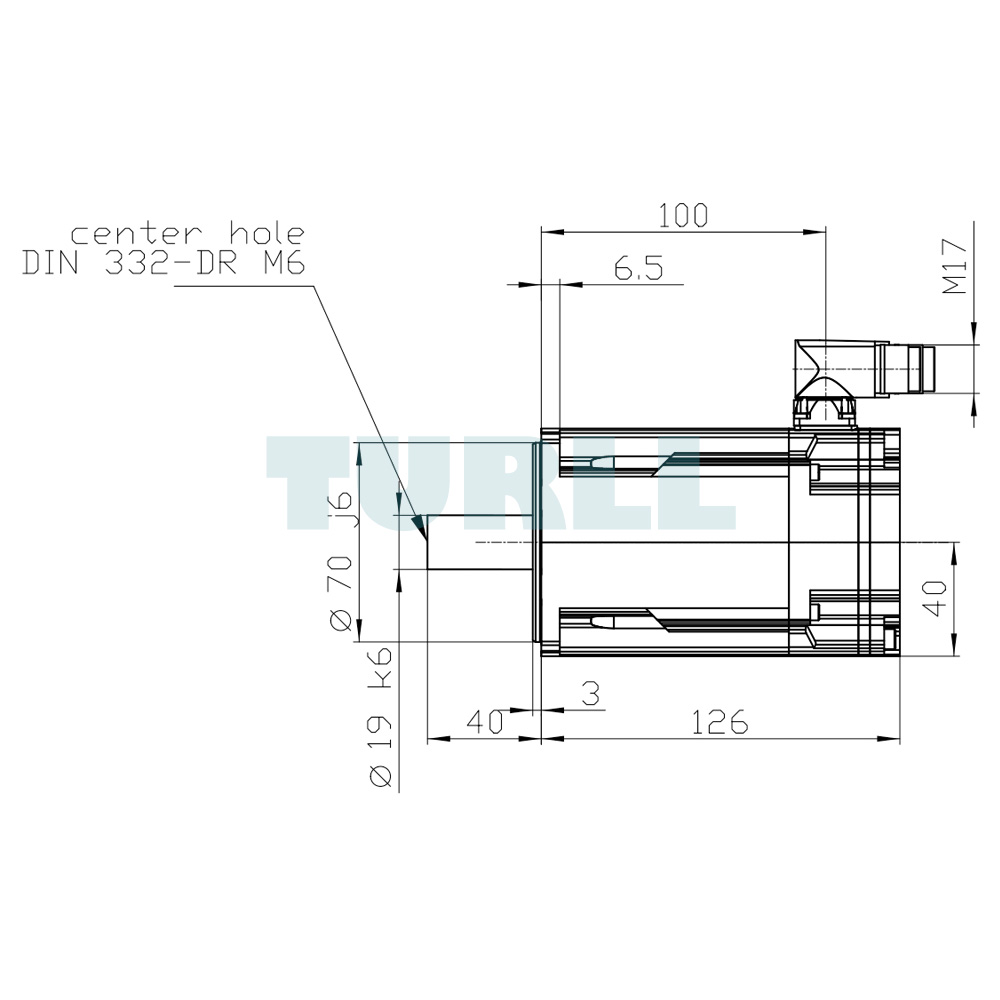

The cylindrical shaft measuring 19×40 mm provides secure mechanical stability, while the integrated single-turn 22-bit absolute encoder (AS22DQC) delivers precise positional feedback for advanced motion control. Equipped with a DRIVE-CLiQ M17 plug and matching power connector, the motor integrates seamlessly into the SINAMICS drive system, ensuring simplified commissioning, fast communication, and reliable performance.

Overview

The SIMOTICS S-1FK2 series is recognized for its compact size, high power density, and strong overload capability. These motors are ideal for diverse industrial applications, including robotics, packaging machinery, and machine tools. As the core drive components for SINAMICS S210 servo systems, they provide both dynamic responsiveness and stable operation. For applications requiring even greater flexibility, the 1FT2 portfolio expands this range by offering finer speed gradations, additional torque ratings, and multiple configuration options. Together, the 1FK2 and 1FT2 families cover a broad spectrum of automation needs, ensuring optimal performance in both standard and demanding environments.

Download

Data Sheet (PDF)

Product Code: 1FK2104-5AK00-0SB0
